5NS247KNBLM-G

型号：

5NS247KNBLM-G

描述：

盘式陶瓷电容器[ Disc Ceramic Capacitors ]

品牌：

KYOCERA AVX[ KYOCERA AVX ]

页数：

4 页

PDF大小：

70 K

下载PDF手册

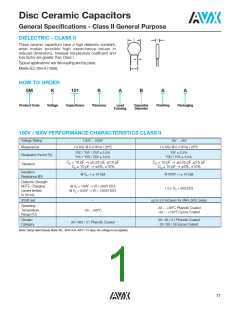

Disc Ceramic Capacitors
General Specifications - Class II General Purpose
DIELECTRIC - CLASS II
These ceramic capacitors have a high dielectric constant,
what makes possible high capacitance values in
reduced dimensions, however temperature coefficient and
loss factor are greater than Class I.
Typical applications are decoupling and by pass.
Meets IEC 384-9 (1988).
HOW TO ORDER
5M
K
101
K
A
B
A
A
Product Code
Voltage
Capacitance
Tolerance
Lead
Forming
Capacitor
Diameter
Finishing
Packaging
100V / 500V PERFORMANCE CHARACTERISTICS CLASS II
Voltage Rating
100V ... 500V
1kV ... 5kV
Measured at
1.0 kHz @ 0.3 Vrms / 25ºC
1.0 kHz @ 0.3 Vrms / 25ºC
Y5E / Y5F / Y5P ≤ 2.5%
Y5U / Y5V / Z5V ≤ 3.0%
Y5F ≤ 2.5%
Y5U / Y5V ≤ 3.0%
Dissipation Factor (%)
Tolerance
CR < 10 pF → 0.25 pF, 0.5 pF
CR ≥ 10 pF → 5%, 10%
CR < 10 pF → 0.25 pF, 0.5 pF
CR ≥ 10 pF → 5%, 10%
Insulation
Resistance (IR)
@ VR → ≥ 10 GΩ
@ 500V → ≥ 10 GΩ
Dielectric Strength
NOTE: Charging
current limited
to 50 mA
@ VR = 100V → Vt = 250V (DC)
@ VR = 500V → Vt = 1250V (DC)
1.5 x VR + 500 (DC)
dV/dt test
–
up to 3.0 kV/µsec for 5NR; 5NS Series
Operating
Temperature
Range (ºC)
-30 ... +85ºC Phenolic Coated
-30 ... +125ºC Epoxy Coated
-30... +85ºC
Climatic
Category
30 / 85 / 21 Phenolic Coated
30 / 85 / 56 Epoxy Coated
30 / 085 / 21 Phenolic Coated
Note: Damp Heat Steady State: 90... 95% R.H. 40ºC / 21 days. No voltage to be applied.
11
Disc Ceramic Capacitors
General Specifications - Class II General Purpose
TEMPERATURE COEFFICIENT – TYPICAL CURVES
12
Disc Ceramic Capacitors
Dimension Table - Class II
Low and Medium Voltage General Purpose
100V / 500V CLASS II – CAPACITANCE VS. DISC DIAMETER
millimeters (inches)
Temp.
Coefficient
Y5E
Y5F
Y5P
Y5U
Y5V
Z5V
Digits 1,2,3
5MK
5MQ
5NK
5NQ
5OK
100 VDC
5OQ
5SK
5SQ
5TK
100 VDC
5TQ
5UK
of P.N.
Rated
Voltage (VR)
100 VDC
500 VDC
100 VDC
500 VDC
500 VDC
100 VDC
500 VDC
500 VDC
100 VDC
CR (pF)
56
68
82
100
120
150
5.0 (0.197)
180
5.0 (0.197)
220
270
330
390
470
5.0 (0.197)
560
5.0 (0.197)
5.0 (0.197)
6.0 (0.236)
680
6.0 (0.236)
7.0 (0.276)
5.0 (0.197)
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
12,000
15,000
22,000
33,000
47,000
100,000
7.0 (0.276)
9.0 (0.354)
6.0 (0.236)
7.0 (0.276)
6.0 (0.236)
7.0 (0.276)
6.0 (0.236)
7.0 (0.276)
5.0 (0.197)
6.0 (0.236)
7.0 (0.276)
10.0 (0.394)
5.0 (0.197)
7.0 (0.276)
9.0 (0.354)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
5.0 (0.197)
10.0 (0.394)
11.0 (0.433)
9.0 (0.354)
5.0 (0.197)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
10.0 (0.394)
7.0 (0.276)
9.0 (0.354)
12.0 (0.472)
9.0 (0.354)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
5.0 (0.197)
6.0 (0.236)
6.0 (0.236)
7.0 (0.276)
11.0 (0.433)
14.0 (0.551)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
7.0 (0.276)
9.0 (0.354)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
7.0 (0.276)
8.0 (0.315)
12.0 (0.472)
6.0 (0.236)
19.0 (0.748)
16.0 (0.630)
19.0 (0.748)
23.0 (0.906)
19.0 (0.748)
Diameter (φ) = 9th Part Number Digit
13
Disc Ceramic Capacitors
Dimension Table - Class II
High Voltage - Class II General Purpose
1kV / 5kV CLASS II – CAPACITANCE VS. DISC DIAMETER
millimeters (inches)
Temp.
Coefficient
Y5F
Y5U
Y5V
Digits 1,2,3
of P.N.
5NR
5NS
5NT
5SR
5SS
5ST
5SU
5SW
5TR
5TS
5TT
Rated
1000 VDC
2000 VDC 3000 VDC 1000 VDC
2000 VDC 3000 VDC 4000 VDC 5000 VDC 1000 VDC 2000 VDC 3000 VDC
Voltage (VR) 100 VAC
150 VAC
150 VAC
100 VAC
150 VAC
150 VAC
150 VAC
150 VAC
100 VAC
150 VAC
150 VAC
CR (pF)
47
56
68
82
5.0 (0.197
5.0 (0.197)
100
120
5.0 (0.197)
6.0 (0.236)
5.0 (0.197)
8.0 (0.315)
5.0 (0.197
150
5.0 (0.197)
180
220
270
330
390
470
560
6.0 (0.236)
8.0 (0.315)
6.0 (0.236)
8.0 (0.315)
5.0 (0.197)
6.0 (0.236)
8.0 (0.315)
5.0 (0.197)
680
820
6.0 (0.236)
8.0 (0.315)
8.0 (0.315)
9.0 (0.354)
6.0 (0.236)
8.0 (0.315)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
14.0 (0.551)
16.0 (0.630)
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
12,000
15,000
22,000
50,000
100,000
9.0 (0.354)
10.0 (0.394)
9.0 (0.354)
10.0 (0.394)
14.0 (0.551)
16.0 (0.630)
5.0 (0.197)
6.0 (0.236)
5.0 (0.197)
6.0 (0.236)
10.0 (0.394)
11.0 (0.433)
11.0 (0.433)
12.0 (0.472)
9.0 (0.354)
10.0 (0.394)
11.0 (0.433)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
8.0 (0.315)
8.0 (0.315)
9.0 (0.354)
12.0 (0.472)
9.0 (0.354)
14.0 (0.551)
19.0 (0.748)
8.0 (0.315)
10.0 (0.394)
14.0 (0.551)
16.0 (0.630)
9.0 (0.354)
11.0 (0.433)
12.0 (0.472)
8.0 (0.315)
10.0 (0.394)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
12.0 (0.472)
16.0 (0.630)
19.0 (0.748)
9.0 (0.354)
10.0 (0.394)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
12.0 (0.472)
14.0 (0.551)
16.0 (0.630)
14.0 (0.551)
14.0 (0.551)
19.0 (0.748)
23.0 (0.906)
Diameter (φ) = 9th Part Number Digit
