2STP535FP

型号：

2STP535FP

描述：

NPN功率达林顿晶体管[ NPN power Darlington transistor ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

8 页

PDF大小：

169 K

下载PDF手册

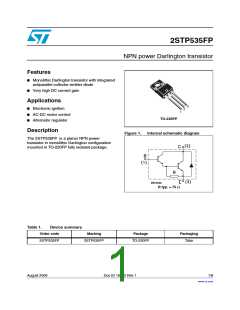

2STP535FP
NPN power Darlington transistor
Features
■ Monolithic Darlington transistor with integrated
antiparallel collector-emitter diode
■ Very high DC current gain
Applications
3
■ Electronic ignition
■ AC-DC motor control
■ Alternator regulator
2
1
TO-220FP
Description
Figure 1.
Internal schematic diagram
The 2STP535FP is a planar NPN power
transistor in monolithic Darlington configuration
mounted in TO-220FP fully isolated package.
R typ. = 75 Ω
Table 1.
Order code
2STP535FP
Device summary
Marking
Package
TO-220FP
Packaging
2STP535FP
Tube
August 2009
Doc ID 16132 Rev 1
1/8
www.st.com
8
Electrical ratings
2STP535FP
1
Electrical ratings
Table 2.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
V
VCBO
VCEO
VEBO
IC
Collector-base voltage (IE = 0)
Collector-emitter voltage (IB = 0)
Emitter-base voltage (IC = 0)
Collector current
180
180
V
5
V
8
A
ICM
IB
Collector peak current (tp < 5 ms)
Base current
15
A
1
37
A
Ptot
Tstg
TJ
Total dissipation at Tc ≤ 25 °C
Storage temperature
W
°C
°C
-65 to 150
150
Max. operating junction temperature
Table 3.
Symbol
Thermal data
Parameter
Thermal resistance junction-case max
Value
3.4
Unit
Rthj-case
°C/W
2/8
Doc ID 16132 Rev 1
2STP535FP
Electrical characteristics
2
Electrical characteristics
(T
= 25 °C unless otherwise specified)
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
Min. Typ. Max. Unit
Collector cut-off
current (IB = 0)
ICEO
ICBO
IEBO
VCE = 180 V
VCB = 180 V
EB = 5 V
50
50
µA
µA
µA
Collector-base cut-off
current (IE = 0)
Emitter-base cut-off
current (IC = 0)
V
100
Collector-emitter
sustaining voltage
(1)
VCEO(sus)
IC = 30 mA
180
V
(IB = 0)
(1)
VCE(sat)
IC = 3 A
IC = 8 A
IB = 6 mA
2
V
V
Collector-emitter
saturation voltage
IB = 80 mA
2.5
Base-emitter (on)
voltage
(1)
VBE(on)
IC = 8 A
VCE = 4 V
2.8
V
IC = 3 A
IC = 8 A
VCE = 4 V
VCE = 4 V
1000
200
20000
(1)
hFE
DC current gain
(1)
VF
Diode forward voltage IF = 10 A
2.8
V
1. Pulse test: pulse duration ≤300 µs, duty cycle ≤2 %.
Doc ID 16132 Rev 1
3/8
Electrical characteristics
2STP535FP
2.1
Electrical characteristics (curves)
Figure 2.
Collector-emitter saturation Figure 3.
Collector-emitter saturation
voltage (h = 500)
voltage (h = 100)
FE
FE
Figure 4.
DC current gain
4/8
Doc ID 16132 Rev 1
2STP535FP
Package mechanical data
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and products status are available at: www.st.com.
ECOPACK® is an ST trademark.
Doc ID 16132 Rev 1
5/8
Package mechanical data
2STP535FP
TO-220FP mechanical data
mm
Dim.
Min.
Typ.
Max.
A
B
4.4
2.5
4.6
2.7
2.75
0.7
1
D
2.5
E
0.45
0.75
1.15
1.15
4.95
2.4
F
F1
F2
G
1.70
1.5
5.2
2.7
10.4
G1
H
10
L2
L3
L4
L5
L6
L7
Dia
16
28.6
9.8
2.9
15.9
9
30.6
10.6
3.6
16.4
9.3
3
3.2
L7
E
A
B
D
Dia
L5
L6
F2
F1
F
G
H
G1
L4
L2
L3
7012510_Rev_J
6/8
Doc ID 16132 Rev 1
2STP535FP
Revision history
4
Revision history
Table 5.
Date
17-Aug-2009
Document revision history
Revision
Changes
1
Initial release
Doc ID 16132 Rev 1
7/8
2STP535FP
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2009 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
8/8
Doc ID 16132 Rev 1
