1SS272

型号:

1SS272

描述:

低正向电压: VF ( 3 )= 0.92 V(典型值)小总电容: CT = 0.9pF (典型值)[ Low Forward Voltage:VF(3) =0.92 V(Typ.) Small Total Capacitance: CT = 0.9pF(Typ.) ]

品牌:

TYSEMI[ TY Semiconductor Co., Ltd ]

页数:

1 页

PDF大小:

59 K

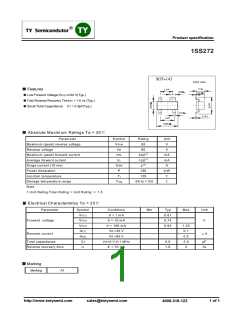

Product specification
1SS272
Unit: mm
Features
Low Forward Voltage:VF(3) =0.92 V(Typ.)
Fast Reverse Recovery Time:trr = 1.6 ns (Typ.)
Small Total Capacitance: CT = 0.9pF(Typ.)
Absolute Maximum Ratings Ta = 25
Parameter
Maximum (peak) reverse voltage
Reverse voltage
Symbol
VR M
VR
Rating
85
Unit
V
80
V
300(1)
100(1)
2(1)
Maximum (peak) forward current
Average forward current
Surge current (10 ms)
Power dissipation
IFM
mA
mA
A
IO
IFSM
P
150
mW
Junction temperature
Storage temperature range
Note
Tj
125
Tstg
-55 to +125
1.Unit Rating.Total Rating = Unit Rating
1.5
Electrical Characteristics Ta = 25
Parameter
Symbol
VF(1)
VF(2)
VF(3)
IR(1)
IR(2)
CT
Conditions
IF = 1 mA
Min
Typ
0.61
0.74
0.92
Max
Unit
V
Forward voltage
IF = 10 mA
IF = 100 mA
VR =30 V
1.20
0.1
0.5
2.0
4
Reverse current
A
VR =80 V
Total capacitance
VR=0 V,f=1 MHz
IF = 10 mA
0.9
1.6
pF
ns
Reverse recovery time
rs
Marking
Marking
A1
http://www.twtysemi.com
1 of 1
