1SS401

型号:

1SS401

描述:

低正向电压VF ( 3 ) = 0.38 V(典型值)低反向电流: IR = 50 A[ Low forward voltage:VF(3) = 0.38 V(Typ) Low reverse current:IR = 50 A ]

品牌:

TYSEMI[ TY Semiconductor Co., Ltd ]

页数:

1 页

PDF大小:

68 K

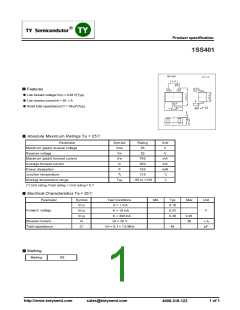

Product specification
1SS401
Features
Low forward voltage:VF(3) = 0.38 V(Typ)
Low reverse current:IR = 50
A
Small total capacitance:CT = 46 pF(Typ)
Absolute Maximum Ratings Ta = 25
Parameter
Maximum (peak) reverse voltage
Reverse voltage
Symbol
VRM
VR
Rating
25
Unit
V
20
V
Maximum (peak) forward current
Average forward current
IFM
IO
700
mA
mA
mW
300
Power dissipation
P
100
Junction temperature
Tj
125
Storage temperature range
(*) Unit rating.Total rating = Unit rating 0.7
Tstg
-55 to +125
Electrical Characteristics Ta = 25
Parameter
Symbol
VF(1)
VF(2)
VF(3)
IR
Test Conditions
IF = 1 mA
Min
Typ
0.16
0.22
0.38
Max
Unit
V
Forward voltage
IF = 10 mA
IF = 300 mA
VR = 20 V
0.45
50
Reverse Current
Total capacitance
A
CT
VR = 0, f = 1.0 MHz
46
pF
Marking
Marking
D9
http://www.twtysemi.com
1 of 1
