EZA-EGCA50AV

型号：

EZA-EGCA50AV

描述：

ESD抑制器阵列[ ESD Suppressor Array ]

品牌：

PANASONIC[ PANASONIC ]

页数：

2 页

PDF大小：

92 K

下载PDF手册

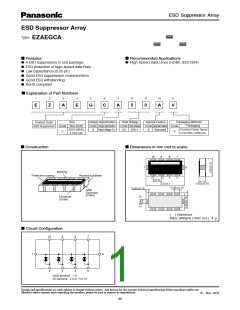

ESD Suppressor Array
ESD Suppressor Array
Type:
EZAEGCA
■ Features
■ Recommended Applications
High-Speed Data Lines (HDMI, IEEE1394)
●
4 ESD suppressors in one package
ESD protection of high-speed data lines
Low capacitance (0.25 pF)
●
●
●
● Good ESD suppression characteristics
Good ESD withstanding
RoHS compliant
●
●
■ Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
&
;
"
&
(
$
"
ꢀ
ꢁ
"
7
Packaging Methods
Product Code
Size
Design Specification
Peak Voltage
Special Feature
Packaging
Punched Carrier Taping
4 mm Pitch, 5,000 pcs.
Code
C
Code
A
Code
50
Code
A
Code
Size (inch)
2012 (0805)
4 Line use
Design Specification
Rated Voltage 15 V
Peak Voltage
500 V
Special Feature
Standard
ESD Suppressor
V
■ Construction
■ Dimensions in mm (not to scale)
10
9
8
7
1
6
Marking
Protective coating
Alumina substrate
2
3
4
5
(0.5)
2.0 0.1
0.50 0.10
0.30 0.15
0.20 0.15
GND
Electrode
(Outer)
Electrode
(Outer)
(
) Reference
Mass (Weight) [1000 pcs.] :4 g
■ Circuit Configuration
10
9
8
7
1
6
2
3
4
5
GND terminal : 1, 6
I/O terminal : 2 to 5, 7 to 10
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2012
60
ESD Suppressor Array
■ Ratings
Type
(inch size)
Clamping
Voltage(3)
Rated
Capacitance(1)
Peak Voltage(2)
Rated Current(5) Category Temperature Range
Voltage(4)
EZAEGCA
(0805)
500 V max.
(350 V typ.)
0.25+0.05/-0.10pF
100 V max. 15 V max. 100 mA max.
–55 to +125 °C
(1) Capacitance = The capacitance value shall be measured under the conditions specified below.
Frequency : 1 MHz 10 %, Voltage : 1 Vrms 0.2 Vrms, Temperature : 25 °C 2 °C
(2) Peak Voltage = The peak voltage value shall be measured under the following conditions. ESD test conditions : IEC61000-4-2, 8 kV contact discharge
(3) Clamping Voltage = The clamping voltage value shall be measured at 30 ns after initiation of pulse and measured under the conditions specified below.
ESD test conditions : IEC61000-4-2, 8 kV contact discharge
(4) Rated voltage between I/O terminal and GND.
(5) Rated current between input terminal and output terminal.
■ Typical Circuits Requiring Protection
● HDMI circuit
■ ESD Suppression Voltage Waveform
400
350
300
250
200
150
100
50
HDMI Controller
)%.*
3Yꢀ5Y
0
-50
-20
0
20 40 60 80 100 120 140 160 180 200
Times (nSecs)
■ Recommended Land Pattern
Recommended land pattern design for ESD Suppressor Array is shown below.
-BOEꢁQBUUFSO
b g
P
a
b
c
d
Dimensions
(mm)
0.75
0.25
1.70
0.35
e
h
g
P
c
h
Dimensions
(mm)
1.85
2.60
0.25
0.50
■ Packaging Methods, Soldering Conditions and Safety Precautions
Please see Data Files
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2012
