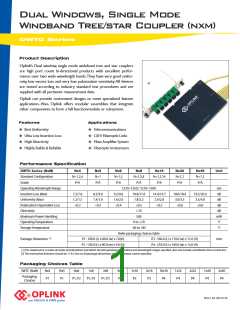

Dual Windows, Single Mode
Windband Tree/star Coupler (nxm)
DWTC Series
Product Description
Oplink’s Dual window, single mode wideband tree and star couplers
are high port count bi-directional products with excellent perfor-
mance over two wide wavelength bands.They have very good unifor-
mity, low excess loss and very low polarization sensitivity.All devices
are tested according to industry standard test procedures and are
supplied with all pertinent measurement data.
Oplink can provide customized designs to meet specialized feature
applications. Also, Oplink offers modular assemblies that integrate
other components to form a full functionmodule or subsystem.
Features
Applications
Best Uniformity
Telecommunications
CATV Fiberoptic Links
Fiber Amplifier System
Fiberoptic Instruments
Ultra Low Insertion Loss
High Directivity
HIghly Stable & Reliable
Performance Specificationns
DWTC Series (NxM)
Standard Configuration
Grade
Nx4
N=1,2,4
P/A
Nx5
N=1
P/A
Nx6
N=1,2
P/A
Nx8
N=1,2,8
P/A
Nx16
N=1,2,16
P/A
Nx32
N=1,2
P/A
Nx40
N=1,2
P/A
Unit
Operating Wavelength Range
Insertion Loss (Max)
Uniformity (Max)
1270~1350 / 1510~1590
nm
dB
dB
dB
dB
mW
°C
7.2/7.6
1.2/1.5
<0.3
8.5/9.0
1.4/1.8
<0.3
9.2/9.6
10.8/11.0
1.8/2.2
<0.5
14.4/14.7
18.0/18.4
3.0/3.5
<0.6
19.5/20.0
3.5/4.0
<0.6
1.6/2.0
<0.4
2.4/2.8
<0.5
Polarization Dependent Loss
Directivity
> 55
Maximum Power Handling
Operating Temperature
Storage Temperature
500
0 to +70
-40 to +85
°C
Refer packaging choices table
[2]
Package Dimension
P1 : 100.0 (L) x 80.0 (w) x 7.0(H)
P2 : 130.0 (L) x 90.0 (w) x 9.0 (H)
P3 : 160.0 (L) x 110.0 (w) x 11.0 (H)
P4 : 210.0 (L) x 160.0 (w) x 13.0 (H)
mm
[1] The maximum IL is under all states of polarization and within the full operating temperature and wavelength ranges specified, does not include contribution from connectors.
[2] The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom specified.
Packaging Choices Table
SWTC (NxM)
Nx4
P1
Nx5
P1
Nx6
1x8
2x8
8x8
P2
1x16
P3
2x16
P3
16x16
P4
1x32
P4
2x32
P4
1x40
P4
2x40
P4
Packaging
Choices
P1, P2
P1, P2
P1, P2
S0157. R3. 20121210
