3STL2540

型号:

3STL2540

描述:

低电压高性能PNP功率晶体管[ Low voltage high performance PNP power transistor ]

品牌:

STMICROELECTRONICS[ ST ]

页数:

11 页

PDF大小:

235 K

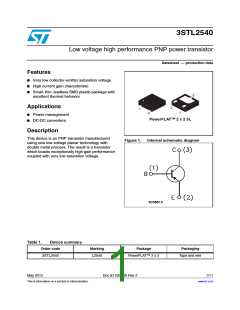

3STL2540
Low voltage high performance PNP power transistor
Datasheet — production data
Features
Very low collector-emitter saturation voltage
High current gain characteristic
Small, thin, leadless SMD plastic package with
3
excellent thermal behavior
Applications
2
1
1
2
Power management
DC-DC converters
PowerFLAT™ 2 x 2 3L
Description
This device is an PNP transistor manufactured
using new low voltage planar technology with
double metal process. The result is a transistor
which boasts exceptionally high gain performance
coupled with very low saturation voltage.
Figure 1.
Internal schematic diagram
Table 1.
Order code
3STL2540
Device summary
Marking
Package
Packaging
L2540
PowerFLAT™ 2 x 2
Tape and reel
May 2012
Doc ID 022059 Rev 2
1/11
This is information on a product in full production.
www.st.com
11
Absolute maximum ratings
3STL2540
1
Absolute maximum ratings
Table 2.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
VCBO
VCEO
VEBO
IC
Collector-base voltage (IE = 0)
Collector-emitter voltage (IB = 0)
-40
-40
V
V
Emitter-base voltage
Collector current
(IC = 0)
-6
V
-5
A
ICM
Collector peak current (tP < 5 ms)
Base current
-10
A
IB
-0.5
-1
A
IBM
Base peak current (tP < 5 ms)
Total dissipation at TA = 25 °C
Storage temperature
A
(1)
PTOT
1.2
W
°C
°C
TSTG
TJ
-65 to 150
150
Max. operating junction temperature
1. Device mounted on a PCB area of 1 cm²
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
(1)
RthJA
Thermal resistance junction-ambient max
Thermal resistance junction-ambient max
Thermal resistance junction-case max
104
75
°C/W
°C/W
°C/W
(2)
RthJA
RthJC
45
1. Device mounted on a PCB area of 1 cm²
2. Device mounted on a PCB area of 6 cm²
2/11
Doc ID 022059 Rev 2
3STL2540
Electrical characteristics
2
Electrical characteristics
TJ = 25 °C; unless otherwise specified.
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
VCB = - 40 V
VEB = - 6 V
Min. Typ. Max. Unit
Collector cut-off current
(IE = 0)
ICBO
IEBO
-100
-100
nA
Emitter cut-off current
(IC = 0)
nA
VBE(on) Base-emitter on voltage
VCE = - 2 V
IC = - 100 mA
-670
mV
-200
IC = - 1 A
IC = - 2 A
IB = - 10 mA
IB = - 100 mA
VC(E1()sat) Collector-emitter saturation
voltage
-150
mV
mV
IC = - 5 A _ IB = - 250 mA
-300
VB(E1()sat) Base-emitter saturation
voltage
IC = - 1 A _ IB = - 10 mA
800
V
CE = - 2 V IC = - 0.5 A
280
210
100
VCE = - 2 V IC = - 2 A
VCE = - 2 V IC = - 5 A
(1)
hFE
DC current gain
V
CE = -0.2 ÷ - 2 V IC = - 1 A
100
900
Tj = -30 °C ÷ 150 °C
Resistive load
Delay time
Rise time
25
140
290
60
ns
ns
ns
ns
td
tr
IC = - 2 A
VBE(off) = 5 V,
- IB(on) = IB(off) = 200 mA
VCC = - 10 V
ts
tf
Storage time
Fall time
fT
Transition frequency
IC = - 0.1 A __ VCE = - 10 V
130
MHz
1. Pulse test: pulse duration 300 µs, duty cycle 2 %.
Doc ID 022059 Rev 2
3/11
Electrical characteristics
3STL2540
2.1
Electrical characteristics (curves)
Figure 2.
DC current gain (VCE=-2 V)
Figure 3.
DC current gain (VCE=-5 V)
H
H&%
&%
ꢀꢁꢁꢁ
ꢀꢁꢁꢁ
ꢀꢈꢁ
#
4
ꢀꢈꢁ
#
4
*
*
ꢊꢈ
#
4
ꢊꢈ
#
4
*
*
ꢋꢄꢁ
#
4
ꢋꢄꢁ
#
4
*
*
ꢀꢁꢁ
ꢀꢁꢁ
ꢀꢁ
ꢁꢅꢁꢀ
ꢀꢁ
ꢁꢅꢁꢀ
ꢁꢅꢀ
)C ꢆ!ꢇ
!-ꢀꢁꢂꢃꢄVꢀ
)C ꢆ!ꢇ
!-ꢀꢁꢂꢃꢌVꢀ
ꢁꢅꢀ
Figure 4.
Collector-emitter saturation Figure 5.
voltage (VCEsat @ hFE=20)
Collector-emitter saturation
voltage (VCEsat @ hFE=100)
6CEꢆSATꢇ
ꢆ6ꢇ
6CEꢆSATꢇ
ꢆ6ꢇ
ꢋꢄꢁ
#
4
*
ꢀꢈꢁ
#
4
ꢁꢅꢌ
*
ꢀꢅꢍ
ꢀꢈꢁ
#
4
*
ꢊꢈ
#
4
*
ꢁꢅꢄ
ꢁꢅꢊ
ꢁꢅꢀ
ꢀꢅꢊ
ꢁꢅꢃ
ꢁꢅꢌ
ꢊꢈ
#
4
*
ꢋꢄꢁ
#
4
*
ꢁꢅꢁꢀ
ꢁꢅꢀ
ꢁꢅꢁꢀ
ꢁꢅꢀ
)C ꢆ!ꢇ
!-ꢀꢁꢂꢃꢍVꢀ
)C ꢆ!ꢇ
!-ꢀꢁꢂꢃꢈVꢀ
Figure 6.
Base-emitter saturation
voltage (Vbe(sat) @ hFE=20)
Figure 7. Base-emitter saturation
voltage (Vbe(sat) @ hFE=100)
6BEꢆSATꢇ
ꢆ6ꢇ
ꢆ6ꢇ
6BEꢆSATꢇ
ꢋꢄꢁ
4
#
ꢋꢄꢁ
#
4
*
*
ꢊꢈ
*
#
4
ꢊꢈ
#
4
*
ꢁꢅꢂ
ꢁꢅꢎ
ꢁꢅꢈ
ꢁꢅꢄ
ꢁꢅꢂ
ꢀꢈꢁ
#
4
*
ꢀꢈꢁ
#
4
*
ꢁꢅꢎ
ꢁꢅꢈ
ꢁꢅꢄ
ꢁꢅꢁꢀ
ꢁꢅꢀ
)C ꢆ!ꢇ
ꢁꢅꢁꢀ
ꢁꢅꢀ
)C ꢆ!ꢇ
!-ꢀꢁꢂꢃꢎVꢀ
!-ꢀꢁꢂꢃꢃVꢀ
4/11
Doc ID 022059 Rev 2
3STL2540
Electrical characteristics
Figure 8.
Resistive load switching
times
Figure 9.
Capacitance curves
(f=1 MHz)
T ꢆNSꢇ
# ꢆP&ꢇ
TS
#BE
TR
ꢀꢁꢁ
ꢀꢁꢁ
TF
#BC
TD
6## ꢉ ꢋꢀꢁ
6
6"%ꢆOFFꢇ ꢉ ꢈ 6
H&% ꢉ ꢀꢁ
ꢀꢁ
ꢁꢅꢁꢀ
ꢀꢁ
ꢁꢅꢀ
ꢀꢁ
62 ꢆ6ꢇ
ꢁꢅꢈ
ꢀꢅꢈ
ꢊꢅꢈ
)# ꢆ!ꢇ
!-ꢀꢁꢂꢃꢂVꢀ
!-ꢀꢁꢂꢂꢁVꢀ
Doc ID 022059 Rev 2
5/11
Package mechanical data
3STL2540
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
6/11
Doc ID 022059 Rev 2
3STL2540
Package mechanical data
Table 5.
PowerFLAT™ 2 x 2 3L mechanical data
mm.
Typ.
Dim.
Min.
Max.
A
A1
A3
b
0.55
0.00
0.60
0.02
0.10
0.30
2.00
2.00
1.30
1.05
1.50
0.25
0.30
0.40
0.65
0.05
0.25
1.90
1.90
1.20
0.95
1.40
0.20
0.20
0.35
0.15
0.35
2.10
2.10
1.40
1.15
1.60
0.30
0.40
0.45
D
E
e
D2
E2
H
K
L
R
Doc ID 022059 Rev 2
7/11
Package mechanical data
Figure 10. PowerFLAT™ 2 x 2 3L drawing
3STL2540
BOTTOM VIEW
H
L
K
D2
TOP VIEW
A
D
LASER MARK PIN#1 ID
(A3)
A1
8329590_REV_B
8/11
Doc ID 022059 Rev 2
3STL2540
Packaging mechanical data
4
Packaging mechanical data
Figure 11. PowerFLAT™ 2 x 2 3L footprint (dimension in mm.)
ꢊꢅꢀꢁ
ꢁꢅꢈꢁ
ꢀꢅꢀꢈ
ꢁꢅꢊꢈꢁ
ꢁꢅꢎꢁ
ꢃꢄꢊꢂꢈꢂꢁ?2%6?"
Doc ID 022059 Rev 2
9/11
Revision history
3STL2540
5
Revision history
Table 6.
Date
Document revision history
Revision
Changes
07-Dec-2011
22-May-2012
1
2
Initial release
Document status promoted from preliminary data to production data
10/11
Doc ID 022059 Rev 2
3STL2540
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2012 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 022059 Rev 2
11/11
