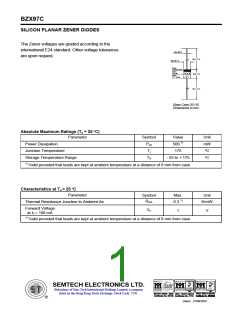

BZX97C
SILICON PLANAR ZENER DIODES
The Zener voltages are graded according to the
international E24 standard. Other voltage tolerances
are upon request.
Max. 0.5
Min. 27.5
Max. 3.9
Min. 27.5
Max. 1.9
Black
Cathode Band
Black
Part No.
Black
"ST" Brand
XXX
ST
Glass Case DO-35
Dimensions in mm
O
Absolute Maximum Ratings (Ta = 25 C)
Parameter
Symbol
Ptot
Value
500 1)
175
Unit
mW
Power Dissipation
O
C
Junction Temperature
Tj
O
C
Storage Temperature Range
TS
- 55 to + 175
1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case.
O
Characteristics at Ta = 25 C
Parameter
Symbol
RthA
Max.
0.3 1)
Unit
Thermal Resistance Junction to Ambient Air
K/mW
Forward Voltage
at IF = 100 mA
VF
1
V
1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case.
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 21/06/2007
