NW5139

型号：

NW5139

描述：

BOOST CONVERT控制IC[ BOOST CONVERT CONTROL IC ]

品牌：

ETC[ ETC ]

页数：

17 页

PDF大小：

644 K

下载PDF手册
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
QQ 394233008 TEL 13715302753 cash

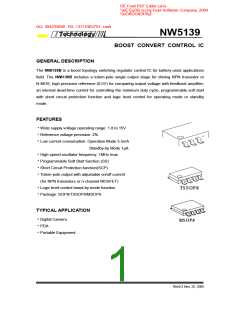

NW5139
Technology
BOOST CONVERT CONTROL IC
GENERAL DESCRIPTION
The NW5139B is a boost topology switching regulator control IC for battery-used applications
field. The NW5139B includes a totem-pole single output stage for driving NPN transistor or
N-MOS, high precision reference (0.5V) for comparing output voltage with feedback amplifier,
an internal dead-time control for controlling the minimum duty cycle, programmable soft start
with short circuit protection function and logic level control for operating mode or standby
mode.
FEATURES
˙ Wide supply voltage operating range: 1.8 to 15V
˙ Reference voltage precision: 2%
˙ Low current consumption: Operation Mode 5.5mA
Standby-by Mode 1µA
˙ High speed oscillator frequency: 1MHz max.
˙ Programmable Soft Start function (SS)
˙ Short Circuit Protection function(SCP)
˙ Totem-pole output with adjustable on/off current
(for NPN transistors or n-channel MOSFET)
˙ Logic level control stand-by mode function
˙ Package: SOP8/TSSOP8/MSOP8
TSSOP8
TYPICAL APPLICATION
˙ Digital Camera
˙ PDA
M SO P8
˙ Portable Equipment
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
QQ 394233008 TEL 13715302753 cash
NW5139B
FUNCTIONAL BLOCK DIAGRAM
3
7
Reference
Sawtooth wave
oscillator
0.6V
0.1V
voltage supply
5
1.25V
0.1V
PWM
30k
1
8
Comp.
36k
+
+
+
Output drive
control circuit
+
Error Amp.
500
0.5V
DTC 0.6V
0.22V
Soft start SCP
2
6
4
MARK VIEW
PIN DESCRIPTION
Name No. I/O
Description
FB
1
2
I
I
Error amplifier inverting input pin
Connected a capacitor
1
2
3
4
8
7
6
5
SCP
Soft start and SCP function pin
IC power supply
Output current setting and control pin
Totem-pole output
VCC
BR/CTL
OUT
3
4
5
6
P
I
O
P
GND
IC ground
Capacitor and resistor connected for
OSC
7
8
I
the frequency of oscillation
COMP
O
Error amplifier compensation output
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
QQ 394233008 TEL 13715302753 cash
NW5139B
Technology
ORDER INFORMATION
Part Number
NW5139BD-LF
NW5139BDR-LF
NW5139BW-LF
NW5139BWR-LF
NW5139BT-LF
NW5139BTR-LF
Operating Temperature
-10°C ~ +85°C
-10°C ~ +85°C
-10°C ~ +85°C
-10°C ~ +85°C
-10°C ~ +85°C
-10°C ~ +85°C
Package
SOP8
SOP8
TSSOP8
TSSOP8
MSOP8
MSOP8
Description
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
IC DATE CODE DISTINGUISH
NW5139
-
L
Lead Free
Lot Number
Mass Production Version
Per Half Month
Year
FOR EXAMPLE:
January
February
March
A (Front Half Month), B (Last Half Month)
C, D
E, F
------------And so on
Lot Number is the last two numbers
For Example:
A3311C62
LotNumber
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
ABSOLUTE MAXIMUM RATINGS
Power supply voltage--------------------------------------------------------------------------- +15V
Output source current------------------------------------------------------------------------- -50mA
Output sink current------------------------------------------------------------------------------ +50mA
Allowable dissipation
SOP8
Ta≦+25℃------------------------------------------------------------ 570mW
MSOP8 Ta≦+25℃----------------------------------------------------------- 400mW
TSSOP8 Ta≦+25℃----------------------------------------------------------- 400mW
Operating temperature--------------------------------------------------------------- -10℃∼ +85℃
Storage temperature------------------------------------------------------------------ -55℃∼ +125℃
SOP8 Lead Temperature (soldering, 10 sec) ------------------------------------------+260℃
TSSOP8 Lead Temperature (soldering, 10 sec) --------------------------------------+260℃
MSOP8 Lead Temperature (soldering, 10 sec) ---------------------------------------+260℃
260℃/10sec
260℃
-1.2℃/sec
+0.23℃/sec
210℃
180℃
+3.4℃/sec
25℃
280s
15s 60s
190s
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
DC ELECTRICAL CHARACTERISTICS
VCC=2V,TA=25℃
Under Voltage Lock-Out section (U.V.L.O.)
PARAMETER
SYMBOL TEST CONDITIONS
MIN. TYP. MAX. UNIT
Low threshold voltage
Upper threshold voltage
VLOW
--
--
-
-
0.9
1.5
V
V
VUPPER
1.1
1.3
Soft Start section (S.S.)
PARAMETER
SYMBOL TEST CONDITIONS
MIN. TYP. MAX. UNIT
μA
Input source current
Soft start threshold voltage
ISS
VSCP= 0V
--
-1.5
0.8
-1.0
0.9
-0.7
1.0
VSST
V
Short Circuit Protection section (S.C.P.)
PARAMETER
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
μA
Input source current
S.C.P. threshold voltage
ISCP
VSCP= 0V
--
-1.5
0.7
-1.0
0.8
-0.7
0.9
VSCP
V
Oscillator section
PARAMETER
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Oscillation frequency
Frequency change with
voltage
f
RT=3.0KΩ,CT=270pF
400
-
500
2
600
10
KHz
%
∆f / ∆V
VCC=2V to 15V
Frequency change with
temperature
Ta = 0℃to 85℃
∆f / ∆T
-
5
-
%
Idle Period Adjustment section
PARAMETER
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
RT=3.0kΩ, CT=270pF,
Maximum duty cycle
TDUTY
-
92
98
%
VFB=0.8V
Total device section
PARAMETER
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Stand-by current
ISTANDBY
IAVE
Pin4 is open or VCC
-
-
-
1
µA
Average supply current
RB=390Ω,VCC=0~15V
5.0
10
mA
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
DC ELECTRICAL CHARACTERISTICS (Cont.)
Error Amplifier section
PARAMETER
Input threshold voltage
VT change with voltage
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
VFB
VCOMP=450mV
480
500
5
520
20
-
mV
mV
%
∆VFB / ∆V
VCC=2V to 15V
-
Ta = -10℃to 85℃
VT change with temperature ∆VFB / ∆T
-
1
Input bias current
Voltage Gain
IB
Av
--
-1.0
-0.2
100
6
1.0
-
µA
--
-
V/V
MHz
Frequency bandwidth
BW
Av=0 dB
-
0.78
-
-
Output voltage
Swing
Positive
VPOS
VNEG
ISOURCE
ISINK
--
--
0.87
0.05
-40
40
-
V
Negative
0.2
-24
-
Output source current
Output sink current
-
µA
µA
VCOMP=450mV
24
Output section
PARAMETER
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Output high voltage
VOH1
VOH2
VOL1
VOL2
RB=390Ω, IO=-15mA
RB=750Ω, IO=-10mA,
VCC= 1.8V
1.0
0.8
-
1.2
1.0
0.1
0.1
-
V
V
V
V
Output high voltage
Output saturation voltage
Output saturation voltage
-
RB=390Ω, IO=15mA
RB=750Ω, IO=10mA,
VCC= 1.8V
0.2
0.2
-
Output source current
Output sink current
IOSOURCE RB=390Ω, Vo=0.9V
-
-40
40
-20
-
mA
mA
kΩ
IOSINK
RO
RB=390Ω, Vo=0.3V
30
20
Internal pull-down resistor
--
30
40
Output Current Setting / Control section
PARAMETER
Pin voltage
SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
VBR
IOFF
ION
RB=390Ω
0.15
-20
-
0.22
0.3
0
V
Input off condition
Input on condition
Pin current range
--
--
--
-
-
-
µA
µA
mA
-45
-0.1
IBR
-1.8
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
TYPICAL CHARACTERISTICS
Supplyvoltagevs.Supplycurrent
Supplyvoltagevs.Inputthresholdvoltage
12
1.2
Ta=25℃
RB=390Ω
Ta=25℃
1.0
10
8
6
4
2
0
0.8
0.6
0.4
0.2
0
8
8
0
4
12
16
20
0
4
12
16
20
SupplyvoltageVcc(V)
Figure1
SupplyvoltageVcc(V)
Figure2
Ambienttemperaturevs.Inputthreshod
voltagevariationratio
Highleveloutput
30
10
5
1.2
1.0
Vcc=2V
Vcc=2V
RB=390Ω
Ta=25℃
0.8
0
0.6
0.4
0.2
- 5
-10
-15
-25
0
25
50
75
100
0
-10
-20
-30
-40
-50
0
AmbientTemperatureTa(℃)
Figure3
Highleveloutputcurrent Iout(mA)
Figure4
Low leveloutput
BR/CTL pincurrentvs.Outputsourcecurrent
600
500
400
300
200
100
-60
-50
-40
-30
-20
-10
Vcc=2V
RB=390
Ta=25℃
Vcc=2V
Vout=0.9V
Ta=25℃
0
0
20
40
60
80
100
-0.4
-0.8
-1.2
-1.6
-2.0
0
0
Low leveloutputcurrent Iout(mA)
Figure5
BR/CTL pincurrentIBR(mA)
Figure6
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
TYPICAL CHARACTERISTICS (Cont.)
BR/CTL pincurrentvs.BR/CTL pinvoltage
BR/CTL pincurrentvs.Supplycurrent
600
6.0
Vcc=2V
Vcc=2V
Ta=25℃
Ta=25℃
500
5.0
400
300
200
100
0
4.0
3.0
2.0
1.0
0
-0.4
-0.8
-1.2
-1.6
-2.0
-20
-40
-60
-80
-100
0
0
BR/CTL pincurrentIBR(mA)
Figure7
BR/CTL pincurrentIBR(uA)
Figure8
TRIANGLE OSCILLATOR FREQUENCY
Supplyvoltagevs.Frequencyvariationratio
VS
15
TIMING RESISTANCE
CT=270PF
RT=3.0KΩ
Ta= 25℃
1 M
100 K
10 K
2 K
Vcc=2V
10
5
Ta=25℃
C
= 100 pF
T
T
0
C
= 1000 pF
-5
-10
-15
C
T
= 10000 pF
8
0
4
12
16
20
1 K
4 K 10 K
40 K 100 K
400 K 1 M
SupplyvoltageVcc(V)
Figure 10
TimingresistorRt(Ω)
Ambienttemperaturevs.Frequcneyvariationratio
30
10
5
Vcc=2V
CT=270PF
RT=3.0KΩ
0
-
5
-10
-15
-25
0
25
50
75
100
AmbientTemperatureTa (℃)
Figure11
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
DETAILED DESCRIPTION
Voltage reference
A 1.25V regulator operating from VCC is used to power the internal circuitry of the FP5139B.
An internal resistive divider provides 0.5V reference for the error amplifier, Soft-start (typ. 0.9V)
and SCP (typ. 0.8V) circuits.
Error amplifier
The error amplifier compares a sample of the dc-dc converter output voltage to the 0.5V
reference and generates an error signal for the PWM comparator. Output voltage of dc-dc
converter is setting with the resistor divider using the following expression (see fig12):
R1
R2
Vout = 1+
∗0.5
VOUT
R1
1
36K
Error
Amplifier
R2
0.5V
500
NW5139B
8
C1
Figure 12. Error Amplifier with Feedback resistance divider
Oscillator
The oscillator frequency can be set between 20KHz and 500KHz by connecting a resistor and
a capacitor at OSC pin of NW5139B to ground. The oscillator frequency can be determined by
using the graph shown in Figure 9.
The oscillator output is a sawtooth wave with a minimum value of approximately 0.1V and a
maximum value of approximately 0.6V. The PWM comparator compares the oscillator voltage
with error amplifier output voltage; internal DTC voltage (typ. 0.6V) and soft start setting
voltage. When the sawtooth wave voltage is low than above three-output voltage, the output of
NW5139B is high (Turn on NPN transistor or NMOS).
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
Under voltage lockout (UVLO)
The under voltage lockout circuits turn the output off and whenever the supply voltage drops
too low (approximately 0.9V at 25℃) for proper operation. A hysteresis voltage of 200mV
eliminates false triggering on noise and chattering.
Soft Start/ Short-circuit protection (S.S. / S.C.P.)
The soft start is functional after power on, and the interval of soft start time is determined by a
capacitor connected to SCP pin (pin 2). When soft start function finished, the internal soft start
voltage is setting high, but external SCP pin is setting low in order to change to short circuit
detection / protection function.
The time of soft start is following expression:
Tss = 0.35∗C
[µF
]
The short circuit protection is functional due to a heavy loading drop and output of error
amplifier (COMP pin) is maintain a VPOS (typ. 0.87V), the capacitor is charged until SCP
threshold voltage (typ. 0.8V), then NW5139B output is disable (internal pull-low) and the
capacitor is discharged to low.
The time of short circuit protection is following expression:
Tscp = 0.8∗C
[
µF
]
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
Output transistor
The NW5139B has a totem-pole transistor with a 40mA source/sink current rating to drive an
external NPN transistor or NMOS directly. The driving current capability depends on a resistor
R that is connected to BR/CTL pin (Pin4) of FP5139B. (see fig. 14)
NW5139B
4
BR/CTL
R1
Control
R2
Q1
Figure 13. Output transistor driving control circuit
BR/CTL pin can also use to control the output of NW5139B for disable or enable function of
system.
Control Pin
Low
Q1
Off
On
BR/CTL Pin Output Transistor Function
Mode
Open
Disable
Enable
Stand-by
Operation
High
Bias Current
Rev0.2 Nov 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
APPLICATION NOTE (1)
L1
33uH
SCD34
D1
Vin +2.5V
Vout +9V/1A
IC1
FB
R1
C2
COMP
OSC
R2
51k 1%
SCP
C1
0.027uF
VCC
GND
0
R3
Q2
C7
220uF/25V
1
C8
C4
BR/CTL OUT
NW5139
0.1uF
100uF/35V
C5
0.1uF
R4
1k
R6
3k 1%
R5
3k
C6
Q1
3904
470pF
ON/OFF Socket
Vin
R7 4.7k
1
2
SW1
Figure 14. DC12V to DC24V Boost Regulator
L1
20uH
SCD34
D1
C9
Vin +2.5V ~ +6V
Vout +3.3V
IC1
FB
10u
R1
C2
COMP
OSC
R2
5.6k 1%
SCP
VCC
C1
0.027uF
GND
L2
20uH
0
R3
Q2
C7
220uF/25V
1
C8
C4
100uF/35V
BR/CTL OUT
NW5139
MOSFET N GDS
0.1uF
C5
0.1uF
R4
1k
R6
R5
3k
C6
1k 1%
Q1
3904
470pF
ON/OFF Socket
Vin
R7 4.7k
1
2
SW1
Figure 15. DC2.5V~DC6V to DC3.3V SEPIC Regulator
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
APPLICATION NOTE (2)
D1
BAT54S/SOT_0
2
Q1
Q2
Vout3
C1
C2
0.1uF
0.1uF
3
NPN BEC
MOSFET P
2
3
Vout2
Q3
1
D2
BAT54S/SOT_0
C3
1uF
R1
C4
R2
R
1uF
R
C5
R3
R
1uF
R4
R5
R
R6
R
R7
C6
R
1uF
D3
1
C8
1uF
R8
R
1
D4
TL431
TL431
R9
Q4
NPN
L1
L2
33uH
33uH
R10
R
D5 SCD34
Vin
Vout1
C9
1uF
IC1
FB
R11
C11
1
2
3
4
8
7
6
5
COMP
OSC
R12
51k 1%
SCP
VCC
C10
0.1uF
GND
Vot Socket2
Vin Socket
0
R13
Vout2
Vout3
Vin
Q5
MOSFET N GDS
C12
1
C13
C14
C15
100uF
1
2
1
2
BR/CTL OUT
R14
220uF/6.3V
100uF
0.1uF
C16
C7
NW5139
CON1
CON2
1k
0.1uF
0.1uF
R15
Vot Socket3
Vot Socket1
R16
3k
C17
470pF
Vout1
3k 1%
Q6
NPN 3904
1
2
1
2
CON3
CON4
ON/OFF Socket
Vin
R17 4.7k
1
2
SW1
Figure 16. Charge Pump DC-DC Converter Circuits
APPLICATION NOTE (3)
R9
R8
V2
56K
R10
1.8K
R11
FB
V3
33K
5.1K
D2 BAT54HT1
D3
L2 33uH
C8
+15V
C9
R12
V1
(R9+R8)=17.48*R12
3.3K
0.66*(R8+R9)=(R10+R11)
+
+
100uF/25V
47uF/16V
T1
VCC
L1 18uH
F1
L3
V2
+5V
4
5
6
33uH
FUSE
C2
104
C1
+
R7
C7
7
+
C10
100uF/16V
+
C11
47uF/16V
470pF
330uF
1
BAT54RCLT1
8
2
D4
D6
8.2
9
L4
33uH
U1
V3
+3.3V
C13
COMP
C5
1
2
3
4
8
7
6
5
3
10
FB
COMP
Cosc
GND
OUT
+
C12
+
100uF/16V
47uF/16V
SCP
CLS12
SCP
VCC
CTL
BAT54RCLT1
V4
0.1uF
C6
C4
0.47uF
L5
CTL
1
Q3
33uH
-7.5V
AP2304
R6
0
NW5139
R5
220
D5 BAT54HT1
C14
100uF/16V
C15
47uF/16V
+
+
R1
Q2
2N3904
R4
33K
C3
270pF
R3
3K
ON / OFF
C16
1nF
R2
10K
Figure 17. Flyback Multi-output DC-DC Converter Circuits
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
TIMING WAVEFORM
COMP pin Voltage
Reference input for
SCP Comparator
Idle period setting voltage
Oscillator waveform
Soft-start setting voltage
OUT pin waveform
SS/SCP pin waveform
Control pin voltage
tpe
Output
Soft-start
ts
Short
Output Short Circuit
Circuit
Short Circuit Protection
IC Shutdown
Figure 18. NW5139B Timing Diagram
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
PACKAGE OUTLINE
SOP8
0.008typ.
0.16typ
0.050typ
θ°
D
L
SEATING PLANE
0.004max
SYMBOLS
MIN
0.053
MAX
0.069
0.010
0.196
0.157
0.244
0.050
8
A
A1
D
0.004
0.189
0.150
0.228
0.016
0
E
H
L
θ°
NOTE:
1. JEDEC OUTLINE:MS-012 AA
2. DIMENSIONS “D” DOES NOT INCLUDE MOLD FLASH,PROTRUSIONS OR GATE
BURRS.MOLD FLASH,PROTRUSIONS AND GATE BURRS SHALL NOT
EXCEED .15mm (.0.06in) PER SIDE
3. DIMENSIONS “E” DOES NOT INCLUDE INTER-LEAD FLASH,OR PROTRUSIONS.
INTER-LEAD FLASH AND PROTRUSIONS SHALL NOT EXCEED .25mm (.0.10in) PER
SIDE.
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
MSOP8
8
5
“A”
1
4
0.30
0.65BSC
GAUEGE PLANE
θ°
SEATING PLANE
D
L
L1
0.05
SYMBOLS
MIN
MAX
1.10
0.15
0.95
A
A1
A2
D
-
0.00
0.75
3.00 BSC
4.90 BSC
3.00 BSC
E
E1
L
0.40
0
0.80
8
L1
θ°
0.95 REF
NOTE:
1.JEDEC OUTLINE:MO-187 AA
2.DIMENSIONS “D” DOES NOT INCLUDE MOLD FLASH,PROTRUSIONS OR GATE
BURRS.MOLD FLASH,PROTRUSIONS AND GATE BURRS SHALL NOT EXCEED 0.15 PER
SIDE
3.DIMENSIONS “E1” DOES NOT INCLUDE INTERLEAD FLASH,OR PROTRUSIONS.
INTERLEAD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.25 PER SIDE.
4.DIMENSIONS “0.22” DOES NOT INCLUDE DAMBAR PROTRUSIONS.ALLOWABLE DAMBAR
PROTRUSIONS SHALL BE 0.08 MM TOTAL IN EXCESS OF THE ‘0.22’ DIMENSION AT
MAXIMUM MATERIAL CONDITION.DAMBAR CANNOT BE LOCATED ON THE LOWER RADIUS
OF THE FOOT.MINIMIM SPAC BETWEEN PROTRUSION AND ADJACENT LEAD IS 0.07MM.
5.DIMENSIONS “D” AND ‘E1’ TO BE DETERMINED AT DATUM PLANE H
Rev0.2 Nov. 25, 2005
ÓÉ Foxit PDF Editor ±à¼•
°æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£
NW5139B
Technology
TSSOP8
SYMBOLS
MIN
-
0.05
0.96
2.90
NOR
-
-
MAX
1.20
0.15
1.06
3.10
A
A1
A2
D
E
E1
L
1.01
3.00
6.40 BSC
4.40
0.60
4.30
0.45
4.50
0.75
Θ°
0
-
8
NOTE:
1.JEDEC OUTLINE:MO-187 AA
2.DIMENSIONS “D” DOES NOT INCLUDE MOLD FLASH,PROTRUSIONS OR GATE BURRS.MOLD
FLASH,PROTRUSIONS OR GATE BURRS SHALL NOT EXCEED 0.15 PER SIDE
3.DIMENSIONS “E1” DOES NOT INCLUDE INTERLEAD FLASH,OR PROTRUSIONS. INTERLEAD
FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.25 PER SIDE.
4.DIMENSIONS “0.22” DOES NOT INCLUDE DAMBAR PROTRUSIONS.ALLOWABLE DAMBAR
PROTRUSIONS SHALL BE 0.08 MM TOTAL IN EXCESS OF THE ‘0.22’ DIMENSION AT MAXIMUM
MATERIAL CONDITION.DAMBAR CANNOT BE LOCATED ON THE LOWER RADIUS OF THE
FOOT.MINIMIM SPAC BETWEEN PROTRUSION AND ADJACENT LEAD IS 0.07MM.
5.DIMENSIONS “D” AND ‘E1’ TO BE DETERMINED AT DATUM PLANE H
Rev0.2 Nov 25, 2005
厂商 型号 描述 页数 下载

RUBYCON

 		NW5 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 2 页

NDK

 		NW50M50LA 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-1.544M-NSA3438A 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-1.544M-NSA3438B 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-12.96M-NSA3438A 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-12.96M-NSA3438B 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-19.44M-NSA3438A 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-2.048M-NSA3438A 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-2.048M-NSA3438B 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

NDK

 		NW50M50LA-25.92M-NSA3438A 频率定时和翻译模块[ Frequency Timing and Translation Modules ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.204455s
