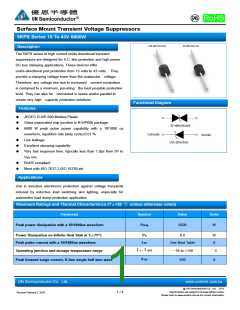

Surface Mount Transient Voltage Suppressors
The 5KPS series of high current uni/bi-directional transient
suppressors are designed for A.C. line protection and high power
DC bus clamping applications. These devices offer
uni/bi-directional port protection from 15 volts to 43 volts. They
provide a clamping voltage lower than the avalanche voltage.
Therefore, any voltage rise due to increased current conduction
is contained to a minimum, providing the best possible protection
level. They can also be connected in series and/or parallel to
create very high capacity protection solutions.
JEDEC R-6/P-600 Molded Plastic.
Glass passivated chip junction in R-6/P600 package.
6600 W peak pulse power capability with a 10/1000 us
waveform, repetitive rate (duty cycle):0.01 %
Low leakage
Excellent clamping capability
Very fast response time: typically less than 1.0ps from 0V to
VBR min.
RoHS compliant
Meet with ISO 7637-2,ISO 16750,etc
Use in sensitive electronics protection against voltage transients
induced by inductive load switching and lighting, especially for
automotive load dump protection application
Parameter
Symbol
PPPM
Value
Units
Peak power dissipation with a 10/1000us waveform
6600
W
Power Dissipation on Infinite Heat Sink at TL=75°C
Peak pulse current with a 10/1000us waveform
PD
I PP
8.0
W
A
See Next Table
T J , T STG
Operating junction and storage temperature range
–55 to +150
°C
IFSM
Peak forward surge current, 8.3ms single half sine-wave
500
A
