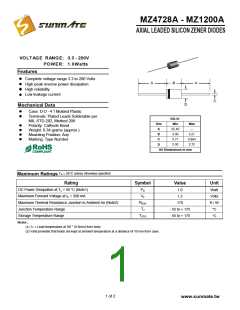

MZ4728A - MZ1200A
AXIAL LEADED SILICON ZENER DIODES
VOLTAGE RANGE: 3.3 - 200V
POWER: 1.0Wa t t s
Features
!
Complete voltage range 3.3 to 200 Volts
A
B
A
! High peak reverse power dissipation
!
!
High reliability
Low leakage current
!
C
D
Mechanical Data
!
!
Case: D O - 4 1 Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.34 grams (approx.)
Mounting Position: Any
DO-41
Min
Dim
A
Max
!
!
!
!
25.40
4.06
¾
B
5.21
0.864
2.72
C
0.71
Marking: Type Number
D
2.00
All Dimensions in mm
TA = 25ꢀC unless otherwise specified
Maximum Ratings
Rating
Symbol
Value
1.0
Unit
Watt
Volts
K / W
°C
DC Power Dissipation at TL = 50 °C (Note1)
Maximum Forward Voltage at IF = 200 mA
Maximum Thermal Resistance Junction to Ambient Air (Note2)
Junction Temperature Range
PD
VF
1.2
RӨJA
TJ
170
- 55 to + 175
- 55 to + 175
TSTG
Storage Temperature Range
°C
Notes :
(1) TL = Lead temperature at 3/8 " (9.5mm) from body
(2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case.
1 of 2
