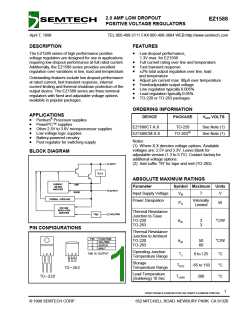

2.0 AMP LOW DROPOUT
POSITIVE VOLTAGE REGULATORS
EZ1588
TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com
April 7, 1998
DESCRIPTION
FEATURES
The EZ1588 series of high performance positive
voltage regulators are designed for use in applications
requiring low dropout performance at full rated current.
Additionally, the EZ1588 series provides excellent
regulation over variations in line, load and temperature.
•= Low dropout performance,
1.3V max. for EZ1588
•= Full current rating over line and temperature
•= Fast transient response
•= ±2% total output regulation over line, load
and temperature
Outstanding features include low dropout performance
at rated current, fast transient response, internal
current limiting and thermal shutdown protection of the
output device. The EZ1588 series are three terminal
regulators with fixed and adjustable voltage options
available in popular packages.
•= Adjust pin current max. 90µA over temperature
•= Fixed/adjustable output voltage
•= Line regulation typically 0.005%
•= Load regulation typically 0.05%
•= TO-220 or TO-263 packages
ORDERING INFORMATION
APPLICATIONS
DEVICE
PACKAGE
VOUT VOLTS
•= Pentium® Processor supplies
•= PowerPC™ supplies
EZ1588CT-X.X
EZ1588CM-X.X
TO-220
TO-263(2)
See Note (1)
See Note (1)
•= Other 2.5V to 3.6V microprocessor supplies
•= Low voltage logic supplies
•= Battery-powered circuitry
Notes:
•= Post regulator for switching supply
(1) Where X.X denotes voltage options. Available
voltages are: 2.5V and 3.3V. Leave blank for
adjustable version (1.3 to 5.7V). Contact factory for
additional voltage options.
BLOCK DIAGRAM
(2) Add suffix ‘TR’ for tape and reel (TO-263).
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol Maximum Units
Input Supply Voltage
Power Dissipation
VIN
7
V
Internally
Limited
PD
W
Thermal Resistance
Junction to Case
TO-220
3
3
°C/W
°C/W
θJC
TO-263
PIN CONFIGURATIONS
Thermal Resistance
Junction to Ambient
TO-220
50
60
θJA
TO-263
Operating Junction
Temperature Range
TJ
0 to 125
-65 to 150
260
°C
°C
°C
Storage
Temperature Range
TSTG
TLEAD
Lead Temperature
(Soldering) 10 Sec
1
Pentium Processor is a trademark of Intel Corp. PowerPC is a trademark of IBM Corp.
© 1998 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
