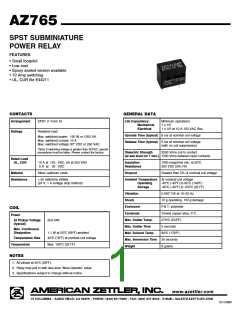

AZ765
SPST SUBMINIATURE
POWER RELAY
FEATURES
• Small footprint
• Low cost
• Epoxy sealed version available
• 10 Amp switching
• UL, CUR file E44211
CONTACTS
GENERAL DATA
Arrangement
SPST (1 Form A)
Resistive load:
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 at 10 A 120 VAC Res.
Ratings
Operate Time (typical) 8 ms at nominal coil voltage
Max. switched power: 150 W or 1250 VA
Max. switched current: 10 A
Max. switched voltage:30* VDC or 250 VAC
Release Time (typical) 5 ms at nominal coil voltage
(with no coil suppression)
*Note: If switching voltage is greater than 30VDC, special
precautions must be taken. Please contact the factory.
Dielectric Strength
2500 Vrms coil to contact
(at sea level for 1 min.) 1000 Vrms between open contacts
Rated Load
UL, CUR
10 A at 125 VAC, 5A at 250 VAC
5 A at 30 VDC
Insulation
1000 megohms min. at 20°C
500 VDC 50% RH
Resistance
Material
Silver cadmium oxide
Dropout
Greater than 5% of nominal coil voltage
Resistance
< 50 milliohms initially
Ambient Temperature At nominal coil voltage
(24 V, 1 A voltage drop method)
Operating
Storage
-40°C (-40°F) to 65°C (149°F)
-40°C (-40°F) to 105°C (221°F)
Vibration
0.040" DA at 10–50 Hz
10 g operating, 100 g damage
P.B.T. polyester
Shock
Enclosure
COIL
Terminals
Tinned copper alloy, P.C.
270°C (518°F)
Power
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
At Pickup Voltage
(typical)
253 mW
5 seconds
Max. Continuous
Dissipation
1.1 W at 20°C (68°F) ambient
80°C (176°F)
Temperature Rise
Temperature
42°C (76°F) at nominal coil voltage
Max. Immersion Time 30 seconds
Weight 6 grams
Max. 105°C (221°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
12/11/08W
