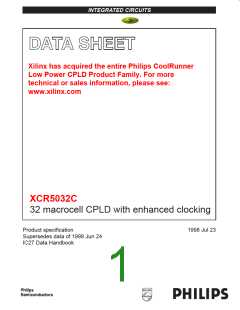

INTEGRATED CIRCUITS
Xilinx has acquired the entire Philips CoolRunner
Low Power CPLD Product Family. For more
technical or sales information, please see:
www.xilinx.com
XCR5032C
32 macrocell CPLD with enhanced clocking
Product specification
1998 Jul 23
Supersedes data of 1998 Jun 24
IC27 Data Handbook
Philips
Semiconductors
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
XCR5032C
Xilinx has acquired the entire Philips CoolRunner Low Power CPLD Product Family. For
more technical or sales information, please see: www.xilinx.com
FEATURES
DESCRIPTION
The PZ5032C CPLD (Complex Programmable Logic Device) is a
member of the Fast Zero Power (FZP ) family of CPLDs from
Philips Semiconductors. These devices combine high speed and
zero power in a 32 macrocell CPLD. With the FZP design
technique, the PZ5032C offers true pin-to-pin speeds of 6ns, while
simultaneously delivering power that is less than 75µA at standby
without the need for ‘turbo bits’ or other power down schemes. By
replacing conventional sense amplifier methods for implementing
product terms (a technique that has been used in PLDs since the
bipolar era) with a cascaded chain of pure CMOS gates, the
dynamic power is also substantially lower than any competing
CPLD—70% lower at 50MHz. These devices are the first
TotalCMOS PLDs, as they use both a CMOS process technology
and the patented full CMOS FZP design technique. For 3V
applications, Philips also offers the high speed PZ3032C CPLD that
offers pin-to-pin speeds of 8ns.
• Industry’s first TotalCMOS PLD – both CMOS design and
process technologies
• Fast Zero Power (FZP ) design technique provides ultra-low
power and very high speed
• High speed pin-to-pin delays of 6ns
• Ultra-low static power of less than 75µA
• Dynamic power that is 70% lower at 50MHz than competing
devices
• 100% routable with 100% utilization while all pins and all
macrocells are fixed
• Deterministic timing model that is extremely simple to use
• Up to 6 clocks with programmable polarity at every macrocell
• 5 Volt, In-System Programmable (ISP) using a JTAG interface
– On-chip supervoltage generation
The Philips FZP CPLDs introduce the new patent-pending XPLA
(extended Programmable Logic Array) architecture. The XPLA
architecture combines the best features of both PLA and PAL type
structures to deliver high speed and flexible logic allocation that
results in superior ability to make design changes with fixed pinouts.
The XPLA structure in each logic block provides a fast 6ns PAL
path with 5 dedicated product terms per output. This PAL path is
joined by an additional PLA structure that deploys a pool of 32
product terms to a fully programmable OR array that can allocate
the PLA product terms to any output in the logic block. This
combination allows logic to be allocated efficiently throughout the
logic block and supports as many as 37 product terms on an output.
The speed with which logic is allocated from the PLA array to an
output is only 2ns, regardless of the number of PLA product terms
– ISP commands include: Enable, Erase, Program, Verify
– Supported by multiple ISP programming platforms
– 4 pin JTAG interface (TCK, TMS, TDI, TDO)
– JTAG commands include: Bypass, Idcode
• Support for complex asynchronous clocking
• Innovative XPLA architecture combines high speed with
extreme flexibility
• 1000 erase/program cycles guaranteed
• 20 years data retention guaranteed
• Logic expandable to 37 product terms
• PCI compliant
used, which results in worst case t ’s of only 8ns from any pin to
PD
2
• Advanced 0.5µ E CMOS process
any other pin. In addition, logic that is common to multiple outputs
can be placed on a single PLA product term and shared across
multiple outputs via the OR array, effectively increasing design
density.
• Security bit prevents unauthorized access
• Design entry and verification using industry standard and Philips
CAE tools
The PZ5032C CPLDs are supported by industry standard CAE tools
(Cadence, Exemplar Logic, Minc, Mentor, Synopsys, Synario,
Viewlogic, OrCAD), using text (Abel, VHDL, Verilog) and/or
schematic entry. Design verification uses industry standard
simulators for functional and timing simulation. Development is
supported on personal computer, Sparc, and HP platforms. Device
fitting uses either Minc or Philips Semiconductors-developed tools.
• Reprogrammable using industry standard device programmers
• Innovative Control Term structure provides either sum terms or
product terms in each logic block for:
– Programmable 3-State buffer
– Asynchronous macrocell register preset/reset
– Up to 2 asynchronous clocks
• Programmable global 3-State pin facilitates ‘bed of nails’ testing
The PZ5032C CPLD is reprogrammable using industry standard
device programmers from vendors such as Data I/O, BP
Microsystems, SMS, and others. The PZ5032C also includes an
industry-standard, IEEE 1149.1, JTAG interface through which
In-System Programming (ISP) and reprogramming of the device are
supported.
without using logic resources
• Available in both PLCC and TQFP packages
Table 1. PZ5032C Features
PZ5032C
Usable gates
1000
Maximum inputs
Maximum I/Os
36
32
Number of macrocells
I/O macrocells
32
32
Buried macrocells
Propagation delay (ns)
Packages
0
6.0
44-pin PLCC, 44-pin TQFP
PAL is a registered trademark of Advanced Micro Devices, Inc.
2
1998 Jul 23
853–2080 19774
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
ORDERING INFORMATION
ORDER CODE
PZ5032CS6A44
PZ5032CS7A44
PZ5032CS10A44
PZ5032CS6BC
PZ5032CS7BC
PZ5032CS10BC
DESCRIPTION
DESCRIPTION
DRAWING NUMBER
SOT187-2
44-pin PLCC, 6ns t
Commercial temp range, 5 volt power supply, ± 5%
Commercial temp range, 5 volt power supply, ± 5%
Commercial temp range, 5 volt power supply, ± 5%
Commercial temp range, 5 volt power supply, ± 5%
Commercial temp range, 5 volt power supply, ± 5%
Commercial temp range, 5 volt power supply, ± 5%
PD
44-pin PLCC, 7.5ns t
SOT187-2
PD
PD
44-pin PLCC, 10ns t
44-pin TQFP, 6ns t
SOT187-2
,
SOT376-1
PD
44-pin TQFP, 7.5ns t
SOT376-1
PD
PD
44-pin TQFP, 10ns t
SOT376-1
PRODUCT terms, and are used to control the preset/reset and
output enables of the 16 macrocells’ flip-flops. In addition, two of the
control terms can be used as clock signals (see Macrocell
Architecture section for details). The PAL array consists of a
programmable AND array with a fixed OR array, while the PLA array
consists of a programmable AND array with a programmable OR
array. The PAL array provides a high speed path through the array,
while the PLA array provides increased product term density.
XPLA ARCHITECTURE
Figure 1 shows a high level block diagram of a 32 macrocell device
implementing the XPLA architecture. The XPLA architecture
consists of logic blocks that are interconnected by a Zero-power
Interconnect Array (ZIA). The ZIA is a virtual crosspoint switch. Each
logic block is essentially a 36V16 device with 36 inputs from the ZIA
and 16 macrocells. Each logic block also provides 32 ZIA feedback
paths from the macrocells and I/O pins.
Each macrocell has 5 dedicated product terms from the PAL array.
From this point of view, this architecture looks like many other CPLD
architectures. What makes the CoolRunner family unique is what
is inside each logic block and the design technique used to
implement these logic blocks. The contents of the logic block will be
described next.
The pin-to-pin t of the PZ5032C device through the PAL array is
PD
6ns. This performance is equivalent to the fastest 5 volt CPLD
available today. If a macrocell needs more than 5 product terms, it
simply gets the additional product terms from the PLA array. The
PLA array consists of 32 product terms, which are available for use
by all 16 macrocells. The additional propagation delay incurred by a
macrocell using 1 or all 32 PLA product terms is just 2ns. So the
Logic Block Architecture
Figure 2 illustrates the logic block architecture. Each logic block
contains control terms, a PAL array, a PLA array, and 16 macrocells.
The 6 control terms can individually be configured as either SUM or
total pin-to-pin t for the PZ5032C using 6 to 37 product terms is
PD
8ns (6ns for the PAL + 2ns for the PLA).
MC0
MC0
MC1
MC1
36
36
LOGIC
BLOCK
LOGIC
BLOCK
I/O
I/O
ZIA
MC15
MC15
16
16
16
16
SP00550
Figure 1. Philips XPLA CPLD Architecture
3
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
36 ZIA INPUTS
6
CONTROL
5
PAL
ARRAY
PLA
ARRAY
(32)
SP00435A
Figure 2. Philips XPLA Logic Block Architecture
4
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
macrocell’s flip-flop. Note that the Power-on Reset leaves all
Macrocell Architecture
macrocells in the “zero” state when power is properly applied, and
that the Preset/Reset feature for each macrocell can also be
disabled. Control terms CT2 and CT3 can be used as a clock signal
to the flip-flops of the macrocells, and as the Output Enable of the
macrocell’s output buffer. Control terms CT4 and CT5 can be used
to control the Output Enable of the macrocell’s output buffer. Having
four dedicated Output Enable control terms ensures that the
CoolRunner devices are PCI compliant. The output buffers can
also be always enabled or always disabled. All CoolRunner
devices also provide a Global Tri-State (GTS) pin, which, when
enabled and pulled Low, will 3-State all the outputs of the device.
This pin is provided to support “In-Circuit Testing” or “Bed-of-Nails”
testing.
Figure 3 shows the architecture of the macrocell used in the
CoolRunner PZ5032C. The macrocell can be configured as either
a D or T type flip-flop or a combinatorial logic function. A D-type
flip-flop is generally more useful for implementing state machines
and data buffering while a T-type flip-flop is generally more useful in
implementing counters. Each of these flip-flops can be clocked from
any one of four sources. Two of the clock sources (CLK0 and CLK1)
are connected to low-skew, device-wide clock networks designed to
preserve the integrity of the clock signal by reducing skew between
rising and falling edges. Clock 0 (CLK0) is designated as a
“synchronous” clock and must be driven by an external source.
Clock 1 (CLK1) can be used as a “synchronous” clock that is driven
by an external source, or as an “asynchronous” clock that is driven
by a macrocell equation. Both CLK0 and CLK1 can clock the
macrocell flip-flops on either the rising edge or the falling edge of the
clock signal. The other clock sources are two of the six control terms
(CT2 and CT3) provided in each logic block. These clocks can be
individually configured as either a PRODUCT term or SUM term
equation created from the 36 signals available inside the logic block.
The timing for asynchronous and control term clocks is different in
that the Tco time is extended by the amount of time that it takes for
the signal to propagate through the array and reach the clock
network, and the Tsu time is reduced. Please see the app note titled
“Understanding CoolRunner Clocking Options” for more detail.
There are two feedback paths to the ZIA: one from the macrocell,
and one from the I/O pin. The ZIA feedback path before the output
buffer is the macrocell feedback path, while the ZIA feedback path
after the output buffer is the I/O pin feedback path. When the
macrocell is used as an output, the output buffer is enabled, and the
macrocell feedback path can be used to feedback the logic
implemented in the macrocell. When the I/O pin is used as an input,
the output buffer will be 3-Stated and the input signal will be fed into
the ZIA via the I/O feedback path, and the logic implemented in the
buried macrocell can be fed back to the ZIA via the macrocell
feedback path. It should be noted that unused inputs or I/Os should
be properly terminated (See the section on terminations in this data
sheet and the app note Terminating Unused CoolRunner I/O
Pins).
The six control terms of each logic block are used to control the
asynchronous Preset/Reset of the flip-flops and the enable/disable
of the output buffers in each macrocell. Control terms CT0 and CT1
are used to control the asynchronous Preset/Reset of the
TO ZIA
PAL
PLA
D/T
Q
INIT
(P or R)
GTS
CLK0
CLK0
CLK1
CLK1
GND
CT0
CT1
GND
SP00551
Figure 3. PZ5032C Macrocell Architecture
5
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
5 product terms or less, the t = 6ns, the t = 4.5ns, and the
Simple Timing Model
Figure 4 shows the CoolRunner Timing Model. The CoolRunner
timing model looks very much like a 22V10 timing model in that
PD
SU
t
= 5ns. If an output is using 6 to 37 product terms, an additional
CO
2.5ns must be added to the t and t timing parameters to
PD
SU
account for the time to propagate through the PLA array.
there are three main timing parameters, including t , t , and t
.
PD SU
CO
In other competing architectures, the user may be able to fit the
design into the CPLD, but is not sure whether system timing
requirements can be met until after the design has been fit into the
device. This is because the timing models of competing
architectures are very complex and include such things as timing
dependencies on the number of parallel expanders borrowed,
sharable expanders, varying number of X and Y routing channels
used, etc. In the XPLA architecture, the user knows up front
whether the design will meet system timing requirements. This is
due to the simplicity of the timing model. For example, in the
TotalCMOS Design Technique
for Fast Zero Power
Philips is the first to offer a TotalCMOS CPLD, both in process
technology and design technique. Philips employs a cascade of
CMOS gates to implement its Sum of Products instead of the
traditional sense amp approach. This CMOS gate implementation
allows Philips to offer CPLDs which are both high performance and
low power, breaking the paradigm that to have low power, you must
have low performance. Refer to Figure 5 and Table 2 showing the I
DD
vs. Frequency of our PZ5032C TotalCMOS CPLD.
PZ5032C device, the user knows up front that if a given output uses
t
= COMBINATORIAL PAL ONLY
= COMBINATORIAL PAL + PLA
PD_PAL
t
PD_PLA
INPUT PIN
OUTPUT PIN
REGISTERED
= PAL ONLY
t
t
REGISTERED
SU_PAL
= PAL + PLA
t
SU_PLA
CO
INPUT PIN
D
Q
OUTPUT PIN
SP00552
GLOBAL CLOCK PIN
Figure 4. CoolRunner Timing Model
80
TYPICAL
60
I
DD
40
20
0
(mA)
0
20
40
60
80
100
120
140
160
180
FREQUENCY (MHz)
SP00635
Figure 5.
I vs. Frequency @ V = 5.0V
DD DD
Table 2. I vs Frequency
DD
V
DD
= 5.00V
FREQ
(MHz)
0
1
20
40
60
80
100
120
18.7
140
160
180
Typical I
(mA)
DD
0.04
0.20
3.14
6.25
9.32
12.5
15.5
21.7
24.7
27.8
6
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
factory with these I/O pins set to perform JTAG functions, but
through the software, the final function of these pins can be
JTAG Testing Capability
JTAG is the commonly-used acronym for the Boundary Scan Test
(BST) feature defined for integrated circuits by IEEE Standard
1149.1. This standard defines input/output pins, logic control
functions, and commands which facilitate both board and device
level testing without the use of specialized test equipment. The
Philips PZ5032C devices use the JTAG interface for In–System
Programming/Reprogramming. Although only a subset of the full
JTAG command set is implemented (see Table 5), the devices are
fully capable of sitting in a JTAG scan chain.
controlled. If the end application will require the device to be
reprogrammed at some future time with ISP, then the pins can be
left as dedicated JTAG functions, which means they are not
available for use as general purpose I/O pins. However, unlike
competing CPLDs, the Philips PZ5032C allow the macrocells
associated with these pins to be used as buried logic when the
JTAG/ISP function is enabled. This is the default state for the
software, and no action is required to leave these pins enabled for
the JTAG/ISP functions. If, however, JTAG/ISP is not required in the
end application, the software can specify that this function be turned
off and that these pins be used as general purpose I/O. Because the
devices initially have the JTAG/ISP functions enabled, the JEDEC
file can be down loaded into the device once, after which the
JTAG/ISP pins will become general purpose I/O. This feature is
good for manufacturing because the devices can be programmed
during test and assembly of the end product and yet still use all of
the I/O pins after the programming is done. It eliminates the need for
a costly, separate programming step in the manufacturing process.
Of course, if the JTAG/ISP function is never required, this feature
can be turned off in the software and the device can be programmed
with an industry-standard programmer, leaving the pins available for
I/O functions. Table 4 defines the dedicated pins used by the four
mandatory JTAG signals for each of the PZ5032C package types.
The Philips PZ5032C’s JTAG interface includes a TAP Port defined
by the IEEE 1149.1 JTAG Specification. As implemented in the
Philips PZ5032C, the TAP Port includes four of the five pins (refer to
Table 3) described in the JTAG specification: TCK, TMS, TDI, and
TDO. The fifth signal defined by the JTAG specification is TRST*
(Test Reset). TRST* is considered an optional signal, since it is not
actually required to perform BST or ISP. The Philips PZ5032C saves
an I/O pin for general purpose use by not implementing the optional
TRST* signal in the JTAG interface. Instead, the Philips PZ5032C
supports the test reset functionality through the use of its power up
reset circuit, which is included in all Philips CPLDs. The pins
associated with the TAP Port should connect to an external pull–up
resistor to keep the JTAG pins from floating when they are not being
used (see section on Terminations).
In the Philips PZ5032C, the four mandatory JTAG pins each require
a unique, dedicated pin on the device. The devices come from the
Table 3. JTAG Pin Description
PIN
TCK
TMS
TDI
NAME
DESCRIPTION
Test Clock Output
Test Mode Select
Test Data Input
Test Data Output
Clock pin to shift the serial data and instructions in and out of the TDI and TDO pins, respectively.
Serial input pin selects the JTAG instruction mode. TMS should be driven high during user mode operation.
Serial input pin for instructions and test data. Data is shifted in on the rising edge of TCK.
TDO
Serial output pin for instructions and test data. Data is shifted out on the falling edge of TCK. The signal is
tri-stated if data is not being shifted out of the device.
Table 4. PZ5032C JTAG Pinout by Package Type
(PIN NUMBER / MACROCELL #)
DEVICE
TCK
TMS
TDI
TDO
PZ5032C
44-pin PLCC
44-pin TQFP
32/B8
26/B8
13/A8
7/A8
7/A3
1/A3
38/B3
32/B3
Table 5. PZ5032C Low-Level JTAG Boundary-Scan Commands
INSTRUCTION
(Instruction Code)
Register Used
DESCRIPTION
Bypass
(1111)
Bypass Register
Places the 1 bit bypass register between the TDI and TDO pins, which allows the BST data to pass
synchronously through the selected device to adjacent devices during normal device operation. The Bypass
instruction can be entered by holding TDI at a constant high value and completing an Instruction-Scan cycle.
Idcode
(0001)
Boundary-Scan Register
Selects the IDCODE register and places it between TDI and TDO, allowing the IDCODE to be serially shifted
out of TDO. The IDCODE instruction permits blind interrogation of the components assembled onto a printed
circuit board. Thus, in circumstances where the component population may vary, it is possible to determine
what components exist in a product.
7
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
required by the device for normal operation. A set of low-level ISP
basic commands implemented in the PZ5032C enable this feature.
The ISP commands implemented in the Philips PZ5032C are
specified in Table 6. Please note that an ENABLE command must
precede all ISP commands unless an ENABLE command has
already been given for a preceding ISP command.
5-Volt, In-System Programming (ISP)
ISP is the ability to reconfigure the logic and functionality of a
device, printed circuit board, or complete electronic system before,
during, and after its manufacture and shipment to the end customer.
ISP provides substantial benefits in each of the following areas:
• Design
– Faster time-to-market
Terminations
– Debug partitioning and simplified prototyping
– Printed circuit board reconfiguration during debug
– Better device and board level testing
The CoolRunner PZ5032C CPLDs are TotalCMOS devices. As
with other CMOS devices, it is important to consider how to properly
terminate unused inputs and I/O pins when fabricating a PC board.
The PZ5032C devices do not have on-chip termination circuits, so it
is recommended that unused inputs and I/O pins be properly
terminated. Allowing unused inputs and I/O pins to float can cause
the voltage to be in the linear region of the CMOS input structures,
which can increase the power consumption of the device. Philips
recommends the use of 10KΩ pull-up resistors for the termination.
Using pull-up resistors allows the flexibility of using these pins
should late design changes require additional I/O. These unused
• Manufacturing
– Multi-Functional hardware
– Reconfigurability for Test
– Eliminates handling of “fine lead-pitch” components for
programming
– Reduced Inventory and manufacturing costs
– Improved quality and reliability
pins may also be tied directly to V , but this will make it more
DD
difficult to reclaim the use of the pin, should this be needed by a
subsequent design revision.
• Field Support
– Easy remote upgrades and repair
– Support for field configuration, re-configuration, and
customization
When using the JTAG/ISP functions, it is also recommended that
10KΩ pull-up resistors be used on each of the four mandatory
signals. Letting these signals float can cause the voltage on TMS to
come close to ground, which could cause the device to enter
JTAG/ISP mode at unspecified times. See the application notes
JTAG and ISP in Philips Devices and Terminating Unused
CoolRunner I/O Pins for more information.
The Philips PZ5032C allows for 5-Volt, in-system
programming/reprogramming of its EEPROM cells via its JTAG
interface. An on-chip charge pump eliminates the need for
externally-provided supervoltages, so that the PZ5032C may be
easily programmed on the circuit board using only the 5-volt supply
Table 6. Low Level ISP Commands
INSTRUCTION
(Register Used)
INSTRUCTION
CODE
DESCRIPTION
Enable
(ISP Shift Register)
1001
1010
1011
1100
Enables the Erase, Program, and Verify commands.
Erases the entire EEPROM array.
Erase
(ISP Shift Register)
Program
(ISP Shift Register)
Programs the data in the ISP Shift Register into the addressed EEPROM row.
Verify
(ISP Shift Register)
Transfers the data from the addressed row to the ISP Shift Register. The data can then be
shifted out and compared with the JEDEC file. The outputs during this operation can be
defined by the user.
8
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
JTAG and ISP Interfacing
• Automated Test Equipment
• Third party Programmers
• High-End ISP Tools
A number of industry-established methods exist for JTAG/ISP
interfacing with CPLD’s and other integrated circuits. The Philips
PZ5032C supports the following methods:
• PC Parallel Port
• Workstation or PC Serial Port
• Embedded Processor
For more details on JTAG and ISP for the PZ5032C, refer to the
related application note: JTAG and ISP in Philips CPLDs.
PROGRAMMING SPECIFICATIONS
SYMBOL
PARAMETER
MIN.
4.5
MAX.
UNIT
DC Parameters
V
V
supply program/verify
5.5
V
mA
V
CCP
CCP
CC
I
I
limit program/verify
200
CC
V
V
V
V
Input voltage (High)
Input voltage (Low)
Output voltage (Low)
Output voltage (High)
Output current (Low)
Output current (High)
2.0
IH
0.8
0.5
V
IL
V
SOL
SOH
2.4
8
V
TDO_I
mA
mA
OL
TDO_I
8
OH
AC Parameters
f
TCK maximum frequency
Pulse width erase
10
100
10
MHz
ms
ms
µs
MAX
PWE
PWP
Pulse width program
PWV
Pulse width verify
10
INIT
Initialization time
100
10
µs
TMS_SU
TDI_SU
TMS_H
TDI_H
TDO_CO
TMS setup time before TCK ↑
TDI setup time before TCK ↑
TMS hold time after TCK ↑
TDI hold time after TCK ↑
TDO valid after TCK ↓
ns
10
ns
25
ns
25
ns
40
ns
9
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
1
ABSOLUTE MAXIMUM RATINGS
SYMBOL
PARAMETER
MIN.
–0.5
–1.2
–0.5
–30
MAX.
7.0
UNIT
V
2
V
V
V
Supply voltage
Input voltage
Output voltage
Input current
Output current
DD
I
V
DD
V
DD
+0.5
V
+0.5
V
OUT
I
I
30
mA
mA
°C
°C
IN
OUT
–100
–40
100
150
150
T
J
Maximum junction temperature
Storage temperature
T
str
–65
NOTES:
1. Stresses above those listed may cause malfunction or permanent damage to the device. This is a stress rating only. Functional operation at
these or any other condition above those indicated in the operational and programming specification is not implied.
2. The chip supply voltage must rise monotonically.
OPERATING RANGE
PRODUCT GRADE
TEMPERATURE
VOLTAGE
Commercial
0 to +70°C
5 ±5% V
10
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
DC ELECTRICAL CHARACTERISTICS FOR COMMERCIAL GRADE DEVICES
Commercial: 0°C ≤ T
≤ +70°C; 4.75V ≤ V ≤ 5.25V
amb
DD
SYMBOL
PARAMETER
TEST CONDITIONS
MIN.
MAX.
UNIT
V
V
V
V
V
V
Input voltage low
V
DD
V
DD
= 4.75V
= 5.25V
0.8
IL
Input voltage high
Input clamp voltage
Output voltage low
Output voltage high
2.0
V
IH
I
2
V
= 4.75V, I = –18mA
–1.2
0.5
V
DD
IN
V
= 4.75V, I = 12mA
V
OL
OH
DD
OL
V
= 4.75V, I = –12mA
2.4
–10
–10
–10
–10
–10
V
DD
OH
I
I
I
I
I
I
Input leakage current low
V
= 5.25V (except CKO), V = 0.4V
10
10
10
10
10
75
1
µA
µA
µA
µA
µA
µA
mA
mA
mA
pF
pF
pF
IL
DD
IN
Input leakage current high
Clock input leakage current
3-Stated output leakage current low
3-Stated output leakage current high
Standby current
V
V
V
V
= 5.25V, V = 3.0V
IN
IH
DD
DD
DD
DD
DD
= 5.25V, V = 0.4V
IL
IN
= 5.25V, V = 0.4V
OZL
OZH
DDQ
IN
= 5.25V, V = 3.0V
IN
V
= 5.25V, T
= 0°C
amb
V
DD
= 5.25V, T
= 0°C @ 1MHz
= 0°C @ 50MHz
amb
amb
1
I
Dynamic current
DDD
V
DD
= 5.25V, T
15
–200
8
2
I
Short circuit output current
1 pin at a time for no longer than 1 second
–50
5
OS
C
C
C
Input pin capacitance
Clock input capacitance
I/O pin capacitance
T
= 25°C, f = 1MHz
= 25°C, f = 1MHz
= 25°C, f = 1MHz
IN
amb
T
amb
12
10
CLK
T
amb
I/O
NOTE:
1. This parameter measured with a 16–bit, loadable up/down counter loaded into every logic block, with all outputs disabled and unloaded.
Inputs are tied to V or ground. This parameter guaranteed by design and characterization, not testing.
DD
2. This parameter guaranteed by design and characterization, not by test.
1
AC ELECTRICAL CHARACTERISTICS FOR COMMERCIAL GRADE DEVICES
Commercial: 0°C ≤ T
≤ +70°C; 4.75V ≤ V ≤ 5.25V
amb
DD
–6
–7
–10
SYMBOL
PARAMETER
UNIT
MIN. MAX. MIN. MAX. MIN. MAX.
t
t
t
t
t
t
t
t
t
t
f
f
f
t
t
t
t
t
t
t
t
t
Propagation delay time, input (or feedback node) to output through PAL
2
3
6
8
2
3
7.5
10
7
2
3
10
12.5
9
ns
ns
PD_PAL
PD_PLA
CO
Propagation delay time, input (or feedback node) to output through PAL & PLA
Clock to out delay time
2
5.5
2
2
ns
Setup time (from input or feedback node) through PAL
3.5
5.5
5.5
8
8
ns
SU_PAL
SU_PLA
H
Setup time (from input or feedback node) through PAL + PLA
10.5
ns
Hold time
0
0
0
ns
Clock High time
Clock Low time
Input rise time
3
3
4
4
5
5
ns
CH
ns
CL
20
20
20
20
20
20
ns
R
Input fall time
ns
F
2
Maximum FF toggle rate
Maximum internal frequency
Maximum external frequency
Output buffer delay time
(1/t + t )
167
133
111
125
91
100
64
MHz
MHz
MHz
ns
MAX1
MAX2
MAX3
BUF
CH
CL
2
(1/t
+ t
)
SUPAL
CF
2
(1/t
+ t
)
80
59
SUPAL
CO
1.5
4.5
6.5
4
1.5
6
1.5
8.5
11
Input (or feedback node) to internal feedback node delay time through PAL
Input (or feedback node) to internal feedback node delay time through PAL + PLA
Clock to internal feedback node delay time
ns
PDF_PAL
PDF_PLA
CF
8.5
ns
5.5
7.5
50
15
15
15
18
ns
Delay from valid V to valid reset
50
11
11
11
14
50
µs
INIT
DD
2, 3
Input to output disable
12.5
12.5
12.5
15.5
ns
ER
2
Input to output valid
ns
EA
2
Input to register preset
ns
RP
2
Input to register reset
ns
RR
NOTES:
1. Specifications measured with one output switching. See Figure 6 and Table 7 for derating.
2. This parameter guaranteed by design and characterization, not by test.
3. Output C = 5pF.
L
11
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
SWITCHING CHARACTERISTICS
The test load circuit and load values for the AC Electrical Characteristics are illustrated below.
V
DD
COMPONENT
VALUES
470Ω
S1
R1
R2
C1
250Ω
R1
R2
35pF
V
IN
V
OUT
MEASUREMENT
S1
S2
C1
t
Open
Closed
Closed
Closed
PZH
t
Closed
Closed
PZL
t
P
S2
NOTE: For t
and t
C = 5pF, and 3-State levels are
PHZ
PLZ
measured 0.5V from steady state active level.
SP00476
VOLTAGE WAVEFORM
ns
V
= 5V, 25°C
DD
6.00
+3.0V
90%
5.60
10%
0V
t
R
t
F
1.5ns
1.5ns
5.20
4.80
TYPICAL
SP00368
MEASUREMENTS:
All circuit delays are measured at the +1.5V level of
inputs and outputs, unless otherwise specified.
Input Pulses
4.40
4.00
16
1
2
4
8
12
SP00636
Figure 6.
PD_PAL
t
vs. Outputs switching
PD_PAL
Table 7. t
DD
vs # of Outputs switching
V
= 5.00V
# of
Outputs
1
2
4
8
12
16
5.2
Typical
(ns)
4.2
4.4
4.6
4.9
5.0
12
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
PIN DESCRIPTIONS
Package Thermal Characteristics
Philips Semiconductors uses the Temperature Sensitive Parameter
(TSP) method to test thermal resistance. This method meets
Mil-Std-883C Method 1012.1 and is described in Philips 1995 IC
Package Databook. Thermal resistance varies slightly as a function
of input power. As input power increases, thermal resistance
changes approximately 5% for a 100% change in power.
PZ5032C –
44-Pin Plastic Leaded Chip Carrier
6
1
40
7
39
Figure 7 is a derating curve for the change in Θ with airflow based
JA
on wind tunnel measurements. It should be noted that the wind flow
dynamics are more complex and turbulent in actual applications
than in a wind tunnel. Also, the test boards used in the wind tunnel
contribute significantly to forced convection heat transfer, and may
not be similar to the actual circuit board, especially in size.
PLCC
17
29
18
28
Pin
1
Function
IN1
Pin
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Function
I/O–A10
I/O–A11
I/O–A12
I/O–A13
I/O–A14
I/O–A15
Pin
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Function
I/O–B9
Package
44-pin PLCC
Θ
JA
2
IN3
I/O–B8 (TCK)
I/O–B7
3
V
DD
49.8°C/W
66.3°C/W
4
I/O–A0–CK1
I/O–A1
I/O–B6
5
V
DD
44-pin TQFP
6
I/O–A2
I/O–B5
7
I/O–A3 (TDI)
I/O–A4
I/O–B4
GND
8
V
I/O–B3 (TDO)
I/O–B2
DD
9
I/O–A5
I/O–B15
I/O–B14
I/O–B13
I/O–B12
I/O–B11
I/O–B10
GND
10
11
12
13
14
15
GND
I/O–B1
0
10
20
30
40
50
PERCENTAGE
REDUCTION IN
I/O–A6
I/O–B0
I/O–A7
GND
Θ
(%)
JA
I/O–A8 (TMS)
I/O–A9
IN0–CK0
IN2–gtsn
V
DD
SP00546
PZ5032C –
44-Pin Thin Quad Flat Package
44
34
PLCC/
QFP
1
33
23
TQFP
0
1
2
3
4
5
AIR FLOW (m/s)
11
SP00419A
12
22
Figure 7. Average Effect of Airflow on Θ
JA
Pin
1
Function
I/O–A3 (TDI)
I/O–A4
Pin
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Function
Pin
Function
I/O–B4
I/O–B3 (TDO)
I/O–B2
I/O–B1
I/O–B0
GND
GND
31
32
33
34
35
36
37
38
39
40
41
42
43
44
2
V
DD
3
I/O–A5
I/O–B15
I/O–B14
I/O–B13
I/O–B12
I/O–B11
I/O–B10
GND
4
GND
5
I/O–A6
6
I/O–A7
7
I/O–A8 (TMS)
I/O–A9
IN0–CK0
IN2–gtsn
IN1
8
9
V
DD
10
11
12
13
14
15
I/O–A10
I/O–A11
I/O–A12
I/O–A13
I/O–A14
I/O–A15
I/O–B9
IN3
I/O–B8 (TCK)
I/O–B7
V
DD
I/O–A0–CK1
I/O–A1
I/O–B6
V
I/O–A2
DD
I/O–B5
SP00547
13
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
PLCC44: plastic leaded chip carrier; 44 leads
SOT187-2
14
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
TQFP44: plastic thin quad flat package; 44 leads; body 10 x 10 x 1.0 mm
SOT376-1
15
1998 Jul 23
Philips Semiconductors
Product specification
32 macrocell CPLD with enhanced clocking
PZ5032C
Data sheet status
[1]
Data sheet
status
Product
status
Definition
Objective
specification
Development
This data sheet contains the design target or goal specifications for product development.
Specification may change in any manner without notice.
Preliminary
specification
Qualification
This data sheet contains preliminary data, and supplementary data will be published at a later date.
Philips Semiconductors reserves the right to make chages at any time without notice in order to
improve design and supply the best possible product.
Product
specification
Production
This data sheet contains final specifications. Philips Semiconductors reserves the right to make
changes at any time without notice in order to improve design and supply the best possible product.
[1] Please consult the most recently issued datasheet before initiating or completing a design.
Definitions
Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one
or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.
Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.
Disclaimers
Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
Righttomakechanges—PhilipsSemiconductorsreservestherighttomakechanges, withoutnotice, intheproducts, includingcircuits,standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Copyright Philips Electronics North America Corporation 1998
All rights reserved. Printed in U.S.A.
Sunnyvale, California 94088–3409
Telephone 800-234-7381
Date of release: 07-98
Document order number:
9397 750 04176
Philips
Semiconductors
厂商 型号 描述 页数 下载

ETC

 		PZ5032 32宏单元CPLD\n[ 32 Macrocell CPLD ] 14 页

ETC

 		PZ5032-10(TBD) ASIC[ ASIC ] 12 页

XILINX

 		PZ5032-10A44 [ EE PLD, 12.5ns, 32-Cell, CMOS, PQCC44 ] 13 页

XILINX

 		PZ5032-10BC [ EE PLD, 12.5ns, 32-Cell, CMOS, PQFP44 ] 13 页

ETC

 		PZ5032-10BC-S 电可擦除可编程逻辑器件复杂\n[ Electrically-Erasable Complex PLD ] 13 页

ETC

 		PZ5032-6(TBD) ASIC[ ASIC ] 12 页

XILINX

 		PZ5032-6A44 [ EE PLD, 8ns, 32-Cell, CMOS, PQCC44 ] 13 页

XILINX

 		PZ5032-6BC [ EE PLD, 8ns, 32-Cell, CMOS, PQFP44 ] 13 页

ETC

 		PZ5032-6BC-S 电可擦除可编程逻辑器件复杂\n[ Electrically-Erasable Complex PLD ] 13 页

ETC

 		PZ5032-7(TBD) ASIC[ ASIC ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.200278s
