LYE675-T1U1-26-1

型号：

LYE675-T1U1-26-1

品牌：

INFINEON[ Infineon ]

页数：

14 页

PDF大小：

129 K

下载PDF手册

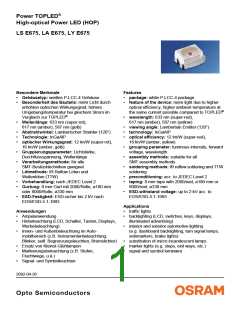

Power TOPLED®
High-optical Power LED (HOP)
LS E675, LA E675, LY E675
Besondere Merkmale
Features
• Gehäusetyp: weißes P-LCC-4 Gehäuse
• Besonderheit des Bauteils: mehr Licht durch
erhöhten optischen Wirkungsgrad; höhere
Umgebungstemperatur bei gleichem Strom im
Vergleich zur TOPLED®
• Wellenlänge: 633 nm (super-rot),
617 nm (amber), 587 nm (gelb)
• Abstrahlwinkel: Lambertscher Strahler (120°)
• Technologie: InGaAlP
• optischer Wirkungsgrad: 12 lm/W (super-rot),
16 lm/W (amber, gelb)
• Gruppierungsparameter: Lichtstärke,
Durchflussspannung, Wellenlänge
• Verarbeitungsmethode: für alle
SMT-Bestücktechniken geeignet
• Lötmethode: IR Reflow Löten und
Wellenlöten (TTW)
• Vorbehandlung: nach JEDEC Level 2
• Gurtung: 8 mm Gurt mit 2000/Rolle, ø180 mm
oder 8000/Rolle, ø330 mm
• package: white P-LCC-4 package
• feature of the device: more light due to higher
optical efficiency, higher ambient temperature at
the same current possible compared to TOPLED®
• wavelength: 633 nm (super-red),
617 nm (amber), 587 nm (yellow)
• viewing angle: Lambertian Emitter (120°)
• technology: InGaAlP
• optical efficiency: 12 lm/W (super-red),
16 lm/W (amber, yellow)
• grouping parameter: luminous intensity, forward
voltage, wavelength
• assembly methods: suitable for all
SMT assembly methods
• soldering methods: IR reflow soldering and TTW
soldering
• preconditioning: acc. to JEDEC Level 2
• taping: 8 mm tape with 2000/reel, ø180 mm or
8000/reel, ø330 mm
• ESD-withstand voltage: up to 2 kV acc. to
EOS/ESD-5.1-1993
• ESD-Festigkeit: ESD-sicher bis 2 kV nach
EOS/ESD-5.1-1993
Applications
Anwendungen
• traffic lights
• Ampelanwendung
• Hinterleuchtung (LCD, Schalter, Tasten, Displays,
Werbebeleuchtung)
• Innen- und Außenbeleuchtung im Auto-
mobilbereich (z.B. Instrumentenbeleuchtung,
Blinker, seitl. Begrenzungsleuchten, Bremslichter)
• Ersatz von Kleinst-Glühlampen
• Markierungsbeleuchtung (z.B. Stufen,
Fluchtwege, u.ä.)
• backlighting (LCD, switches, keys, displays,
illuminated advertising)
• interior and exterior automotive lighting
(e.g. dashboard backlighting, turn signal lamps,
sidemarkers, brake lights)
• substitution of micro incandescent lamps
• marker lights (e.g. steps, exit ways, etc.)
• signal and symbol luminaire
• Signal- und Symbolleuchten
2002-04-26
1
LS E675, LA E675, LY E675
Typ
Emissions- Farbe der
Lichtstärke
Lichtstrom
Bestellnummer
Ordering Code
farbe
Lichtaustritts-
fläche
Type
Color of
Color of the
Luminous
Luminous
Flux
Emission
LightEmitting Intensity
Area
IF = 50 mA
IV (mcd)
IF = 50 mA
ΦV (mlm)
LS E675-S1T1-1-1
LS E675-T1U2-1-1
super-red
amber
colorless clear
colorless clear
colorless clear
180 ... 355
280 ... 710
770 (typ.) Q62703-Q6103
1400 (typ.) Q62703-Q6104
LA E675-T1U1-1-1
LA E675-U1V1-1-1
280 ... 560
450 ... 900
1260 (typ.) Q62703-Q4976
2000 (typ.) Q62703-Q4977
LY E675-T1U1-26-1 yellow
LY E675-U1V2-26-1
280 ... 560
450 ... 1120
1260 (typ.) Q62703-Q6026
2300 (typ.) Q62703-Q6298
Anm.: -1-1 gesamter Farbbereich (siehe Seite 4)
-26-1 gesamter Farbbereich, Lieferung in Einzelgruppen (siehe Seite 5)
-1-1 gesamter Durchlassspannungsbereich, Lieferung in Einzelgruppen (siehe Seite 5)
-26-1 gesamter Durchlassspannungsbereich, Lieferung in Einzelgruppen (siehe Seite 5)
Die Standardlieferform von Serientypen beinhaltet eine untere bzw. eine obere Familiengruppe,
die aus nur 3 bzw. 4 Halbgruppen besteht. Einzelne Halbgruppen sind nicht erhältlich.
In einer Verpackungseinheit / Gurt ist immer nur eine Halbgruppe enthalten.
Dimmverhältnis im Gleichstrom-Betrieb max. 5:1
Note: -1-1 Total color tolerance range (please see page 4)
-26-1 Total color tolerance range, delivery in single groups (please see page 5)
-1-1 Total forward voltage tolerance, delivery in single groups (see page 5)
-26-1 Total forward voltage tolerance, delivery in single groups (see page 5)
The standard shipping format for serial types includes a lower or upper family group of 3 or 4
individual groups. Individual half groups are not available.
No packing unit / tape ever contains more than one luminous intensity half group.
Dimming range for direct current mode max. 5:1
2002-04-26
2
LS E675, LA E675, LY E675
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Symbol
Symbol
Wert
Value
Einheit
Unit
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
– 40 … + 100
– 40 … + 100
+ 125
°C
°C
°C
mA
A
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlassstrom
Forward current
IF
70
Stoßstrom
IFM
0.1
Surge current
t ≤ 10 µs, D = 0.1
Sperrspannung
Reverse voltage
VR
5
V
Leistungsaufnahme
Power consumption
TA ≤ 25 °C
Ptot
180
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
300
130
K/W
K/W
Junction/soldering point
Montage auf PC-Board FR 4 (Padgröße ≥ 16 mm2)
mounted on PC board FR 4 (pad size ≥ 16 mm 2)
2002-04-26
3
LS E675, LA E675, LY E675
Kennwerte (TA = 25 °C)
Characteristics
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LA
LY
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 50 mA
Dominantwellenlänge 1)
Dominant wavelength
IF = 50 mA
(typ.) λpeak
645
624
594
nm
nm
nm
(typ.) λdom
(typ.) ∆λ
(typ.) 2ϕ
633
± 6
617
+7/-5
587
+8/–7
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 50 mA
18
18
15
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
120
120
120
Grad
deg.
Durchlassspannung 2)
Forward voltage
IF = 50 mA
(min.) VF
(typ.) VF
(max.) VF
1.9 3)
2.1
2.5
1.9 4)
2.1
2.5
1.9 3)
2.1
2.5
V
V
V
Sperrstrom
Reverse current
VR = 5 V
(typ.) IR
(max.) IR
0.01
10
0.01
10
0.01
10
µA
µA
Temperaturkoeffizient von λpeak
Temperature coefficient of λpeak
IF = 50 mA; –10°C ≤ T ≤ 100°C
(typ.) TCλpeak
(typ.) TCλdom
(typ.) TCV
0.15
0.04
– 3.4
12
0.15
0.08
– 1.7
16
0.13
0.10
– 1.8
16
nm/K
nm/K
mV/K
lm/W
Temperaturkoeffizient von λdom
Temperature coefficient of λdom
IF = 50 mA; –10°C ≤ T ≤ 100°C
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 50 mA; –10°C ≤ T ≤ 100°C
Optischer Wirkungsgrad
Optical efficiency
IF = 50 mA
(typ.) ηopt
1)
Wellenlängen werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±1 nm ermittelt.
Wavelengths are tested at a current pulse duration of 25 ms and a tolerance of ±1 nm.
2)
Durchlassspannungsgruppen werden mit einer Stromeinprägedauer von 1 ms und einer Genauigkeit von ±0,05 V
ermittelt.
Forward voltage groups are tested at a current pulse duration of 1 ms and a tolerance of ±0.05 V.
2002-04-26
4
LS E675, LA E675, LY E675
1) Wellenlängengruppen
Wavelength groups
Gruppe
Group
yellow
Einheit
Unit
min.
max.
583
586
589
592
595
2
3
4
5
6
580
583
586
589
592
nm
nm
nm
nm
nm
3) Durchlassspannungsgruppen für super-rot / gelb
4) Durchlassspannungsgruppen für amber
Forward voltage groups for super-red / yellow
Forward voltage groups for amber
Gruppe
Group
Durchlassspannung
Forward voltage
Einheit
Unit
Gruppe
Group
Durchlassspannung
Forward voltage
Einheit
Unit
min.
max.
2.2
min.
max.
2.05
2.20
2.35
2.50
3
4
1.9
2.2
V
V
3A
3B
4A
4B
1.90
2.05
2.20
2.35
V
V
V
V
2.5
Helligkeits-Gruppierungsschema
Luminous Intensity Groups
Lichtgruppe
Luminous Intensity Group
Lichtstärke
Luminous Intensity
IV (mcd)
Lichtstrom
Luminous Flux
ΦV (mlm)
S1
S2
T1
T2
U1
U2
V1
V2
180 ... 224
224 … 280
280 ... 355
355 ... 450
450 ... 560
560 ... 710
710 ... 900
900 ... 1120
600 (typ.)
760 (typ.)
950 (typ.)
1200 (typ.)
1500 (typ.)
1900 (typ.)
2400 (typ.)
3000 (typ.)
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±11 % ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and a tolerance of ±11 %.
Gruppenbezeichnung auf Etikett
Group Name on Label
Beispiel: T2-23
Example: T2-23
Lichtgruppe
Luminous Intensity Group
Halbgruppe
Half Group
Wellenlänge
Wavelength
Durchlassspannung
Forward Voltage
T
2
2
3
2002-04-26
5
LS E675, LA E675, LY E675
Relative spektrale Emission Irel = f (λ), TA = 25 °C, IF = 50 mA
Relative Spectral Emission
V(λ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL00585
100
%
Ιrel
80
V
λ
60
yellow
amber
super-red
40
20
0
400
450
500
550
600
650
nm
700
λ
Abstrahlcharakteristik Irel = f (ϕ)
Radiation Characteristic
OHL01660
40˚
30˚
20˚
10˚
0˚
1.0
ϕ
50˚
0.8
0.6
0.4
0.2
0
60˚
70˚
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
20˚
40˚
60˚
80˚
100˚
120˚
2002-04-26
6
LS E675, LA E675, LY E675
Durchlassstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(50 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL00444
OHL00584
10 2
10 1
mA
IV
IF
IV (50 mA)
10 1
5
10 0
5
10 0
5
10-1
5
10 -1
5
10-2
5
super-red,
amber
yellow
10 -2
10-3
10 -1
5
10 0
5
10 1
10 2
mA
1.4
1.6
1.8
2.0
2.2
V 2.4
VF
I
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 50 mA
OHL00740
OHL01413
2.0
80
IV
mA
IF
70
60
V(25 ˚C)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
T
T
S
A
50
40
30
20
10
0
ΤA temp. ambient
ΤS temp. solder point
0
20
40
60
80 ˚C 100
-40 -20
0
20 40 60
˚C 100
T
T
2002-04-26
7
LS E675, LA E675, LY E675
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 25 °C
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 85 °C
OHL01505
OHL01506
0.12
0.12
A
A
F 0.10
IF
I
0.1
0.005
0.05
0.5
0.08
0.06
0.04
0.02
0
0.08
0.005
0.05
0.5
0.06
0.04
0.02
0
10-5 10-4 10-3 10-2 10-1 100 101 s 102
10-5 10-4 10-3 10-2 10-1 100 101 s 102
tp
tp
2002-04-26
8
LS E675, LA E675, LY E675
Maßzeichnung
Package Outlines
3.0 (0.118)
2.6 (0.102)
2.3 (0.091)
2.1 (0.083)
1.7 (0.067)
0.9 (0.035)
2.1 (0.083)
0.8 (0.031)
0.6 (0.024)
C
0.7 (0.028)
A
0.1 (0.004) typ
C
C
0.6 (0.024)
0.4 (0.016)
Package
marking
0.18 (0.007)
0.12 (0.005)
GPLY6991
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gewicht / Approx. weight: 31 mg
2002-04-26
9
LS E675, LA E675, LY E675
Lötbedingungen
Vorbehandlung nach JEDEC Level 2
Soldering Conditions Preconditioning acc. to JEDEC Level 2
IR-Reflow Lötprofil
(nach IPC 9501)
IR Reflow Soldering Profile (acc. to IPC 9501)
OHLY0597
300
˚C
250
200
150
100
50
T
240-245 ˚C
10-40 s
183 ˚C
120 to 180 s
Ramp-down rate up to 6 K/s
Defined for Preconditioning: up to 6 K/s
Ramp-up rate up to 6 K/s
Defined for Preconditioning: 2-3 K/s
0
0
50
100
150
200
s
250
t
2002-04-26
10
LS E675, LA E675, LY E675
Wellenlöten (TTW) (nach CECC 00802)
TTW Soldering
(acc. to CECC 00802)
OHLY0598
300
C
10 s
Normalkurve
standard curve
250
200
150
100
50
T
235 C ... 260 C
Grenzkurven
limit curves
2. Welle
2. wave
1. Welle
1. wave
ca 200 K/s
2 K/s
5 K/s
100 C ... 130 C
Zwangskühlung
2 K/s
forced cooling
0
0
50
100
150
200
s
250
t
2002-04-26
11
LS E675, LA E675, LY E675
Empfohlenes Lötpaddesign IR Reflow Löten
Recommended Solder Pad
IR Reflow Soldering
3.3 (0.130)
3.3 (0.130)
0.4 (0.016)
2.6 (0.102)
1.1 (0.043)
Padgeometrie für
verbesserte Wärmeableitung
_
<
Kathoden Markierung /
Cathode marking
Cu Fläche / 12 mm2 per pad
Cu-area
Paddesign for
improved heat dissipation
Lötstoplack
Solder resist
OHLPY439
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2002-04-26
12
LS E675, LA E675, LY E675
Empfohlenes Lötpaddesign Wellenlöten (TTW)
Recommended Solder Pad
TTW Soldering
3.5 (0.138)
6.1 (0.240)
2.8 (0.110)
2.8 (0.110)
0.5 (0.020)
7.5 (0.295)
Padgeometrie für
verbesserte Wärmeableitung
Paddesign for
improved heat dissipation
Cu Fläche / > 12 mm2 per pad
Cu-area
Lötstoplack
Solder resist
OHAY0583
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gurtung / Polarität und Lage
Verpackungseinheit 2000/Rolle, ø330 mm
Method of Taping / Polarity and Orientation Packing unit 2000/reel, ø330 mm
1.5 (0.059)
4 (0.157)
2 (0.079)
C
C
C
A
4 (0.157)
2.9 (0.114)
OHAY0536
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2002-04-26
13
LS E675, LA E675, LY E675
Revision History: 2002-04-26
Previous Version: 2002-04-05
Page
Subjects (major changes)
wavelength grouping for yellow
Date
2
2002-04-03
2
forward voltage grouping for yellow, super-red and amber
optical efficiency from 15 lm/W to 16 lm/W for amber
2002-04-03
2002-04-05
2002-04-26
1, 4
7
change of diagram rel. lum. intensity (TA) from OHL00576 to OHL00740
Published by OSRAM Opto Semiconductors GmbH & Co. OHG
Wernerwerkstrasse 2, D-93049 Regensburg
© All Rights Reserved.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics.
Terms of delivery and rights to change design reserved. Due to technical requirements components may contain
dangerous substances. For information on the types in question please contact our Sales Organization.
If printed or downloaded, please find the latest version in the Internet.
Packing
Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office.
By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing
material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs
incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose! Critical
components 1 may only be used in life-support devices or systems 2 with the express written approval of OSRAM OS.
1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected
to cause the failure of that life-support device or system, or to affect its safety or the effectiveness of that device or
system.
2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain
and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered.
2002-04-26
14
厂商 型号 描述 页数 下载

UTC

 		LYE05AF-25 LED灯[ LED LAMP ] 4 页

OSRAM

 		LYE63B [ Automotive Lighting Interior and Exterior ] 21 页

OSRAM

 		LYE63B-CBEA-26-1 [ Automotive Lighting Interior and Exterior ] 21 页

OSRAM

 		LYE63F [ Power TOPLED Lens ] 22 页

OSRAM

 		LYE63F-EBGA-36-3B5A [ Power TOPLED Lens ] 22 页

LIGITEK

 		LYE65062-L15-PF 双极型LED灯[ BIPOLAR TYPE LED LAMPS ] 7 页

LIGITEK

 		LYE65062/L15-PF 双极型LED灯[ BIPOLAR TYPE LED LAMPS ] 7 页

INFINEON

 		LYE655-ABCA-26-1 [ Optoelectronic Device, ] 15 页

OSRAM

 		LYE65B [ Signal and Symbol Luminary ] 20 页

OSRAM

 		LYE65B-AACA-26-1 [ Signal and Symbol Luminary ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.194468s
