RXM-750L

型号：

RXM-750L

描述：

电信/数据通信\n[ Telecomm/Datacomm ]

品牌：

ETC[ ETC ]

页数：

7 页

PDF大小：

362 K

下载PDF手册

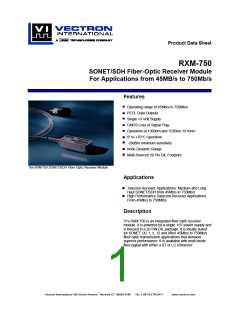

Product Data Sheet
RXM-750
SONET/SDH Fiber-Optic Receiver Module
For Applications from 45MB/s to 750Mb/s
Features
Operating range of 45Mb/s to 750Mb/s
PECL Data Outputs
Single +5 Volt Supply
CMOS Loss of Signal Flag
Operation at 1300nm and 1520nm-1610nm
0° to +70°C Operation
-28dBm minimum sensitivity
Wide Dynamic Range
Multi-Sourced 20 Pin DIL Footprint
The RXM-750 SONET/SDH Fiber-Optic Receiver Module
Applications
Telecom Receiver Applications: Medium and Long
Haul SONET/SDH from 45Mb/s to 750Mb/s
High Performance Datacom Receiver Applications:
From 45Mb/s to 750MB/s
Description
VI’s RXM-750 is an integrated fiber-optic receiver
module. It is powered by a single +5V power supply and
is housed in a 20 PiN DIL package. It is ideally suited
for SONET OC-1, 3, 12 and other 45Mb/s to 750Mb/s
fiber-optic transmission applications that demand
superior performance. It is available with multi-mode
fiber pigtail with either a ST or LC connector.
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
RXM-750 SONET/SDH Receiver Module
Product Data Sheet
Functional Overview
The optical signal is coupled through a 62.5 µm
multimode optical fiber to a hermetic module which
encases an InGaAs PiN-photodiode and preamplifier.
The PiN-photodiode converts the optical signal to an
electrical current. The signal is then converted to a
voltage and amplified by a low noise transimpedance
amplifier.
This highly integrated module converts a 45Mb/s to 750
Mb/s fiber-optic NRZ signal to differential PECL data
outputs. A CMOS flag alerts the user to a loss of signal
condition when the optical input falls below an
acceptable level.
A single +5 Volt supply provides bias for the module’s
preamplifier, and Quantizer. The photodiode may be
biased to +5 Volts. All elements are integrated into
fiber-coupled 1.3” X 0.635” 20 pin DIL package. The
RXM-750 footprint and pinout are industry common for
ease of integration.
Further gain is provided by the quantizer, which also
provides a Flag output when the optical signal falls
below an acceptable level.
Figure 1. RXM-750 Functional Block Diagram
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
2
RXM-750 SONET/SDH Receiver Module
Product Data Sheet
Pin 1 Indicator
10
Top View
11
20
Figure 2. Pin Diagram (Top View)
Table 1. Pin Function
Symbol
Pin
7
Function
Data
Data
VD
PECL Data Output.
9
PECL Complementary Data Output.
10
Detector Anode Bias. Connect to +5V or a +5V biased series resistor, for
received optical power monitoring.1
11
12
VCC
5 Volt Supply Voltage.
Flag
Input Signal Level Status. This CMOS output switches low when the received
optical power falls below the Flag Threshold
1,2,3,6,8,13,15,16
4,5,14,17,18,19,20
GND
NC
Ground.
No User Connection.
1. By connecting pin 10 to a +5 Volt bias through a series resistor (e.g. 1 kΩ) received optical power can be monitored as a voltage drop across the resistor.
Absolute Maximum Ratings
Absolute maximum ratings are provided here as
worst case and short duration exposure conditions
only. Exposure to conditions more severe than the
Absolute Maximum Ratings may result in permanent
damage. Exposure to conditions at the Absolute
Maximum Ratings for extended periods may also
adversely affect device performance or reliability.
Functional operation of the device is not implied at
these conditions.
Table 2. Absolute Maximum Ratings
Parameter
Storage Temperature Range
Supply Voltage
Symbol
TS
Minimum
Maximum
85
Units
°C
-40
0
VCC
+6
V
pin Detector Bias
VD
+5
+15
V
Lead Soldering Conditions
250/10
°C/s
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
3
RXM-750 SONET/SDH Receiver Module
Product Data Sheet
Performance Characteristics
Table 3. Electrical Performance
Parameter
Symbol
Minimum
Typical
Maximum
750
Units
Mb/s
°C
Input Signal Rate1
fO
TO
45
0
Operating Temperature
Power Supply Voltage
pin Detector Bias Voltage (pin10)
Power Supply Current
Data Output Levels 2
Low
+70
VCC
VD
4.5
5
5.0
5
5.5
V
15
V
ICC
250
mA
VOL
VOH
VCC - 1.95
VCC - 1.03
275
VCC - 1.63
VCC - 0.88
575
V
V
High
Data Output Rise and Fall Times 3
Received Power Level Flag
Decreasing Optical Power
Increasing Optical Power
Flag Hysteresis
TR, TF
LOS
375
ps
35
33
2
dBm
dBm
dB
Hyst
1. Other center frequencies are available. Please contact Vectron International for further details.
2. Measured with a load of RL = 50Ω to VCC - 2 V. See figures 3 and 4. ECL levels are specified for dc measurement, an additional tolerance of 50 mV should be included for
dynamic measurements.
3. Measured at 20% to 80% levels.
Figure 3. PECL Interface
4
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
RXM-750 SONET/SDH Receiver Module
Product Data Sheet
Figure 4. ECL (AC Coupled) Interface
Figure 5. Typical Performance @ 155.52MHz
Table 4. Optical Performance
Parameter
Symbol
Sens.
PMAX
λ
Minimum
Typical
Maximum
Units
dBm
Minimum Average Sensitivity 1
Maximum Optical Input 1
Input Wavelength
-28
-5
dBm
nm
1100
1610
1. For a BER less than 1E-10. Measured using a 223 - 1 pseudorandom word and a 50% average optical duty cycle and a 10 dB Extinction Ratio.
5
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
RXM-750 SONET/SDH Receiver Module
Product Data Sheet
Qualification
The RXM-750 has been designed to comply with the
requirements of Bellcore specifications GR-468-
CORE, Reliability Assurance for Optoelectronic
Devices and will be subject to a complete
qualification test plan to demonstrate full compliance.
All of the technologies used in the assembly of the
module represent standard microelectronic and
optical technologies that are used in similar products,
and have extensive field reliability data.
All components and technologies used in the optical
receiver are backed by qualification data covering
mechanical and environmental tests along with
accelerated life tests. Typical test, test conditions and
sample size are listed below.
Table 5. Qualification Plan
Test
Test Method
MIL-STD-883, Method 2016
Sample Size
Physical Dimensions
Mechanical Shock
Vibration, variable frequency
Lead Solderability
Lead Integrity
11
MIL-STD-883, Method2002, Test B
MIL-STD-883, Method 2007, Test A
MIL-STD-883, Method 2003
MIL-STD-883, Method 2004
-40°C/85°C, 300 cycles
11
11
22 leeds
15 leeds
Temperature Cycling
High Temperature Aging
Damp Bake
11
11
11
11
3
85°C under bias, 2000 hours
85°C/85% RH/ 1000hrs
Low Temperature Storage
ESD
-40°C, 168 hours
MIL-STD-883,Method 3015
MIL-STD-883,Method 2011
Destructive Bond Pull
40
Table 6. Optical Fiber Characteristics
Parameter
Fiber Length
Fiber Core
Minimum
Typical
1000
62.5
Maximum
Units
mm
µm
Fiber Buffer
900
µm
6
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
RXM-750 SONET/SDH Receiver Module
Product Data Sheet
Outline Diagram
Figure 6. Outline Diagram
Ordering Information
Standard modules are built with 62.5um MM fiber, with an outer jacket diameter of 900um. Alternative fiber type,
connector type and fiber lengths are available upon request. Contact factory for specific details.
Table 7. Part Numbers
Fiber-Optic Connector1
Model Number
VI Code Number
ST
LC
RXM-750B
RXM-750L
330013284
330014887
1. Other connectors or fiber requirements are available to meet specific application requirements.
USA: Vectron International • 166 Glover Avenue, Norwalk, CT 06856 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
EUROPE: In Denmark, Finland, Ireland, Italy, Israel, Norway, Spain, UK: Tel: 44 (0) 1703 766 288 • Fax: 44 (0) 1703 766 822
In Austria,Belgium,France,Germany,Luxenburg,Netherlands,Sweden,Switzerland:Tel: 49(0)7263 6480 • Fax:49(0)7263 6196
ASIA: In China, Taiwan, Japan: Tel: 01 603 598 0070 • Fax: 01 603 598 0075
In Korea, Singapore, Australia, India: Tel: 01 203 853 4433 • Fax: 01 203 853 1423
Vectron International, Inc. reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160
Tel: 1-88-VECTRON-1
www.vectron.com
7
