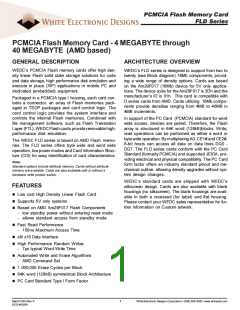

PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
PCMCIA Flash Memory Card - 4 MEGABYTE through
40 MEGABYTE (AMD based)
GENERAL DESCRIPTION
ARCHITECTURE OVERVIEW
WEDC’s PCMCIA Flash memory cards offer high den-
sity linear Flash solid state storage solutions for code
and data storage, high performance disk emulation and
execute in place (XIP) applications in mobile PC and
dedicated (embedded) equipment'
WEDC’s FLD series is designed to support from two to
twenty (see Block diagram) 16Mb components, provid-
ing a wide range of density options' Cards are based
on the Am29F017 (16Mb) device for 5V only applica-
tions' The device code for the Am29F017 is 3Dh and the
manufacturer’s ID is 01h' This card is compatible with
D series cards from AMD' Cards utilizing 16Mb compo-
nents provide densities ranging from 4MB to 40MB in
4MB increments'
Packaged in a PCMCIA type I housing, each card con-
tains a connector, an array of Flash memories pack-
aged in TSOP packages and card control logic' The
card control logic provides the system interface and
controls the internal Flash memories' Combined with
file management software, such as Flash Translation
Layer (FTL), WEDC Flash cards provide removable high-
performance disk emulation'
In support of the PC Card (PCMCIA) standard for word
wide access, devices are paired' Therefore, the Flash
array is structured in 64K word (128kB)blocks' Write,
read operations can be performed as either a word or
byte wide operation' By multiplexingA0, CE1# and CE2#,
8-bit hosts can access all data on data lines DQ0 -
DQ7' The FLD series cards conform with the PC Card
Standard (formerly PCMCIA) and supported JEIDA, pro-
viding electrical and physical compatibility' The PC Card
form factor offers an industry standard pinout and me-
chanical outline, allowing density upgrades without sys-
tem design changes'
The WEDC FLD series is based on AMD Flash memo-
ries' The FLD series offers byte wide and word wide
operation, low power modes and Card Information Struc-
ture (CIS) for easy identification of card characteristics'
Note:
Standard options include attribute memoryꢀ Cards without attribute
memory are availableꢀ Cards are also available with or without a
hardware write protect switchꢀ
WEDC’s standard cards are shipped with WEDC’s
silkscreen design' Cards are also available with blank
housings (no silkscreen)' The blank housings are avail-
able in both a recessed (for label) and flat housing'
Please contact your WEDC sales representative for fur-
ther information on Custom artwork'
FEATURES
n Low cost High Density Linear Flash Card
n Supports 5V only systems
n Based on AMD Am29F017 Flash Components
- low standby power without entering reset mode
- allows standard access from standby mode
n Fast Read Performance
- 150ns Maximum Access Time
n x8/ x16 Data Interface
n High Performance Random Writes
- 7µs typical Word Write Time
n Automated Write and Erase Algorithms
- AMD Command Set
n 1 000,000 Erase Cycles per Block
n 64K word (128kB) symmetrical Block Architecture
n PC Card Standard Type I Form Factor
March 2003 Revꢀ 6
ECO #16058
1
White Electronic Designs Corporation • (508) 485-4000 • wwwꢀwhiteedcꢀcom
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
BLOCK DIAGRAM
Device type
Manuf ID Device ID
Am29F017
01H
3DH
Device Pair (N/2 - 1)
Device (N-1)
Device (N-2)
CSn
Array
Address
Bus
ADDRESS
BUFFER
ADDRESS BUS
A1-A25
Control
Address
Bus
M Res
WE
OE
WL
Control Logic
PCMCIA Interface
RL
WH
RH
CE2
1
Qn
CE
CSn
CS
Device Pair 1
REG
Q2
Q0
Device 3
Device 1
Device 2
Device 0
A0
0
CS
1
WP
Ctrl At/Reg enable
Device Pair 0
CS
0
WL RL
DATA
BUS
Q0-Q7
Vcc
RH
WH
DATA
BUS
Q8-Q15
Vcc
0000h
attrib. mem
CIS
EEPROM 2kB
control
Q0-Q7
Vcc
I/O buffer
DATA
BUS
D8-D15
DATA
BUS
D0-D7
White Electronic Designs Corporation • Marlborough MA • (508) 485-4000
2
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
PINOUT CONTꢀ
PINOUT
Pin
1
Signal name
GND
DQ3
DQ4
DQ5
DQ6
DQ7
CE1
A10
I/O
Function
Ground
Active
Pin
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
Signal name
GND
CD1
DQ11
DQ12
DQ13
DQ14
DQ15
CE2
I/O
Function
Ground
Active
2
I/O
Data bit 3
O
I/O
I/O
I/O
I/O
I
Card Detect 1
Data bit 11
LOW
3
I/O
Data bit 4
4
I/O
Data bit 5
Data bit 12
5
I/O
Data bit 6
Data bit 13
6
I/O
Data bit 7
Data bit 14
7
I
I
Card enable 1
Address bit 10
Output enable
Address bit 11
Address bit 9
Address bit 8
Address bit 13
Address bit 14
Write Enable
Ready/Busy
Supply Voltage
Prog- Voltage
Address bit 16
Address bit 15
Address bit 12
Address bit 7
Address bit 6
Address bit 5
Address bit 4
Address bit 3
Address bit 2
Address bit 1
Address bit 0
Data bit 0
LOW
LOW
Data bit 15
8
I
Card Enable 2
Voltage Sense 1N-C-
Reserved
LOW
9
OE
I
VS1
O
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
A11
I
RFU
RFU
A17
A9
I
Reserved
A8
I
I
I
I
I
I
Address bit 17
Address bit 18
Address bit 19
Address bit 20
Address bit 21
Supply Voltage
Prog- Voltage
Address bit 22
Address bit 23
Address bit 24
Address bit 25
Voltage Sense 2
Card Reset
A13
I
A18
A14
I
A19
WE
RDY/BSY
VCC
VPP1
A16
I
LOW
LOW
A20
2MB(3)
4MB(3)
O
A21
VCC
N-C-
VPP2
A22
N-C-
8MB(3)
16MB(3)
32MB(3)
64MB(3)
N-C-
I
I
I
A15
I
A23
A12
I
A24
I
A7
I
A25
I
A6
I
VS2
O
I
A5
I
RST
Wait
RFU
REG
BVD2
BVD1
DQ8
DQ9
DQ10
CD2
GND
HIGH
A4
I
O
Extended Bus cycle LOW(2)
Reserved
A3
I
I
A2
I
Attrib Mem Select
A1
I
O
Bat- Volt- Detect 2
Bat- Volt- Detect 1
Data bit 8
(2)
(2)
A0
I
O
DQ0
DQ1
DQ2
WP
GND
I/O
I/O
I/O
O
I/O
I/O
O
Data bit 1
Data bit 9
Data bit 2
Data bit 10
Write Potect
Ground
HIGH
O
Card Detect 2
Ground
LOW
Notes:
1ꢀ RDY/BSY is an open drain output, external pull-up resistor is requiredꢀ
2ꢀ Wait, BVD1 and BVD2 are driven high for compatibilityꢀ
3ꢀ Shows density for which specified address bit is MSBꢀ
Higher order address bits are no connects (ie 4MB A21 is MSB A22 - A25 are NC)ꢀ
.063
MECHANICAL
3.370
.039
2.126
.400
.039
.130
3
White Electronic Designs Corporation • (508) 485-4000 • wwwꢀwhiteedcꢀcom
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
CARD SIGNAL DESCRIPTION
Symbol
Type
Name and Function
A0 ꢀ A25
INPUT
ADDRESS INPUTS: A0 through A25 enable direct addressing of up to 64MB of memory
on the card- Signal A0 is not used in word access mode- A25 is the most significant bit
DQ0 ꢀ DQ15
CE1, CE2
INPUT/OUTPUT
DQ15 is the MSB-
DATA INPUT/OUTPUT: DQ0 THROUGH DQ15 constitute the biꢀdirectional databus-
INPUT
CARD ENABLE 1 AND 2: CE1 enables even byte accesses, CE2 enables odd byte
accesses- Multiplexing A0, CE1 and CE2 allows 8ꢀbit hosts to access all data on DQ0 ꢀ DQ7-
OE
WE
INPUT
INPUT
OUTPUT ENABLE: Active low signal gating read data from the memory card-
WRITE ENABLE: Active low signal gating write data to the memory card-
RDY/BSY
OUTPUT
READY/BUSY OUTPUT: Indicates status of internally timed erase or program algorithms-
A high output indicates that the card is ready to accept accesses- A low output indicates
that one or more devices in the memory card are busy with internally timed erase or
write activities-
CD1, CD2
OUTPUT
OUTPUT
CARD DETECT 1 and 2: Provide card insertion detection- These signals are connected
to ground internally on the memory card- The host socket interface circuitry shall supply
10Kꢀohm or larger pullꢀup resistors on these signal pins-
WP
WRITE PROTECT: Write protect reflects the status of the Write Protect switch on the
memory card- WP set to high = write protected, providing internal hardware write lockout
to the Flash array-If card does not include optional write protect switch, this signal will be
pulled low internally indicating write protect = “off”-
VPP1, VPP2
VCC
N-C-
PROGRAM/ERASE POWER SUPPLY: Not connected for 5V only card-
CARD POWER SUPPLY: 5-0V for all internal circuitry-
GROUND: for all internal circuitry-
GND
REG
INPUT
INPUT
ATTRIBUTE MEMORY SELECT : provides access to Flash memory card registers and
Card Information Structure in the Attribute Memory Plane-
RST
RESET: Active high signal for placing card in Powerꢀon default state- Reset can be used
as a PowerꢀDown signal for the memory array-
WAIT
OUTPUT
OUTPUT
WAIT: This signal is pulled high internally for compatibility- No wait states are generated-
BVD1, BVD2
BATTERY VOLTAGE DETECT: These signals are pulled high to maintain SRAM card
compatibility-
VS1, VS2
OUTPUT
VOLTAGE SENSE: Notifies the host socket of the card’s VCC requirements- VS1 and
VS2 are open to indicate a 5V card has been inserted-
RFU
N-C-
RESERVED FOR FUTURE USE
NO INTERNAL CONNECTION TO CARD: pin may be driven or left floating
(2)
ABSOLUTE MAXIMUM RATINGS
Operating Temperature TA (ambient)
Commercial
Industrial
0°C to +60 °C
ꢀ40°C to +85 °C **
Storage Temperature
Commercial
ꢀ30°C to +80 °C
Industrial
ꢀ40°C to +85 °C **
ꢀ0-5V to VCC+0-5V (1)
ꢀ0-5V to +7-0V
Voltage on any pin relative to VSS
V
CC supply Voltage relative to VSS
** Advanced information
Notes:
(1) During transitions, inputs may undershoot to -2ꢀ0V or overshoot to VCC +2ꢀ0V for periods less than 20nsꢀ
(2) Stress greater than those listed under “Absolute Maximum ratings” may cause permanent damage to the deviceꢀ
This is a stress rating only and functional operation at these or any other conditions greater than those indicated in
the operational sections of this specification is not impliedꢀ Exposure to absolute maximum rating conditions for
extended periods may affect reliabilityꢀ
White Electronic Designs Corporation • Marlborough MA • (508) 485-4000
4
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
(1)
DC CHARACTERISTICS
Sym Parameter
Density
(Mbytes)
Notes
Typ(4)
Max
Units
Test Conditions
ICCR
VCC Read Current
All
75
mA
VCC = 5V +/ꢀ 10%
tcycle = 150ns
ICCW
ICCE
ICCS
VCC Program Current
VCC Erase Current
All
All
150
150
mA
mA
VCC
Standby
Current
(4MB)
2MB
2,3
80
230
CC µ=A5VV +/ꢀ 10%
Control Signals = VIL or VOH
Reset = VSS
Test Conditions: VCC = 5V ± 10%, VI = VIL or VIH
Notes:
1ꢀ All currents are RMS values unless otherwise specifiedꢀ ICCR, ICCW and ICCE are based on Word wide operationsꢀ
2ꢀ Control Signals: CE1, CE2, OE, WE, REGꢀ
3ꢀ ICCD and ICCS are specified for lowest density card for each component type (2MB for 8Mb components and 4MB for 16Mb components) This
represents a single pair of devicesꢀ For higher densities multiply the number of device pairs by the specified current in the tableꢀ For example a
40MB card will use 10 device pairs of 16Mb componentsꢀ The maximum ICCD will be 10 x 40µA = 400µAꢀ The maximum ICCS will be
10 x 230µA = 2ꢀ3mAꢀ
4ꢀ Typical: VCC = 5V, T = +25°Cꢀ
Symbol
Parameter
Notes
Current
Min
Max
Units
Test Conditions
ILI
Input
Leakage
Leakage
1
1
±20
±20
CC = 5µVA+V/ꢀ 10%
VIN =VCC or VSS
ILO
Output
Current
CC = 5µVA+V/ꢀ 10%
VOUT =VCC or VSS
V
Input Low Voltage
1
1
1
1
1
0
2
0-8
0-26
4-2
V
V
V
V
V
IL
V
IH
Input High Voltage
VOL
VOH
VLKO
Output Low Voltage
IOL = 4mA
IOH = ꢀ4mA
Output High Voltage
VCC Erase/ProgramLock Voltage
3-98
3-2
Notes:
1ꢀ Values are the same for byte and word wide modes for all card densitiesꢀ
2ꢀ Exceptions: Leakage currents on CE1, CE2, OE, REG and WE will be < 500 µA when VIN = GND due to internal pull-up resistorsꢀ Leakage
currents on RST will be <150µA when VIN=VCC due to internal pull-down resistorꢀ
5
White Electronic Designs Corporation • (508) 485-4000 • wwwꢀwhiteedcꢀcom
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
AC CHARACTERISTICS
READ TIMING PARAMETERS
150ns
SYM (PCMCIA)
tC(R)
Parameter
Min
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Read Cycle Time
150
ta(A)
Address Access Time
Card Enable Access Time
Output Enable Access Time
Address Setup Time
Card Enable Setup Time
Address Hold Time
150
150
75
20
0
ta(CE)
ta(OE)
tsu(A)
tsu(CE)
th(A)
20
20
0
th(CE)
tv(A)
Card Enable Hold Time
Output Hold from Address Change
Output Disable Time from CE
Output Disable Time from OE
Output Enable Time from CE
Output Enable Time from OE
tdis(CE)
tdis(OE)
ten(CE)
75
75
5
5
ten(OE)
Note: AC timing diagrams and characteristics are guaranteed to meet or exceed PCMCIA 2ꢀ1 specificationsꢀ
READ TIMING DIAGRAM
tC(R)
tA(A)
tH(A)
A[25::0], REG
tV(A)
tA(CE)
tSU(CE)
CE1, CE2
NOTE 1
NOTE 1
tH(CE)
tA(OE)
tSU(A)
tDIS(CE)
OE
tEN(OE)
tDIS(OE)
D[15::0]
DATA VALID
Note: Signal may be high or low in this areaꢀ
White Electronic Designs Corporation • Marlborough MA • (508) 485-4000
6
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
WRITE TIMING PARAMETERS
150ns
SYM (PCMCIA)
tCW
Parameter
Min
150
80
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Write Cycle Time
tw(WE)
Write Pulse Width
tsu(A)
Address Setup Time
20
tsu(AꢀWEH)
tsu(CEꢀWEH)
tsu(DꢀWEH)
th(D)
Address Setup Time for WE
Card Enable Setup Time for WE
Data Setup Time for WE
Data Hold Time
100
100
50
20
trec(WE)
tdis(WE)
Write Recover Time
20
Output Disable Time from WE
Output Disable Time from OE
Output Enable Time from WE
Output Enable Time from OE
Output Enable Setup from WE
Output Enable Hold from WE
Card Enable Setup Time from OE
Card Enable Hold Time
75
75
tdis(OE)
ten(WE)
5
5
ten(OE)
tsu(OEꢀWE)
th(OEꢀWE)
tsu(CE)
10
10
0
th(CE)
20
Note: AC timing diagrams and characteristics are guaranteed to meet or exceed PCMCIA 2ꢀ1 specificationsꢀ
WRITE TIMING DIAGRAM
tC(W)
A[25::0], REG
t
SU(A-WEH)
SU(CE-WEH)
SU(CE)
t
REC(WE)
t
H(CE)
t
t
CE1, CE2
NOTE 1
NOTE 1
OE
tH(OE-WE)
tSU(A)
tW(WE)
WE
tH(D)
tSU(OE-WE)
tSU(D-WEH)
NOTE 2
D[15::0](DIN
)
DATA INPUT
tDIS(WE)
tEN(OE)
tDIS(OE)
tEN(WE)
NOTE 2
D[15::0](DOUT
)
Notes: 1ꢀ Signal may be high or low in this areaꢀ
2ꢀ When the data I/O pins are in the output state, no signals shall be applied to the data pins (D15 - D0) by the host systemꢀ
7
White Electronic Designs Corporation • (508) 485-4000 • wwwꢀwhiteedcꢀcom
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
(1,3)
DATA WRITE AND ERASE PERFORMANCE
VCC = 5V ± 5%, TA = 0°C TO + 60°C
SYM
Parameter
Notes
Min
Typ(1)
7
Max
300
2-0
8
Units
µs
Test Conditions
tWHQV1 tEHQV1
tWHQV2 tEHQV2
Word/Byte Program time
Block Program Time
Block Erase Time
2,4
2
Excludes systemꢀlevel overhead
0-5
1
sec
sec
2
Excludes 00h prog- prior to erasure
Notes:
1ꢀ Typical: Nominal voltages and TA = 25°Cꢀ
2ꢀ Excludes system overheadꢀ
3ꢀ Valid for all speed optionsꢀ
4ꢀ To maximize system performance RDY/BSY signal should be polledꢀ
PRODUCT MARKING
EDI
WED 7P016FLD2200C15 C995 9915
COMPANYNAME
PART NUMBER
LOT CODE/TRACE NUMBER
DATE CODE
PART NUMBERING
7 P 016 FLD22 00 C 15
CARD TECHNOLOGY
7 FLASH
8 SRAM
PC CARD
P Standard PCMCIA
R Ruggedized PCMCIA
CARDCAPACITY
016 16MB
CARD FAMILY AND VERSION
ꢀ See Card Family and Version Info- for details (next page)
PACKAGINGOPTION
00 Standard, type 1
TEMPERATURERANGE
C = Commercial 0°C to +70°C
I
= Industrial
ꢀ40°C to +85°C
CARD ACCESS TIME
15 150ns
25 250ns
White Electronic Designs Corporation • Marlborough MA • (508) 485-4000
8
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
ORDERING INFORMATION
7P XXX FLD22 SS T ZZ
XXX
004
4MB
008
012
016
020
024
028
032
036
040
8MB
12MB
16MB
20MB
24MB
28MB
32MB
36MB
40MB
SS
00 WEDC Silkscreen
01 Blank Housing, Type I
02 Blank Housing, Type I Recessed
T
C
I
= Commercial
= Industrial
ZZ
15 150ns
Notes: Options without attribute memory and with hardware write protect switch are availableꢀ
CARD FAMILIES:
FLD 21
FLD 22
FLD 23
FLD 24
ꢀ No Attribute memory, No WP switch
ꢀ With Attribute Memory, No WP switch
ꢀ No Attribute Memory, With WP switch
ꢀ With Attribute Memory, With WP switch
9
White Electronic Designs Corporation • (508) 485-4000 • wwwꢀwhiteedcꢀcom
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
CIS INFORMATION FOR FLD SERIES CARDS
ADDRESS
4CH
4EH
50H
52H
54H
56H
58H
5AH
5CH
5EH
60H
62H
64H
66H
68H
6AH
6CH
6EH
70H
72H
74H
76H
78H
7AH
66H
68H
6AH
6CH
6EH
70H
72H
74H
76H
78H
7AH
7CH
7EH
80H
82H
84H
86H
88H
8AH
8CH
8EH
90H
92H
94H
VALUE
1)
DESCRIPTION
ADDRESS
00H
VALUE
01H
03H
53H
0EH
1EH
2EH
3EH
4EH
5EH
6EH
7EH
8EH
9EH
FFH
18H
02H
01H
3DH
17H
03H
42H
01H
FFH
1EH
06H
02H
11H
DESCRIPTION
x
CISTPL_DEVICE
1)
x
02H
TPL_LINK
46H
4CH
44H
32H
2)
F
04H
FLASH = 150ns (device writable)
L
06H
CARD SIZE: 4MB
8MB
D
2
12MB
x
16MB
2DH
2DH
2DH
31H
35H
20H
00H
43H
4FH
50H
59H
52H
49H
47H
48H
54H
20H
00H
43H
4FH
50H
59H
52H
49H
47H
48H
54H
20H
45H
4CH
45E
43H
54H
52H
4FH
4EH
49H
43H
20H
44H
45H
ꢀ
20MB
ꢀ
24MB
ꢀ
28MB
1
32MB
5
36MB
SPACE
40MB
END TEXT
08H
0AH
0CH
0EH
10H
12H
14H
16H
18H
1AH
1CH
1EH
20H
22H
24H
26H
28H
2AH
END OF DEVICE
CISTPL_JEDEC_C
TPL_LINK
AMD ꢀ ID
C
O
P
Y
INTEL
29F017 ꢀ ID
R
CISTPL_DEVICE_A
TPL_LINK
I
G
EEPROM ꢀ 200ns
Device Size = 2KBytes
END OF TUPLE
CISTPL_DEVICEGEO
TPL_LINK
H
T
SPACE
END TEXT
C
DGTPL_BUS
O
DGTPL_EBS
P
01H
01H
01H
01H
DGTPL_RBS
Y
DGTPL_WBS
R
DGTPL_PART
I
FLASH DEVICE
NONꢀINTERLEAVED
G
2CH
2EH
30H
32H
34H
36H
38H
3AH
3CH
3EH
40H
42H
44H
46H
48H
4AH
20H
04H
F6H
01H
00H
00H
15H
47H
04H
01H
45H
44H
49H
37H
50H
30H
CISTPL_MANFID
TPL_LINK(04H)
H
T
EDI
EDI
TPLMID_MANF: LSB
TPLMID_MANF: MSB
SPACE
E
LSB: Number Not Assigned
L
MSB: Number Not Assigned
E
CISTPL_VERS1
C
TPL_LINK
T
TPLLV1_MAJOR
R
TPLLV1_MINOR
O
E
D
I
N
I
C
SPACE
D
7
P
0
E
The shaded area (addresses 56H 58H) represents just some of the family versionsꢀ For all the versions see the Card Family and Version information-
White Electronic Designs Corporation • Marlborough MA • (508) 485-4000
10
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
CIS INFORMATION FOR FLD SERIES CARDS (CONTꢀ)
ADDRESS
96H
VALUE
53H
49H
47H
4EH
53H
20H
49H
4EH
43H
4FH
52H
50H
4FH
52H
41H
54H
45H
44H
20H
00H
31H
39H
39H
37H
00H
00H
DESCRIPTION
S
98H
I
9AH
9CH
9EH
A0H
A2H
A4H
A6H
A8H
AAH
ACH
AEH
B0H
B2H
B4H
B6H
B8H
BAH
BCH
BEH
C0H
C2H
C4H
C6H
C8H
G
N
S
SPACE
I
N
C
O
R
P
O
R
A
T
E
D
SPACE
END TEXT
1
9
9
7
END TEXT
END OF LIST
1)
Address
Value
Description
4CH
30
31
32
33
34
0
1
2
3
4
4EH
58H
30
0
2
4
6
8
32
34
36
38
2)
32
34
2
4
11
White Electronic Designs Corporation • (508) 485-4000 • wwwꢀwhiteedcꢀcom
PCMCIA Flash Memory Card
FLD Series
White Electronic Designs
Document Title
PCMCIA Flash Memory Card - FLD Series
Revision History
Rev level
rev 1
Description
Initial release
Logo change
Date
December 24, 1998
February 7, 1999
rev 2
Added card families
Spelling errors
Erase cycles 1 million
Prog/erasure timing
rev 3
rev 4
rev 5
rev 6
Logo change
May 27, 1999
May 31, 2000
August 1, 2000
March 5, 2003
Added page 9
Corrected Timing Errors on pgs' 6 & 7
Host signals corrected to TTL level
White Electronic Designs Corporation • Marlborough MA • (508) 485-4000
12
厂商 型号 描述 页数 下载

WEDC

 		7P001FEA0200C15 [ Flash Card, 1MX8, 150ns, CARD-68 ] 6 页

WEDC

 		7P001FEA0300C15 [ Flash Card, 1MX8, 150ns, CARD-68 ] 6 页

WEDC

 		7P001FLG0100C15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

ETC

 		7P001FLG0100C20 周边其他\n[ Peripheral Miscellaneous ] 13 页

WEDC

 		7P001FLG0100I15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0100I20 [ Flash Card, 512MX16, 200ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0101C15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0101C20 [ Flash Card, 512MX16, 200ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0101I15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

ETC

 		7P001FLG0101I20 周边其他\n[ Peripheral Miscellaneous ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.317915s
