CZS5064TR13LEADFREE

型号:

CZS5064TR13LEADFREE

品牌:

CENTRAL[ CENTRAL SEMICONDUCTOR CORP ]

页数:

2 页

PDF大小:

259 K

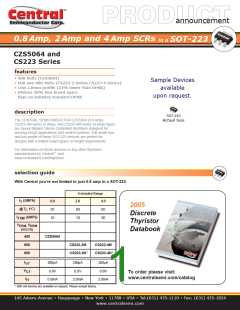

PRODUannou
C
ncement
T
0.8Amp, 2Amp and 4Amp SCRs
in a SOT-223
CZS5064 and
CS223 Series
features
• 400 Volts (CZS5064)
Sample Devices
available
• 600 and 800 Volts (CS223-2 Series CS223-4 Series)
• Low 1.8mm profile (23% lower than DPAK)
• Utilizes 28% less board space
upon request.
than an industry standard DPAK
description
SOT-223
The CENTRAL SEMICONDUCTOR CZS5064 (0.8 Amp),
CS223-2M series (2 Amp), and CS223-4M series (4 Amp) types
are Epoxy Molded Silicon Controlled Rectifiers designed for
sensing circuit applications and control systems. The small size
and low profile of these SOT-223 devices are perfect for
designs with a limited board space or height requirements.
Actual Size
For information on these devices or any other thyristors
™
manufactured by Central , visit:
www.centralsemi.com/thyristors
selection guide
With Central you’re not limited to just 0.8 amp in a SOT-223.
Extended Range
I
(AMPS)
0.8
25
10
2.0
60
10
4.0
85
30
T
2005
@ T (oC)
C
Discrete
Thyristor
Databook
I
(AMPS)
TSM
V
V
DRM, RRM
(VOLTS)
400
CZS5064
600
800
CS223-2M
CS223-2N *
CS223-4M
CS223-4N
*
I
200µA
0.8V
200µA
0.8V
200µA
0.8V
GT
V
GT
To order please visit:
www.centralsemi.com/catalog
I
5.0mA
2.0mA
2.0mA
H
* 800 volt devices are available on request. Please consult factory.
145 Adams Avenue • Hauppauge • New York • 11788 • USA • Tel:(631) 435-1110 • Fax: (631) 435-1824
www.centralsemi.com
0.8Amp, 2Amp and 4Amp SCRs in a SOT-223
Mechanical Specifications - SOT-223
Tape Dimensions and Orientation
Mounting Pad Geometry
(Dimensions in mm)
(Dimensions in mm)
* Devices are taped in
accordance with
Tape Width:
12mm
Electronic Industries
Association Standard
EIA-481-1-A
Direction of Unreeling
Packaging Base
7” Reel = 1,000 pcs. (add TR suffix to part number)
13” Reel = 4,000 pcs. (add TR13 suffix to part number)
Bulk = 250 pcs. (add BK suffix to part number)
Ordering Information
• For devices taped and reeled on 7” reels, add TR
suffix to part number.
• For devices taped and reeled on 13” reels, add
TR13 suffix to part number.
• For devices bulk packed, add BK suffix to
part number.
Lead Code:
1) CATHODE
3) GATE
2) ANODE
4) ANODE
• All SMDs are available bulk packed, for prototype
and manual placement applications.
For more information on this product please visit our website at www.centralsemi.com
For further information contact:
Sales at Central Semiconductor Corp.
(631) 435-1110 or visit our website at:
w w w . c e n t r a l s e m i . c o m
Innovations in Discrete
Semiconductors
145 Adams Avenue • Hauppauge • New York • 11788 • USA • Tel:(631) 435-1110 • Fax: (631) 435-1824
PA SOT-223 SCR
