2W10G-E4/51

型号：

2W10G-E4/51

品牌：

VISHAY[ VISHAY ]

页数：

4 页

PDF大小：

85 K

下载PDF手册

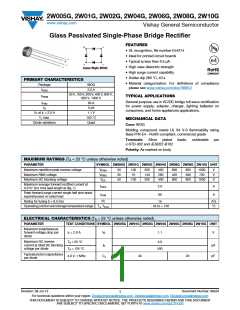

2W005G, 2W01G, 2W02G, 2W04G, 2W06G, 2W08G, 2W10G
www.vishay.com
Vishay General Semiconductor
Glass Passivated Single-Phase Bridge Rectifier
FEATURES
+
~
• UL recognition, file number E54214
• Ideal for printed circuit boards
• Typical IR less than 0.5 μA
• High case dielectric strength
• High surge current capability
• Solder dip 260 °C, 40 s
~
e4
+
~
−
−
~
Case Style WOG
PRIMARY CHARACTERISTICS
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
Package
WOG
2.0 A
IF(AV)
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
VRRM
TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification
for power supply, adapter, charger, lighting ballaster on
consumers, and home appliances applications.
IFSM
IR
60 A
5 μA
VF at IF = 2.0 A
TJ max.
1.1 V
150 °C
Quad
MECHANICAL DATA
Diode variations
Case: WOG
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E4 - RoHS-compliant, commercial grade
Terminals: Silver plated leads, solderable per
J-STD-002 and JESD22-B102
Polarity: As marked on body
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL 2W005G 2W01G 2W02G 2W04G 2W06G 2W08G 2W10G UNIT
Maximum repetitive peak reverse voltage
Maximum RMS voltage
VRRM
VRMS
VDC
50
35
50
100
70
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
V
V
V
Maximum DC blocking voltage
100
1000
Maximum average forward rectified current at
IF(AV)
2.0
60
A
0.375" (9.5 mm) lead length at (fig. 1)
Peak forward surge current single half sine-wave
superimposed on rated load
IFSM
I2t
A
Rating for fusing (t < 8.3 ms)
15
A2s
°C
Operating junction and storage temperature range TJ, TSTG
- 55 to + 150
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS SYMBOL 2W005G 2W01G 2W02G 2W04G 2W06G 2W08G 2W10G UNIT
Maximum instantaneous
forward voltage drop per
diode
IF = 2.0 A
VF
1.1
V
Maximum DC reverse
current at rated DC blocking
voltage per diode
TA = 25 °C
5.0
IR
μA
pF
TA = 125 °C
500
Typicaljunctioncapacitance
per diode
4.0 V, 1 MHz
CJ
40
20
Revision: 08-Jul-13
Document Number: 88528
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
2W005G, 2W01G, 2W02G, 2W04G, 2W06G, 2W08G, 2W10G
www.vishay.com
Vishay General Semiconductor
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL 2W005G 2W01G 2W02G 2W04G 2W06G 2W08G 2W10G
UNIT
RJA
RJL
40
15
Typical thermal resistance (1)
°C/W
Note
(1)
Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5 mm) lead length PCB mounting
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
2W06G-E4/51
1.12
51
100
Plastic bag
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
2.4
2.0
1.6
1.2
0.8
0.4
0
100
10
60 Hz
Resistive or
Inductive Load
TJ = 25 °C
Pulse Width = 300 µs
1 % Duty Cycle
P.C.B.
0.375"
(9.5 mm)
Copper Pads
1
0.22 x 0.22"
(5.5 x 5.5 mm)
0.1
Capacitive Load
I(pk)
5.0
10
20
=
I(AV)
(per Leg)
0.01
0
25
50
75
100
125
150
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Ambient Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Derating Curve Output Rectified Current
Fig. 3 - Typical Forward Characteristics Per Diode
60
50
40
30
20
10
0
100
TA = 25 °C
Single Sine-Wave
TJ = 125 °C
TJ = 100 °C
10
1
0.1
0.01
TJ = 25 °C
60
1.0 Cycle
1
10
100
0
20
40
80
100
Number of Cycles at 60 Hz
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Fig. 4 - Typical Reverse Leakage Characteristics Per Diode
Current Per Diode
Revision: 08-Jul-13
Document Number: 88528
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
2W005G, 2W01G, 2W02G, 2W04G, 2W06G, 2W08G, 2W10G
www.vishay.com
Vishay General Semiconductor
100
100
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
10
10
1
1
0.1
0.1
0.01
1
10
100
0.1
1
10
100
Reverse Voltage (V)
t - Heating Time (s)
Fig. 5 - Typical Junction Capacitance Per Diode
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
Case Style WOG
0.388 (9.86)
0.348 (8.84)
0.220 (5.6)
0.160 (4.1)
1.0 (25.4) MIN.
0.032 (0.81)
0.028 (0.71)
0.060 (1.52)
0.020 (0.51)
0.220 (5.6)
0.180 (4.6)
0.348 (8.84)
0.308 (7.82)
0.220 (5.6)
0.180 (4.6)
Revision: 08-Jul-13
Document Number: 88528
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
Document Number: 91000
1
