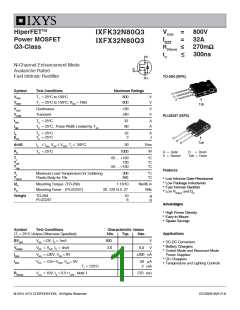

HiperFETTM
Power MOSFET
Q3-Class
VDSS = 800V
ID25 = 32A
RDS(on) 270m
IXFK32N80Q3
IXFX32N80Q3
trr
300ns
N-Channel Enhancement Mode
Avalanche Rated
TO-264 (IXFK)
Fast Intrinsic Rectifier
Symbol
VDSS
Test Conditions
Maximum Ratings
G
D
S
TJ = 25C to 150C
TJ = 25C to 150C, RGS = 1M
800
800
V
V
VDGR
Tab
VGSS
VGSM
Continuous
Transient
30
40
V
V
PLUS247 (IXFX)
ID25
IDM
TC = 25C
TC = 25C, Pulse Width Limited by TJM
32
A
A
80
IA
EAS
TC = 25C
TC = 25C
32
3
A
J
G
D
S
Tab
dv/dt
PD
IS IDM, VDD VDSS, TJ 150C
TC = 25C
50
V/ns
W
1000
G = Gate
S = Source
D
= Drain
Tab = Drain
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
C
C
C
Features
TL
TSOLD
Maximum Lead Temperature for Soldering
Plastic Body for 10s
300
260
°C
°C
Low Intrinsic Gate Resistance
Low Package Inductance
Fast Intrinsic Rectifier
Low RDS(on) and QG
Md
FC
Mounting Torque (TO-264)
Mounting Force (PLUS247)
1.13/10
Nm/lb.in
N/lb
20..120 /4.5..27
Weight
TO-264
PLUS247
10
6
g
g
Advantages
High Power Density
Easy to Mount
Space Savings
Symbol
Test Conditions
Characteristic Values
Applications
(TJ = 25C Unless Otherwise Specified)
Min.
800
3.0
Typ.
Max.
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 1mA
V
V
DC-DC Converters
Battery Chargers
Switch-Mode and Resonant-Mode
VDS = VGS, ID = 4mA
VGS = 30V, VDS = 0V
VDS = 0.8 • VDSS, VGS = 0V
6.0
200 nA
Power Supplies
DC Choppers
Temperature and Lighting Controls
IDSS
50 A
2 mA
TJ = 125C
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
270 m
DS100361B(01/14)
© 2014 IXYS CORPORATION, All Rights Reserved
IXFK32N80Q3
IXFX32N80Q3
Symbol
Test Conditions
Characteristic Values
TO-264 AA Outline
(TJ = 25C Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 20V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
Gate Input Resistance
16
26
S
Ciss
Coss
Crss
6940
700
63
pF
pF
pF
RGi
0.16
38
: 1 - Gate
2 - Drain
td(on)
ns
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 1(External)
3 - Source
4 - Drain
tr
13
45
ns
ns
Dim.
Millimeter
Inches
td(off)
Min.
Max.
Min.
Max.
A
A1
A2
4.82
2.54
2.00
5.13
2.89
2.10
.190
.100
.079
.202
.114
.083
tf
10
ns
Qg(on)
Qgs
140
48
nC
nC
nC
b
b1
b2
c
D
E
e
J
1.12
2.39
2.90
0.53
25.91 26.16
19.81 19.96
5.46 BSC
0.00
0.00
1.42
2.69
3.09
.044
.094
.114
.021
1.020
.780
.215 BSC
.000
.000
.056
.106
.122
.033
1.030
.786
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
0.83
Qgd
63
RthJC
RthCS
0.125C/W
C/W
0.25
0.25
.010
.010
0.15
K
L
L1
20.32 20.83
.800
.090
.820
.102
2.29
2.59
P
3.17
3.66
.125
.144
Q
Q1
6.07
8.38
6.27
8.69
.239
.330
.247
.342
Source-Drain Diode
R
R1
3.81
1.78
4.32
2.29
.150
.070
.170
.090
S
T
6.04
1.57
6.30
1.83
.238
.062
.248
.072
Symbol
Test Conditions
Characteristic Values
(TJ = 25C Unless Otherwise Specified)
Min.
Typ.
Max.
PLUS247TM Outline
IS
VGS = 0V
32
A
A
V
ISM
VSD
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
128
1.4
trr
QRM
IRM
300 ns
C
IF = 16A, -di/dt = 100A/s
1.4
12.0
VR = 100V, VGS = 0V
A
Note
1. Pulse test, t 300s, duty cycle, d 2%.
Terminals: 1 - Gate
2 - Drain
3 - Source
Dim.
Millimeter
Min. Max.
Inches
Min. Max.
A
A1
A2
4.83
2.29
1.91
5.21
2.54
2.16
.190 .205
.090 .100
.075 .085
b
b1
b2
1.14
1.91
2.92
1.40
2.13
3.12
.045 .055
.075 .084
.115 .123
C
D
E
0.61
20.80 21.34
15.75 16.13
0.80
.024 .031
.819 .840
.620 .635
e
5.45 BSC
.215 BSC
L
L1
19.81 20.32
.780 .800
.150 .170
3.81
4.32
Q
R
5.59
4.32
6.20
4.83
.220 0.244
.170 .190
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,860,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,727,585
7,005,734 B2 7,157,338B2
7,063,975 B2
6,534,343
6,583,505
6,710,405 B2 6,759,692
6,710,463
6,771,478 B2 7,071,537
IXFK32N80Q3
IXFX32N80Q3
Fig. 1. Output Characteristics @ TJ = 25ºC
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
32
28
24
20
16
12
8
80
70
60
50
40
30
20
10
0
V
= 10V
9V
GS
V
= 10V
9V
GS
8V
7V
8V
7V
4
0
0
5
10
15
20
25
30
0
1
2
3
4
5
6
7
8
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 16A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125ºC
32
28
24
20
16
12
8
3.0
2.6
2.2
1.8
1.4
1.0
0.6
0.2
V
= 10V
8V
GS
V
= 10V
GS
I
= 32A
D
I
= 16A
D
7V
6V
4
0
0
2
4
6
8
10
12
14
16
18
-50
-25
0
25
50
75
100
125
150
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 16A Value vs.
Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
35
30
25
20
15
10
5
V
= 10V
GS
T = 125ºC
J
T = 25ºC
J
0
-50
-25
0
25
50
75
100
125
150
0
10
20
30
40
50
60
70
80
ID - Amperes
TC - Degrees Centigrade
© 2014 IXYS CORPORATION, All Rights Reserved
IXFK32N80Q3
IXFX32N80Q3
Fig. 7. Input Admittance
Fig. 8. Transconductance
60
50
40
30
20
10
0
50
45
40
35
30
25
20
15
10
5
T
= - 40ºC
J
25ºC
125ºC
T
J
= 125ºC
25ºC
- 40ºC
0
4
4.5
5
5.5
6
6.5
7
7.5
8
8.5
9
9.5
0
5
10
15
20
25
30
35
40
45
50
55
VGS - Volts
ID - Amperes
Fig. 10. Gate Charge
Fig. 9. Forward Voltage Drop of Intrinsic Diode
16
14
12
10
8
100
90
80
70
60
50
40
30
20
10
0
V
= 400V
DS
I
I
= 16A
D
G
= 10mA
6
T
J
= 125ºC
T
J
= 25ºC
4
2
0
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
0
50
100
150
200
VSD - Volts
QG - NanoCoulombs
Fig. 12. Forward-Bias Safe Operating Area
Fig. 11. Capacitance
100
100,000
10,000
1,000
100
R
Limit
DS(on)
= 1 MHz
f
C
iss
25µs
100µs
10
C
C
oss
rss
T
J
= 150ºC
= 25ºC
T
C
1ms
Single Pulse
10
1
0
5
10
15
20
25
30
35
40
10
100
1,000
VDS - Volts
VDS - Volts
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXFK32N80Q3
IXFX32N80Q3
Fig. 13. Maximum Transient Thermal Impedance
1
0.1
0.01
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
© 2014 IXYS CORPORATION, All Rights Reserved
IXYS REF: F_32N80Q3(R8)7-13-11
