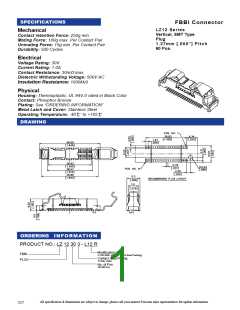

SPECIFICATIONS
FBBI Connector
LZ12 Series
Mechanical
Vertical, SMT Type
Plug
Contact retention Force: 250g min.
Mating Force: 100g max. Per Contact Pair
Unmating Force: 15g min. Per Contact Pair
Durability: 500 Cycles
1.27mm [.050”] Pitch
60 Pos.
Electrical
Voltage Rating: 30V
Current Rating: 1.0A
Contact Resistance: 30mΩ max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000MΩ
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Phosphor Bronze
Plating: See “ORDERING INFORMATION”
Metal Latch and Cover: Stainless Steel
Operating Temperature: -40℃ to +105℃
DRAWING
ORDERING INFORMATION
: LZ 12 30 3 - L12 R
PRODUCT NO.
Modification Code
FBBI
L12R=With Latch(Tape & Reel Packing)
Contact Area Plating
PLUG
3=30u" Gold
No. of Pos.
30=60 Pos.
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
