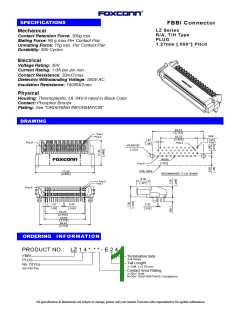

SPECIFICATIONS
FBBI Connector
LZ Series
R/A, T/H Type
PLUG
Mechanical
Contact Retention Force: 300g min.
Mating Force: 90 g max.Per Contact Pair
Unmating Force: 15g min. Per Contact Pair
Durability: 500 Cycles
1.27mm [.050"] Pitch
Electrical
Voltage Rating: 30V
Current Rating: 1.0A per pin min.
Contact Resistance: 30m
Dielectric Withstanding Voltage: 500V AC
Ω max.
Insulation Resistance: 1000M
Ω min.
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Phosphor Bronze
Plating: See “ORDERING INFORMATION”
DRAWING
ORDERING INFORMATION
PRODUCT NO.: LZ 1 4 * * * - E 2 4
FBBI
PLUG
No. Of Pos
50=100 Pos
Termination Side
4=4 Rows
Tail Length
2: DIM. L=2.80 mm
Contact Area Plating
3=30u" Gold
H=30u" Gold With RoHS Compliance
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
