NZT6726L99Z

型号：

NZT6726L99Z

品牌：

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数：

4 页

PDF大小：

124 K

下载PDF手册

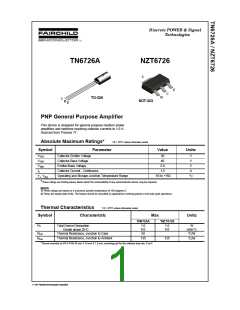

Discrete POWER & Signal
Technologies
TN6726A
NZT6726
C
E
C
B
TO-226
C
SOT-223
B
E
PNP General Purpose Amplifier
This device is designed for general purpose medium power
amplifiers and switches requiring collector currents to 1.0 A.
Sourced from Process 77.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
Symbol
Parameter
Value
Units
VCEO
VCBO
VEBO
IC
Collector-Emitter Voltage
30
40
V
V
Collector-Base Voltage
Emitter-Base Voltage
5.0
V
Collector Current - Continuous
Operating and Storage Junction Temperature Range
1.5
A
-55 to +150
°C
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Symbol
Characteristic
Max
Units
TN6726A
*NZT6726
PD
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
1.0
8.0
50
1.0
8.0
W
mW/°C
°C/W
Rθ
JC
Thermal Resistance, Junction to Ambient
125
125
Rθ
°C/W
JA
*Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2.
1997 Fairchild Semiconductor Corporation
PNP General Purpose Amplifier
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V(BR)CEO
V(BR)CBO
V(BR)EBO
ICBO
Collector-Emitter Breakdown Voltage
IC = 10 mA, IB = 0
IC = 100 µA, IE = 0
IE = 100 µA, IC = 0
VCB = 40 V, IE = 0
VEB = 5.0 V, IC = 0
30
40
V
V
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
5.0
V
0.1
0.1
µA
µA
IEBO
Emitter-Cutoff Current
ON CHARACTERISTICS*
hFE
DC Current Gain
IC = 100 mA, VCE = 1.0 V
IC = 1.0 A, VCE = 1.0 V
IC = 1.0 A, IB = 100 mA
60
50
250
0.5
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
V
V
VCE(sat)
VBE(on)
IC = 1.0 A, VCE = 1.0 V
1.2
SMALL SIGNAL CHARACTERISTICS
Small-Signal Current Gain
IC = 50 mA, VCE = 10 V,
f = 20 MHz
VCB = 10 V, IE = 0, f = 1.0 MHz
2.5
25
30
hfe
Collector-Base Capacitance
pF
Ccb
*Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 1.0%
DC Typical Characteristics
Typical Pulsed Current Gain
vs Collector Current
Collector-Emitter Saturation
Voltage vs Collector Current
300
1
0.8
0.6
0.4
0.2
VCE = 5V
β
= 10
250
125 °C
200
25 °C
25 °C
150
100
- 40 ºC
- 40 ºC
125 °C
50
0
0.01
0
0.01
0.1
1
3
0.1
1
2
I C - COLLECTOR CURRENT (A)
I C - COLLECTOR CURRENT (A)
PNP General Purpose Amplifier
(continued)
DC Typical Characteristics (continued)
Base-Emitter ON Voltage vs
Collector Current
Base-Emitter Saturation
Voltage vs Collector Current
1
0.8
0.6
0.4
0.2
β
= 10
1
0.8
0.6
0.4
- 40 ºC
- 40 ºC
25 °C
25 °C
125 °C
125 °C
V
= 5V
CE
1
10
100
1000
1
10
100
1000
IC - COLLECTOR CURRENT (mA)
I C - COLLECTOR CURRENT (mA)
Collector-Cutoff Current
vs Ambient Temperature
100
10
1
VCB = 20V
0.1
25
50
75
100
125
150
º
TA - AMBIENT TEMPERATURE ( C)
AC Typical Characteristics
Collector-Base Capacitance
vs. Collector-Base Voltage
Gain Bandwidth Product
vs. Collector Current
PNP General Purpose Amplifier
(continued)
AC Typical Characteristics (continued)
Safe Operating Area TO-226
POWER DISSIPATION vs
AMBIENT TEMPERATURE
1
0.75
0.5
TO-226
SOT-223
0.25
0
0
25
50
75
100
125
150
TEMPERATURE (oC)
