1.06
27.0
0.937
23.8
0.27
7.0
0.94
24.0
0.14
3.5
0.787
20.0
0.39
10.0
PUSH
0.906
23.0
1.18
30.0
0.906
23.0
0.787
20.0
2X 0.126
3.2
PANEL CUT OUT (FRONT SIDE)
2X 0.087
2.2
NOTES:
0.205
5.20
0.92
23.4
1. MATERIALS:
HOUSING - BLACK THERMOPLASTIC
0.242
6.15
0.242
6.15
CONTACTS - COPPER ALLOY GOLD PLATED
PUSH BUTTON/SPRING - COPPER ALLOY NICKEL PLATED
GROUND SPRING - COPPER ALLOY SILVER PLATED
0.205
5.20
0.238
6.05
2. OPERATING SPECS:
OPERATING/STORAGE TEMP: -30 C TO 80 C
RATED VOLTAGE/RATE CURRENT: 50V/7.5A
INSULATION RESISTANCE: 1/4 JACK: 100MΩ, XLR: INTIAL 2GΩ,
AFTER DAMP HEAT:>0.5GΩ
CONTACT RESISTANCE: 1/4 JACK: 50mΩ,
XLR: 30mΩ
DIELECTRIC STRENGTH: 1/4 JACK: 0.5mA, AC 500V.
XLR: 0.5mA, AC 500V
0.411
10.45
0.228
5.80
0.228
5.78
7X 0.047
1.20
LIFE: 1/4 JACK: 2,000 CYCLES,
XLR: 1000 CYCLES
0.228
5.80
0.228
5.80
PCB-LAYOUT
3. THIS PRODUCT IS RoHS COMPLIANT
COMPONENT SIDE

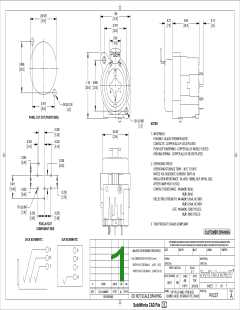

CUSTOMER DRAWING
JACK SCHEMATIC
XLR SCHEMATIC
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
S
R
T
SIZE
WIDTH
MULT
LBS/M
TEMPER
3
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES [mm]
FINISH
MATERIAL
SPEC No.
2
1
SPEC No.
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02 [0.5]
FIRST USED ON
SCALE
2:1
0.005 [0.13]
DATE DRAWN
BY
CHKD
APVD
G
TJK
AB
1/8/17
AB
1/8/17
A
27996
2/8/18
DATE
TJK
BY
TJK
SHEET
OF
1
1
2/16/18
NAME
PART No.
REV
APVD
REV
ECO NUMBER
1/4" PLUG AND 3 PIN XLR,
COMBO JACK, STRAIGHT PC, RoHS
PXCST
DO NOT SCALE DRAWING
REVISIONS
A
B
SolidWorks CAD File
