NW701

型号:

NW701

描述:

数模模数[ Digital to Analog Analog to Digital ]

品牌:

ETC[ ETC ]

页数:

2 页

PDF大小:

791 K

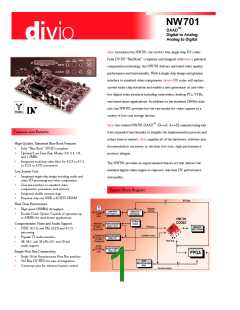

NW701
™
DAAD
Digital to Analog;
Analog to Digital
divio introduces the NW701, the world’s first single-chip DV codec.
Fully DV-SD “BlueBook” compliant and designed with divio’s patented
compression technology, the NW701 delivers unrivaled video quality,
performance and functionality. With a single-chip design and glueless
interface to standard video components, divio’s DV codec will replace
current multi-chip solutions and enable a new generation of cost-effec-
tive digital video products including camcorders, desktop PCs, VTRs,
and stand-alone applications. In addition to the standard 25Mb/s data
rate, the NW701 provides low bit-rate modes for video capture to a
variety of low-cost storage devices.
™
divio has created NW701-DAAD (D<—–>A; A<—–>D) manufacturing kits
Features and Benefits
with expanded functionality to simplify the implementation process and
reduce time-to-market. divio supplies all of the hardware, software and
documentation necessary to develop low-cost, high-perf o rm a n c e
p r oduct designs.
High-Quality, Enhanced Blue Book Features
•
•
Fully “Blue Book” DV-SD compliant
Optional Low Data-Rate Modes: 3.0, 2.4, 1.8,
and 1.5MB/s
•
Integrated multi-tap video filter for 4:2:2 to 4:1:1,
or 4:2:2 to 4:2:0 conversions
The NW701 provides an unprecedented feature-set that delivers the
essential digital video engine to empower real-time DV performance
and quality.
Low System Cost
•
Integrated single-chip design including audio and
video I/O processing and video compression.
•
Glue-less interface to standard video
components, processors, and memory
System Block Diagram
•
•
Integrated shuffle memory logic
Requires only one 256K x 32 EDO DRAM
Real-Time Performance
•
•
High speed (33MB/s) throughput
Double Clock Option: Capable of operation up
to 54MHz for dual stream applications
Comprehensive Video and Audio Support
•
NTSC (4:1:1) and PAL (4:2:0 and 4:1:1)
processing
•
•
Popular I2S audio interface
48, 44.1, and 32 kHz (12- and 16-bit)
audio support
Simple Host Bus Connectivity
•
•
•
Single 16-bit Asynchronous Host Bus interface
512 Byte DV FIFO for ease of integration
3 interrupt pins for enhanced system control
A
P
P
L
I
C
A
T
I
O
N
S
NW701
™
DAAD
Digital to Analog;
Analog to Digital
to
from
Content Convertion : 8mm, VHS,etc...
DV (Digital Video)
Analog Video to PC / MAC
Digital Video to TV / Projector
701-DAAD™ Manufacturing Kit
Board Components
Manufacturing Kit Contents
Sales Information
•
•
•
•
•
•
•
divio NW701LQ DV–SD Codec
Video Decoder (SAA7112/14)
Video Encoder (SAA7121)
8051/FPGA
•
•
•
•
•
divio NW701-DAAD Reference Design
Application Software
divio, inc.
Schematics / Gerber Files
Technical Manuals
997 East Arques Avenue
Sunnyvale, CA 94086 USA
Phone: (408)732-1205
Fax: (408)732-4022
Audio Codec (UDA1340)
1394 Link (PDI1394L21)
1394 PHY (PDI1394P11A)
FPGA + Firmware
E-mail: sales@divio.com
http://www.divio.com
Worldwide contacts:
Performance Summary
Ordering Information
visit http://www.divio.com
•
•
Supports NTSC & PAL
Part Number
Description
Input / Output: S Video, composite,
audio L+R & 1394
•
•
NW701LQ
DV-SD Codec
Manufacturing Kit
NW701-DAAD
•
•
•
Bus powered or external power source
Compatible with DV editing card & SW
Small form factor
Copyright ©1999 divio, inc. All rights reserved. NW701-DAAD and the divio logo
are trademarks of divio, inc. Other product names are registered trademarks of their
respective companies. Product specifications are subject to change without notice.
