3680 Investment Lane – Riviera Beach, FL 33404
Telephone 1-800-327-6183 – Fax (561) 845-7813

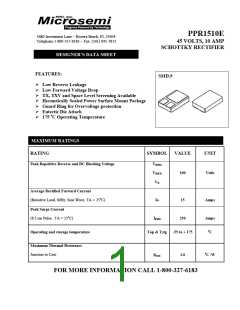

PPR1510E
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS
SYMBOL
MAX.
UNIT
Instantaneous Forward Voltage Drop
(IF = 5 Adc, TA = 25oC, 300ms Pulse)
(IF = 10 Adc, TA = 25 oC, 300ms Pulse)
Instantaneous Forward Voltage Drop
(IF = 5 Adc, TA = 100 oC, 300ms Pulse)
Reverse Leakage Current
0.780
1.10
VF1
Vdc
0.870
100
10
VF2
IR1
IR2
CJ
Vdc
mA
mA
pF
(Rated VR, TA = 25oC, 300ms pulse minimum)
Reverse Leakage Current
(Rated VR, TA = 100 oC, 300ms pulse minimum)
Junction Capacitance
800
VR = 10 V, TA = 25oC, f = 1 MHz)
CASE OUTLINE: SMD.5
PIN OUT:
PIN 1: CATHODE
PIN 2: ANODE
PIN 3: ANODE
TYPICAL OPERATING CURVES
(TA=25oC Unless otherwise specified)
FOR MORE INFORMATION CALL 1-800-327-6183
