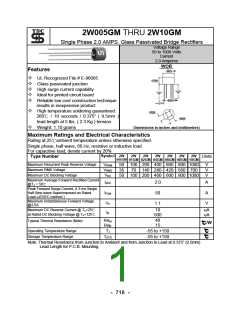

2W005GM THRU 2W10GM
Single Phase 2.0 AMPS. Glass Passivated Bridge Rectifiers
Voltage Range
50 to 1000 Volts
Current
2.0 Amperes
WOB
Features
ꢀ UL Recognized File # E-96005
ꢀ Glass passivated junction
ꢀ High surge current capability
ꢀ Ideal for printed circuit board
ꢀ Reliable low cost construction technique
results in inexpensive product
ꢀ High temperature soldering guaranteed:
260℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs. ( 2.3 Kg ) tension
ꢀ Weight: 1.10 grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
2W
2W
2W
2W
2W
2W
2W
Symbol
Type Number
Units
005GM
01GM 02GM 04GM 06GM 08GM 10GM
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
VRRM
VRMS
VDC
50 100 200 400 600 800 1000
35 70 140 280 420 560 700
50 100 200 400 600 800 1000
V
V
V
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@TA = 50℃
I(AV)
2.0
A
A
V
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@2.0A
IFSM
50
VF
IR
1.1
Maximum DC Reverse Current @ TA=25℃
at Rated DC Blocking Voltage @ TA=125℃
10
500
40
uA
uA
RθJA
RθJL
Typical Thermal Resistance (Note)
℃/W
15
Operating Temperature Range
Storage Temperature Range
℃
℃
TJ
-55 to +150
TSTG
-55 to +150
Note: Thermal Resistance from Junction to Ambient and from Junction to Lead at 0.375” (9.5mm)
Lead Length for P.C.B. Mounting.
- 716 -
