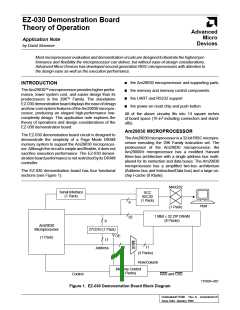

EZ-030 Demonstration Board
Theory of Operation
Advanced
Micro
Application Note
by David Stoenner
Devices
Most microprocessor evaluation and demonstration circuits are designed to illustrate the highest per-
formance and flexibility the microprocessor can deliver, but without ease-of-design considerations.
Advanced Micro Devices has developed second generation RISC microprocessors with attention to
the design ease as well as the execution performance.
the Am29030 microprocessor and supporting parts
INTRODUCTION
The Am29030 microprocessor provides higher perfor-
mance, lower system cost, and easier design than its
predecessors in the 29K Family. The standalone
EZ-030 demonstration board displays the ease of design
and low-cost system features of the Am29030 micropro-
cessor, producing an elegant high-performance low-
complexity design. This application note explores the
theory of operations and design considerations of the
EZ-030 demonstration board.
the memory and memory control components
the UART and RS232 support
the power-on reset chip and push button
All of the above circuitry fits into 14 square inches
2
of board space (16 in including connectors and stand-
offs).
Am29030 MICROPROCESSOR
The EZ-030 demonstration board circuit is designed to
demonstrate the simplicity of a Page Mode DRAM
memory system to support the Am29030 microproces-
sor. Although the circuit is simple and flexible, it does not
sacrifice execution performance. The EZ-030 demon-
stration board performance is not restricted by its DRAM
controller.
The Am29030 microprocessor is a 32-bit RISC micropro-
cessor executing the 29K Family instruction set. The
predecessor of the Am29030 microprocessor, the
Am29000 microprocessor has a modified Harvard
three-bus architecture with a single address bus multi-
plexed for its instruction and data buses. The Am29030
microprocessor has a simplified two-bus architecture
(Address bus and Instruction/Data bus) and a large on-
chip I-cache (8 Kbyte).
The EZ-030 demonstration board has four functional
sections (see Figure 1):
MAX232
Serial Interface
(1 Pack)
SCC
85C30
(1 Pack)
8
Host
(1 Pack)
1 Mbit × 32 ZIP DRAM
32
(8 Packs)
8
Am29030
Microprocessor
27C010 (1 Pack)
OE
(1 Pack)
17
22
11
Address
(3 Packs)
Row/Column
Memory Control
(3 Packs)
RAS and CAS
Control
17580A–001
Figure 1. EZ-030 Demonstration Board Block Diagram
Publication# 17580 Rev. A Amendment /0
Issue Date: January 1994
AMD
The first generation of AMD signal-compatible
embedded RISC microprocessors are the Am29000,
Am29005 , and Am29050 microprocessors. Each of
these microprocessors has an external modified Har-
vard architecture to expose the internal instruction and
data buses. The system designer can create two inde-
pendent memory systems to provide necessary band-
width for a design. The Am29000 microprocessor
provides the highest price/performance value of any
RISC microprocessor.
cessor at 2X frequency provides nearly 1.5 times the per-
formance of a 1X INCLK, even though the external
memory bus runs at 1X. This feature allows the EZ-030
demonstration board to get the most performance for its
DRAM bandwidth.
A side benefit of using the Scalable Clocking feature
with the internally derived MEMCLK is relaxed interface
timing restrictions (see Table 1). Processor outputs are
validclosertotherisingedgeofMEMCLKandinputdata
has less required setup time.
The second generation of the 29K Family extends perfor-
mance while reducing design complexity and design-in
effort. The Am29030 and Am29035 microprocessors
extend the range of price/performance beyond the
Am29000 processor. The Am29030 microprocessor bus
has reduced the signal complement, relaxed the timing
requirements, and added special memory support to re-
duce system cost, making it a designer-friendly part.
Interface
The EZ-030 demonstration board exploits features of
the Am29030 microprocessor to derive the maximum
performance for the minimum cost and complexity. The
first feature the EZ-030 demonstration board uses is the
Am29030 microprocessor’s narrow read feature for
EPROM.
Clock
By asserting the read-narrow pin (RDN) during an
EPROM access of the Am29030 microprocessor, the
Am29030microprocessorreadsinstructionsonebyteat
a time and generates an address for each byte. The
instruction data is read from the least significant byte
(bits 31 to 24) of the bus, because the EZ-030 demon-
stration board is a big-endian design.
The Am29030 microprocessor clock timing is forgiving
and flexible. For example, the CPU can tolerate an input
clock duty cycle of 40 percent to 60 percent. The
Am29030 microprocessor also has Scalable Clocking
technology that runs the internal processor core at twice
the bus frequency. The EZ-030 demonstration board
uses this Scalable Clocking feature. Using the configura-
tion jumpers on the EZ-030 demonstration board, the de-
signer can allow for a double frequency or 32-MHz input
clock (INCLK) while maintaining a 16-MHz external
memory clock (MEMCLK). Because only the PGA pack-
ages of the Am29030 can dissipate the heat reliably at 25
and 33 MHz, their timing is used for analysis in this Ap-
plication Note. An Addendum at the end of this Applica-
tion Note shows how the Cerquad 16-MHz Am29035 can
be used in this memory environment. Running the pro-
On the EZ-030 demonstration board, an 8-bit EPROM is
attached with the read narrow interface. This EPROM
contains MiniMON29K code, used for bootstrap code
to download programs into DRAM. The EPROM also
contains debugger support and host interface (HIF)
support. HIF allows the host operating-system standard
I/O services, such as open, close, read and write file,
and others, to be passed through the EZ-030 demon-
stration board to the host.
1
Table 1. PGA Interface Timing Restrictions
Preliminary
25/33 MHz
No.
Parameter Description
Test Conditions
Min
Max
Unit
Synchronous Output
Valid Delay
MEMCLK Output
MEMCLK Input
1
2
13
17
7
ns
Synchronous Output Valid
Delay for ID31–ID0
MEMCLK Output
MEMCLK Input
1
2
13
17
7a
9
ns
ns
MEMCLK Output
MEMCLK Input
MEMCLK=INCLK
17
17
12
Synchronous Input
Setup Time
Synchronous Input
Setup Time for
ID31–ID0
MEMCLK Output
MEMCLK Input
MEMCLK=INCLK
9
9
6
9a
ns
Notes:
1
Subject to change without notice. Refer to the “Am29030 and Am29035 Microprocessors Data Sheet” for a complete listing of
AC/DC parameters (order# 18150).
EZ-030 Demonstration Board Theory of Operation
2
AMD
The Am29030 microprocessor is very well suited for
page-mode or static column DRAM. The microprocessor
takes advantage of page-mode memory systems to pro-
vide single-cycle accesses to same page requests. The
Am29030 microprocessor has a special signal to notify
the memory system that accesses are sequential.
Thesesequentialaccessesoccurforcachelinefills, and
multiple loads and stores of registers. The EZ-030 card
utilizes only the sequential BURST signal for its page
mode implementation.
testing. Using this connector, it is possible to access ev-
ery pin of the Am29030 microprocessor through the five
JTAG pins. Because the JTAG reset pin must be tied to
the reset of the processor when the JTAG port is not in
use, a jumper must be disconnected when a JTAG de-
vice is attached to the EZ-030 demonstration board.
SeetheEZ-030DemonstrationBoardReferenceManu-
al for details.
MEMORY DESCRIPTION
The memory system of the EZ-030 demonstration board
is composed of three PAL devices, three 74LS157
MUXs, one EPROM (27C010), and eight ZIP DRAMs
(256K x 4–70 or 1 Mbyte x 4–70). The three PAL ICs that
form the memory controller of the EZ-030 demonstration
board are the master control PAL device (MSTR_CON),
which is a PALACE16V8–15, the RAS/CAS decode PAL
device (CAS_DEC), which is a PAL16V8–7, and the re-
fresh timer PAL device (REFRESH), which is a PAL-
ACE16V8–25 (see Figure 2).
Sequential accesses are marked by the BURSTsignal of
the Am29030 microprocessor. The BURST signal never
spans DRAM page boundaries; in fact, the burst access
does not cross 1-Kbyte memory boundaries. The 1K
boundary is known as a processor page boundary, be-
cause the processor checks the Memory Management
Unit (MMU) at this boundary for page faults. If the proces-
sor MMU is not activated, this boundary is still respected.
Thus, page-mode and static column DRAMs snap in with
no need for special address comparators.
STATE MACHINE DESCRIPTION
The Am29030 microprocessor furnishes a new address
during each burst access cycle, which can be “strobed”
into the page-mode DRAM by the CAS strobe pulsing at
an appropriate time. To generate this pulsing CASstrobe,
the EZ-030 demonstration board uses a delay line. The
delay line produces a delayed version of MEMCLK. The
real MEMCLK and the delayed version are “ANDed” to-
gether to produce the CAS pulse train used during the
BURST signal. (The Am29030 microprocessor has on-
chip page comparators and interleave support features
that the EZ-030 demonstration board does not use.)
Figure 3 is a state machine diagram of the EZ-030
memory system. The ready signal, RDY, is the termina-
tion of any access. Since the microprocessor samples
the RDY signal to indicate the completion of an access,
RDY can be supplied by the serial communications con-
trol PAL ICs or the memory control PAL ICs. Below is a
description of the RDY derivation. The state machine
represents the primary states and state transitions.
These are IDLE, Row Address (RAS), Burst READ,
Burst WRITE, Refresh CAS, and REFRESH RAS.
The state machine trajectories create the following: (1)
three-cycle random accesses to DRAM, (2) one-cycle
sequential (BURST) accesses to DRAM, and (3) three-
cycle refresh. The following sections describe the PAL
equation source files.
JTAG Connector
The EZ-030 demonstration board has a standard 10-pin
JTAG connector to access the Am29030 microproces-
sor part on the board. The JTAG IEEE scan standard
provides low-cost emulation and simpler in-circuit
ROM OE
Memory
Master
Timing
Generator
16V8–15
From Am29030 Processor
Memory
Strobe
Decoder
16V8–7
CAS
RAS
Delayed MEMCLK
MUX Select
MSTR_CON
CAS_DEC
Memory Refresh Timer
16V8–25
REFRESH
17580A–002
Figure 2. Memory System Block Diagram
EZ-030 Demonstration Board Theory of Operation
3
AMD
Burst
then inactive for the next cycle, continuing two-cycle
timing.
BURST
Write
CAS
Write
During a DRAM access, MEM_ACCESS must be active
before MEM_RDY activates [1.1b]. MEM_RDY is the
memory system component of the RDY signal. The next
section shows that MEM_ACCESS is a registered
signal that indicates a DRAM access was requested.
SinceMEM_ACCESSisaregisteredsignal, theRDYfor
DRAM is delayed one more cycle than the EPROM, or
three cycles total. These three cycles are: one cycle for
MEM_ACCESStogoactive, onecycleforMEM_RDYto
goactive(whichtriggerstheprocessorRDYsignalinthe
same cycle), and one cycle for the RDY signal to be
sampled by the microprocessor.
DRAM
IDLE
RAS
Access
&
REF_RCQ
WRITE
Refresh
REQ
Burst
CAS
Read
BURST
Refresh
CAS
During the burst access of the Am29030 microproces-
sor, the RDY signal is held active as long as BURST is
active [1.1c]. This provides a single-cycle access ac-
knowledge because RDY is sampled every cycle. The
EPROM does not support BURST.
REF
Access
REFRESH ACCESS
Refresh
RAS
DRAM TIMING
17580A–003
The IDLE signal represents the time when the DRAM
system is between accesses. The 70-ns DRAM has a
RAS precharge time of 50 ns [2.1a]. Then, the
MSTR_CON PAL device requires a visit of the IDLE
state before it can go to the RAS state and then onto the
CAS state. This visit takes at least one cycle which is 63
ns at 16 MHz. While IDLE is asserted, RAS is deas-
serted. Therefore, the RAS strobe remains inactive for
63 ns, which is long enough to meet the precharge
duration requirement.
Figure 3. DRAM State Machine Diagram
READY SIGNAL GENERATION
MSTR_CONis the timing generator for the memory sys-
tem. When the Am29030 microprocessor asserts the
access request signal REQ, the MSTR_CON PAL
device produces a ready signal (RDY) [1.2a]. The RDY
signal is a combinatorial signal. That is, it is a combina-
tion of the ready terms for both memory mapped de-
vices, the serial port, and the memory system. The
memory ready signal, MEM_RDY, is a registered signal
as shown by the “:=” equate symbol [1.1a].
MEM_ACCESS is a signal that indicates a DRAM ac-
cessisinprogress. IDLEisasignalthatindicatesDRAM
is inactive. IDLE asserts when no DRAM activity is de-
tected, specifically, when there is no DRAM access and
no refresh access (MEM_ACCESS*REF_ACCESS)
[2.1a]. IDLE is reinforced if: no access is requested to
MEM_RDY := REQ*A31*A30*MEM_RDY
+ MEM_ACCESS*MEM_RDY
[1.1a]
[1.1b]
[1.1c]
+ MEM_ACCESS*MEM_RDY*BURST
IDLE
:= IDLE*MEM_ACCESS*REF_ACCESS
[2.1a]
[2.1b]
RDY = MEM_RDY + SERIAL_RDY
[1.2a]
+
+
RESET
IDLE*MEM_ACCESS*ST1*MEM_RDY*
BURST
[2.1c]
[2.1d]
Equation 1. MSTR_CON PAL Equations
+
+
IDLE*REF_ACCESS*REF_REQ
IDLE*(REQ*A31*/A30)*REF_REQ*
EMUL
[2.1e]
The MSTR_CON PAL device has MEMCLK as its
clocked input. If there is a microprocessor access re-
quest while the most significant address lines, A31 and
A30, are zero (EPROM address space), the MEM_RDY
[1.1a] signal activates in the next cycle. The Am29030
microprocessor does not sample the RDY signal until
the next cycle. This results in a two-cycle access, one
cycle for the MSTR_CON PAL device to sample the
request and one cycle for the Am29030 microprocessor
to sample the RDY signal. For subsequent EPROM
accesses, the ready signal goes active for one cycle and
REF_ACCESS := IDLE*REF_REQ*REF_ACCESS [2.2a]
+
REF_ACCESS*REF_REQ
[2.2b]
MEM_ACCESS := IDLE*REQ*A31*A30*REF_REQ*
MEM_ACCESS*EMUL
[2.3a]
[2.3b]
[2.3c]
+
+
MEM_ACCESS*ST1
MEM_ACCESS*BURST
ST1
:= MEM_ACCESS*MEM_RDY
ST1*BURST
[2.4a]
[2.4b]
+
Equation 2. MSTR_CON PAL Equations
EZ-030 Demonstration Board Theory of Operation
4
AMD
RAS0 = MEM_ACCESS
+ REF_ACCESS*MEMCLK
[3.1a]
[3.1b]
[3.1c]
The RAS0 strobe is used by all eight ZIP DRAM chips to
clock in the ROW address. RAS0 is derived from
MEM_ACCESS of the MSTR_CON PAL device.
MEM_ACCESS indicates the beginning of a memory
cycle and RAS initiates the cycle [3.1a]. The additional
two terms of RAS0 create the pulse for CAS before RAS
refresh. The RAS signal is delayed half a MEMCLK from
the onset of REF_ACCESS [3.1b].
+ RAS0*REF_ACCESS
MUX
= MEM_ACCESS*MEMCLK
+ MUX*MEM_ACCESS
[3.2a]
[3.2b]
CAS0 = REF_ACCESS
DELAY_IN
[3.3a]
+ MUX*MEM_ACCESS*ST1*WRITE*MEMCLK*
[3.3b]
[3.3c]
[3.3d]
[3.3e]
TheMUX[3.2aand3.2b]signalconnectstotheA/Bcon-
trolinputofthethree74LS157two-inputMUXs. Thissig-
nal is used to choose between the row addresses and
the column addresses. The MUX signal chooses the
column address half a MEMCLK cycle after the RAS
strobe activates. This first-half clock cycle gives the row
addresses 30 ns of hold time. The required time is 15 ns
for 70-ns DRAMs. The second-half MEMCLK cycle al-
lows the column address to propagate through the
74LS157 MUX. This delay signal provides the MUX
switching time. The switching delay of the 74LS157
MUX is 27 ns, and the half-cycle plus the delay signal is
50 ns. Both the MSTR_CON and the CAS_DEC PAL
devices allow additional setup time tolerance. The setup
time for the column address on a 70-ns DRAM is 0.
+ MUX*MEM_ACCESS*ST1*WRITE*CAS0*
DELAY_IN
+ MUX*MEM_ACCESS*ST1*WRITE*CAS0*
MEMCLK
+ MUX*MEM_ACCESS*ST1*WRITE*WE0*
MEMCLK
Equation 3. CAS_DEC PAL Equations
DRAM (2 MSBs A31, A30 = 10 ) [2.1e], no refresh re-
2
quest is pending (REF_REQ), and no emulator ac-
cesses are attempted (EMUL). IDLE is asserted if a
non-burst (simple) access is complete: (MEM_AC-
CESS*ST1*MEM_RDY*BURST) [2.1c]. IDLE is also
asserted if a refresh has completed: (REF_AC-
CESS*REF_REQ) [2.1d].
Only one of the CAS equations is shown here [3.3a–3.3e]
because the rest of the CAS signals CAS1–CAS3 are
symmetrical. The first term of the CAS equation is the
CAS before RAS refresh. CAS becomes active as soon
as a refresh cycle begins. The REF_ACCESS signals the
beginning of the refresh cycles. The second, third and
fourth terms are for normal memory accesses. The CAS
strobe for the first read or simple read cycle to DRAM oc-
curs in the last of two cycles. The delay signal
(DELAY_IN), is MEMCLK passed through a 20-ns delay
line. The CAS strobe continues until MEMCLK becomes
active in the last equation.
REF_ACCESS is a signal that acknowledges the
REF_REQ when the DRAM is idle [2.2a]. The REF_AC-
CESS releases after the REF_REQ is released, ac-
knowledging the completion of a refresh [2.2b]. The
refresh operation can occur while EPROM or Serial Port
accesses are also occurring.
MEM_ACCESS is initiated when the Am29030 micro-
processor accesses DRAM space, where A31=1 and
A30=0 [2.3a]. This is qualified by no refresh request and
no emulator access. MEM_ACCESS persists for one
morecycleuntilST1isasserted. MEM_ACCESSisrein-
forced by burst which might take from 1 cycle to 255
cycles. Then MEM_ACCESS waits for an IDLE cycle.
Since MEM_ACCESS creates RAS, the IDLE cycle is
the RAS precharge delay. MEM_ACCESS creates RAS
fairly directly through the CAS_DEC PAL device.
The delay signal is necessary for the burst read access
that might follow the simple access. A burst read access
starts at the end of a simple access. The second through
fourth terms of the CAS equation shape the CAS pulse to
provide the appropriate setup time for the column ad-
dress [3.3b–3.3d].
The ST1 signal is used to flag the last cycle of a memory
access [2.3b]. The CAS_DEC PAL device decodes the
ST1 signal to form the CAS memory strobes for the
proper memory devices [2.4a]. During a write, only the
bytes with WE strobes result in CAS strobes. This is how
partial words (bytes and half-words) are stored. The
ST1 signal persists during burst accesses [2.4b].
The fourth term [3.3d] allows the assertion of MEMCLK to
deassert any previous CAS. The first term [3.3a] takes ef-
fect, allowing a delay of DELAY_IN (20 ns) before CAS
becomes active. These two terms have now provided a
20-ns pulse that meets the 10-ns CAS precharge specifi-
cation of a 70-ns DRAM. The 20-ns pulse of CAS inactive
allows the 14-ns address propagation delay through the
74LS157 MUXs. The second term carries the CASsignal
into the third term. DELAY_IN overlaps MEMCLK by 20
ns, so that CAS is reinforced by the second term until
DELAY_IN goes inactive (see Figure 4 and Figure 5).
The page-mode access time from CAS active to data ac-
cessed is 20 ns, which allows the microprocessor 15 ns
of setup time (9 ns is the requirement).
The CAS_DEC PAL Device
TheCAS_DECPAL device is a PAL device 16V8–7. The
row and column address strobes are decoded by the
CAS_DEC PAL equations. Additionally, the strobe signal,
MUX, which chooses column address instead of row ad-
dress, is decoded out of this PAL device. See Equation 3
for the equations for RAS, CAS, and the row and column
address strobes.
EZ-030 Demonstration Board Theory of Operation
5
AMD
MEMCLK
REQ
MEM_ACC
ST1
DELAY
RAS
CAS
RDY
RAM DATA
17580A–004
Figure 4. DRAM READ Timing Diagram
MEMCLK
REQ
MEM_ACC
ST1
DELAY
RAS
CAS
RDY
RAM DATA
Figure 5. DRAM Write Timing Diagram
17580A–005
EZ-030 Demonstration Board Theory of Operation
6
AMD
ROM_CS = EMUL*REQ*A31*A30
[5.1]
The single-cycle write CAS is easier than the single-cycle
read CAS, because the data is available near the begin-
ning of the cycle. All that is necessary is a CAS strobe at
the back half of the cycle after the column address is set
up. The equation term:
Equation 5. MSTR_CON PAL Equation
SERIAL PORT SUPPORT
MUX*MEM_ACCESS*ST1* WRITE *WE0*MEMCLK
[3.3e]
The Serial Communications Controller (SCC) chip is at-
tached to the most significant byte of the Am29030 micro-
processor. To provide 5 V-only operation of RS232
drives, a MAX232 chip is used to create "10 V level
signals for the receive data, the transmit data, the Data
Terminal Ready, and Data Set Ready signals. The con-
nector is configured so that the EZ-030 demonstration
board is Data Communications Equipment (DCE) and at-
taches to a host, such as a PC-AT that is Data Terminal
Equipment (DTE). The EZ-030 debug monitor serial pro-
tocol requires an intelligent host.
activates CAS signal to become active as MEMCLK (i.e.,
it is active during the back half of MEMCLK). The remain-
ing signals in this term are conditions for the CAS pulse(s)
to occur. Note the WE0 signal would be WE1, WE2, or
WE3 for CAS1, CAS2, or CAS3. This WE signal is a
byte-write strobe signal from the Am29030 microproces-
sor. Only the CAS lines of the microprocessor-requested
bytes are written.
Refresh Timer
The refresh timer logic is a simple counter with two
exposed signals, REF_REQ and REF_ACCESS.
REF_REQ is the request generated every 129 clocks.
REF_ACCESS is the acknowledge signal that a refresh
access is in progress. Refresh access only clears
the REF_REQ signal. Therefore, refreshes can be
pending for up to 129 cycles before they are lost (see
Equation 4).
The Serial Port section consists of the Am85C30 chip,
the serial controller PAL device (SERIAL), the MAX232
chip, a baud rate oscillator, and the subminiature 9-pin
D connector.
The Am85C30 Chip
The Am85C30 chip is known as the Serial Communica-
tions Controller (SCC). It is a dual-channel, multi-protocol
data communications peripheral chip. The SCC can be
configured to provide asynchronous SDLC and HDLC in-
terface. This device can check and generate CRC codes.
Q0 := Q0
Q1:=Q1:+: Q0
Q2:=Q2:+: (Q1*Q0)
Q3:=Q3:+: (Q2*Q1*Q0)
...
[4.1]
[4.2]
[4.3]
The EZ-030 circuit with standard target Universal De-
bugger Interface (UDI) target monitor software utilizes a
very small subset of the functionality of this SCC part.
The EZ-030 board has a connector for only one of the
portsontheAm85C30chip. TheSCCisconnectedtoan
independent 2.4576-MHz oscillator for baud rate
precision.
Q6:=Q6:+: (Q5*Q4 *Q3*Q2*Q1*Q0)
REF_REQ:= Q6*Q5*Q4*Q3*Q2*Q1*Q0
+REF_REQ*REF_ACCESS
[4.4]
[4.5a]
[4.5b]
Equation 4. REFRESH PAL Equations
The SCC Interface PAL Device
EPROM
The SERIAL PAL device creates the signals to interface
the Am29030 microprocessor to the Am85C30 chip.
SERIALis clocked by MEM_CLK. The 8530_CS is used
for the chip enable (CE) to the SCC [6.1]. One timing
specification on the Am85C30 chip is enforced by soft-
ware. Because the SCC is run by an independent oscil-
lator, a circuit inside the part prevents metastability by
multiply-sampling source data. Because of this resam-
pling delay, accesses to the chip must be spaced by six
clocks of the SCC oscillator plus 300 ns.
The ROM_CS signal is routed to both the RDN and to
the EPROM (27C010) chip-select. Because of the read-
narrow feature of the Am29030 microprocessor, the
EPROM accesses are easy to facilitate. There is one
trick though—the read-narrow signal (RDN) of the
Am29030 microprocessor must be driven during a pro-
cessor reset to indicate whether an 8-bit or a 16-bit
EPROM is used. For an 8-bit EPROM, the RDN signal
must be driven inactive (High) [5.1]. This is the default
state of the EPROM chip-select (ROM_CS) signal from
the MSTR_CON PAL device.
To accommodate this extended timing spec, the EZ-030
software accessing the SCC directly must delay be-
tween accesses. When computing this delay, the cache
and double internal frequency considerations must be
accounted for. For the 2.43567-MHz oscillator attached
toa16-MHzinternalfrequencypart, thenumberofdelay
cycles between accesses must be 45 cycles.
The ROM_CS equation only produces a chip-select and
RDN during a request to the EPROM address space.
The EPROM address space is any address with the
MSBs, A31 and A30, both equal to zero [5.1]. Note that
whenaprocessorisreset, executionstartsfromlocation
zero, which is in the EPROM address space.
EZ-030 Demonstration Board Theory of Operation
7
AMD
8530_CS = REQ*A31*A30
SERIAL_RDY := NC1*NC2*SERIAL_RDY
NC1 := (8530_RD + 8530_WR)*NC1*SERIAL_RDY [6.3]
NC2 := (8530_RD + 8530_WR)*(NC1:+:NC2)
[6.1]
[6.2]
The reset signal causes a simultaneous read and write
signal to the Am85C30 chip, which indicates a reset to
the SCC [7.1c] and [7.2c]. This can be done by software
as well. The SERIAL_RDY signal is initiated one cycle
after the 8530_RD signal, which begins one propaga-
tion delay after the Am29030 microprocessor access to
the serial port. The 8530_RD signal lasts until the
SERIAL_RDY is done [7.1b]. The 8530_WR write pulse
lasts for three clocks, bracketed by one clock cycle on
either side [7.2a]. (This is for the data hold time require-
ment of the Am85C30 chip. Note that a slower than
8-MHz part requires an extra wait state here.)
*SERIAL_RDY
[6.4]
Equation 6. SCC Interface PAL Equations
8530_RD:=8530_CS*WRITE*8530_RD*SERIAL_RDY[7.1a]
+ 8530_RD*SERIAL_RDY
+ RESET
8530_WR := 8530_CS*WRITE*8530_WR
*SERIAL_RDY
[7.1b]
[7.1c]
[7.2a]
[7.2b]
+ 8530_WR*NC1*SERIAL_RDY
+ 8530_WR*NC2*SERIAL_RDY + RESET [7.2c]
FINISHING TOUCHES
The EZ-030 demonstration board uses a TL7705 chip to
provide a clean, “debounced,” power-on reset signal
and push-button reset signal. It is possible to attach a
jumper between the DTR signal and the push button to
allow host-controlled reset serial port. The RESET
signal configures the processor for 8-bit operation and
resets the SCC and the Am29030 microprocessor.
Equation 7. SCC Interface PAL Equations
The SERIAL_RDY signal is a term used by the
MSTR_CON PAL device [1.2a] to provide the RDY sig-
nal to the Am29030 microprocessor [6.2]. The NC1 and
NC2 (no connect 1 and 2) terms form a counter to pro-
vide the proper delay for reads and writes to allow trans-
fer [6.3] and [6.4]. The resulting access is active five
cycles: one cycle for NC1, one cycle for NC2, one cycle
for NC1 to be active again, one cycle for SERIAL_RDY
to sample NC1 and NC2, and one cycle for the RDY to
be sampled by the Am29030 microprocessor. Note that
the software timing restriction allowing six SCC oscilla-
tor cycles between accesses is over and above the NC1
and NC2.
The 74LS157 MUXs have long propagating delays and
switching times, and therefore do not require series ter-
mination resistors for the highly capacitive eight fan-out
DRAMaddress bus. If high-speed MUXs or PALdevices
are used in lieu of the 74LS157 MUXs, it is recom-
mended that series 33-ohm termination resistors be
used to moderate pulse switching times and dampen
reflections.
EZ-030 Demonstration Board Theory of Operation
8
AMD
ADDENDUM FOR 16-MHZ AM29035 CERQUAD
This application note presented how to make a simple
memory interface for the Am29030, but the timing was
for the PGA package parts that, because of the superior
power distribution, can have the better timings shown in
Table 1. The Cerquad parts, though, have different tim-
ings than their PGA counterparts, as shown in Table 2.
This needs to be taken into account in the worst-case
analysis of the design. This Addendum shows how to
produce a design for the Cerquad parts that can still
maintain the performance of the design shown
previously.
only problem is on CAS and not RAS, only eight address
lines need to be dealt with instead of 32 data lines. A
20V8–10-nsPALdevicecanbeusedasaclock-enabled
register with a control-enabled count. This then reduces
theequivalentofT from22nsto7ns. Alongwithusinga
7
5-ns PAL device for CAS decode, this results in the set-
up time required with –1 ns of margin. To fix the –1 ns of
margin, the delay line should be reduced to 15 ns and
the 74LS157s changed to 74F157s. This results in an
access equation of:
Delay line + PAL delay + CAS access + setup ≤ 63
15 + 5 + 20 + 19 = 59
≤
63 ns
The problem comes in worst-casing the address to the
CAS control path to meet the ID31–ID0 setup. The CAS
term cannot be lowered until the address is valid at the
output of the multiplexers (74LS157’s). The equation is:
The equation for this PAL device (ADD_CNTR.PDS) is
given at the end of the PAL equation section. This PAL
device should fit between the intersection of the address
bus for the PROM and the multiplexers, as shown in
Figure 1, and is only needed on the lower address bits
A9–A2. There are two control terms on this PAL device
load, which cause the register to be updated with the ad-
dress and INC, which in turn cause the register to count
upward. In this design, the term IDLE can be used in the
master control PAL device to drive LOAD. The address
bus is valid 1 clock before IDLE becomes false, so the
register is updated with the correct address and held.
Holding this address until the first CAS pulse enables
the ST1 to be used as the needed INC term to produce
counts in the burst sequence.
T7 + 74LS157 – (16V8–7) PAL fastest delay
22 + 14
–
2
=
34 ns
making the delay line 34 ns instead of 20 ns.
This, then, adds to the CAS an access of 20 ns plus the
worst-case delay time of the PAL device, plus the setup
of the Am29035. This equation becomes:
34 ns + 20 ns + 7 ns + 17 ns => 78 ns
This 78 ns significantly exceeds the 63 ns allowed so
modifications must be made to the design.
There are two paths to fix the design. Either fix the ad-
dress clock to Q delay, or fix the data setup side. To fix
the data setup, a register with a better setup, say a
74F374 with a setup of 4 ns, can be inserted. Thissolves
the problem, but adds an extra clock to each access.
This also adds four parts to the design for the full 32-bit
data bus. There is a less expensive solution. Since the
These modifications to the basic memory system make
the significantly cheaper Cerquad part function at or
near its top speed. Only one small change is needed to
the EPROM. The speed of the EPROM must be de-
creased to 70 ns instead of the 90 ns as used in the 25-
and 35-MHz designs.
1
Table 2. 16-MHz Am29035 Cerquad Interface Timing Restrictions
Preliminary
16 MHz
No.
Parameter Description
Test Conditions
Min
Max
Unit
Synchronous Output
Valid Delay
MEMCLK Output
MEMCLK Input
1
2
20
24
7
ns
Synchronous Output Valid
Delay for ID31–ID0
MEMCLK Output
MEMCLK Input
1
2
22
26
7a
9
ns
ns
MEMCLK Output
MEMCLK Input
MEMCLK=INCLK
21
21
17
Synchronous Input
Setup Time
Synchronous Input
Setup Time for
ID31–ID0
MEMCLK Output
MEMCLK Input
MEMCLK=INCLK
17
17
13
9a
ns
Notes:
1
Subject to change without notice. Refer to the “Am29030 and Am29035 Microprocessors Data Sheet” for a complete listing of
AC/DC parameters (order# 18150).
EZ-030 Demonstration Board Theory of Operation
9
AMD
APPENDIX A. PAL EQUATIONS
This appendix contains PAL equations for the EZ-030 demonstration board.
;PALASM Design Description
;––––––––––––––– Declaration Segment –––––––––––––––
TITLE
RAS AND CAS GENERATOR FOR EZ-030
PATTERN
REVISION
COMPANY
DATE
CAS_DEC.PDS
A
AMD
03/03/92
CHIP U3 PAL16L8 (or PALCE16V8)
;––––––––––––––– PIN Declarations –––––––––––––––
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
1
2
3
4
5
6
7
8
9
MEMCLK
/MEM_ACCESS ;
/REF_ACCESS ;
DELAY_IN ;
/WE0
/WE1
/WE2 ;
/WE3 ;
/WRITE
GND
PIN 10
PIN 11
PIN 13
PIN 14
PIN 15
PIN 16
PIN 17
PIN 18
PIN 20
/ST1 ;
/CAS0
/CAS1
/CAS2 ;
/CAS3 ;
/MUX ;
/RAS0
VCC ;
;––––––––––––––– Boolean Equation Segment –––––––––––––––
EQUATIONS
MINIMIZE_OFF
RAS0 =
MEM_ACCESS
+ REF_ACCESS*/MEMCLK
+ RAS0*REF_ACCESS
MUX =
MEM_ACCESS*/MEMCLK
+ MUX*MEM_ACCESS
CAS0 =
REF_ACCESS
+ MUX*MEM_ACCESS*ST1*/WRITE*MEMCLK*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS0*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS0*/MEMCLK
+ MUX*MEM_ACCESS*ST1*WRITE*WE0*/MEMCLK
EZ-030 Demonstration Board Theory of Operation
10
AMD
CAS1 =
REF_ACCESS
+ MUX*MEM_ACCESS*ST1*/WRITE*MEMCLK*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS1*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS1*/MEMCLK
+ MUX*MEM_ACCESS*ST1*WRITE*WE1*/MEMCLK
CAS2 = REF_ACCESS
+ MUX*MEM_ACCESS*ST1*/WRITE*MEMCLK*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS2*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS2*/MEMCLK
+ MUX*MEM_ACCESS*ST1*WRITE*WE2*/MEMCLK
CAS3 =
REF_ACCESS
+ MUX*MEM_ACCESS*ST1*/WRITE*MEMCLK*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS3*DELAY_IN
+ MUX*MEM_ACCESS*ST1*/WRITE*CAS3*/MEMCLK
+ MUX*MEM_ACCESS*ST1*WRITE*WE3*/MEMCLK
;
;PALASM Design Description
;––––––––––––––– Declaration Segment –––––––––––––––
TITLE
MEMORY CYCLE GENERATOR FOR EZ-030
PATTERN
REVISION
COMPANY
DATE
MSTR_CON.PDS
A
AMD
03/03/92
CHIP U4 PALCE16V8
; correction 4/25/92
; CS which is used for read-narrow initialization of the Am29030 at reset
; was set to 0 should be 1 correction below
;
;––––––––––––––– PIN Declarations –––––––––––––––
PIN 1
MEMCLK
/RESET
/REQ
;
;
PIN 2
PIN 3
PIN 4
A31
PIN 5
A30
PIN 6
/BURST
/EMUL
;
;
;
;
;
;
PIN 7
PIN 8
/SERIAL_RDY
/REF_REQ
GND
PIN 9
PIN 10
PIN 11
PIN 12
PIN 13
PIN 14
PIN 15
PIN 16
PIN 18
PIN 19
PIN 20
/OE
/RDY
/MEM_ACCESS
/REF_ACCESS
/ROM_CS
/IDLE
REGISTERED ;
REGISTERED ;
REGISTERED ;
/MEM_RDY
/ST1
;
;
;
VCC
EZ-030 Demonstration Board Theory of Operation
11
AMD
;––––––––––––––– Boolean Equation Segment –––––––––––––––
EQUATIONS
IDLE :=
/IDLE*/MEM_ACCESS*/REF_ACCESS
+ RESET
+ /IDLE*MEM_ACCESS*ST1*MEM_RDY*/BURST
+ /IDLE*REF_ACCESS*/REF_REQ
+ IDLE*/(REQ*A31*/A30)*/REF_REQ*/EMUL
REF_ACCESS :=
MEM_ACCESS :=
IDLE*REF_REQ*/REF_ACCESS
+ REF_ACCESS*REF_REQ
IDLE*REQ*A31*/A30*/REF_REQ*/MEM_ACCESS*EMUL
+ MEM_ACCESS*/ST1
+ MEM_ACCESS*BURST
ST1 :=
MEM_ACCESS*/MEM_RDY
+ ST1*BURST
MEM_RDY :=
REQ*/A31*/A30*/MEM_RDY
+ MEM_ACCESS*/MEM_RDY
+ MEM_ACCESS*MEM_RDY*BURST
ROM_CS = /EMUL*REQ*/A31*/A30
RDY = MEM_RDY + SERIAL_RDY
;
;PALASM Design Description
;––––––––––––––– Declaration Segment –––––––––––––––
TITLE
REFRESH TIMER FOR EZ-030
PATTERN
REVISION
COMPANY
DATE
REFRESH.PDS
A
AMD
03/03/92
CHIP U2 PALCE16V8
;–––––––––––––––– PIN Declarations –––––––––––––––
PIN
PIN
1
2
MEMCLK
/REF_ACCESS
/OE
;
;
PIN 11
PIN 12
PIN 13
PIN 14
PIN 15
PIN 16
PIN 17
PIN 18
PIN 19
;
/REF_REQ
/Q0
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
/Q1
/Q2
/Q3
/Q4
/Q5
/Q6
EZ-030 Demonstration Board Theory of Operation
12
AMD
;––––––––––––––– Boolean Equation Segment –––––––––––––––
EQUATIONS
Q0 := /Q0
Q1 := Q1 :+: Q0
Q2 := Q2 :+: (Q1*Q0)
Q3 := Q3 :+: (Q2*Q1*Q0)
Q4 := Q4 :+: (Q3*Q2*Q1*Q0)
Q5 := Q5 :+: (Q4*Q3*Q2*Q1*Q0)
Q6 := Q6 :+: (Q5*Q4*Q3*Q2*Q1*Q0)
REF_REQ :=
;
Q6*Q5*Q4*Q3*Q2*Q1*Q0
+ REF_REQ*/REF_ACCESS
TITLE
85C30 CONTROLLER
PATTERN
REVISION
COMPANY
DATE
SERIAL.PDS
A
AMD
04/20/1992
CHIP U18 PAL16V8
CLK /RESET /REQ A31 A30 /WRITE /INT NC NC GND
/OE /8530_WR /8530_RD /8530_CS /NC1 /NC2 /NC3 /INTR*(0) /SERIAL_RDY
EQUATIONS
VCC
8530_CS = REQ*A31*A30
8530_RD :=
8530_WR :=
8530_CS*/WRITE*/8530_RD*/SERIAL_RDY
+ 8530_RD*/SERIAL_RDY + RESET
8530_CS*WRITE*/8530_WR*/SERIAL_RDY
+ 8530_WR*/NC1*/SERIAL_RDY
+ 8530_WR*/NC2*/SERIAL_RDY + RESET
NC1 := (8530_RD + 8530_WR)*/NC1*/SERIAL_RDY
NC2 := (8530_RD + 8530_WR)*(NC1:+:NC2)*/SERIAL_RDY
SERIAL_RDY := NC1*NC2*/SERIAL_RDY
INTR*(0) = INT
EZ-030 Demonstration Board Theory of Operation
13
AMD
;PALASM Design Description
;–––––––––––––––––––––––––––––– Declaration Segment –––––––––––––––––––––––––––
TITLE
ADDRESS COUNTER AND INCREMENTER FOR THE EZ-030 SPEED FIX
PATTERN
REVISION
AUTHOR
COMPANY
DATE
ADD_CNTR.PDS
A
DAVID STOENNER
AMD
10/19/93
CHIP
U10
PALCE20V8
;––––––––––––––––––––––––––––––– PIN Declarations –––––––––––––––––––––––––––––
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
PIN
1
MEMCLK
/INC
A2
2
3
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
12
13
14
22
21
20
19
18
17
16
15
24
A9
GND
/OE
/LOAD
Q0
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
REGISTERED ;
Q1
Q2
Q3
Q4
Q5
Q6
Q7
VCC
;–––––––––––––––––––––––––––– Boolean Equation Segment ––––––––––––––––––––––––––
EQUATIONS
Q0 :=
Q1 :=
Q2 :=
INC*/Q0
+ LOAD*A2
INC*(Q1 :+: Q0)
+ LOAD*A3
INC*(Q2 :+: (Q1*Q0))
+ LOAD*A4
EZ-030 Demonstration Board Theory of Operation
14
AMD
Q3 :=
Q4 :=
Q5 :=
Q6 :=
Q7 :=
INC*(Q3 :+: (Q2*Q1*Q0))
+ LOAD*A5
INC*(Q4 :+: (Q3*Q2*Q1*Q0))
+ LOAD*A6
INC*(Q5 :+: (Q4*Q3*Q2*Q1*Q0))
+ LOAD*A7
INC*(Q6 :+: (Q5*Q4*Q3*Q2*Q1*Q0))
+ LOAD*A8
INC*(Q7 :+: (Q6*Q5*Q4*Q3*Q2*Q1*Q0))
+ LOAD*A9
;––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Copyright 1993 Advanced Micro Devices. All rights reserved.
Am29000, AMD, PAL, and PALASM are registered trademarks of Advanced Micro Devices, Inc.
29K, Am29005, Am29030, Am29035, Am29050, MiniMON29K, and Scalable Clocking are trademarks of Advanced Micro Devices, Inc.
Product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
EZ-030 Demonstration Board Theory of Operation
15
厂商 型号 描述 页数 下载

EPCOS

 		EZ0-A150XSMD 避雷器3电极避雷器[ Surge arrester 3-electrode arrester ] 4 页

EPCOS

 		EZ0-A230XF 避雷器3电极避雷器[ Surge arrester 3-electrode arrester ] 4 页

EPCOS

 		EZ0-A230XSMD 避雷器3电极避雷器[ Surge arrester 3-electrode arrester ] 4 页

EPCOS

 		EZ0-A350XF 避雷器3电极避雷器[ Surge arrester 3-electrode arrester ] 4 页

EPCOS

 		EZ0-A90XSMD 避雷器3电极避雷器[ Surge arrester 3-electrode arrester ] 4 页

SANKEN

 		EZ0150 雪崩二极管具有内置晶闸管[ Avalanche Diodes with built-in Thyristor ] 2 页

SANKEN

 		EZ0150V [ Zener Diode, 150V V(Z), 6.7%, Silicon, Unidirectional ] 2 页

SANKEN

 		EZ0150V1 [ Zener Diode, 150V V(Z), 6.7%, Silicon, Unidirectional ] 2 页

SANKEN

 		EZ0150V3 [ Zener Diode, 150V V(Z), 6.7%, Silicon, Unidirectional ] 2 页

SANKEN

 		EZ0150V4 [ Zener Diode, 150V V(Z), 6.7%, Silicon, Unidirectional ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.203252s
