QTS48T46096-NCCPG

型号:

QTS48T46096-NCCPG

品牌:

BEL[ BEL FUSE INC. ]

页数:

7 页

PDF大小:

620 K

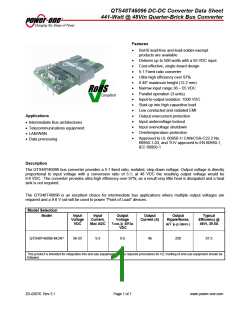

QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
Features
RoHS lead-free and lead-solder-exempt
products are available
Delivers up to 500 watts with a 55 VDC input
Cost-effective, single-board design
5:1 Fixed ratio converter
Ultra-high efficiency over 97%
0.48” maximum height (12.2 mm)
Narrow input range 36 – 55 VDC
Parallel operation (3 units)
Input-to-output isolation: 1500 VDC
Start-up into high capacitive load
Low conducted and radiated EMI
Output overcurrent protection
Input undervoltage lockout
Applications
Intermediate Bus architectures
Telecommunications equipment
LAN/WAN
Input overvoltage shutdown
Overtemperature protection
Approved to UL 60950-1/ CAN/CSA-C22.2 No.
60950-1-03, and TUV approved to EN 60950-1,
IEC 60950-1
Data processing
Description
The QTS48T46096 bus converter provides a 5:1 fixed ratio, isolated, step-down voltage. Output voltage is directly
proportional to input voltage with a conversion ratio of 5:1; at 48 VDC the resulting output voltage would be
9.6 VDC. The converter provides ultra-high efficiency over 97%; as a result very little heat is dissipated and a heat
sink is not required.
The QTS48T46096 is an excellent choice for intermediate bus applications where multiple output voltages are
required and a 9.6 V rail will be used to power “Point of Load” devices.
Model Selection
Model
Input
Voltage
VDC
Input
Current,
Max ADC
Output
Voltage
Vout,@ 48Vin
VDC
Output
Current (A)
Output
Ripple/Noise,
mV p-p (max.)
Typical
Efficiency @
48Vi, 39.5A
QTS48T46096-NCAP
36-55
9.3
9.6
46
250
97.3
This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be
followed.
ZD-02076 Rev 2.1
Page 1 of 7
www.power-one.com
QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely effect long-
term reliability, and cause permanent damage to the converter.
Parameter
Input Voltage
Conditions/Description
Continuous
Min
0
Max
55
Units
VDC
Operating Temperature
Storage Temperature
*Case Temperature (Q11)
-40
-40
125
125
°C
°C
* If necessary the factory will provide an assembly drawing upon request to locate Q11
Environmental and Mechanical Specifications
All specifications apply over specified input voltage, output load, and temperature range, unless otherwise noted.
Parameter
Shock
Conditions/Description
(Half-sinewave, 6ms), 3 axes
GR-63-CORE, Section 5.4.2
Min
Nom
50
Max
Units
g
Sinusoidal Vibration
Weight
1
g
1.7/48
Yes
3.5
Oz/g
Water Washing
MTBF
Standard process
Per Bellcore TR-NWT-000332
MHrs
(Po= 260 W, TA = 30°C)
Isolation Specifications
All specifications apply over specified input voltage, output load, and temperature range, unless otherwise noted.
Parameter
Conditions/Description
Min
Nom
Max
Units
Insulation Safety Rating
Isolation Voltage
Functional
Input to Output
1500
10
VDC
MOhm
pF
Isolation Resistance
Isolation Capacitance
1100
Input Specifications
All specifications apply over specified input voltage, output load, and temperature range, unless otherwise noted.
Parameter
Conditions/Description
Continuous
Min
36
Nom
48
Max
55
37
33
2
Units
VDC
VDC
VDC
ms
Input Voltage
Turn-On Input Voltage
Turn-Off Input Voltage
Output Rise Time
Ramping Up
33
35
Ramping Down
31
32
Time from Vo @ 10% of nominal to
Vo @ 90% of Nominal, w/ Load =
365 W resistor + 3000 µF capacitor
0.5
Input Reflected Ripple Current
50
1
mA p-p
A2s
Full Load, 12 µH source inductance
Inrush Transient
Vin=Vin.max
Vin
Input Overvoltage Shutdown
Turn-off voltage threshold
Turn-on voltage threshold
57
55
59.5
58
ZD-02076 Rev 2.1
Page 2 of 7
www.power-one.com
QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
Output Specifications
All specifications apply over specified input voltage, output load, and temperature range, unless otherwise noted.
Parameter
Conditions/Description
Min
Nom
Max
Units
Output Voltage over line load and
temperature
6.8
11.5
VDC
Output Current
Load Regulation
Turn-on overshoot
Transient response
Io
0
46
500
3
A
mV
%
Vo
Vo
300
25% load step change @ 1A/µs
(% of Vo nominal)
Vo
%
± 4
Admissible Load Capacitance
Output Current Limit Threshold
Irated, Nom Vin
Po
3000
µF
110%
130%
240
150%
Latch-Off (recycle power or toggle
shutdown pin to re-start)
Switching Frequency
kHz
Feature Specifications
All specifications apply over specified input voltage, output load, and temperature range, unless otherwise noted.
Parameter
Shutdown (ON/OFF)
Negative Logic
Converter ON
Conditions/Description
On/Off signal is low – converter is ON
ON/OFF pin is connected to -Vin
Min
Nom
Max
Units
-0.5
2.5
0.8
1
VDC
mADC
VDC
Source Current
Converter OFF
37
Positive Logic
Converter ON
Open Circuit Voltage
Converter OFF
On/Off signal is low–converter is OFF
ON/OFF pin is floating
2.5
-0.5
37
5
VDC
VDC
VDC
0.8
Overtemperature Protection
Current Share Accuracy
Average board temperature
+130
+140
10
°C
%
See Page 4. “Parallel Operation”
5
ZD-02076 Rev 2.1
Page 3 of 7
www.power-one.com
QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
Shutdown Feature Description
Characteristic Curves
The ON/OFF pin in the QTS48T46096 converter
functions as a normal soft shutdown. It is referenced
to the –Vin pin (see Figure 2). With the positive
logic, when the ON/OFF pin is pulled low, the output
is turned off and the unit goes into a very low input
power mode.
Efficiency Vs Line, Load
99.00
97.00
95.00
93.00
91.00
89.00
87.00
85.00
With negative logic, when the ON/OFF pin is pulled
low, the unit is turned on.
36
48
55
An open collector switch is recommended to control
the voltage between the ON/OFF pin and the -Vin
pin of the converter. The ON/OFF pin is pulled up
internally, so no external voltage source is required.
The user should avoid connecting a resistor between
the ON/OFF pin and the +Vin pin.
Load (%)
When the ON/OFF pin is used to achieve remote
control, the user must take care to insure that the pin
Figure 1. QTS48T46096 Efficiency vs. Output Load
reference for the control is really the -Vin pin. The
control signal must not be referenced ahead of EMI
filtering, or remotely from the unit. Optically coupling
the information and locating the optical coupler
directly at the module will solve any of these
problems.
Figure 2 shows the recommended connections for
the QTS48T46096 converter.
Note:
If the ON/OFF pin is not used, it can be left floating (positive logic),
or connected to the -Vin pin (negative logic).
Parallel Operation
The following precautions must be observed when
operating two or more QTS48T46096’s in parallel:
1. The inputs of all units must be attached to
the same voltage source
Figure 2. Typical Application of QTS48T46096
The QTS48T46096 converter does not require any
external components for proper operation. However,
if the distribution of the input voltage to the converter
contains significant inductance, a capacitor C1 may
be required to enhance performance of the
converter. A minimum of a 100 µF electrolytic
capacitor with the ESR<0.5at 100 kHz is
recommended for the QTS48T46096.
2. The PCB trace resistance into each unit
should be equalized as much as is practical.
3. The enable pins must be tied together and
operated as a single unit.
4. The undervoltage lockout start-up point will
vary from unit to unit, therefore the dv/dt of
the input source as it rises from 0V to its final
value will affect the ability of the parallel
units to turn on into a load equal to more that
the maximum rated load of 1 unit. The dv/dt
of the rising edge of the input voltage must
be greater than 2V/msec. If three units are
to be operated in parallel, it is strongly
recommended that the maximum load
current be limited to the maximum current
rating of a single unit until the output voltage
exceeds 90% of the rated output voltage.
5. The accuracy of the current sharing will be
affected by the series impedance between
each unit at the load. Balancing these
impedances will enhance the current share
accuracy.
Refer to the “Inrush Current Control Application
Note” on www.power-one.com for suggestions on
how to limit the magnitude of the inrush current.
For output decoupling we recommend using a 10 µF
low ESR tantalum (AVX TPSC106M025R0500 is
used in our test setup) and a 1 µF ceramic capacitor.
Note, that the capacitors do not substitute the
filtering required by the load.
ZD-02076 Rev 2.1
Page 4 of 7
www.power-one.com

QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
6. Figure 3 shows the recommended airflow
voltage. Both input traces and the chassis ground
trace (if applicable) must be capable of conducting a
current of 1.5 times the value of the fuse without
opening. The fuse must not be placed in the
grounded input line, if any.
direction, unit orientation and temperature
variation of three paralleled units with 10%
current share accuracy. Please note that the
maximum power available will be reduced by
up to 10% due to current share accuracy.
(At 48 volts in, the maximum power available
would be 350 W X 3unit X 90% derating =
945 W)
In order for the output of the QTS48T46096
converter to be considered as SELV (Safety Extra
Low Voltage) or TNV-1, according to all IEC60950
based standards, one of the following requirements
must be met in the system design:
If the voltage source feeding the module is SELV
or TNV, the output of the converter may be
grounded or ungrounded.
If the voltage source feeding the module is ELV,
the output of the converter may be considered
SELV only if the output is grounded per the
requirements of the standard.
This information is provided for guidance only
and the user is responsible for any design
considerations regarding safety.
Thermal Considerations
The QTS48T46096 converter is designed for natural
or forced convection cooling.
The maximum
allowable output current of the converter is
determined by meeting the derating criteria for all
components used in the converter. For example,
the maximum semiconductor junction temperature is
not allowed to exceed 125 °C to ensure reliable long-
term operation of the converter. Contact Power-One
for the complete list of the derating criteria.
AIRFLOW DIRECTION
Figure 3. Three units in parallel with 50 V input voltage,
900 W output power, 70 °C ambient, and 200 LFM airflow.
Safety Considerations
The graph in Figure 4 and Figure 5 show the
maximum output current of the QTS48T46096
converter at different ambient temperatures under
both natural and forced (transverse airflow direction,
from pin 1 to pin 3) convection.
The QTS48T46096 converter features 1500 Volt DC
isolation from input to output. The input-to-output
resistance is greater than 10 M. This converter is
provided with functional insulation between input and
output circuits according to all IEC60950 based
standards. Nevertheless, if the system using the
converter needs to receive safety agency approval,
certain rules must be followed in the design of the
system. In particular, all of the creepage and
clearance requirements of the end-use safety
requirements must be observed. These documents
include UL60950 - CSA60950-00 and EN60950,
although other or additional requirements may be
needed for specific applications.
For example, the QTS48T46096 operating at 48Vin,
70 °C can deliver up to 33.6A reliably with 200 LFM
forced air.
The QTS48T46096 converter has no internal fuse.
The external fuse must be provided to protect the
system from catastrophic failure. The fuse with a
rating not greater than 10 A is recommended. The
user can select a lower rating fuse based upon the
highest inrush transient at the maximum input
voltage and the maximum input current of the
converter, which occurs at the minimum input
ZD-02076 Rev 2.1
Page 5 of 7
www.power-one.com

QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
50
45
40
35
30
25
20
15
10
5
400 LFM
300 LFM
200 LFM
100 LFM
50 LFM
0
20
30
40
50
60
70
80
90
Ambient Temperature (C)
Figure 4. Thermal Derating Curve Vin = 36V, Varying Airflow (Input Voltage Constant)
50
45
40
35
30
25
20
15
10
5
400 LFM
300 LFM
200 LFM
100 LFM
50 LFM
0
20
30
40
50
60
70
80
90
Ambient Temperature (C)
Figure 5. Thermal Derating Curve Vin = 48V, Varying Airflow (Input Voltage Constant)
ZD-02076 Rev 2.1
Page 6 of 7
www.power-one.com
QTS48T46096 DC-DC Converter Data Sheet
441-Watt @ 48Vin Quarter-Brick Bus Converter
Mechanical Drawing
Ordering Information
Options
Suffixes to add to part number
Remote ON/OFF
Positive- Standard, -P suffix
Negative-Standard, -N suffix
0.180”- Standard, add “CA” suffix
Pin Length
0.145”- Add “CB” suffix
0.110”- Add “CC” suffix
Paralleling add “P” suffix (standard)
Paralleling Option
RoHS
Add to Part Number
RoHS lead solder
No RoHS character required.
exempt 1
RoHS compliant for
all six substances
Add "G" as the last character of the part number.
1 The solder exemption refers to all the restricted materials except lead in solder.
2 Example: QTS with negative logic, 0.180 Pin and Paralleling the resulting part number is QTS48T46096-NCAP
Notes:
1. NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical
components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written
consent of the respective divisional president of Power-One, Inc.
2. TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on
the date manufactured. Specifications are subject to change without notice.
ZD-02076 Rev 2.1
Page 7 of 7
www.power-one.com
厂商 型号 描述 页数 下载

SAMTEC

QTS-016-01-F-D-DP-A [ Board Connector ] 3 页

SAMTEC

QTS-016-01-F-D-DP-RA-LS1 [ Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder and Surface Mount Terminal, ] 4 页

SAMTEC

QTS-016-01-F-D-DP-RA-LS2 [ Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder and Surface Mount Terminal, ] 4 页

SAMTEC

QTS-016-01-F-D-DP-RA-WT-LS2 [ Board Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ] 4 页

SAMTEC

QTS-016-01-FTL-D-DP-EM2 [ Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal ] 1 页

SAMTEC

QTS-016-01-H-D-DP-EM2 [ Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, ] 1 页

SAMTEC

QTS-016-01-H-D-DP-RA [ Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ] 4 页

SAMTEC

QTS-016-01-H-D-DP-RA-LS1 [ Board Connector ] 4 页

SAMTEC

QTS-016-01-H-D-DP-RA-LS2 [ Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ] 4 页

SAMTEC

QTS-016-01-L-D-DP [ 暂无描述 ] 1 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.214025s
