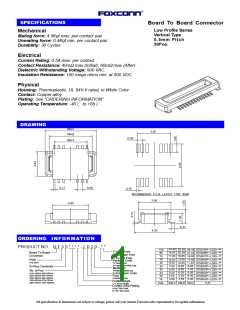

SPECIFICATIONS
Board To Board Connector
Low Profile Series
Vertical Type
0.5mm Pitch
30Pos.
Mechanical
Mating force: 4.5Kgf max. per contact pair
Unmating force: 0.4Kgf min. per contact pair
Durability: 30 Cycles
Electrical
Current Rating: 0.5A max. per contact.
Contact Resistance: 40mΩ max.(Initial), 60mΩ max.(After).
Dielectric Withstanding Voltage: 500 VAC.
Insulation Resistance: 100 mega ohms min. at 500 VDC
Physical
Housing: Thermoplastic, UL 94V-0 rated, in White Color
Contact: Copper alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: -40℃ to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: Q T 5 0 * * * * - L 0 2 0 - * *
F=Lead Free
H=Halogen Free
& Lead Free
Package Code
7=Tape&Reel
Board To Board
Connector
Pitch
5=0.5mm
9=Tape&Reel With Cap
0=Plug Connector
Metal Ear
No. of Pos.
0=Without Metal Ear
2=Extension Code
Post
016=16Pos 020=20Pos
022=22Pos 024=24Pos
030=30Pos 040=40Pos
050=50Pos 070=70Pos
080=70Pos 100=100Pos
0=Without Post
Profile Height
L=1.5mm Height
Contact Area Plating
A=4 " Min.Gold
6=10 " Min.Gold
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
