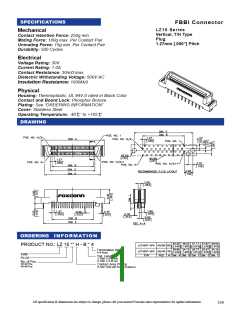

SPECIFICATIONS
FBBI Connector
LZ15 Series
Mechanical
Vertical, T/H Type
Plug
Contact retention Force: 250g min.
Mating Force: 100g max. Per Contact Pair
Unmating Force: 15g min. Per Contact Pair
Durability: 500 Cycles
1.27mm [.050”] Pitch
Electrical
Voltage Rating: 30V
Current Rating: 1.0A
Contact Resistance: 30mΩ max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000MΩ
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact and Board Lock: Phosphor Bronze
Plating: See “ORDERING INFORMATION”
Cover: Stainless Steel
Operating Temperature: -40℃ to +105℃
DRAWING
ORDERING INFORMATION
: LZ 15 ** H - B * 4
PRODUCT NO.
Termination Side
4=4 Rows
FBBI
PLUG
No. of Pos.
20=40 Pos.
40=80 Pos.
Tail Length:
2: DIM. L=2.80 mm
6: DIM. L=3.40 mm
Contact Area Plating
H=30u" Gold with RoHs compliance
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
