PYA28C64B-15CWMB

型号:

PYA28C64B-15CWMB

品牌:

PYRAMID[ PYRAMID SEMICONDUCTOR CORPORATION ]

页数:

11 页

PDF大小:

673 K

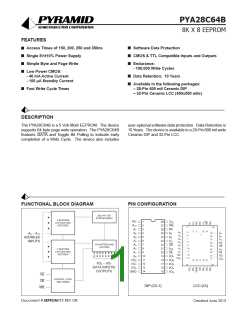

PYA28C64B
8K x 8 EEPROM
FEATURES
Access Times of 150, 200, 250 and 350ns
Single 5V±10% Power Supply
Simple Byte and Page Write
Software Data Protection
CMOS & TTL Compatible Inputs and Outputs
Endurance:
- 100,000 Write Cycles
Low Power CMOS:
- 40 mA Active Current
- 100 µA Standby Current
Data Retention: 10 Years
Available in the following packages:
– 28-Pin 600 mil Ceramic DIP
Fast Write Cycle Times
– 32-Pin Ceramic LCC (450x550 mils)
DESCRIPTIOꢀ
The PYA28C64B is a 5 Volt 8Kx8 EEPROM. The device
supports 64-byte page write operation. The PYA28C64B
features DATA and Toggle Bit Polling to indicate early
completion of a Write Cycle. The device also includes
user-optional software data protection. Data Retention is
10 Years. The device is available in a 28-Pin 600 mil wide
Ceramic DIP and 32-Pin LCC.
FUꢀCTIOꢀAL BLOCꢁ DIAꢂRAM
PIꢀ COꢀFIꢂURATIOꢀ
DIP (C5-1)
LCC (L6)
Document # EEPROM111 REV OR
Created June 2013
PYA28C64B - 8K x 8 EEPROM
OPERATIOꢀ
READ
infinitely wide, so long as the host continues to access the
Read operations are initiated by both OE and CE LOW.
The read operation is terminated by either CE or OE re-
turning HIGH. This two line control architecture elimi-
nates bus contention in a system environment. The data
bus will be in a high impedance state when either OE or
CE is HIGH.
device within the byte load cycle time of 150µs.
DATA POLLIꢀꢂ
The PYA28C64B features DATA Polling as a method to
indicate to the host system that the byte write or page
write cycle has completed. DATA Polling allows a sim-
ple bit test operation to determine the status of the PY-
A28C64B, eliminating additional interrupts or external
hardware. During the internal programming cycle, any at-
tempt to read the last byte written will produce the comple-
ment of that data on I/O7 (i.e., write data=0xxx xxxx, read
data=1xxx xxxx). Once the programming cycle is com-
plete, I/O7 will reflect true data. Note: If the PYA28C64B
is in the protected state and an illegal write operation is
attempted, DATA Polling will not operate.
BYTE WRITE
Write operations are initiated when both CE and WE are
LOW and OE is HIGH. The PYA28C64B supports both a
CE and WE controlled write cycle. That is, the address is
latched by the falling edge of either CE or WE, whichever
occurs last. Similarly, the data is latched internally by the
rising edge of either CE or WE, whichever occurs first. A
byte write operation, once initiated, will automatically con-
tinue to completion.
TOꢂꢂLE BIT
PAꢂE WRITE
The PYA28C64B also provides another method for deter-
mining when the internal write cycle is complete. During
the internal programming cycle, I/O6 will toggle from HIGH
to LOW and LOW to HIGH on subsequent attempts to
read the device. When the internal cycle is complete the
toggling will cease and the device will be accessible for
addtional read or write operations.
The page write feature of the PYA28C64B allows 1 to
64 bytes of data to be consecutively written to the PY-
A28C256 during a single internal programming cycle.
The host can fetch data from another device within the
system during a page write operation (change the source
address), but the page address (A6 through A12) for each
subsequent valid write cycle to the part during this opera-
tion must be the same as the initial page address. The
bytes within the page to be written are specified with the
A0 through A5 inputs.
The page write mode can be initiated during any write
operation. Following the initial byte write cycle, the host
can write an additional 1 to 63 bytes in the same man-
ner as the first byte was written. Each successive byte
load cycle, started by the WE HIGH to LOW transition,
must begin within 150µs of the falling edge of the pre-
ceding WE. If a subsequent WE HIGH to LOW transition
is not detected within 150µs, the internal automatic pro-
gramming cycle will commence. There is no page write
window limitation. Effectively, the page write window is
Document # EEPROM111 REV OR
Page 2
PYA28C64B - 8K x 8 EEPROM
MAꢃIMUM RATIꢀꢂS(1)
RECOMMEꢀDED OPERATIꢀꢂ COꢀDITIOꢀS
ꢂrade(2)
Ambient Temp
ꢂꢀD
VCC
Sym Parameter
Value
Unit
Power Supply Pin with
VCC
Military
-55°C to +125°C
0V
5.0V ± 10%
-0.3 to +6.25
V
Respect to GND
Terminal Voltage with
VTERM Respect to GND (up to
6.25V)
-0.5 to +6.25
V
CAPACITAꢀCES(4)
TA
Operating Temperature
-55 to +125
-55 to +125
-65 to +150
1.0
°C
°C
°C
W
(VCC = 5.0V, TA = 25°C, f = 1.0MHz)
TBIAS Temperature Under Bias
TSTG Storage Temperature
Sym Parameter
Conditions Typ Unit
PT
Power Dissipation
CIN
Input Capacitance
VIN = 0V
10
10
pF
pF
IOUT DC Output Current
50
mA
COUT
Output Capacitance
VOUT = 0V
DC ELECTRICAL CHARACTERISTICS
(Over Recommended Operating Temperature & Supply Voltage)(2)
PYA28C64B
Sym Parameter
Test Conditions
Unit
Min
2.0
Max
VIH Input High Voltage
VCC + 0.3
0.8
V
V
V
V
V
V
VIL Input Low Voltage
-0.5(3)
VHC CMOS Input High Voltage
VLC CMOS Input Low Voltage
VOL Output Low Voltage (TTL Load)
VOH Output High Voltage (TTL Load)
VCC - 0.2 VCC + 0.5
-0.5(3)
0.2
0.4
IOL = +2.1 mA, VCC = Min
IOH = -0.4 mA, VCC = Min
2.4
-10
VCC = Max
ILI
Input Leakage Current
+10
+10
µA
µA
VIN = GND to VCC
VCC = Max, CE = VIH,
VOUT = GND to VCC
CE ≥ VIH, OE = VIL,
VCC = Max,
-10
ILO Output Leakage Current
ISB Standby Power Supply Current (TTL Input Levels)
2
mA
µA
f = Max, Outputs Open
CE ≥ VHC,
VCC = Max,
ISB1 Standby Power Supply Current (CMOS Input Levels)
100
f = 0, Outputs Open,
VIN ≤ VLC or VIN ≥ VHC
CE = OE = VIL,
WE = VIH,
ICC Supply Current
40
mA
All I/O's = Open,
Inputs = VCC = 5.5V
ꢀotes:
1. Stresses greater than those listed under MAxIMꢀM RAꢁINGꢂ may
cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification
is not implied. Exposure to MAꢀIMUM rating conditions for extended
periods may affect reliability.
2. Extended temperature operation guaranteed with 400 linear feet per
minute of air flow.
3.TransientinputswithVIL andIIL notmorenegativethan-3.0Vand-100mA,
respectively, are permissible for pulse widths up to 20ns.
4. This parameter is sampled and not 100% tested.
Document # EEPROM111 REV OR
Page 3
PYA28C64B - 8K x 8 EEPROM
POWER-UP TIMIꢀꢂ
Symbol
Parameter
Max
100
5
Unit
µs
tPUR
Power-up to Read operation
Power-up to Write operation
tPUW
ms
AC ELECTRICAL CHARACTERISTICS—READ CYCLE
(VCC = 5V ± 10%, All Temperature Ranges)(2)
-150
-200
-250
-350
Unit
Sym Parameter
Min
Max
Min
Max
Min
Max
Min
Max
tAVAV
Read Cycle Time
150
200
250
350
ns
ns
ns
ns
ns
ns
ns
ns
ns
tAVQV Address Access Time
150
150
70
200
200
80
250
250
100
350
350
100
tELQV Chip Enable Access Time
tOLQV Output Enable Access Time
tELQꢀ Chip Enable to Output in Low Z
tEHQZ Chip Disable to to Output in High Z
tOLQꢀ Output Enable to Output in Low Z
tOHQZ Output Disable to Output in High Z
tAVQꢀ Output Hold from Address Change
0
0
0
0
0
0
0
0
0
0
0
0
50
50
55
55
60
60
70
70
TIMIꢀꢂ WAVEFORM OF READ CYCLE
Document # EEPROM111 REV OR
Page 4
PYA28C64B - 8K x 8 EEPROM
AC CHARACTERISTICS—WRITE CYCLE
(VCC = 5V ± 10%, All Temperature Ranges)(2)
150 / 200 / 250 / 350
Symbol
Parameter
Unit
Min
Max
tWHWL1
tEHEL1
Write Cycle Time
Address Setup Time
Address Hold Time
Write Setup Time
Write Hold Time
OE Setup Time
10
ms
ns
ns
ns
ns
ns
ns
ns
ns
ns
µs
µs
µs
µs
µs
tAVEL
tAVWL
0
50
0
tELAꢀ
tWLAꢀ
tWLEL
tELWL
tWHEH
0
tOHEL
tOHWL
10
10
100
50
0
tWHOL
OE Hold Time
tELEH
tWLWH
WE Pulse Width
Data Setup Time
Data Hold Time
Byte Load Cycle Time
CE Setup Time
tDVEH
tDVWH
tEHDꢀ
tWHDꢀ
tEHEL2
tWHWL2
0.2
1
150
tELWL
tOVHWL
tEHWH
tWHOH
Output Setup Time
CE Hold Time
1
1
OE Hold Time
1
Document # EEPROM111 REV OR
Page 5
PYA28C64B - 8K x 8 EEPROM
TIMIꢀꢂ WAVEFORM OF PAꢂE WRITE CYCLE
ꢀOTES:
• For each successive write within the page write operation, A6-A12 should be the same. Otherwise, writes to an un-
known address could occur.
• Between successive byte writes within a page write operation, OE can be strobed LOW. For example, this can be
done with CE and WE HIGH to fetch data from another memory device within the system for the next write. Alterna-
tively, this can be done with WE HIGH and CE LOW, effectively performing a polling operation.
• ꢁhe timings shown above are unique to page write operations. Individual byte load operations within the page write
must conform to either the CE or WE controlled write cycle timing.
Document # EEPROM111 REV OR
Page 6
PYA28C64B - 8K x 8 EEPROM
SOFTWARE DATA PROTECTIOꢀ EꢀABLE
ALꢂORITHM(1)
SOFTWARE DATA PROTECTIOꢀ DISABLE
ALꢂORITHM(1)
(SDP Set)
(SDP Reset)
ꢀotes:
1. Data Format: I/O7 - I/O0 (Hex)
Address Format: A12 - A0 (Hex)
2. Write Protect state will be activated at end of write even if no other data is loaded.
3. Write Protect state will be deactivated at end of write period even if no other data is loaded.
4. 1 to 64 bytes of data are loaded.
Document # EEPROM111 REV OR
Page 7
PYA28C64B - 8K x 8 EEPROM
AC TEST COꢀDITIOꢀS
Input Pulse Levels
TRUTH TABLE
Mode
GND to 3.0V
10ns
CE
L
OE
L
WE
H
I/O
DOUT
DIN
Input Rise and Fall Times
Input Timing Reference Level
Output Timing Reference Level
Output Load
Read
1.5V
Write
L
H
L
L
1.5V
Write Inhibit
Write Inhibit
Standby
H
See Figure 1
H
High Z
High Z
Output Disable
H
Figure 1. Output Load
Document # EEPROM111 REV OR
Page 8
PYA28C64B - 8K x 8 EEPROM
ORDERIꢀꢂ IꢀFORMATIOꢀ
Document # EEPROM111 REV OR
Page 9
PYA28C64B - 8K x 8 EEPROM
SIDE BRAZED DUAL Iꢀ-LIꢀE PACꢁAꢂE (600 mils)
Pkg #
C5-1
# Pins
28 (600 mil)
Symbol
Min
-
Max
A
b
0.232
0.026
0.065
0.018
1.490
0.610
0.014
0.045
0.008
-
b2
C
D
E
0.500
eA
e
0.600 BSC
0.100 BSC
L
0.125
0.200
Q
0.015
0.005
0.005
0.060
S1
S2
-
-
RECTAꢀꢂULAR LEADLESS CHIP CARRIER
Pkg #
# Pins
Symbol
A
L6
32
Min
Max
0.060
0.050
0.022
0.442
0.075
0.065
0.028
0.458
A1
B1
D
D1
D2
D3
E
0.300 BSC
0.150 BSC
-
0.458
0.560
0.540
E1
E2
E3
e
0.400 BSC
0.200 BSC
-
0.558
0.050 BSC
0.040 REF
0.020 REF
h
j
L
0.045
0.055
0.055
0.095
L1
0.045
0.075
L2
ND
NE
7
9
Document # EEPROM111 REV OR
Page 10
PYA28C64B - 8K x 8 EEPROM
REVISIOꢀS
DOCUMEꢀT ꢀUMBER EEPROM111
DOCUMEꢀT TITLE
PYA28C64B - 8K x 8 EEPROM
REV ISSUE DATE
ORIꢂIꢀATOR DESCRIPTIOꢀ OF CHAꢀꢂE
JDB New Data ꢂheet
OR
Jun 2013
Document # EEPROM111 REV OR
Page 11
厂商 型号 描述 页数 下载

PYRAMID

PYA28C010 [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12CWM [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12CWMB [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12FSM [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12FSMB [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12L32M [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12L32MB [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12LM [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-12LMB [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PYRAMID

PYA28C010-15CWM [ Access Times of 120, 150, 200, and 250ns Single 5V±10% Power Supply ] 15 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.240381s
