QT500406-L010(M)

型号:

QT500406-L010(M)

品牌:

FOXCONN[ FOXCONN ]

页数:

1 页

PDF大小:

82 K

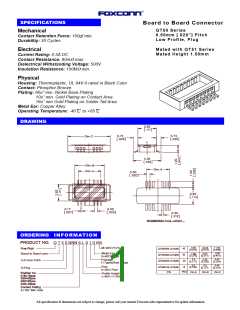

SPECIFICATIONS
Board to Board Connector
QT50 Series
0.50mm [.020”] Pitch
Low Profile, Plug
Mechanical
Contact Retention Force: 100gf min.
Durability: 30 Cycles
Mated with QT51 Series
Mated Height 1.50mm
Electrical
Current Rating: 0.5A DC
Contact Resistance: 80mmax.
Dielectrical Withstanding Voltage: 500V
Insulation Resistance: 100Mmin.
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Phosphor Bronze
Plating: 60u” min. Nickel Base Plating
10u” min. Gold Plating on Contact Area
16u” min Gold Plating on Solder Tail Area
Metal Ear: Copper Alloy
Operating Temperature: -40to +85℃
DRAWING
ORDERING INFORMATION
Q T 5 0 NNN 6-L 0 1 0 (M)
9.50
11.45
10.55
M=W/O PI-FILM
40
30
20
QT500406-L010(M)
QT500306-L010(M)
QT500206-L010(M)
[0.374]
[0.496]
[0.415]
Metal Ear
0=W/O Metal Ear
Package
1=Tape&Reel Single
8.95
[0.451]
Board to Board conn.
5=0.5mm Pitch
8.05
[0.317]
7.00
[0.276]
4.5
[0.177]
6.45
[0.254]
5.55
[0.226]
3.5
4.5
[0.177]
5.45
[0.215]
16
Post
0=W/O Post
QT500166-L010(M)
P/N
[0.138]
0=Plug
POS
Dim.B
Dim.A
Dim.C
Profile Height
L=M.H.=1.50mm
6=10u" Min Gold
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
