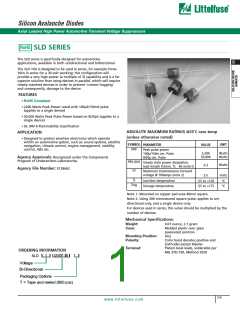

Silicon Avalanche Diodes
Axial Leaded High Power Automotive Transient Voltage Suppressors
RoHS
SLD SERIES
The SLD series is specifically designed for automotive
applications, available in both unidirectional and bidirectional.
6
The SLD 10U is designed to be used in series, for example three
10Us in series for a 30 volt working; this configuration will
provide a very high power (a multiple of 3) capability and is a far
superior solution than using devices in parallel, which will require
closely matched devices in order to prevent ‘current hogging’
and consequently, damage to the device.
FEATURES
• RoHS Compliant
• 2200 Watts Peak Power rated with 100µS/150mS pulse
(applies to a single device)
• 50,000 Watts Peak Pulse Power based on 8/20µS (applies to a
single device)
• UL 94V-0 Flammability classification
ABSOLUTE MAXIMUM RATINGS @25˚C case temp
APPLICATION
(unless otherwise noted)
• Designed to protect sensitive electronics which operate
within an automotive system, such as: sound systems, satellite
navigation, climate control, engine management, stability
control, ABS etc.
SYMBOL
UNIT
PARAMETER
VALUE
PPP
Peak pulse power
Watts
Watts
2,200
50,000
100µ/150m sec. Pulse
8/20µ sec. Pulse
Agency Approvals: Recognized under the Components
Program of Underwriters Laboratories.
PM (AV)
Vf
Steady state power dissipation,
lead length 9.5mm, TL - 85 (note1)
Watts
6.3
Agency File Number: E128662
Maximum instantaneous forward
voltage @ 100amps (note 2)
3.5
Volts
Tj
Junction temperature
Storage temperature
-55 to +150
-55 to +175
°C
°C
Tstg
Note 1. Mounted on copper pad area 40mm square.
Note 2. Using 300 microsecond square pulse; applies to uni-
directional only, and a single device only.
For devices used in series, this value should be multiplied by the
number of devices.
Mechanical Specifications:
Weight:
Case:
0.07 ounce, 2.1 gram
Molded plastic over glass
passivated junction
Mounting Position:
Polarity:
Any
Color band denotes positive end
(cathode) except Bipolar
Plated Axial leads, solderable per
MIL-STD-750, Method 2026
Terminal:
ORDERING INFORMATION
U 0 1 8
SLD
Voltage
Bi-Directional
Packaging Options
T = Tape and reeled (800 pcs)
310
