LYM779-F1G1-1

型号：

LYM779-F1G1-1

品牌：

INFINEON[ Infineon ]

页数：

11 页

PDF大小：

100 K

下载PDF手册

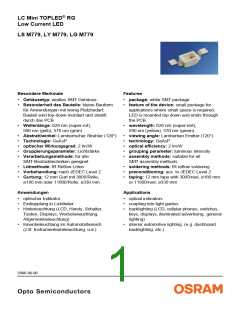

LC Mini TOPLED® RG
Low Current LED
LS M779, LY M779, LG M779
Besondere Merkmale
Features
• Gehäusetyp: weißes SMT Gehäuse
• Besonderheit des Bauteils: kleine Bauform
für Anwendungen mit wenig Platzbedarf;
Bauteil wird top-down montiert und strahlt
durch das PCB
• package: white SMT package
• feature of the device: small package for
applications where small space is required;
LED is mounted top down and emits through
the PCB
• Wellenlänge: 628 nm (super-rot),
590 nm (gelb), 570 nm (grün)
• Abstrahlwinkel: Lambertscher Strahler (120°)
• Technologie: GaAsP
• wavelength: 628 nm (super-red),
590 nm (yellow), 570 nm (green)
• viewing angle: Lambertian Emitter (120°)
• technology: GaAsP
• optischer Wirkungsgrad: 2 lm/W
• Gruppierungsparameter: Lichtstärke
• Verarbeitungsmethode: für alle
SMT-Bestücktechniken geeignet
• optical efficiency: 2 lm/W
• grouping parameter: luminous intensity
• assembly methods: suitable for all
SMT assembly methods
• Lötmethode: IR Reflow Löten
• soldering methods: IR reflow soldering
• preconditioning: acc. to JEDEC Level 2
• taping: 12 mm tape with 3000/reel, ø180 mm
or 11800/reel, ø330 mm
• Vorbehandlung: nach JEDEC Level 2
• Gurtung: 12 mm Gurt mit 3000/Rolle,
ø180 mm oder 11800/Rolle, ø330 mm
Anwendungen
Applications
• optischer Indikator
• optical indicators
• Einkopplung in Lichtleiter
• coupling into light guides
• Hinterleuchtung (LCD, Handy, Schalter,
Tasten, Displays, Werbebeleuchtung,
Allgemeinbeleuchtung)
• backlighting (LCD, cellular phones, switches,
keys, displays, illuminated advertising, general
lighting)
• Innenbeleuchtung im Automobilbereich
(z.B. Instrumentenbeleuchtung, u.ä.)
• interior automotive lighting. (e.g. dashboard
backlighting, etc.)
2000-06-06
1
LS M779, LY M779, LG M779
Typ
Emissions-
farbe
Farbe der
Lichtaustritts-
fläche
Lichtstärke
Lichtstrom Bestellnummer
Type
Color of
Emission
Color of the
LightEmitting Intensity
Luminous
Luminous
Flux
Ordering Code
Area
IF = 2 mA
IV (mcd)
IF = 2 mA
(mlm)
V
LS M779-D1E1-1 super-red
LS M779-E1F1-1
LS M779-F1G2-1
LS M779-D1
colorless clear 0.45 ... 0.90
0.71 ... 1.40
2.0 (typ.) Q62703-Q5091
3.0 (typ.) Q62703-Q5092
5.5 (typ.) Q62703-Q5093
1.5 (typ.)
1.12 ... 2.80
0.45 ... 0.56
LS M779-D2
0.56 ... 0.71
2.0 (typ.)
LS M779-E1
0.71 ... 0.90
2.5 (typ.)
LS M779-E2
0.90 ... 1.12
3.0 (typ.)
LS M779-F1
1.12 ... 1.40
3.8 (typ.)
LS M779-F2
1.40 ... 1.80
4.8 (typ.)
LS M779-G1
1.80 ... 2.24
6.0 (typ.)
LS M779-G2
2.24 ... 2.80
7.6 (typ.)
LY M779-D1E1-1 yellow
LY M779-E1F1-1
LY M779-F1G1-1
LY M779-D1
colorless clear 0.45 ... 0.90
0.71 ... 1.40
2.0 (typ.) Q62703-Q5129
3.0 (typ.) Q62703-Q5130
4.9 (typ.) Q62703-Q5131
1.5 (typ.)
1.12 ... 2.24
0.45 ... 0.56
LY M779-D2
0.56 ... 0.71
2.0 (typ.)
LY M779-E1
0.71 ... 0.90
2.5 (typ.)
LY M779-E2
0.90 ... 1.12
3.0 (typ.)
LY M779-F1
1.12 ... 1.40
3.8 (typ.)
LY M779-F2
1.40 ... 1.80
4.8 (typ.)
LY M779-G1
1.80 ... 2.24
6.0 (typ.)
LG M779-CO
green
colorless clear
0.28 (1.0 typ.)
1.0 (typ.)
Q62703-Q3050
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±11 %
ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ±11 %.
2000-06-06
2
LS M779, LY M779, LG M779
Bezeichnung
Parameter
Symbol
Symbol
Wert
Value
Einheit
Unit
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
– 40 … + 100
– 40 … + 100
+ 100
°C
°C
°C
mA
A
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlaßstrom
Forward current
IF
7.5
Stoßstrom
IFM
0.15
Surge current
t
10 s, D = 0.005
Sperrspannung
Reverse voltage
VR
5
V
Leistungsaufnahme
Power dissipation
Ptot
20
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
480
230
K/W
K/W
Junction/solder point
Montage auf PC-Board FR 4 (Padgröße 16 mm2)
mounted on PC board FR 4 (pad size 16 mm 2)
2000-06-06
3
LS M779, LY M779, LG M779
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LY
LG
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 2 mA
(typ.)
(typ.)
(typ.)
(typ.)
635
586
565
nm
nm
nm
peak
dom
Dominantwellenlänge
Dominant wavelength
IF = 2 mA
628
45
590
45
570
25
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 2 mA
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
2
120
120
120
Grad
deg.
Durchlaßspannung
Forward voltage
IF = 2 mA
(typ.) VF
(max.) VF
1.8
2.6
2.0
2.7
1.9
2.6
V
V
Sperrstrom
Reverse current
VR = 5 V
(typ.) IR
(max.) IR
0.01
10
0.01
10
0.01
10
A
A
Temperaturkoeffizient von
Temperature coefficient of
IF = 2 mA
(typ.) TC
(typ.) TC
0.11
0.07
– 2.0
2
0.10
0.07
– 1.6
2
0.11
0.07
– 1.9
2
nm/K
nm/K
mV/K
lm/W
peak
peak
dom
peak
Temperaturkoeffizient von
Temperature coefficient of
IF = 2 mA
dom
dom
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 2 mA
(typ.) TCV
Optischer Wirkungsgrad
Optical efficiency
IF = 2 mA
(typ.)
opt
2000-06-06
4
LS M779, LY M779, LG M779
Relative spektrale Emission Irel = f ( ), TA = 25 °C, IF = 2 mA
Relative Spectral Emission
V( ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL01210
100
%
Irel
80
Vλ
60
40
20
0
400
450
500
550
600
650
700
nm
λ
Abstrahlcharakteristik Irel = f ( )
Radiation Characteristic
OHL01660
40˚
30˚
20˚
10˚
0˚
ϕ
1.0
0.8
0.6
0.4
0.2
0
50˚
60˚
70˚
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
20˚
40˚
60˚
80˚
100˚
120˚
2000-06-06
5
LS M779, LY M779, LG M779
Durchlaßstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(2 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL01207
OHL01208
10 1
10 2
IV
IF
mA
IV(2 mA)
10 0
5
10 1
super-red
green
5
yellow
10 -1
green
yellow
super-red
5
10 0
5
10 -2
5
10 -3
10 -1
10 -1
5
10 0
5
10 1
10 2
1
1.4
1.8
2.2
2.6
3
3.4
V
mA
IF
VF
Maximal zulässiger Durchlaßstrom IF = f (T)
Max. Permissible Forward Current
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 2 mA
OHL01675
OHL01082
2
8
IV
mA
TS
IF
IV(25 ˚C)
7
6
5
4
3
2
1
0
1.6
TA
1.2
yellow
green
0.8
super-red
0.4
TA temp. ambient
TS temp. solder point
0
0
20
40
60
80 ˚C 100
0
20
40
60
80 ˚C 100
TA
T
2000-06-06
6
LS M779, LY M779, LG M779
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 25 °C
OHL01278
10 3
tP
IF
mA
tP
IF
D
= T
T
D
=
0.005
0.01
0.02
0.05
0.1
10 2
5
0.2
0.5
10 1
5
DC
10 0
10-5
10-4 10-3 10-2 10-1
100 s 101
tp
2000-06-06
7
LS M779, LY M779, LG M779
Maßzeichnung
Package Outlines
1.3 (0.051)
1.1 (0.043)
1.0 (0.039)
0.8 (0.031)
0.18 (0.007)
0.12 (0.005)
Light emitting window
typ. 1.5 (0.059) x 1.0 (0.039)
Cathode marking
Cathode
0.8 (0.031) +0.05 (0.002)
1.0 (0.039)
Cathode marking
0...0.1 (0.004)
1.4 (0.055)
GPLY6926
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Kathodenkennung: abgeschrägte Ecke
Cathode mark:
bevelled edge
2000-06-06
8
LS M779, LY M779, LG M779
Lötbedingungen
Vorbehandlung nach JEDEC Level 2
Soldering Conditions Preconditioning acc. to JEDEC Level 2
IR-Reflow Lötprofil
(nach IPC 9501)
IR Reflow Soldering Profile (acc. to IPC 9501)
OHLY0597
300
˚C
250
200
150
100
50
T
240-245 ˚C
10-40 s
183 ˚C
120 to 180 s
Ramp-down rate up to 6 K/s
Defined for Preconditioning: up to 6 K/s
Ramp-up rate up to 6 K/s
Defined for Preconditioning: 2-3 K/s
0
0
50
100
150
200
s
250
t
2000-06-06
9
LS M779, LY M779, LG M779
Empfohlenes Lötpaddesign IR Reflow Löten
Recommended Solder Pad
IR reflow soldering
6
1.5
6
1.5
Hole on the PCB,
dimension: ø2.5 +0.3 mm
Lötstopplack
Solder resist
OHLP0963
2000-06-06
10
LS M779, LY M779, LG M779
Gurtung / Polarität und Lage
Verpackungseinheit 3000/Rolle, ø180 mm
oder 11800/Rolle, ø330 mm
Method of Taping / Polarity and Orientation Packing unit 3000/reel, ø180 mm
or 11800/reel, ø330 mm
4
2
1.5
C
A
1.55
4
OHA00224
2000-06-06
11
