CYT6602

型号:

CYT6602

描述:

- 12号的铝制车身绘( RAL 7032 )

品牌:

ETC[ ETC ]

页数:

6 页

PDF大小:

87 K

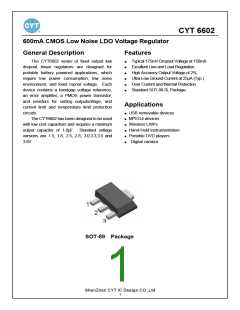

CYT 6602
600mA CMOS Low Noise LDO Voltage Regulator
General Description
Features
The CYT6602 series of fixed output low
dropout linear regulators are designed for
portable battery powered applications, which
require low power consumption, low noise
environment, and lowd ropout voltage. Each
device contains a bandgap voltage reference,
an error amplifier, a PMOS power transistor,
and resistors for setting outputvoltage, and
current limit and temperature limit protection
circuits.
Typical 175mV Dropout Voltage at 150mA.
Excellent Line and Load Regulation.
High Accuracy Output Voltage of 2%.
Ultra-Low Ground Current at 25µA (Typ.)
Over Current and thermal Protection.
Standard SOT-89-3L Package.
Applications
USB removable devices
MPEG4 devices
The CYT6602 has been designed to be used
with low cost capacitors and requires a minimum
output capacitor of 1.0µF. Standard voltage
versions are 1.5, 1.8, 2.5, 2.8, 3.0,3.3,3.5 and
3.6V
Wireless LAN’s
Hand-Held Instrumentation.
Portable DVD players
Digital camera
SOT-89 Package
ShenZhen CYT IC Design CO ,Ltd
1
CYT 6602
Pin Configuration
N:
G:
1.GND
2.IN
1.OUT
2.GND
3.IN
3.OUT
Block Diagram
Application Diagram
VIN=5V
VOUT=3.3V
VIN
VOUT
CYT6602-3.3V
CIN:2.2uF
COUT:2.2uF
GND
ShenZhen CYT IC Design CO ,Ltd
2
CYT 6602
Ordering Information
X
X
X
CYT6602-
PIN (1=>3)1 G:OUT/GND/IN
2 N: GND/IN/OUT
Package Type:1 K: SOT-89-3L
Output Voltage:1 A:Vout=3.3V
2 B:Vout=2.8V
3 C:Vout=2.5V
4 D:Vout=1.8V
5 E:Vout=1.5V
6 F: Vout=3.0V
Absolute Maximum Ratings(1)
Parameter
Input Supply Voltage
Output Voltage
Symbol
VIN
Value
6
Units
V
VOUT
PD
-0.3 to VIN
V
Power Dissipation
Internally Limited (3)
Infinite
Output Short Circuit Duration
Thermal Resistance,
ӨJA
180
/W
Junction-to-Ambient
Lead Temperature (Soldering,5 sec.)
Junction Temperature
Storage Temperature
260
TJ
0 to +150
-40 to +150
TS
Operating Ratings(2)
Parameter
Supply Input Voltage
Symbol
Value
5
Units
VIN
V
Junction Temperature
TJ
0 to +125
ShenZhen CYT IC Design CO ,Ltd
3
CYT 6602
Electrical Characteristics
VIN = VOUT + 1V; CIN = 2.2µF; COUT = 2.2µF; IOUT = 10mA; TJ = 25°C; unless otherwise noted
Symbol
Parameter
Conditions
CYT6602-1.5V
CYT6602-1.8V
CYT6602-2.5V
CYT6602-2.8V
CYT6602-3.0V
CYT6602-3.3V
Min
Typ Max Units
1.470
1.764
2.450
2.744
2.940
3.234
1.5
1.8
2.5
2.8
3.0
3.3
1.530
1.836
2.550
2.856
3.060
3.366
VOUT
Output Voltage Accuracy
V
Output Voltage
Temperature Coefficient
Line Regulation
mV/℃
VOUT/T
Note4
--
0.1
--
VOUT/VOUT
VOUT/VOUT
VIN=VOUT+1V to 5V
IOUT=10 to 600mA
IOUT=10mA
--
--
--
--
0.2
2.0
8
--
--
--
--
/V
/V
Load Regulation(5)
IOUT=150mA
175
VIN-VOUT
Dropout Voltage(6)
mV
IOUT=250mA
IOUT=500mA
--
--
300
800
--
--
Thermal Protection
Temperature
--
150
--
TPROTECTION
Thermal Protection
Protection Hysterisys
F=120Hz
--
--
20
60
--
--
PSRR
IQ
Ripple Rejection
Quiescent Current
Current Limit
dB
uA
IOUT=10mA
VOUT=0V
--
25
--
--
--
ILIMIT
600
mA
Note 1: Exceeding the absolute maximum rating may damage the device.
Note 2: The device is not guaranteed to function outside its operating rating.
Note 3: The maximum allowable power dissipation at any TA (ambient temperature) is calculated using:
PD(MAX) = (TJ(MAX) – TA)/ΘJA. Exceeding the maximum allowable power dissipation will
result in excessive die temperature,and the regulator will go into thermal shutdown. See
“Thermal Consideration” section for details
Note 4: Output voltage temperature coefficient is the worst case voltage change divided by the total
temperature range.
Note 5: Regulation is measured at constant junction temperature using low duty cycle pulse testing.
Parts are tested for load regulation in the load range from 0.1mA to 600mA. Changes in
output voltage due to heating effects arecovered by the thermal regulation specification.
Note 6: Dropout voltage is defined as the input to output differential at which the output voltage drops
2% below its nominal value measured at 1V differentia
ShenZhen CYT IC Design CO ,Ltd
4
CYT 6602
Application Hints
Like any low dropout regulator, CYT6602 requiresexternal capacitors to ensure stability.
Theexternal capacitors must be carefully selected toensure performance.
Input Capacitor:
An input capacitor of at least 1µF is required.Ceramic or Tantalum can be used. The value canbe
increase without upper limit.
Output Capacitor:
An output capacitor is required for stability. It mustbe placed no more than 1 cm away from the
VOUTpin, and connected directly between VOUT and GNDpins. The minimum value is 1µF but may
beincrease without limit.
Thermal Consideration
It is important that the thermal limit of the package should not be exceeded. The CYT6602 has
built-in thermal protection. When the thermal limit is exceeded, the IC will enter protection, and the
VOUT will be reset to zero. The power dissipation for a given application can be calculated as follows:
The Power Dissipation (PD) is
PD = IOUT * [VIN – VOUT]
The thermal limit of the package is then limited to PD(MAX) = [TJ – TA]/θJA where TJ is the
junction temperature, TA is ambient temperature, and θJA is around 120°C/W for CYT6602. CYT6602
is designed to enter thermal protection at 150°C. For example, if TA is 25°C then the max PD is limited to
about 1W. In other words, if IOUT(MAX) = 500mA, then [VIN – VOUT] can not exceed 2.1V.
ShenZhen CYT IC Design CO ,Ltd
5
CYT 6602
Outline Drawing for SOT-89
DIMENSIONS
INCHES
MM
DIMN
MIN
MAX
0.181
0.167
0.075
0.059
0.102
0.047
MIN
4.400
4.050
1.700
1.300
2.400
0.890
MAX
4.600
4.250
1.900
1.500
2.600
1.200
0.173
0.159
0.067
0.051
0.094
0.035
A
B
C
D
E
F
G
H
I
0.118REF
0.059REF
3.00REF
1.50REF
0.016
0.020
0.063
0.016
0.400
0.520
1.600
0.410
0.055
0.014
1.400
0.350
J
K
L
M
10°TYP
0.028REF
10°TYP
0.70REF
ShenZhen CYT IC Design CO ,Ltd
6
