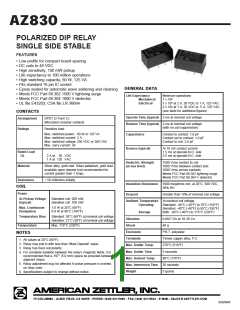

AZ8 3 0
POLARIZED DIP RELAY
SINGLE SIDE STABLE
FEATURES
• Low profile for compact board spacing
• DC coils to 48 VDC
• High sensitivity, 100 mW pickup
• Life expectancy to 100 million operations
• High switching capacity, 60 W, 125 VA
• Fits standard 16 pin IC socket
• Epoxy sealed for automatic wave soldering and cleaning
• Meets FCC Part 68.302 1500 V lightning surge
• Meets FCC Part 68.304 1000 V dielectric
• UL file E43203; CSA file LR 36664
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 108
1 x 105 at 2 A, 30 VDC or 1 A, 125 VAC
2 x 106 at 1 A, 30 VDC or .5 A, 125 VAC
(see table for additional figures)
CONTACTS
Operate Time (typical) 3 ms at nominal coil voltage
Arrangement
DPDT (2 Form C)
Bifurcated crossbar contacts
Release Time (typical) 2 ms at nominal coil voltage
(with no coil suppression)
Ratings
Resistive load:
Max. switched power: 60 W or 125 VA
Max. switched current: 2 A
Max. switched voltage: 250 VDC or 300 VAC
Max. carry current: 3A
Capacitance
Contact to contact: 1.0 pF
Contact set to contact: 1.0 pF
Contact to coil: 2.0 pF
Bounce (typical)
At 10 mA contact current
1.5 ms at operate N.O. side
2.5 ms at operate N.C. side
Rated Load
UL
2 A at 30 VDC
1 A at 120 VAC
Dielectric Strength
(at sea level)
1500 Vrms contact to coil
1000 Vrms between contact sets
1000 Vrms across contacts
Meets FCC Part 68.302 lightning surge
Meets FCC Part 68.304 V dielectric
Material
Silver alloy, gold clad. Silver palladium, gold clad
available upon request (not recommended for
current greater than 1 Amp).
Resistance
COIL
< 50 milliohms initially
Insulation Resistance 1000 megohms min. at 20°C, 500 VDC,
50% RH
Power
Dropout
Greater than 10% of nominal coil voltage
At Pickup Voltage
(typical)
Standard coil: 200 mW
Sensitive coil: 100 mW
Ambient Temperature At nominal coil voltage
Operating
Storage
Standard: -40°C (-40°F) to 70°C (158°F)
Sensitive: -40°C (-40°F) to 85°C (185°F)
Both: -40°C (-40°F) to 115°C (239°F)
Max. Continuous
Dissipation
1.0 W at 20°C (68°F)
0.9 W at 40°C (104°F)
Temperature Rise
Standard: 38°C (68°F) at nominal coil voltage
Sensitive: 21°C (38°F) at nominal coil voltage
Vibration
0.062" DA at 10–55 Hz
40 g
Shock
Temperature
Max. 115°C (239°F)
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
NOTES
Terminals
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
4. For complete isolation between the relay’s magnetic fields, it is
recommended that a .197" (5.0 mm) space be provided between
adjacent relays.
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
80°C (176°F)
5. Relay adjustment may be affected if undue pressure is exerted
on relay case.
6. Specifications subject to change without notice.
Max. Immersion Time 30 seconds
Weight 5 grams
9/28/98W
