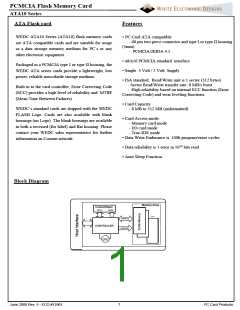

PCMCIA Flash Memory Card
ATA10 Series
ATA Flash card
Features
WEDC ATA10 Series (ATA10) flash memory cards
are ATA compatible cards and are suitable for usage
as a data storage memory medium for PC’s or any
other electronic equipment.
• PC Card ATA compatible
- 68 pin two piece connector and type I or type II housing
(5mm)
- PCMCIA/JEIDA 4.1
• x8/x16 PCMCIA standard interface
• Single 3 Volt / 5 Volt Supply
Packaged in a PCMCIA type I or type II housing, the
WEDC ATA series cards provide a lightweight, low
power, reliable nonvolatile storage medium.
• ISA standard, Read/Write unit is 1 sector (512 bytes)
- Sector Read/Write transfer rate: 8 MB/s burst
- High reliability based on internal ECC function (Error
Correcting Code) and wear leveling functions.
Built in to the card controller, Error Correcting Code
(ECC) provides a high level of reliability and MTBF
(Mean Time Between Failures)
• Card Capacity
WEDC’s standard cards are shipped with the WEDC
FLASH Logo. Cards are also available with blank
housings (no Logo). The blank housings are available
in both a recessed (for label) and flat housing. Please
contact your WEDC sales representative for further
information on Custom artwork.
- 8 MB to 512 MB (unformatted)
• Card Access mode:
- Memory card mode
- I/O card mode
- True-IDE mode
• Data Write Endurance is 100k program/erase cycles
• Data reliability is 1 error in 1014 bits read
• Auto Sleep Function
Block Diagram
Memory Array
Code/software
DATA
ADRS
...
DATA I/O
CONTROLLER
OSC
CONTROL
1
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Block Diagram
Internal Vcc
Vcc
GND
A0 to A10
Reset IC
-CE1, -CE2
-OE, -ATASEL
-WE
X’tal
-IORD
-IOWR
Flash
Memory
Bus
-REG
RESET/-RESET
64Mb, 128Mb
or 256Mb
Controller
-CSEL
NAND Flash
D0 TO D15
RDY/-BSY/-IREQ/INTRQ
WP/-IOIS16
Control signal
-INPACK
BVD1/STSCHG/-PDIAG
Code/
D0 to D15
A0 to A10
-WAIT/IORDY
Software
VS1
VS2
OPEN
BVD2/-SPKR/-DASP
-CD1
-CD2
2
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Mechanical
Type I
Interconnect area
1.6mm ± 0.05
(0.063”)
10.0mm MIN
(0.400”)
3.0mm MIN
1.0mm ± 0.05
(0.039”)
Substrate area
54.0mm ± 0.10
(2.126”)
85.6mm ± 0.20
(3.370”)
1.0mm ± 0.05
(0.039”)
10.0mm MIN
(0.400”)
3.3mm ± T1 (0.130”)
T1=0.10mm interconnect area
T1=0.20mm substrate area
Type II
1.6mm ± 0.05
0.063”
85.6mm ± 0.20
3.370”
1.0mm ±0.05
0.039’
3.0mm
MIN.
Substrate area
54.0mm ± 0.10
2.126”
1.0mm ±0.05
0.039’
10.0mm MIN
0.400”
Interconnect area
3.3mm ± 0.10mm
5.0mm ± T1
0.197”
3
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Card Capacity
Because of card formatting, user available capacity is smaller than the original memory size. The table below
presents the relation between card capacity and formatted capacity.
Note: Other capacities are available: contact your company sales representative for details.
Formatted
Card type
Capacity Capacity
7P008ATA1003C25 8MB
7P016ATA1003C25 16MB
7P032ATA1003C25 32MB
7P048ATA1003C25 48MB
7P064ATA1003C25 64MB
7P080ATA1003C25 80MB
7P096ATA1003C25 96MB
7.38MB
15.42MB
30.88MB
47.23MB
63.07MB
76.00MB
91.20MB
7P112ATA1003C25 112MB 106.40MB
7P128ATA1003C25 128MB 121.60MB
7P192ATA1003C25 192MB 183MB
7P256ATA1003C25 256MB 244MB
System Performance
Item
Performance
Data transfer rate
8.0 MB/s burst
1.0 MB/s sustained read
600 kB/s sustained write
recoverable error in 10^14 bits read.
2ms (max)
Data reliability
Start up time (Sleep to Idle)
Start up time (Reset to Ready)
50ms (typ)
Card controller provides PCMCIA compatibility.
Card supports fast ATA host to buffer burst transfer rates up to 20MB/s (with PIO mode 4) and fast transfer rate
to/from flash memory up to 8MB/s
4
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Absolute Maximum Ratings (1)
Note:
Operating Temperature TA (ambient)
Commercial
(1) Stress greater than those listed under
“Absolute Maximum ratings” may cause
permanent damage to the device. This is a
stress rating only and functional operation at
these or any other conditions greater than
those indicated in the operational sections
of this specification is not implied. Exposure
to absolute maximum rating conditions for
extended periods may affect reliability.
0°C to +60 °C
Industrial
Storage Temperature
Commercial
Industrial
Voltage on any pin relative to VSS
VCC supply Voltage relative to VSS
-40°C to +85 °C
-20°C to +85 °C
-40°C to +85 °C
-0.5V to VCC+0.5V (1)
-0.5V to +7.0V
Recommended DC Operating Conditions
Parameter
Operating temp
Vcc voltage
Symbol
Ta
Vcc
Min
0
4.5
Max
60
5.5
Unit
C
V
Note
25
5
DC Characteristics (1)
CMOS Test Conditions: VIL = VSS ± 0.2V, VIH = VCC ± 0.2V
Symbol Parameter
Notes Min
Typ
Max Units Test Conditions
5.5V
Vcc
Power Supply Voltage
4.5V
ICC1
ICC2
ICCS
Sector READ current
Sector WRITE current
2
2
50
50
mA CMOS level
mA CMOS level
VCC Sleep/Standby Current 1, 2
0.5
mA Control Signals = VCC
VCC = VCCMAX
ILI
Input Leakage Current
Output Leakage Current
1, 3
±20
µA
Vin =VCC or VSS
VCC = VCCMAX
Vout =VCC or VSS
ILO
±20
0.8
µA
VIL
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
V
V
V
V
VIH
VOL
VOH
2.0
2.4
0.4
IOL = 3.2mA
IOH = -2.0mA
Notes:
1. Control Signals: CE1#, CE2#, OE#, WE#, REG#, IORD#, IOWR#.
2. Typical: VCC = 5V, T = +25C.
3. Exceptions: Leakage currents on control signals will be < 500 µA when VIN = GND due to
internal pull-up resistors.
5
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Pinout
Memory card m ode
I/O Card Mode
Signal Name
GND
D3
True IDE Mode
Signal Name
GND
D3
Pin Number Signal Name
I/O
I/O
I/O
1
2
GND
D3
I/O
I/O
I/O
3
D4
I/O
D4
I/O
D4
I/O
4
D5
I/O
D5
I/O
D5
I/O
5
D6
I/O
D6
I/O
D6
I/O
6
D7
I/O
D7
I/O
D7
I/O
7
8
9
CE1#
A10
OE#
N.C.
A9
I
I
I
-
I
I
-
-
I
CE1#
A10
OE#
N.C.
A9
I
I
I
-
I
I
-
-
I
CE1#
A10
ATASEL#
N.C.
A9
I
I
I
-
I
I
-
-
I
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
A8
A8
A8
N.C.
N.C.
WE#
RDY/BSY
Vcc
N.C.
N.C.
WE#
IREQ#
Vcc
N.C.
N.C.
N.C.
N.C.
A7
A6
A5
A4
A3
A2
A1
A0
D0
N.C.
N.C.
WE#
INTRQ
Vcc
N.C.
N.C.
N.C.
N.C.
A7
A6
A5
A4
A3
A2
A1
A0
D0
O
O
O
N.C.
N.C.
N.C.
N.C.
A7
A6
A5
A4
A3
A2
A1
A0
D0
D1
D2
WP
GND
-
-
-
-
I
I
I
I
I
-
-
-
-
I
I
I
I
I
-
-
-
-
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I/O
I/O
I/O
O
I/O
I/O
I/O
O
I/O
I/O
I/O
O
D1
D2
IOIS16#
GND
D1
D2
IOIS16#
GND
6
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Pinout (Cont.)
Memory card mode
I/O Card Mode
Signal Name
GND
CD1#
D11
True IDE Mode
Signal Name
GND
CD1#
D11
Pin Number Signal Name
I/O
I/O
I/O
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
GND
CD1#
D11
O
O
I/O
I/O
I/O
I/O
I
I
O
I
I
O
I/O
I/O
I/O
I/O
I
I
O
I
I
I/O
D12
I/O
D12
D13
D14
D15
CE2#
VS1
IORD#
IOWR#
NC
NC
NC
NC
NC
Vcc
NC
NC
NC
NC
CSEL#
VS2
RESET
Wait#
INPACK#
REG#
SPKR#
STSCHG#
D8
D12
D13
D14
D15
CE2#
VS1
IORD#
IOWR#
NC
NC
NC
NC
NC
Vcc
NC
NC
NC
NC
CSEL#
VS2
RESET#
IORDY
INPACK#
REG#
DASP
PDIAG#
D8
D13
I/O
D14
I/O
D15
CE2#
VS1
IORD#
IOWR#
NC
NC
NC
NC
NC
Vcc
NC
NC
NC
NC
CSEL#
VS2
I
I
O
I
I
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
I
O
I
O
O
I
-
-
-
-
I
-
-
-
-
I
O
I
O
O
I
I/O
I/O
I/O
I/O
O
O
O
I
O
O
I
I/O
I/O
I/O
I/O
O
O
RESET
Wait#
INPACK#
REG#
BVD2
BVD1
D8
D9
D10
CD2#
GND
I/O
I/O
I/O
I/O
O
O
D9
D10
CD2#
GND
D9
D10
CD2#
GND
Note: CD1# and CD2# are grounded internal to PC Card.
7
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Card Signal Description
Symbol
A0 – A10
Type
INPUT
Name and Function
ADDRESS INPUTS: A0 through A10 Signal A0 is not used in word
access mode. A10 is the most significant bit. In True IDE Mode only
HA[2..0] are used for selecting the eight registers in the Task File, the
remaining address lines should be grounded.
D0 - D15
INPUT/OUT
PUT
DATA INPUT/OUTPUT: D0 THROUGH D15 constitute the bi-
directional databus. D0 - D7 constitute the lower (even) byte and D8 -
D15 the upper (odd) byte. D15 is the MSB.
CE1#, CE2#
INPUT
CARD ENABLE 1 AND 2: active low signals; CE1# enables even
byte accesses, CE2# enables odd byte accesses. In True IDE Mode
CE2#is used to select the Alternate Status Register and the Device
control Register while CE1# is the cheap select for the other task file
registers.
OE#,
ASTEL#
INPUT
OUTPUT ENABLE, ATA Select: Active low signal enabling read
data from Attribute and Common memory area. To enable True IDE
Mode this input should be grounded by the host.
WE#
INPUT
WRITE ENABLE: Active low signal gating write data to the memory
card. In true IDE Mode this input signal is not used and should be
connected to Vcc.
RDY/BSY #
IREQ #
INTRQ
OUTPUT
Ready/Busy, Interrupt Request: In I/O mode this signal is is
IREQ #pin. The signal of low level indicates that the card is requesting
software service to host, and high level indicate that the card is not
requesting. In memory mode, the signal is set high when the ATA card
is ready to accept new data transfer operation and held low when card
is busy.
At power up and at Reset, the RDY/BSY is low until (busy) until the
card has completed its power up or reset function.
Host should provide a pull up resistor
CD1#, CD2#
OUTPUT
OUTPUT
CARD DETECT 1 and 2: Provide card insertion detection. These
signals are connected to ground internally on the memory card. The
host socket interface circuitry shall supply 10K-ohm or larger pull-up
resistors on these signal pins.
Write Protect, 16 bit I/O port: In memory mode, WP is held low:
always writable). In I/O mode , IOIS16#is asserted low when Task
File Registers are accessed in 16 bit mode. In True IDE mOde this
signal is asserted low when this device is expecting a word data transfer
cycle.
WP
IOIS16#
VPP1, VPP2
N.C.
PROGRAM/ERASE POWER SUPPLY: No Connection for ATA
card.
VCC
GND
REG#
CARD POWER SUPPLY: 5.0V for all internal circuitry.
GROUND: for all internal circuitry.
ATTRIBUTE MEMORY SELECT: Used to enable access to
Attribute space. Should be in high level during common memory area
access. In True IDE Mode input signal is not used and should be
connected to Vcc.
Reset, Reset #: Active signal will clear all registers on the card (power
on default). In True IDE Mode Reset# is the active low hardware reset
from the host.
INPUT
INPUT
Reset
Reset#
8
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Card Signal Description (Cont.)
Symbol
WAIT #
Type
OUTPUT
Name and Function
WAIT: This signal outputs low level for purpose of delaying memory
or I/O access cycle. In True IDE Mode this signal can be used as
IORDY.
BVD2
SPKR #
DASP#
Input/Output
Input/Output
Battery Voltage Detect 2, Data audio output, Disk active/slave
present: In memory card mode, BVD2 is always high. In I/O mode,
SPKR #is held high: no digital audio signals. In True IDE Mode
DASP# is Disk Active/Slave Present signal in Master/Slave
handshake protocol.
Battery Voltage Detect 1, Status Change, Pass Diagnostic: In
memory card mode BVD1 Is set to high level. In I/O mode
STSCHNG#is used to alert the host to changes in Status registers. In
True IDE mode PDIG is the Pass Diagnostic signal in Master/Slave
handshake protocol.
BVD1
STSCHNG#
PDIAG#
VS1, VS2
CSEL#
OUTPUT
Input
VOLTAGE SENSE: Notifies the host socket of the card's VCC
requirements. VS1 and VS2 are open to indicate a 5V, 16 bit card has
been inserted.
Card Select: This signal is not used in memory and I/O mode. With
internal pull up resistor this signal is used to configure this card as
Master or Slave when configured in True IDE Mode. When this pin is
GND, selected Master config, when pin is open the card is configured
as a Slave.
INPACK#
Output
Input Acknowledge: This signal is not used in memory mode. It is
asserted by the card when the card is selected and responding to an
I/O read cycle at the address that is on the address bus. This signal is
used for the input data buffer control. In True IDE Mode this signal is
not used and should not be connected at the host.
IORD #
IOWR #
Input
Input
I/O Read: is used for control of read data in Task File area. This card
respond to this signal only in I/O interface mode
I/O Write: is used for control of data write in Task File area. This card
respond to this signal only in I/O interface mode
9
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Card Function Explanation
Register Construction
§
Attribute Region
•
Configuration Register
Configuration Option Register
Configuration and Status Register
Pin Replacement Register
Socket and Copy Register
•
CIS (Card Information Structure)
§
Task File Region
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Error Register
Feature Register
Sector Count Register
Sector Number Register
Cylinder Low Register
Cylinder High Register
Drive/Head Register
Status Register
Command Register
Disk Address Pointer
Buffer RAM Size Control Register
Host Interrupt Status Register
Host Interrupt Enable Register
ECC Control Register
ECC 0-2 Registers
DMA Control Register
10
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Host Access Specification
1. Attribute Access Specification
When the CIS-ROM region or Configuration register region is accessed, read and write operations are executed
under the condition of REG# = Low as follows. That region can be accessed by Byte/Word/Odd-byte modes which
are defined by the PC card standard specification.
Attribute Read Access Mode
Mode
Standby Mode
Byte access
REG# CE2# CE1# A0 OE# WE# D15 - D8
D7 - D0
High Z
even byte
invalid
even byte
High Z
X
L
L
L
L
H
H
H
L
H
L
L
L
H
X
L
H
X
X
X
L
L
L
L
X
H
H
H
H
High Z
High Z
High Z
invalid
invalid
Word access (16 bit)
Odd Byte access (8 bit
L
Attribute Write Access Mode
Mode
REG# CE2# CE1# A0 OE# WE# D15 - D8
D7 - D0
Standby Mode
Byte access
X
L
L
L
L
H
H
H
L
H
L
L
L
H
X
L
H
X
X
X
H
H
H
H
X
L
L
L
L
Don't care Don't care
Don't care even byte
Don't care Don't care
Don't care even byte
Don't care Don't care
Word access (16 bit)
Odd Byte access (8 bit
L
11
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
2. Task File Register Access Specification
There are two cases of Task File register mapping, one is the mapped I/O address area, the other is
the Mapped Memory address area. Each case of the Task File register read and write operation is
executed under the following conditions. The area can be accessed by Byte/Word/Odd Byte mode
which is defined by the PC card standard specification.
(a) I/O address map
Task File Register Read Access Mode (a)
Mode
Standby Mode
Byte access
REG# CE2# CE1# A0 IORD# IOWR# OE# WE# D15 - D8
D7 - D0
High Z
even byte
odd byte
even byte
High Z
X
L
L
L
L
H
H
H
L
H
L
L
L
H
X
L
H
X
X
X
L
L
L
L
X
H
H
H
H
X
H
H
H
H
X
H
H
H
H
High Z
High Z
High Z
odd byte
odd byte
Word access (16 bit)
Odd Byte access (8 bit
L
Task File Register Write Access Mode (a)
Mode
REG# CE2# CE1# A0 IORD# IOWR# OE# WE# D15 - D8
D7 - D0
Standby Mode
Byte access
X
L
L
L
L
H
H
H
L
H
L
L
L
H
X
L
H
X
X
X
H
H
H
H
X
L
L
L
L
X
H
H
H
H
X
H
H
H
H
Don't care Don't care
Don't care even byte
Don't care
odd byte
odd byte
odd byte
even byte
Don't care
Word access (16 bit)
Odd Byte access (8 bit
L
(b) Memory address map
Task File Register Read Access Mode (b)
Mode
Standby Mode
Byte access
REG# CE2# CE1# A0 IORD# IOWR# OE# WE# D15 - D8
D7 - D0
High Z
even byte
odd byte
even byte
High Z
X
H
H
H
H
H
H
H
L
H
L
L
L
H
X
L
H
X
X
X
H
H
H
H
X
H
H
H
H
X
L
L
L
L
X
H
H
H
H
High Z
High Z
High Z
odd byte
odd byte
Word access (16 bit)
Odd Byte access (8 bit
L
Task File Register Write Access Mode (b)
Mode
REG# CE2# CE1# A0 IORD# IOWR# OE# WE# D15 - D8
D7 - D0
Standby Mode
Byte access
X
H
H
H
H
H
H
H
L
H
L
L
L
H
X
L
H
X
X
X
H
H
H
H
X
H
H
H
H
X
H
H
H
H
X
L
L
L
L
Don't care Don't care
Don't care even byte
Don't care
odd byte
odd byte
odd byte
even byte
Don't care
Word access (16 bit)
Odd Byte access (8 bit
L
12
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
3. True IDE Mode
The card can be configured in a True IDE Mode of operation. This card is configured in this mode only
when the OE# input signal is asserted low by the host during the power off to power on cycle. In this True
IDE Mode the PCMCIA protocol and configuration are disabled and only an I/O operation to the Task File
registers is allowed. In this mode no Memory or Attribute registers are accessible to the host. The card
permits 8 bit access if the user issues a Set feature Command to put the device in the 8 bit Mode.
True IDE Mode Read I/O function
Mode
Invalid Mode
Standby Mode
Data Register Access
All status access
Other task file access
CE2# CE1# A0..A2 IORD# IOWR# D15 - D8
D7 - D0
High Z
High Z
even byte
status out
data
L
H
H
L
L
H
L
H
L
X
X
0h
X
X
L
L
L
X
X
H
H
H
High Z
High Z
odd byte
High Z
High Z
6h
H
1-7h
True IDE Mode Read I/O function
Mode
CE2# CE1# A0..A2 IORD# IOWR# D15 - D8
D7 - D0
Invalid Mode
L
H
H
L
L
H
L
H
L
X
X
0h
6h
1-7h
X
X
H
H
H
X
X
L
L
L
Don't care Don't care
Don't care Don't care
Standby Mode
Data Register Access
All status access
Other task file access
odd byte
Don't care
Don't care
even byte
control in
data
H
13
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Configuration Register Specifications
This card supports four Configuration registers for the purpose of the configuration and
observation of this card.
1. Configuration Option Register (Address 200H)
This register is used for the configuration of the card configuration status and for the issuing the
soft reset to the card.
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
SRESET
LevlREQ
INDEX
Note: initial value: 00H
Name
R/W Function
SRESET
(HOST->)
R/W Setting this bit to "1", places the card in the reset state (Card Hard Reset). This
operation is equal to Hard Reset, except this bit is not cleared. Then this bit is set to "0",
places the card in the reset state of Hard Reset (This bit is set to "0" by Hard Reset) .
Card configuration status is reset and the card internal initialized operation starts when
Card Hard Reset is executed, so the next access to the card should be the same
sequence as the power on sequence.
LevlREQ
(HOST->)
R/W This bit sets to "0" when pulse mode interrupt is selected, and "1" when level mode
interrupt is selected.
R/W
INDEX
(HOST->)
This bit is used to select the operation mode of the card as follows.
When Power on, Card Hard Reset and Soft Reset, this data is "000000" for the purpose
of Memory card interface recognition.
INDEX bit assignment
INDEX bit
5
0
0
0
0
4
0
0
0
0
3
0
0
0
0
2
0
0
0
0
1
0
0
1
1
0
0
1
0
1
Card mode
Task File register address
Mapping mode
Memory card 0H to FH, 400H to 7FFH
memory mapped
I/O card
I/O card
I/O card
xx0H to xxFH
contiguous I/O mapped
primary I/O mapped
secondary I/O mapped
1F0H to 1F7H, 3F6H to 3F7H
170H to 177H, 376H to 377H
14
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
2. Configuration and Status Register (Address 202H)
This register is used for observing the card state.
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
CHGED
SIGCHG
IOIS8
0
0
PWD
INTR
0
Note: initial value: 00H
Name
R/W Function
CHGED
(CARD->)
R
This bit indicates that the CRDY/-BSY bit on the Pin Replacement register is set to "1".
When CHGED bit is set to "1", the -STSCHG pin is held "L" at the condition of SIGCHG
bit set to "1" and the card configured for the I/O interface.
SIGCHG
(HOST->)
R/W This bit is set or reset by the host for enabling and disabling the status-change signal (-
STSCHG pin). When the card is configured I/O card interface and this bit is set to "1", -
STSCHG pin is controlled by the CHGED bit. If this bit is set to "0", the -STSCHG pin is
kept "H".
IOIS8
(HOST->)
R/W The host sets this field to "1" when it can provide I/O cycles only with on 8 bit data bus
(D7 to D0).
R/W
PWD
(HOST->)
When this bit is set to "1", the card enters the sleep state (Power Down mode). When
this bit is reset to "0", the card transfers to the idle state (active mode). RRDY/-BSY bit
on the Pin Replacement Register becomes BUSY when this bit is changed. RRDY/-
BSY will not become Ready until the power state requested has been entered. This
card automatically powers down when it is idle, and powers back up when it receives a
command.
R
INTR
(CARD->)
This bit indicates the internal state of the interrupt request. This bit state is available
whether the I/O card interface has been configured or not. This signal remains true until
the condition which caused the interrupt request has been serviced. If interrupts are
disabled by the -IEN bit in the Device Control Register, this bit is a zero.
15
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
3. Pin Replacement Register (Address 204H)
t7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
0
0
CRDY/-BSY 0
1
1
RRDY/-BSY 0
Note: initial value: 0CH
Name
R/W Function
CRDY/-BSY R/W This bit is set to "1" when the RRDY/-BSY bit changes state. This bit may also be
(HOST->)
written by the host.
R/W
RRDY/-BSY
(HOST->)
When read, this bit indicates +READY pin states. When written, this bit is used for
CRDY/-BSY bit masking.
4. Socket and Copy Register (Address 206H)
This register is used for identification of the card from the other cards. The host can read and
write this register. This register should be set by the host before this card's Configuration Option
register set.
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
0
0
0
DRV#
0
0
0
0
Note: initial value: 00H
Name
R/W Function
R/W This field is used for the configuration of the plural cards.
DRV#
(HOST->)
16
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Sector Transfer Protocol
1. Sector read: 1 sector read procedure after the card configured I/O interface is shown as follows.
Start
I/O Access index = 1
Set the cylinder low / high register
Set the head No. of drive head register
(1) Set the logical sector number
Set the sector number register
Set “01H” in sector count register
Set “20H” in command register
(2)
Read Status register
(3)
58H
Read 256 times the data (512 bytes)
(4) Burst data transfer
Read Status register
50H
(5)
Wait the command input
(1)
4H 5H 6H 3H 2H 7H
(2)
(3)
(4)
(5)
7H
7H
0H
0H
7H 7H
A0 to A10
-CE1
-CE2
-IOWR
-IORD
01H20H 80H
58H (Transfer data)
80H
50H
D0 to D15
-IREQ
17
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
2. Sector write: 1 sector write procedure after the card configured I/O interface is shown as follows.
Start
I/O Access index = 1
Set the cylinder low / high register
Set the head No. of drive head register
(1) Set the logical sector number
Set the sector number register
Set “01H” in sector count register
Set “30H” in command register
(2)
Read Status register
(3)
58H
Write 256 times the data (512 bytes)
(4) Burst data transfer
Read Status register
50H
(5)
Wait the command input
(1)
4H 5H 6H 3H 2H 7H
(2)
(3)
(4)
(5)
7H
7H
0H
0H
7H 7H
A0 to A10
-CE1
-CE2
-IOWR
-IORD
01H30H 80H
58H (data Transfer)
80H
50H
D0 to D15
-IREQ
18
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
DC Current Waveform (Example of sector read or write: VCC = 5 V, Ta = 25°C)
Power on Operation (Reference Only)
DC
Time
Power on
19
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Sector Read
ICCR(peak)
ICCR(DC)
Time
Complete of sector read
Command write
Sector Write
ICCW(peak)
ICCW(DC)
Time
Command write
Complete of sector write
20
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
AC Characteristics
Read Timing Parameters
250ns
Min
SYM
Parameter
Max
Unit
(PCMCIA)
TC(R)
Read Cycle Time
250
ns
ns
ns
ns
ns
ns
ns
ns
ns
ta(A)
Address Access Time
Card Enable Access Time
Output Enable Access Time
Address Setup Time
250
250
150
ta(CE)
ta(OE)
tsu(A)
tsu(CE)
th(A)
30
0
Card Enable Setup Time
Address Hold Time
20
th(CE)
tv(A)
Card Enable Hold Time
20
0
Output Hold from Address
Change
tdis(CE)
tdis(OE)
Ten(CE)
Ten(OE)
Output Disable Time from CE#
100
100
ns
ns
ns
ns
Output Disable Time from OE#
Output Enable Time from CE#
Output Enable Time from OE#
5
5
Note: AC timing diagrams and characteristics are guaranteed to meet or exceed PCMCIA 2.1 specifications.
Read Timing Diagram
tc(R)
th(A)
ta(A)
A[25::0], /REG
/CE1, /CE2
tv(A)
ta(CE)
tsu(CE)
NOTE 1
NOTE 1
th(CE)
ta(OE)
tsu(A)
tdis(CE)
/OE
tdis(OE)
ten(OE)
D[15::0]
DATA VALID
Note: Signal may be high or low in this area.
21
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Write Timing Parameters
250ns
Min
SYM
Parameter
Max
Unit
(PCMCIA)
tC(W)
Write Cycle Time
250
150
30
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tw(WE)
Write Pulse Width
tsu(A)
Address Setup Time
Address Setup Time for WE#
tsu(A-WEH)
180
180
80
tsu(CE-WEH) Card Enable Setup Time for WE#
tsu(D-WEH)
th(D)
Data Setup Time for WE#
Data Hold Time
30
trec(WE)
tdis(WE)
tdis(OE)
Write Recover Time
30
Output Disable Time from WE#
Output Disable Time from OE#
Output Enable Time from WE#
Output Enable Time from OE#
Output Enable Setup from WE#
Output Enable Hold from WE#
Card Enable Setup Time from OE#
Card Enable Hold Time
100
100
ten(WE)
Ten(OE)
tsu(OE-WE)
th(OE-WE)
tsu(OE)
5
5
10
10
0
th(CE)
20
Note: AC timing diagrams and characteristics are guaranteed to meet or exceed PCMCIA 2.1 specifications.
Write Timing Diagram
tc(W)
A[25::0], /REG
tsu(A-WEH)
trec(WE)
th(CE)
tsu(CE-WEH)
tsu(CE)
/CE1, /CE2
NOTE 1
NOTE 1
/OE
th(OE-WE)
th(D)
tw(WE)
tsu(A)
/WE
tsu(OE-WE)
NOTE 2
tsu(D-WEH)
D[15::0](Din)
DATA INPUT
tdis(WE)
tdis(OE)
ten(OE)
ten(WE)
NOTE 2
D[15::0]( Dout)
Notes:
1. Signal may be high or low in this area.
2. When the data I/O pins are in the output state, no signals shall be applied to the
data pins (D15 - D0) by the host system.
22
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
PRODUCT MARKING
WED7P016ATA1000C15 C995 9915
EDI
Date code
Lot code / trace number
Part number
Company Name
Note:
Some products are currently marked with our pre-merger company name/acronym (EDI). During our transition period,
some products will also be marked with our new company name/acronym (WED). Starting October 2000 all PCMCIA
products will be marked only with the WED prefix.
PART NUMBERING
7P016ATA1000C15
Card access time
15
25
150ns
250ns
Temperature range
C
I
Commercial 0°C to +70°C
Industrial -40°C to +85°C
Packaging option
00
Standard, type 1
Card family and version
- See Card Family and Version Info. for details (next page)
Card capacity
016
16MB
PC card
P
Standard PCMCIA
R
Ruggedized PCMCIA
Card technology
7
8
FLASH
SRAM
23
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Ordering Information
7P XXX ATA YY SS T ZZ
where
XXX:
008
016
032
048
064
080
096
112
128
192
224
256
320
384
448
512
8MB
16MB
32MB
48MB
64MB
80MB
96MB
112MB
128MB
192MB
224MB
256MB
320MB
384MB
448MB
512MB
YY:
SS:
10
Standard, 5V Only: (Controller type = MX)
00
01
02
03
04
05
14
WEDC FLASH Logo,
Blank Housing,
Type I
Type I
Blank Housing,
WEDC FLASH Logo,
Blank Housing,
Type I Recessed
Type II
Type II
Blank Housing,
Blank Housing,
Type II Recessed
Type III
T:
C
I
Commercial
Industrial
ZZ:
25
250ns
24
June 2000 Rev. 5 - ECO #12901
PC Card Products
PCMCIA Flash Memory Card
ATA10 Series
Revision History:
rev level
rev 0
rev 1
description
initial release
Logo change
date
June 1, 1998
May 27, 1999
New card capacity
New flowcharts added
New timing diagrams
added
New form factor
options added
rev 2
rev 3
Sep 10, 1999
Oct. 18, 1999
New Flowcharts added
New current waveforms
added
Register list added
Max capacity change to 512MB
rev 4
rev 5
Dec 19, 1999
Timing corrections on Pgs 21 & 22. June 2, 2000
Page 23 added, Page Header
changed
White Electronic Designs Corporation
One Research Drive, Westborough, MA 01581, USA
tel: (508) 366 5151
fax: (508) 836 4850
www.whiteedc.com
25
June 2000 Rev. 5 - ECO #12901
PC Card Products
厂商 型号 描述 页数 下载

UTC

 		7P20 200V P沟道MOSFET[ 200V P-CHANNEL MOSFET ] 6 页

UTC

 		7P20-TN3-R 200V P沟道MOSFET[ 200V P-CHANNEL MOSFET ] 6 页

CDE

 		7P202V330A082 类型7P 55 ΣC闪光灯，高能量，长寿命，铝[ Type 7P 55 ∑C Photoflash, High-Energy, Long Life, Aluminum ] 2 页

CDE

 		7P202V360N082 类型7P 55 ΣC闪光灯，高能量，长寿命，铝[ Type 7P 55 ∑C Photoflash, High-Energy, Long Life, Aluminum ] 2 页

MICROSEMI

 		7P20FLA220C15 [ Flash Card, 10MX16, 150ns, ] 13 页

MICROSEMI

 		7P20FLA222I15 [ Flash Card, 10MX16, 150ns, ] 13 页

MICROSEMI

 		7P20FLA251I15 [ Flash Card, 10MX16, 150ns, ] 13 页

MICROSEMI

 		7P20FLA260I15 [ Flash Card, 10MX16, 150ns, ] 13 页

MICROSEMI

 		7P20FLA290I15 [ Flash Card, 10MX16, 150ns, ] 13 页

MICROSEMI

 		7P20FLA291I15 [ Flash Card, 10MX16, 150ns, ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.314615s
