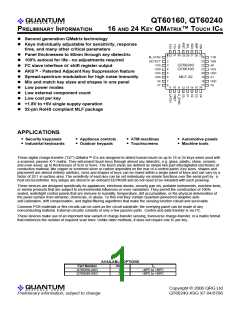

QT60160, QT60240

RELIMINARY

NFORMATION

16 AND 24 KEY QMATRIX™ TOUCH IC

! Second generation QMatrix technology

! Keys individually adjustable for sensitivity, response

time, and many other critical parameters

! Panel thicknesses to 50mm through any dielectric

! 100% autocal for life - no adjustments required

32 31 30 29 28 27 26 25

M_SYNC

DETECT

VSS

Y1B

Y0B

! I²C slave interface or shift register output

! AKS™ - Patented Adjacent Key Suppression feature

! Spread-spectrum modulation for high noise immunity

! Mix and match key sizes and shapes in one panel

! Low power modes

QT60240

QT60160

VDD

VSS

VDD

VSS

VDD

MLF-32

VDD

9 10 11 12 13 14 15 16

! Low external component count

! Low cost per key

! +1.8V to +5V single supply operation

! 32-pin RoHS compliant MLF package

APPLICATIONS

! Security keypanels

! Industrial keyboards

! Appliance controls

! Outdoor keypads

! ATM machines

! Touchscreens

! Automotive panels

! Machine tools

These digital charge-transfer (“QT”) QMatrix™ ICs are designed to detect human touch on up to 16 or 24 keys when used with

a scanned, passive X-Y matrix. They will project touch keys through almost any dielectric, e.g. glass, plastic, stone, ceramic,

and even wood, up to thicknesses of 5cm or more. The touch areas are defined as simple two-part interdigitated electrodes of

conductive material, like copper or screened silver or carbon deposited on the rear of a control panel. Key sizes, shapes and

placement are almost entirely arbitrary; sizes and shapes of keys can be mixed within a single panel of keys and can vary by a

factor of 20:1 in surface area. The sensitivity of each key can be set individually via simple functions over the serial port by a

host microcontroller. Key setups are stored in an onboard EEPROM and do not need to be reloaded with each powerup.

These devices are designed specifically for appliances, electronic kiosks, security pan els, portable instruments, machine tools,

or similar products that are subject to environmental influences or even vandalism. They permit the construction of 100%

sealed, watertight control panels that are immune to humidity, temperature, dirt accumulation, or the physical deterioration of

the panel surface from abrasion, chemicals, or abuse. To this end they contain Quantum-pioneered adaptive auto

self-calibration, drift compensation, and digital filtering algorithms that make the sensing function robust and survivable.

Common PCB materials or flex circuits can be used as the circuit substrate; the overlying panel can be made of any

nonconducting material. External circuitry consists of only a few passive parts . Control and data transfer is via I²C.

These devices make use of an important new variant of charge-transfer sensing, transverse charge-transfer, in a matrix format

that minimizes the number of required scan lines. Unlike older methods, it does not require one IC per key.

AVAILABLE OPTIONS

Part Number

QT60160-XSG

QT60240-XSG

Keys

T_A

-40⁰C to +85⁰C

QT60240-XSG X7.04/0706

Preliminary information; subject to change
