NX7315UA-A

型号:

NX7315UA-A

品牌:

NEC[ NEC ]

页数:

10 页

PDF大小:

339 K

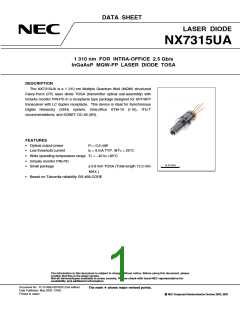

DATA SHEET
LASER DIODE
NX7315UA
1 310 nm FOR INTRA-OFFICE 2.5 Gb/s
InGaAsP MQW-FP LASER DIODE TOSA
DESCRIPTION
The NX7315UA is a 1 310 nm Multiple Quantum Well (MQW) structured
Fabry-Perot (FP) laser diode TOSA (transmitter optical sub-assembly) with
InGaAs monitor PIN-PD in a receptacle type package designed for SFF/SFP
transceiver with LC duplex receptacle. This device is ideal for Synchronous
Digital Hierarchy (SDH) system, intra-office STM-16 (l-16), ITU-T
recommendations, and SONET OC-48 (SR).
FEATURES
Optical output power
Low threshold current
Pf = 0.6 mW
lth = 8 mA TYP. @TC = 25°C
Wide operating temperature range TC = 40 to +85°C
InGaAs monitor PIN-PD
5.0 mm
Small package
φ 3.8 mm TOSA (Total length 12.0 mm
MAX.)
Based on Telcordia reliability GR-468-CORE
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. PL10149EJ02V0DS (2nd edition)
Date Published May 2003 CP(K)
Printed in Japan
The mark ! shows major revised points.
NEC Compound Semiconductor Devices 2002, 2003
NX7315UA
PACKAGE DIMENSIONS (UNIT: mm)
4.75 0.1
3.4
2.92
BOTTOM VIEW
1
4
2
OPTICAL
REFERENCE
PLANE
3
PIN CONNECTIONS
1 (CASE)
LD
2
40.3
4
3
PD
1.43
P.C.D
3.8
2
Data Sheet PL10149EJ02V0DS
NX7315UA
ORDERING INFORMATION
Part Number
Package
φ 3.8 mm TOSA
Pin Connections
1
NX7315UA
LD
2
4
PD
3
ABSOLUTE MAXIMUM RATINGS
Parameter
Optical Output Power from Fiber
Forward Current of LD
Symbol
Ratings
Unit
Pf
IF
2.0
150
mW
mA
V
Reverse Voltage of LD
VR
IF
2.0
Forward Current of PD
10
mA
V
Reverse Voltage of PD
VR
TC
Tstg
Tsld
RH
20
40 to +85
40 to +85
°C
°C
°C
%
Operating Case Temperature
Storage Temperature
Lead Soldering Temperature
Relative Humidity (noncondensing)
350 (3 sec.)
85
3
Data Sheet PL10149EJ02V0DS
NX7315UA
ELECTRO-OPTICAL CHARACTERISTICS (TC = 40 to +85°C, unless otherwise specified)
Parameter
Operating Voltage
Symbol
Vop
Conditions
CW, Pf = 0.6 mW
MIN.
TYP.
1.2
MAX.
Unit
V
1.5
50
20
Threshold Current
Ith
CW
2
4
mA
CW, TC = 25°C
8
Optical Output Power from Fiber
Modulation Current*1
Pf
CW
0.6
mW
mA
Imod
CW, Pf = 0.6 mW
CW, Pf = 0.6 mW, TC = 25°C
CW
14
60
40
20
25
ηd
Differential Efficiency
0.010
0.015
1 266
0.042
0.030
1 360
4.0
W/A
CW, TC = 25°C
0.020
λC
σ
CW, Pf = 0.6 mW, RMS (20 dB)
CW, Pf = 0.6 mW, RMS (20 dB)
Ib = Ith, 10-90%
Center Wavelength
Spectral Width
Rise Time
nm
nm
ns
tr
0.2
Fall Time
tf
Ib = Ith, 90-10%
0.2
ns
µA
nA
Monitor Current
Monitor Dark Current
Im
ID
CW, VR = 1.5 V, Pf = 0.3 mW
VR = 1.5 V
200
1 200
500
50
VR = 1.5 V, TC = 25°C
CW, Im = const. (@ Pf = 0.6 mW)
With master pigtail
Tracking Error*2
γ
1.5
1.0
1.5
dB
dB
Connector Repeatability
1.0
*1 Modulation Current: Imod
Imod 25mAPP at TC = 25°C is recommended in order to satisfy 20% eye mask margin of STM-16 (I-16) /OC-48
(SR).
*2 Tracking Error: γ
P
f
P
0.6
f
γ = 10 log
[dB]
(mW)
T
C
= 25˚C
0.6
TC = –40 to +85˚C
P
f
I
m
0
Im
(mA)
4
Data Sheet PL10149EJ02V0DS
NX7315UA
TYPICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)
FORWARD VOLTAGE vs.
FORWARD CURRENT
OPTICAL OUTPUT POWER FROM
FIBER vs. FORWARD CURRENT
1.0
0.8
0.6
0.4
0.2
2.5
2.0
1.5
1.0
0.5
T = +85˚C
C
+25˚C
T = 40˚C
C
TC
= 40˚C
T
C
= +25˚C
+85˚C
0
20
40
60
80
100
0
20
40
60
80
100
Forward Current I
F
(mA)
Forward Current I (mA)
F
SPECTRUM
TC = 25˚C
1 290
1 315
1 340
Wavelength λ (nm)
5
Data Sheet PL10149EJ02V0DS
NX7315UA
ERROR RATE CHARACTERISTICS
EYE DIAGRAM
103
T
P
E
C
= 40˚C,
avg = 7 dBm,
X
104
105
= 10.3 dB,
2.48832 Gb/s,
PRBS 2231
106
107
108
109
back to back
after 5 km
1010
1011
1012
38 36 34 32 30 28 26 24
Back to Back (100 ps/div.)
Receive Power (dBm)
ERROR RATE CHARACTERISTICS
EYE DIAGRAM
103
T
P
E
C
= 25˚C,
avg = 7 dBm,
X
104
105
= 10.4 dB,
2.48832 Gb/s,
PRBS 2231
106
107
108
109
back to back
after 5 km
1010
1011
1012
38 36 34 32 30 28 26 24
Back to Back (100 ps/div.)
Receive Power (dBm)
ERROR RATE CHARACTERISTICS
EYE DIAGRAM
103
T
P
E
C
= 85˚C,
avg = 7 dBm,
X
104
105
= 10.3 dB,
2.48832 Gb/s,
PRBS 2231
106
107
108
109
back to back
after 5 km
1010
1011
1012
38 36 34 32 30 28 26 24
Back to Back (100 ps/div.)
Receive Power (dBm)
Remark The graphs indicate nominal characteristics.
6
Data Sheet PL10149EJ02V0DS
NX7315UA
LD φ 3.8 mm TOSA PACKAGES FAMILY FOR OPTICAL FIBER COMMUNICATIONS
Absolute Maximum Ratings
Electro-Optical Characteristics
@TC =
@TC
25°C
Part Number
NX7312UA
Application
Package
λ
TC
Tstg
Ith
Pf
(°C)
(°C)
(mA)
(mW)
(nm)
TYP.
8
TYP.
0.2
MIN.
MAX.
40 to +85
40 to +85
φ 3.8 mm
1 274
1 356 156 Mb/s: STM-1
(S-1.1)
TOSA
622 Mb/s: STM-4
(S-4.1)
40 to +85
40 to +85
40 to +85
40 to +85
40 to +85
40 to +85
φ 3.8 mm
NX7313UA
NX7314UA
NX7315UA
8
8
8
0.6
1.0
0.6
1 270
1 263
1 266
1 355 1.25 Gb/s: GbE
TOSA
φ 3.8 mm
1 360 156 Mb/s: STM-1
(L-1.1)
TOSA
φ 3.8 mm
1 360 2.5 Gb/s: STM-16
(I-16)
TOSA
7
Data Sheet PL10149EJ02V0DS
NX7315UA
REFERENCE
Document Name
Document No.
OPTICAL SEMICONDUCTOR DEVICES FOR FIBEROPTIC COMMUNICATIONS SELECTION GUIDE
Opto-Electronics Devices Pamphlet
PX10161E
PX10160E
8
Data Sheet PL10149EJ02V0DS
NX7315UA
The information in this document is current as of April, 2003. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC's data sheets or data
books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all products
and/or types are available in every country. Please check with an NEC sales representative for
availability and additional information.
No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.
While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.
NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation, NEC Compound Semiconductor Devices, Ltd.
and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for
NEC (as defined above).
M8E 00. 4-0110
9
Data Sheet PL10149EJ02V0DS
NX7315UA
SAFETY INFORMATION ON THIS PRODUCT
SEMICONDUCTOR LASER
DANGER
INVISIBLE LASER RADIATION
AVOID DIRECT EXPOSURE TO BEAM
AVOID EXPOSURE-Invisible
OUTPUT POWER
WAVELENGTH
mW MAX
nm
Laser Radiation is emitted from
this aperture
CLASS lllb LASER PRODUCT
A laser beam is emitted from this diode during operation.
The laser beam, visible or invisible, directly or indirectly, may cause injury to the eye or loss of
eyesight.
Warning Laser Beam
Caution GaAs Products
Do not look directly into the laser beam.
Avoid exposure to the laser beam, any reflected or collimated beam.
This product uses gallium arsenide (GaAs).
GaAs vapor and powder are hazardous to human health if inhaled or ingested, so please observe
the following points.
Follow related laws and ordinances when disposing of the product. If there are no applicable laws
and/or ordinances, dispose of the product as recommended below.
1. Commission a disposal company able to (with a license to) collect, transport and dispose of
materials that contain arsenic and other such industrial waste materials.
2. Exclude the product from general industrial waste and household garbage, and ensure that the
product is controlled (as industrial waste subject to special control) up until final disposal.
Do not burn, destroy, cut, crush, or chemically dissolve the product.
Do not lick the product or in any way allow it to enter the mouth.
For further information, please contact
NEC Compound Semiconductor Devices, Ltd.
5th Sales Group, Sales Division TEL: +81-44-435-1588 FAX: +81-44-435-1579 E-mail: salesinfo@csd-nec.com
NEC Compound Semiconductor Devices Hong Kong Limited
Hong Kong Head Office
Taipei Branch Office
Korea Branch Office
TEL: +852-3107-7303
TEL: +886-2-8712-0478 FAX: +886-2-2545-3859
TEL: +82-2-558-2120
FAX: +82-2-558-5209
http://www.ee.nec.de/
TEL: +49-211-6503-01 FAX: +49-211-6503-487
FAX: +852-3107-7309 E-mail: ncsd-hk@elhk.nec.com.hk
NEC Electronics (Europe) GmbH
California Eastern Laboratories, Inc.
http://www.cel.com/
TEL: +1-408-988-3500 FAX: +1-408-988-0279
0302-1
厂商 型号 描述 页数 下载

NXP

NX7002AK 60 V ,单N沟道沟槽MOSFET[ 60 V, single N-channel Trench MOSFET ] 15 页

NXP

NX7002AK,215 [ NX7002AK. - 60V, N-channel Trench MOSFET TO-236 3-Pin ] 15 页

NXP

NX7002AKW [ 170mA, 60V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, PLASTIC, SC-70, 3 PIN ] 14 页

NXP

NX7002AKW,115 [ NX7002AKW - 60 V, single N-channel Trench MOSFET SC-70 3-Pin ] 14 页

NXP

NX7002BKS [ 60 V, dual N-channel Trench MOSFET ] 16 页

NXP

NX7002BKS_15 [ 60 V, dual N-channel Trench MOSFET ] 16 页

PERICOM

NX701 [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

NX7011A [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

NX7011B [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

NX7011C [ 2.5V/3.3V CMOS XO ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.189555s
