UX2115

型号:

UX2115

描述:

1.25Gbps的限幅放大器>1.25Gbps的限幅放大器(主放大器或者后置放大器)[ 1.25Gbps Limiting Amplifier 1.25Gbps 限幅放大器(主放大器或者后置放大器) ]

品牌:

ETC[ ETC ]

页数:

5 页

PDF大小:

224 K

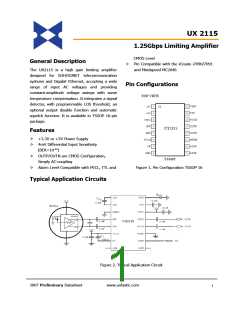

UX 2115
1.25Gbps Limiting Amplifier
CMOS Level
General Description
—
Pin Compatible with the iCreate i7090/7091
and Mindspeed MC2046
The UX2115 is a high gain limiting amplifier
designed for SDH/SONET telecommunication
systems and Gigabit Ethernet, accepting a wide
range of input AC voltages and providing
constant-amplitude voltage swings with some
temperature compensation. It integrates a signal
detector, with programmable LOS threshold, an
optional output disable function and automatic
squelch function. It is available in TSSOP 16-pin
package.
Pin Configurations
Features
—
—
+3.3V or +5V Power Supply
4mV Differential Input Sensitivity
(BER=10-12)
—
—
OUTP/OUTN are CMOS Configuration,
Simply AC-coupling
Alarm Level Compatible with PECL, TTL and
Figure 1. Pin Configuration TSSOP 16
Typical Application Circuits
Figure 2. Typical Application Circuit
2007 Preliminary Datasheet
www.uxfastic.com
1
UX 2115
1.25Gbps Limiting Amplifier
PIN Description
Pin No.
Name
Function
Auto-zero capacitor pin. A capacitor connected between this pin and AZ2 sets
the time constant of the offset correction loop. The offset correction is disabled
when the AZ1 and AZ2 pins are shorted together.
1
AZ1
2
3
4
5
6
7
AZ2
GNDA
INP
See AZ1.
Analog Supply Ground. Must be the same potential as GNDE pin.
Positive data input
INN
Negative data input
VCCA
CF
Analog Supply Voltage. Must be the same potential as t VCCE pin.
Level-detect filter capacitor pin. Connect a capacitor between this pin and VCCA.
The squelch function is disabled when JAM is connected to ground. The
automatic squelch function is enabled when JAM is connected to the LOSP.
Positive Loss-of-Signal output, CMOS level, compatible with PECL and TTL. LOSP
is low when the level of the input signal is above the preset threshold set by the
VSET input. LOSP is high when the signal level drops below the threshold.
Normally connected to JAM pin to enable automatic squelch function to operate.
Negative Loss-of-signal output, CMOS level, compatible with PECL and TTL.
LOSN is high when the level of the input signal is above the preset threshold set
by the VSET input. LOSN is low when the signal level drops below the threshold.
Indicates Input signal level status.
8
JAM
9
LOSP
10
LOSN
11
12
13
14
GNDE
OUTN
OUTP
VCCE
Digital Supply Ground. Must be the same potential as GNDA pin.
Negative data output, the output buffer is CMOS structure.
Positive data output, the output buffer is CMOS structure.
Digital Supply Voltage. Must be the same potential as VCCA pin.
5V to 3V conversion output pin.No connection or can connect a capacitor
between this pin and GND.
15
V3V
Loss-of-Signal Threshold Pin. Resistor (RSET) to ground sets the LOS threshold.
This pin can be left open if the LOS detect function is not required and JAM is
connected to ground, otherwise connect VSET to ground.
16
VSET
Absolute Maximum Ratings
Symbol
VCC
Parameter
Rating
6
Units
V
Power supply(VCC-GND)
Operating ambient
Storage temperature
TA
-40 to +85
-65 to +150
°C
TSTG
°C
2007 Preliminary Datasheet
www.uxfastic.com
2
UX 2115
1.25Gbps Limiting Amplifier
Recommended Operating Conditions
Symbol
VCC
Parameter
Rating
Units
V
Power supply (Note 1)
Operating ambient
3.0 to 5.5
-40 to +85
TA
°C
Note 1: To GND.
DC Characteristics
Symbol
Parameter
Min
Typ
Max
100
30
Units
VOS
VTH
HYS
ICC
Equivalent input Offset Voltage
LOS Sensitivity Range
μV
mVP-P
dB
4
1
LOS Hysteresis (Note 2)
2
4
Power-Supply Current(Note 3)
57
mA
Note 2: Optical, 10log (VDEASSERT/VASSERT).
Note 3: LOSN is at CMOS level, no load terminated to the outputs, with I/O current in the output buffer.
AC Characteristics
(VCC=3.0 to 5.5, Typical values are at VCC = +3.3V, TA = +25°C, unless otherwise noted.)
Symbol
Parameter
Min
Typ
Max
Units
BW
Input Bandwidth@upper -3dB point
1000
MHz
CAZ = open
48
34
FLFC
Low-Frequency Cutoff
KHz
mV
CAZ = 0.1μF
Single ended
Differential
2
4
800
1600
850
VIN
Input signal voltage
VAMP
RIN
Output Amplitude (Note 4)
Input Resistance
600
mV
100
200
15
CIN
Input Capacitance
2
pF
TR,TF
TPWD
RJ
Data Output Transition Time (Note 5)
Pulse-Width Distortion(Note 6)
Random Jitter
300
30
ps
ps
psRMS
μs
TLOS
LOS Assert/Deassert Time
100
Note 4: Single ended; the output buffer is CMOS structure, shown in Figure3.
Note 5: 20% to 80%
Note 6: TPWD= [(width of wider pulse)-(width of narrower pulse)]/2
2007 Preliminary Datasheet
www.uxfastic.com
3
UX 2115
1.25Gbps Limiting Amplifier
Applications Information
CMOS Output Buffer
CMOS structure, please refer to Figure3. Current
sources are integrated internal in the output
buffer circuit. Different from PECL output, no 50Ω
to (VCC-2V) termination here. The output
common mode voltage is at half of VCC. The
current flows through the chip partly from the
current sources, so it corresponds to that of other
similar products with ECL load. AC coupling is
required at OUTN and OUTP, and the external
capacitors are employed to insulate the DC level
with external circuits, as shown in Typical
Application Circuit.
Figure 3.Output Buffer Circuit
terminated by a pull up resistor (4.710K), see
Figure4, it compatible with TTL level; When
terminated by 50to (VCC-2V), see Figure5, it
compatible with PECL level. The corresponding
logic states list in table LOS Level Status.
LOS Output Terminations
In UX2115, the LOS interface operates three logic
states with different termination techniques
respectively. When LOSN is connected directly to
external circuits, it operates CMOS level; When
Figure 4. Equivalent TTL Termination Circuit at
LOSN
Figure 5. Equivalent PECL Termination Circuit at
LOSN
2007 Preliminary Datasheet
www.uxfastic.com
4
UX 2115
1.25Gbps Limiting Amplifier
LOS level status
Logic State
High
CMOS
VCC
PECL
TTL
VCC
VCC-0.9V
VCC-2.2V
Low
Ground
Ground to 0.5V
Package Outline
Details of ‘A’ part
Figure 6. TSSOP16 Package
www.uxfastic.com
2007 Preliminary Datasheet
5
