2STN5551

型号：

2STN5551

品牌：

STMICROELECTRONICS[ ST ]

页数：

7 页

PDF大小：

111 K

下载PDF手册

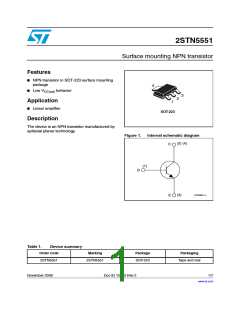

2STN5551
Surface mounting NPN transistor
Features
■ NPN transistor in SOT-223 surface mounting
package
4
■ Low V
behavior
CE(sat)
3
2
1
Application
■ Linear amplifier
SOT-223
Description
The device is an NPN transistor manufactured by
epitaxial planar technology.
Figure 1.
Internal schematic diagram
(2) (4)
C
(1)
B
SC06960_a
(3)
E
Table 1.
Order code
2STN5551
Device summary
Marking
Package
Packaging
Tape and reel
2STN5551
SOT-223
November 2009
Doc ID 15183 Rev 2
1/7
www.st.com
7
Electrical ratings
2STN5551
1
Electrical ratings
Table 2.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
VCBO
VCEO
VEBO
IC
Collector-base voltage (IE = 0)
Collector-emitter voltage (IB = 0)
Emitter-base voltage (IC = 0)
Collector current
180
V
V
160
6
0.6
V
A
PTOT
TSTG
TJ
Total dissipation at Tamb ≤ 25 °C
Storage temperature
2
W
°C
°C
-65 to 150
150
Max. operating junction temperature
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
RthJA
Thermal resistance junction-ambient
max.
62.5
°C/W
2/7
Doc ID 15183 Rev 2
2STN5551
Electrical characteristics
2
Electrical characteristics
T
= 25 °C unless otherwise specified.
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
Min. Typ. Max. Unit
VCB = 120 V
50
50
nA
µA
Collector cut-off
current (IE = 0)
ICBO
VCB = 120 V Tamb = 100 °C
Emitter cut-off current
(IC = 0)
IEBO
V
EB = 4 V
5
nA
V
Collector-base
breakdown voltage
V(BR)CBO
IC = 100 µA
IC = 1 mA
IE = 10 µA
180
160
6
(IE = 0)
Collector-emitter
breakdown voltage
(1)
V(BR)CEO
V
V
(IB = 0)
Emitter-base
breakdown voltage
V(BR)EBO
(IC = 0)
IC = 10 mA
IC = 50 mA
IB = 1 mA
IB = 5 mA
0.15
0.2
V
V
Collector-emitter
saturation voltage
(1)
VCE(sat)
IC = 10 mA
IC = 50 mA
IB = 1 mA
IB = 5 mA
1
1
V
V
Base-emitter
saturation voltage
(1)
VBE(sat)
IC = 1 mA
IC = 10 mA
IC = 50 mA
VCE = 5 V
VCE = 5 V
VCE = 5 V
80
80
30
(1)
hFE
DC current gain
250
VCE = 10 V
f = 1 kHz
IC = 1 mA
Small signal current
gain
hfe
50
200
6
VCB = 10 V
Collector-base
capacitance (IE = 0)
CCBO
pF
pF
f ≤ 1 MHz
VEB = 0.5 V
f = 1 MHz
Emitter-base
capacitance (IC = 0)
CEBO
20
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %
Doc ID 15183 Rev 2
3/7
Package mechanical data
2STN5551
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
4/7
Doc ID 15183 Rev 2
2STN5551
Package mechanical data
SOT-223 mechanical data
mm.
typ
DIM.
min.
max.
1.80
0.1
A
A1
B
0.02
0.60
2.90
0.24
6.30
0.70
3.00
0.26
6.50
2.30
4.60
3.50
7.00
0.85
3.15
0.35
6.70
B1
c
D
e
e1
E
3.30
3.70
7.30
H
6.70
o
V
10
0046067_L
Doc ID 15183 Rev 2
5/7
Revision history
2STN5551
4
Revision history
Table 5.
Date
Document revision history
Revision
Changes
20-Nov-2008
19-Nov-2009
1
2
Initial release
Document status promoted from preliminary data to datasheet
6/7
Doc ID 15183 Rev 2
2STN5551
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2009 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 15183 Rev 2
7/7
