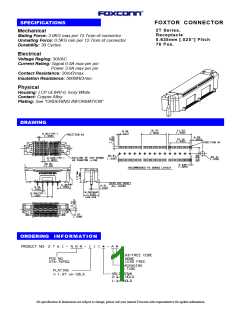

SPECIFICATIONS
FOXTOR CONNECTOR
2T Series,
Receptacle
0.635mm [.025”] Pitch
76 Pos.
Mechanical
Mating Force: 3.0KG max per 12.7mm of connector
Unmating Force: 0.5KG min per 12.7mm of connector
Durability: 30 Cycles
Electrical
Voltage Raging: 30VAC
Current Rating: Signal 0.5A max per pin
Power 3.0A max per pin
Contact Resistance: 20mΩ max.
Insulation Resistance: 5000MΩ min.
Physical
Housing: LCP UL94V-0, Ivory White
Contact: Copper Alloy
Plating: See “ORDERING INFORMATION”
DRAWING
ORDERING INFORMATION
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
