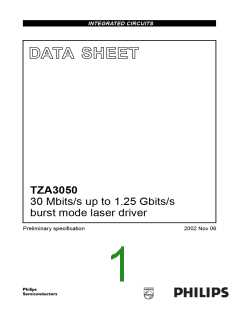

INTEGRATED CIRCUITS
DATA SHEET
TZA3050
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
Preliminary specification
2002 Nov 06
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
CONTENTS
10
11
12
DC CHARACTERISTICS
AC CHARACTERISTICS
1
FEATURES
APPLICATION INFORMATION
1.1
1.2
1.3
General
Control
Protection
12.1
Design equations
12.1.1
12.1.2
12.1.3
12.1.4
12.1.5
12.2
Bias and modulation currents
Average monitor current
Alarm operating current
Alarm monitor current
Pulse width adjustment
Burst mode application
Average loop control
2
3
4
5
6
7
APPLICATIONS
GENERAL DESCRIPTION
ORDERING INFORMATION
BLOCK DIAGRAM
12.3
PINNING
13
PACKAGE OUTLINE
SOLDERING
FUNCTIONAL DESCRIPTION
14
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
7.11
Data and clock input
Retiming
14.1
Introduction to soldering surface mount
packages
Reflow soldering
Wave soldering
Manual soldering
Pulse width adjustment
Modulator output stage
Average loop control
Direct current setting
Soft start
Burst mode
Alarm functions
Enable
14.2
14.3
14.4
14.5
Suitability of surface mount IC packages for
wave and reflow soldering methods
15
16
17
DATA SHEET STATUS
DEFINITIONS
Reference block
DISCLAIMERS
8
9
LIMITING VALUES
THERMAL CHARACTERISTICS
2002 Nov 06
2
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
1
FEATURES
General
1.3
Protection
1.1
• Alarm function on operating current
• Alarm function on monitor current
• Burst mode laser driver from 30 Mbits/s to 1.25 Gbits/s
• Bias current from 10 mA up to 100 mA
• Soft start-up on bias and modulation currents during
power-up.
• Modulation current from 6 mA up to 100 mA
• Switch on and off time for bias and modulation currents
below 100 ns
2
APPLICATIONS
• Burst mode laser driver.
• Integrated burst mode switching and memory circuit
• Rise and fall times typical 120 ps
3
GENERAL DESCRIPTION
• Jitter below 30 ps peak-to-peak value
• Retiming function via external clock with disable option
• Pulse width adjustment function with disable option
The TZA3050 is a fully integrated laser driver for burst
mode optical transmission systems with data rates up
to 1.25 Gbits/s. The TZA3050 incorporates all necessary
control and protection functions for a laser driver
application with very few external components required
and low power dissipation. The average-loop controls the
average monitor current in a typical programmable range
from 150 to 1300 µA. The average-loop settings are
memorized internally between bursts of data. The bias and
modulation currents have a fast switch on and off time of
less than 100 ns.
• Positive Emitter Coupled Logic (PECL), Low Voltage
Emitter Coupled Logic (LVPECL) and Current Mode
Logic (CML) compatible data and clock inputs
• Internal common mode voltage available for AC-coupled
data and clock inputs and for single-ended applications
• 3.3 V supply voltage
• DC-coupled laser for 3.3 and 5 V laser supply.
1.2
Control
The design is made in the Philips BiCMOS RF process
and is available in a HBCC32 package. The TZA3050 is
intended for use in an application with a DC-coupled laser
diode for both 3.3 and 5 V laser supply voltages.
• Average power loop control
• Optional direct setting of bias current
• Direct setting of modulation current.
The BIAS output is optimized for low voltage requirements
giving a minimum of 1.25 V for 3.3 and 5 V laser supplies.
4
ORDERING INFORMATION
TYPE
PACKAGE
NUMBER
NAME
DESCRIPTION
VERSION
TZA3050VH
HBCC32
plastic, heatsink bottom chip carrier; 32 terminals; body 5 × 5 × 0.65 mm
SOT560-1
2002 Nov 06
3
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
5
BLOCK DIAGRAM
i.c.
CBIAS MODIN BIASOUT BIASIN
MON
AVR
32
30
29
28
27
26
31
25
V
CCO
I
BIAS
24
100 µA
100 µA
1
BIAS
V
CCA
V/I
2
CURRENT
CONVERSION
100
mA/V
V
CCD
enable
burst
I
AVR
23
22
GND
LA
V/I
100
mA/V
CONTROL BLOCK
I
100
Ω
100
Ω
MON
I
enable burst
ref
21
20
LA
3
LAQ
DIN
20
kΩ
19
18
100
Ω
PRE
AMP
POST
AMP
LAQ
PULSE
WIDTH
ADJUST
4
DINQ
MUX
20
kΩ
GND
5
TEST
I
mod
D
C
6
CIN
FF
20
kΩ
100
Ω
17
PWA
7
CINQ
disable retiming:
20
kΩ
V
V
< 0.3 V
8
CIN, CINQ
GND
TZA3050
V
− 1.32 V
CCD
9
ALRESET
10
kΩ
1.4 V
I
/12.5
I
/750
av(MON)
BIAS
R
Q
R
Q
ALARM
OPERATING
CURRENT
ALARM
MONITOR
CURRENT
3.3 V
V AND I
REFERENCE
I
/1500
mod
+
20
kΩ
enable
burst
1.4 V
10
11
12
13
14
15
16
MCE158
ALOP
ALMON
MAXOP VTEMP
RREF
MAXMON
ENABLE
Fig.1 Block diagram.
4
2002 Nov 06
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
6
PINNING
SYMBOL
PIN
DESCRIPTION
GND
die pad common ground plane for VCCA, VCCD, VCCO, RF and I/O; must be connected to ground
VCCA
1
analog supply voltage
VCCD
2
digital supply voltage
DIN
3
non-inverted data input (RF input)
DINQ
TEST
CIN
4
inverted data input (RF input)
5
test pin; must be connected to ground
6
non-inverted clock input (RF input)
CINQ
GND
7
inverted clock input (RF input)
8
ground
ALRESET
ENABLE
ALOP
ALMON
MAXOP
VTEMP
MAXMON
RREF
PWA
9
alarm reset input for alarm outputs ALMON and ALOP
enable input for modulation and bias current switch on and off between bursts
alarm output on operating current (open-drain)
alarm output on monitor diode current (open-drain)
threshold level input for alarm on operating current
temperature dependent voltage output
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
threshold level input for alarm on monitor diode current
reference current input; must be connected to ground with an accurate (1%) 10 kΩ resistor
pulse width adjustment input
GND
ground
LAQ
inverted laser modulation output (RF output); output for dummy load
inverted laser modulation output (RF output); output for dummy load
non-inverted laser modulation output (RF output); output for laser
non-inverted laser modulation output (RF output); output for laser
ground
LAQ
LA
LA
GND
BIAS
current source output for the laser bias current
supply voltage for the output stage and the laser diode
input from the monitor photodiode (RF input)
input for the bias current setting
VCCO
MON
BIASIN
BIASOUT
MODIN
CBIAS
i.c.
output of the control block for the bias current
input for the modulation current setting
output of the average loop; must be connected via a 100 nF external capacitor to GND
internally connected
AVR
input for the optical average power level setting
2002 Nov 06
5
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
V
V
1
32 31 30 29 28 27 26
25
CCA
2
3
4
5
6
7
8
24
23
22
21
20
19
18
BIAS
GND
LA
CCD
DIN
DINQ
TEST
CIN
LA
TZA3050VH
LAQ
LAQ
GND
CINQ
GND
9
10 11 12 13 14 15 16
17
PWA
MCE135
Fig.2 Pin configuration.
7
FUNCTIONAL DESCRIPTION
Data and clock input
7.3
Pulse width adjustment
7.1
The on-duration of the laser current can be adjusted with a
guaranteed range from −50 to +50 ps. The adjustment
time is set by connecting a resistor, RPWA, to pin PWA. The
maximum allowable capacitive load on pin PWA is 100 pF.
Pulse width adjustment is disabled when pin PWA is
short-circuited to ground.
The TZA3050 operates with differential Positive Emitter
Coupled Logic (PECL), Low Voltage Positive Emitter
Coupled Logic (LVPECL) and Current-Mode Logic (CML)
data and clock inputs with a voltage swing from 100 mV to
1 V (p-p). It is assumed that both data and clock inputs
carry a complementary signal with the specified
7.4
Modulator output stage
peak-to-peak value (true differential excitation).
The output stage is a high-speed bipolar differential pair
with typical rise and fall times of 120 ps and with a
modulation current source of up to 100 mA. The output
stage of the TZA3050 is optimized for DC-coupled lasers.
The circuit generates an internal common mode voltage
for AC-coupled data inputs, clock inputs and single-ended
applications.
If VDIN > VDINQ, the modulation current is sunk by pin LA
and corresponds to an optical ‘one‘ level of the laser.
The modulation current switches between the LA and LAQ
outputs. For a good RF performance the inactive branch
carries a small amount of the modulation current.
7.2
Retiming
The LA output is optimized for the laser, the LAQ output is
optimized for the dummy load.
The retiming function synchronizes the data with the clock
to improve the jitter performance. The data latch switches
on the rising edge of the clock input. The retiming function
is disabled when both clock inputs are below 0.3 V.
The BIAS output is optimized for low voltage requirements
(1.25 V minimum).
At start-up the initial polarity of the laser is unknown until
the first rising edge of the clock input appears.
2002 Nov 06
6
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
7.5
Average loop control
7.9
Alarm functions
The average power control loop maintains a constant
average power level of the monitor current over
temperature and lifetime of the laser. The average monitor
current is programmable over a wide current range, from
150 to 1300 µA typical, by tuning the setting resistor RAVR
The maximum allowable capacitive load on pins AVR and
BIASOUT is 100 pF.
The TZA3050 features two alarm functions for the
detection of excessive laser operating current and monitor
diode current due to laser ageing, laser malfunctioning or
a high laser temperature. The alarm threshold levels are
programmed by a resistor or a current source. The
operating current equals the bias current plus half of the
modulation current.
.
7.6
Direct current setting
7.10 Enable
The TZA3050 can also operate in open-loop mode with
direct setting of the bias and modulation currents. The bias
and modulation current sources are transconductance
amplifiers and the output currents are determined by the
BIASIN and MODIN voltages respectively. The bias
current source has a bipolar output stage with minimum
output capacitance for optimum RF performance.
A LOW level on the enable input disables the bias and
modulation current sources: the laser is off. A HIGH level
on the enable input or an open enable input switches both
current sources on: the laser is operational.
7.11 Reference block
The reference voltage is derived from a band gap circuit
and is available at pin RREF. An accurate (1%) 10 kΩ
resistor has to be connected to pin RREF to provide the
internal reference current. The maximum allowable
capacitive load on pin RREF is 100 pF.
7.7
Soft start
At power-up the bias and modulation current sources are
released when VCCA > 2.7 V, the reference voltage has
reached the correct value of 1.2 V and the voltage on
pin ENABLE is HIGH.
The reference voltage on the setting pins MAXOP,
MAXMON, PWA and AVR is buffered and derived from
the band gap voltage.
The control loop starts with minimum bias and modulation
current at power-up provided the device is enabled. The
current levels increase until the input current on pin MON
matches the programmed average level.
The output voltage on pin VTEMP reflects the junction
temperature of the TZA3050. The temperature coefficient
of VVTEMP equals −2.2 mV/K.
7.8
Burst mode
The TZA3050 is compliant with burst mode application.
Fast switch on and off of bias and modulation currents is
allowed in less than 100 ns via pin ENABLE.
When internal average loop control is used, the average
power settings can be maintained between two bursts of
data via an external capacitor on pin CBIAS.
During a burst, this capacitor defines the time constant of
the loop. Between bursts, the capacitor is automatically
disconnected from the internal circuitry and is used as a
memory cell.
A more complex memory cell can also be connected to
pin CBIAS.
2002 Nov 06
7
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
8
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134); all voltages are referenced to ground; positive
currents flow into the IC.
SYMBOL
PARAMETER
digital supply voltage
CONDITION
MIN.
−0.5
MAX.
+3.5
UNIT
VCCD
VCCA
VCCO
V
analog supply voltage
−0.5
−0.5
−0.5
0.8
+3.5
+3.5
+5.3
4.1
V
V
V
V
V
V
V
V
V
RF output supply voltage
3.3 V laser supply
5 V laser supply
VCCO = 3.3 V
Vo(LA)
Vo(LAQ)
VBIAS
Vn
output voltage at pin LA
output voltage at pin LAQ
bias voltage
V
CCO = 5 V
VCCO = 3.3 V
CCO = 5 V
VCCO = 3.3 V
CCO = 5 V
1.2
4.5
1.6
4.5
V
2.0
5.2
0.8
3.6
V
0.8
4.1
voltage on all other input and output pins
analog inputs and outputs
digital inputs and outputs
input current on pins
−0.5
−0.5
V
CCA + 0.5
CCD + 0.5
V
V
V
In
MAXOP, MAXMON, RREF, PWA and AVR
VTEMP and BIASOUT
−1.0
−1.0
0
0
mA
mA
mA
°C
+1.0
5.0
ALOP, ALMON and MON
ambient temperature
Tamb
Tj
−40
−40
−65
+85
junction temperature
+125
+150
°C
Tstg
storage temperature
°C
9
THERMAL CHARACTERISTICS
In compliance with JEDEC standards JESD51-5 and JESD51-7.
SYMBOL
PARAMETER
CONDITIONS
VALUE
UNIT
Rth(j-a)
thermal resistance from 4 layer Printed-circuit board in still air with
35
K/W
junction to ambient
9 plated vias connected with the heatsink and
the first ground plane in the PCB
Rth(j-a)
thermal resistance from HBCC32 die pad soldered to PCB
junction to ambient
60
K/W
2002 Nov 06
8
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
10 DC CHARACTERISTICS
Tamb = −40 to +85 °C; Rth(j-a) = 35 K/W; Ptot = 400 mW; VCCA = 3.14 to 3.47 V; VCCD = 3.14 to 3.47 V;
CCO = 3.14 to 3.47 V; RAVR = 7.5 kΩ; RMODIN = 6.2 kΩ; RBIASIN = 6.8 kΩ; RPWA = 10 kΩ; RRREF = 10 kΩ (1%);
MAXMON = 13 kΩ; RMAXOP = 20 kΩ; positive currents flow into the IC; all voltages are referenced to ground; unless
V
R
otherwise specified.
SYMBOL
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
Supplies: pins VCCA, VCCD and VCCO
VCCA
VCCD
VCCO
analog supply voltage
digital supply voltage
RF output supply voltage
3.14
3.3
3.3
3.3
5.0
40
3.47
3.47
3.47
5.25
55
V
3.14
3.14
4.75
−
V
3.3 V laser supply
V
5 V laser supply
V
ICCA
ICCD
ICCO
analog supply current
digital supply current
RF output supply current
mA
mA
mA
−
45
60
pins LA and LAQ
open-circuit; 3.3 and 5 V
laser supply
−
20
30
Ptot
total power dissipation
corel power dissipation
VBIAS = 3.3 V; Imod = 16 mA;
IBIAS = 20 mA; note 1
−
−
412
264
−
−
mW
mW
Pcore
excluding Io(LA), Io(LAQ)
and IBIAS; PWA and retiming
off
Data and clock inputs: pins DIN and CIN
Vi(p-p)
input voltage swing
(peak-to-peak value)
Vi(DIN) = VCCD − 2 V to VCCD
Vi(CIN) = VCCD − 2 V to VCCD
;
100
−
1000
mV
V
Vint(cm)
internal common mode
voltage
AC-coupled inputs
note 2
−
V
CCD − 1.32
−
VIO
input offset voltage
−10
80
−
0
+10
130
−
mV
Ω
Zi(dif)
Zi(cm)
differential input impedance
100
10
common mode input
impedance
kΩ
Vi(CIN)(dis)
input voltage for disabled
retiming
VCIN = VCINQ
−
−
0.3
V
Monitor photodiode input: pin MON
Vi(MON)
Zi(MON)
input voltage
Iav = 150 to 1300 µA
Iav = 150 to 1300 µA
0.9
1.1
27
1.3
V
input impedance
−
−
Ω
Setting for average loop control: pins MON and AVR
Iav(MON)(low)
Iav(MON)(max)
∆Iav(MON)
low average monitor current IAVR > −250 µA
setting
−
−
150
−
µA
µA
%
maximum average monitor IAVR = −50 µA
current setting
1150
−10
1.14
1300
−
relative accuracy of average temperature and VCCA
+10
1.26
current on pin MON
variations; IAVR = 550 µA
Vref(AVR)
reference voltage on
pin AVR
IAVR = −250 to −15 µA;
CAVR < 100 pF
1.20
V
2002 Nov 06
9
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
SYMBOL
Isink(AVR)
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
−15
UNIT
µA
current sink on pin AVR
−280
−
Control loop bias output: pin BIASOUT
Isource(BIASOUT) source current
VBIASOUT = 0.5 to 1.5 V;
CBIASOUT < 100 pF
−
−
−
−200
µA
µA
Isink(BIASOUT)
sink current
VBIASOUT = 0.5 to 1.5 V;
CBIASOUT < 100 pF
200
−
Bias current source: pins BIASIN and BIAS
gm(bias)
bias transconductance
VBIASIN = 0.5 to 1.5 V;
89
110
131
mA/V
VBIAS = VCCO
Isource(BIASIN)
source current at
pin BIASIN
VBIASIN = 0.5 to 1.5 V
−110
−100
−95
µA
IBIAS(max)
IBIAS(min)
IBIAS(dis)
Vo(BIAS)
maximum bias current
minimum bias current
bias current at disable
output voltage on pin BIAS
VBIASIN = 1.8 V
100
−
−
−
mA
mA
µA
V
VBIASIN = 0 to 0.4 V
VENABLE < 0.8 V
0.2
−
0.4
100
−
−
1.25
−
Modulation current source: pin MODIN
gm(mod)
modulation
VMODIN = 0.5 to 1.5 V;
77
95
112
mA/V
transconductance
VLA = VLAQ = VCCO
Isource(MODIN)
source current at
pin MODIN
VMODIN = 0.5 to 1.5 V
−110
−100
−95
µA
Modulation current outputs: pins LA and LAQ
Io(LA)(max)(on)
Io(LA)(min)(on)
Io(LA)(min)(off)
maximum laser modulation VMODIN = 1.8 V;
output current at LA on LA = VCCO = 3.3 V; note 3
minimum laser modulation VMODIN = 0 to 0.4 V;
100
−
−
−
mA
mA
mA
Ω
V
5
6
output current at LA on
VLA = VCCO = 3.3 V; note 3
minimum laser modulation VMODIN = 1.5 V;
−
−
2
output current at LA off
VLA = VCCO = 3.3 V; note 3
Zo(LA), Zo(LAQ) output impedance LA and
80
−
100
−
130
200
LAQ pins
Io(LA)(dis)
,
non-inverted and inverted
laser modulation output
current at disable
VENABLE < 0.8 V
µA
Io(LAQ)(dis)
Vo(LA)(min)
minimum output voltage at VCCO = 3.3 V
pin LA
1.2
1.6
−
−
−
−
V
V
V
CCO = 5 V
Enable function: pin ENABLE
VIL
LOW-level input voltage
bias and modulation currents
disabled
−
−
0.8
−
V
VIH
HIGH-level input voltage
internal pull-up resistance
bias and modulation currents 2.0
enabled
−
V
Rpu(int)
−
20
−
kΩ
2002 Nov 06
10
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
SYMBOL
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
Alarm reset: pin ALRESET
VIL
LOW-level input voltage
no reset
reset
−
−
0.8
V
VIH
HIGH-level input voltage
2.0
−
−
−
V
Rpd(int)
internal pull-down
resistance
−
10
kΩ
Alarm operating current: pins MAXOP and ALOP
Vref(MAXOP)
reference voltage on
pin MAXOP
IMAXOP = 10 to 200 µA
1.15
−
1.2
775
−
1.25
−
V
NMAXOP
ratio of Ioper(alarm) and
IMAXOP
Ioper(alarm) = 7.5 to 150 mA
VD(ALOP)L
drain voltage at active alarm IALOP = 500 µA
0
0.4
V
V
Alarm monitor current: pins MAXMON and ALMON
Vref(MAXMON)
reference voltage on
pin MAXMON
IMAXMON = 10 to 200 µA
1.15
−
1.2
15
−
1.25
−
NMAXMON
ratio of IMON(alarm) and
IMAXMON
IMON(alarm) = 150 to 3000 µA
VD(ALMON)L
drain voltage at active alarm IALMON = 500 µA
0
0.4
V
Reference block: pins RREF and VTEMP
VRREF
reference voltage
RRREF = 10 kΩ (1%);
CRREF < 100 pF
1.15
1.14
−
1.20
1.20
−2.2
−
1.25
1.27
−
V
VVTEMP
temperature dependent
voltage
Tj = 25 °C; CVTEMP < 2 nF;
note 4
V
TCVTEMP
Isource(VTEMP)
temperature coefficient of
VVTEMP
Tj = −25 to + 125 °C; note 4
mV/K
mA
mA
source current of
pin VTEMP
−
−1
Isink(VTEMP)
sink current of pin VTEMP
1
−
−
Notes
1. The total power dissipation Ptot is calculated with VBIAS = VCCO = 3.3 V and IBIAS = 20 mA. In the application VBIAS
will be VCCO minus the laser diode voltage which results in a lower total power dissipation.
2. The specification of the offset voltage is guaranteed by design.
100
3. The relation between the sink current Io(LA) and the modulation current Imod is: lo(LA) = Imod
×
where
--------------------------------
100 + ZL(LA)
ZL(LA) is the external load on pin LA. The voltage on pin MODIN programmes the modulation current Imod. This current
is divided between ZL(LA) and the 100 Ω internal resistor connected to pins LA. When the modulation current is
programmed to 100 mA, a typical ZL(LA) of 25 Ω will result in an Io(LA) current of 80 mA, while 20 mA flows via the
internal resistor. This corresponds to a voltage swing of 2 V on the real application load.
4. VVTEMP = 1.31 + TCVTEMP × Tj and Tj = Tamb + Ptot × Rth(j-a)
.
2002 Nov 06
11
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
11 AC CHARACTERISTICS
Tamb = −40 to +85 °C; Rth(j-a) = 35 K/W; Ptot = 420 mW; VCCA = 3.14 to 3.47 V; VCCD = 3.14 to 3.47 V;
CCO = 3.14 to 3.47 V; RAVR = 7.5 kΩ; RMODIN = 6.2 kΩ; RBIASIN = 6.8 kΩ; RPWA = 10 kΩ; RRREF = 10 kΩ (1%);
MAXMON = 13 kΩ; RMAXOP = 20 kΩ; positive currents flow into the IC; all voltages are referenced to ground; unless
V
R
otherwise specified.
SYMBOL
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
RF path
BR
bit rate
average loop control
0.03
−
−
1.25
Gbits/s
ps
J(LA)(p-p)
jitter of pin LA output signal RL = 25 Ω
−
30
(peak-to-peak value)
tr, tf
rise and fall time of voltage 20% to 80%; RL = 25 Ω;
−
120
150
ps
on pin LA
Imod = 30 mA
tsu(D)
th(D)
data input set-up time
data input hold time
switch-on time at enable
60
60
−
−
−
−
−
ps
ps
ns
−
to(en)
from 50% of enable to 90% of
steady state typical bias and
modulation current; note 1
100
to(dis)
switch-off time at disable
from 50% of enable to 10% of
steady state typical bias and
modulation current; note 1
−
−
−
100
ns
Current control
tcint
average loop time constant average loop control;
5
−
ms
CCBIAS = 100 nF
tburst(min)
tidle(max)
minimum burst time
ENABLE pin HIGH
30
−
−
−
µs
maximum time between two ENABLE pin LOW
bursts
−
8
ms
Pulse width adjustment
tPWA(min) minimum pulse width
RPWA = 6.7 kΩ; CPWA < 100 pF
RPWA = 10 kΩ; CPWA < 100 pF
RPWA = 20 kΩ; CPWA < 100 pF
−
−100
0
−50
−
ps
ps
ps
adjustment on pins LA
tPWA
pulse width adjustment on
pins LA
−
tPWA(max)
maximum pulse width
adjustment on pins LA
50
100
−
Note
1. The switch-on and switch-off time at enable and disable given are the absolute maximum values. They depend
strongly on the following parameters: bias current, modulation current, bias inductance and laser supply voltage.
More detailed information available upon request
2002 Nov 06
12
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
12 APPLICATION INFORMATION
12.1 Design equations
handbook, halfpage
105
12.1.1 BIAS AND MODULATION CURRENTS
I
= I
The bias and modulation currents are determined by the
voltages on pins BIASIN and MODIN. For average loop
control the BIASIN voltage is applied by the BIASOUT pin
and the MODIN voltage is applied by an external voltage
mod o(LA)
(mA)
g
=
m(mod)
source or an external resistor RMODIN
.
100 mA/V
For direct setting of bias and modulation currents, the
BIASIN and MODIN voltages have to be applied by
external voltage sources or by external resistors RBIASIN
and RMODIN connected to the BIASIN and MODIN pins:
I
o(LA)(min)
5
0
0.5
1.5
IBIAS = (RBIASIN × 100 µA − 0.5 V) × gm(bias) [mA]
Imod = (RMODIN × 100 µA − 0.5 V) × gm(mod) + 5 [mA]
V
(V)
MODIN
MGT891
LA current when LA output is on
Vo(LA) = VCCO
The transconductance gm(mod) defines the relation
between the voltage on pin MODIN and the modulation
current.
Fig.4 Modulation current as a function of MODIN
voltage.
The bias and modulation current sources operate with an
input voltage range from 0.5 to 1.5 V. The output current is
at its minimum level for an input voltage below 0.4 V;
see Figs 3 and 4. The graphs indicate the values with a
load of 0 Ω. When the load is not zero, the relation
between Io(LA) and Imod is given in Table
12.1.2 AVERAGE MONITOR CURRENT
The bias and modulation current sources are temperature
compensated and keep the adjusted current level stable
over the temperature range.
“DC characteristics” Note 3.
The bias and modulation currents increase with increasing
resistor values for RBIASIN and RMODIN respectively; this
allows resistor tuning to start at a minimum current level.
handbook, halfpage
The average monitor current Iav(MON) in average loop
operation is determined by the source current of the
AVR pin (IAVR). The current can be sunk by an external
current source or by an external resistor, RAVR, connected
to ground. The equation is:
100
I
BIAS
(mA)
g
=
m(bias)
100 mA/V
VAVR
Iav(MON) = 1580 − 5.26 × IAVR = 1580 − 5.26 ×
[µA]
-------------
RAVR
The average monitor current increases with decreasing
IAVR or increasing RAVR; this allows resistor tuning of RAVR
to start at minimum IAVR current level (see Fig.5).
I
BIAS(min)
0.2
0
0.5
1.5
V
(V)
BIASIN
The formula used to program AVR is valid for typical
conditions; tuning is necessary to achieve absolute
accuracy of the AVR value.
MCE136
Fig.3 Bias current as function of BIASIN voltage.
2002 Nov 06
13
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
I
av(MON)
(µA)
1300
I
= 1580 − 5.26 × I
µA
AVR
av(MON)
150
0
50
250
I
(µA)
AVR
MCE137
Fig.5 Typical average monitor current as a function of IAVR
.
12.1.3 ALARM OPERATING CURRENT
VMAXMON
I MON(alarm) = NMAXMON
×
------------------------
RMAXMON
The operating current for the DC-coupled laser application
equals the bias current plus half of the modulation current:
As the detected IMON is an average current, the alarm
threshold is a function of the burst mode timing. The
formula can be used as a reference for a mode where
signal is always present.
Imod
Ioper = IBIAS
+
----------
2
The alarm threshold Ioper(alarm) on the operating current is
determined by the source current of the MAXOP pin. The
current range for IMAXOP is from 10 to 200 µA which
corresponds with an Ioper(alarm) from 7.5 to 150 mA. The
IMAXOP current can be sunk by an external current source
or by connecting RMAXOP to ground:
12.1.5 PULSE WIDTH ADJUSTMENT
The pulse width adjustment time is determined by resistor
RPWA
:
R
PWA – 10 kΩ
t PWA = 200 ×
[ps]
------------------------------------
RPWA
VMAXOP
I oper(alarm) = NMAXOP
×
--------------------
RMAXOP
The tPWA typical range is from −100 to +100 ps, which
corresponds with an RPWA resistance ranging from 6.7 kΩ
minimum to 20 kΩ maximum (see Fig.6). The PWA
function is disabled when the PWA input is short-circuited
to ground, the tPWA is 0 ps for a disabled PWA function.
The detection level is independent from burst mode timing.
12.1.4 ALARM MONITOR CURRENT
The alarm threshold IMON(alarm) on the monitor current is
determined by the source current of the MAXMON pin. The
current range for IMAXMON is from 10 to 200 µA, which
corresponds with an IMON(alarm) from 150 to 3000 µA. The
I
MAXMON current can be sunk by an external current source
or by connecting RMAXMON to ground:
2002 Nov 06
14
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
handbook, halfpage
100
t
PWA
(ps)
6.7
0
10
20
R
(kΩ)
PWA
−100
MGT893
Fig.6 Typical pulse width adjustment.
12.2 Burst mode application
Table 1 Typical time constant of the average loop
In burst mode application, data flow is not constant, data
(the ‘burst‘) is interrupted with significant idle times when
no data is present and the laser is shut-down.
CAPACITOR CCBIAS
TIME CONSTANT (TYP.)
10 nF
100 nF
470 nF
<1 ms
5 ms
When using average loop control, the control is only done
during a burst of data and the average value should be
stored during idle time.
30 ms
Using a smaller CBIAS capacitor allows a faster loop
recovery in short burst period applications, but it also
means a shorter storage period. A 100 nF is considered as
a convenient value, even in applications with short burst
time (minimum 30 µs), and large idle time (maximum 8 ms)
applications as shown in Fig.7.
The TZA3050 requires only one external capacitor to
perform this storage. A typical 100 nF lossless capacitor
connected to pin CBIAS will define the time constant of the
loop during bursts (typical 5 ms) and will also define the
accuracy of the value stored between bursts. Tuning of the
external capacitor allows tuning of the average loop time
constant depending on the duty cycle and the burst
duration.
When pin ENABLE is LOW, an internal switch is opened
and the external capacitor is connected to a
handbook, halfpage
Enable
high-impedance point. When pin ENABLE is HIGH, the
internal switch is closed and the external capacitor is
connected to the internal average loop control circuit.
MCE138
burst > 30 µs
idle < 8 ms
The ENABLE pin also controls the on and off switch state
of the bias and modulation current output stages resulting
in burst-to-idle and idle-to-burst times below 100 ns on the
full current range available, with a typical load of 25 Ω on
pins LA and LAQ.
Fig.7 Timing between burst and idle mode.
At power-up, the memorized value on pin CBIAS is reset
by connecting pin CBIAS internally to ground. The timing
in Fig.7 does not take into account the initial charging of
the storage circuit. This initial timing is directly proportional
to the value of the CBIAS capacitor and to the duty cycle
settings of the application.
It is not recommended to use the TZA3050 without an
external capacitor on pin CBIAS as this would result in a
too small time constant, with the risk of pattern dependent
behaviour. Table 1 shows time constants for different
CBIAS capacitors.
2002 Nov 06
15
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
12.3 Average loop control
A simplified application using the TZA3050 with average loop control and a DC-coupled laser at 3.3 or 5 V laser voltage
is illustrated in Fig.8. The average power level is determined by the resistor RAVR. The average loop controls the bias
current with the BIASOUT output connected to the BIASIN input. The modulation current is determined by the MODIN
input voltage, which is generated by the resistor RMODIN and the 100 µA source current of the MODIN pin.
The average loop setting is maintained between bursts with a capacitor connected to pin CBIAS. When pin ENABLE is
HIGH, the internal average loop regulates the average power. When pin ENABLE is LOW, an internal switch is opened
and the previous average loop state is stored on the CBIAS capacitor.
3.3 V or 5 V
laser with
monitor diode
V
V
CCA
3.3 V
3.3 V
1
32 31 30 29 28 27 26
25
BIAS
GND
LA
CCD
DIN
2
3
4
5
6
7
8
24
23
22
21
20
19
18
DINQ
TEST
CIN
LA
TZA3050
LAQ
LAQ
GND
CINQ
GND
ALRESET
9
10 11 12 13 14 15 16
17
MCE139
Fig.8 TZA3050 with DC-coupled laser and average loop control.
2002 Nov 06
16
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
13 PACKAGE OUTLINE
HBCC32: plastic, heatsink bottom chip carrier; 32 terminals; body 5 x 5 x 0.65 mm
SOT560-1
D
x
B
b
w M
1
w M
ball A1
index area
b
b
3
E
w M
b
w M
2
detail X
x
C
A
B
C
e
1
e
y
v
A
E
e
4
e
2
1
1
32
A
X
D
1
1
A
2
e
3
A
0
2.5
5 mm
scale
DIMENSIONS (mm are the original dimensions)
A
A
A
b
E
e
e
1
w
b
b
b
D
D
E
e
e
3
e
4
v
x
y
UNIT
1
2
1
1
2
3
1
2
max.
0.10 0.70 0.35 0.50 0.50 0.50 5.1
0.05 0.60 0.20 0.30 0.35 0.35 4.9
3.2 5.1
3.0 4.9
3.2
3.0
mm 0.80
0.15 0.15 0.05
0.5
4.2
4.2
4.15 4.15
0.2
REFERENCES
OUTLINE
VERSION
EUROPEAN
PROJECTION
ISSUE DATE
IEC
JEDEC
EIAJ
99-09-10
00-02-01
SOT560-1
MO-217
2002 Nov 06
17
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
14 SOLDERING
If wave soldering is used the following conditions must be
observed for optimal results:
14.1 Introduction to soldering surface mount
packages
• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our “Data Handbook IC26; Integrated Circuit Packages”
(document order number 9398 652 90011).
• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint
longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;
There is no soldering method that is ideal for all surface
mount IC packages. Wave soldering can still be used for
certain surface mount ICs, but it is not suitable for fine pitch
SMDs. In these situations reflow soldering is
recommended.
– smaller than 1.27 mm, the footprint longitudinal axis
must be parallel to the transport direction of the
printed-circuit board.
The footprint must incorporate solder thieves at the
downstream end.
14.2 Reflow soldering
• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
Several methods exist for reflowing; for example,
convection or convection/infrared heating in a conveyor
type oven. Throughput times (preheating, soldering and
cooling) vary between 100 and 200 seconds depending
on heating method.
Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 220 °C for
thick/large packages, and below 235 °C for small/thin
packages.
14.4 Manual soldering
Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.
14.3 Wave soldering
Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.
When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.
To overcome these problems the double-wave soldering
method was specifically developed.
2002 Nov 06
18
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
14.5 Suitability of surface mount IC packages for wave and reflow soldering methods
SOLDERING METHOD
PACKAGE(1)
WAVE
not suitable
REFLOW(2)
BGA, LBGA, LFBGA, SQFP, TFBGA, VFBGA
suitable
suitable
HBCC, HBGA, HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, HVQFN, not suitable(3)
HVSON, SMS
PLCC(4), SO, SOJ
LQFP, QFP, TQFP
SSOP, TSSOP, VSO
suitable
suitable
not recommended(4)(5) suitable
not recommended(6)
suitable
Notes
1. For more detailed information on the BGA packages refer to the “(LF)BGA Application Note” (AN01026); order a copy
from your Philips Semiconductors sales office.
2. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the “Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”.
3. These packages are not suitable for wave soldering. On versions with the heatsink on the bottom side, the solder
cannot penetrate between the printed-circuit board and the heatsink. On versions with the heatsink on the top side,
the solder might be deposited on the heatsink surface.
4. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.
5. Wave soldering is suitable for LQFP, TQFP and QFP packages with a pitch (e) larger than 0.8 mm; it is definitely not
suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.
6. Wave soldering is suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.
2002 Nov 06
19
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
15 DATA SHEET STATUS
DATA SHEET
STATUS(1)
PRODUCT
STATUS(2)(3)
LEVEL
DEFINITION
I
Objective data
Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
II
Preliminary data Qualification
This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
III
Product data
Production
This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Relevant changes will
be communicated via a Customer Product/Process Change Notification
(CPCN).
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
3. For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.
16 DEFINITIONS
17 DISCLAIMERS
Short-form specification
The data in a short-form
Life support applications
These products are not
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips
Semiconductors customers using or selling these products
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
at these or at any other conditions above those given in the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Right to make changes
Philips Semiconductors
reserves the right to make changes in the products -
including circuits, standard cells, and/or software -
described or contained herein in order to improve design
and/or performance. When the product is in full production
(status ‘Production’), relevant changes will be
Application information
Applications that are
communicated via a Customer Product/Process Change
Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these
products, conveys no licence or title under any patent,
copyright, or mask work right to these products, and
makes no representations or warranties that these
products are free from patent, copyright, or mask work
right infringement, unless otherwise specified.
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
no representation or warranty that such applications will be
suitable for the specified use without further testing or
modification.
2002 Nov 06
20
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
NOTES
2002 Nov 06
21
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
NOTES
2002 Nov 06
22
Philips Semiconductors
Preliminary specification
30 Mbits/s up to 1.25 Gbits/s
burst mode laser driver
TZA3050
NOTES
2002 Nov 06
23
Philips Semiconductors – a worldwide company
Contact information
For additional information please visit http://www.semiconductors.philips.com.
Fax: +31 40 27 24825
For sales offices addresses send e-mail to: sales.addresses@www.semiconductors.philips.com.
© Koninklijke Philips Electronics N.V. 2002
SCA74
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
403510/01/pp24
Date of release: 2002 Nov 06
Document order number: 9397 750 10204
厂商 型号 描述 页数 下载

RHOMBUS-IND

 		TZA1-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

NXP

 		TZA1000 QIC读写放大器[ QIC read-write amplifier ] 24 页

NXP

 		TZA1000T/N3 [ IC 1 CHANNEL READ WRITE AMPLIFIER CIRCUIT, PDSO24, 7.50 MM, PLASTIC, SOT-137-1, SOP-24, Drive Electronics ] 26 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.202776s
