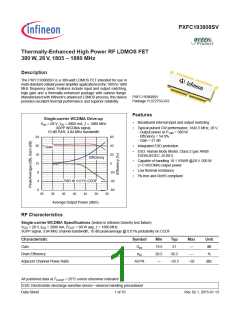

PXFC193808SV
Thermally-Enhanced High Power RF LDMOS FET
380 W, 28 V, 1805 – 1880 MHz
Description
The PXFC193808SV is a 380-watt LDMOS FET intended for use in
multi-standard cellular power amplifier applications in the 1805 to 1880
MHz frequency band. Features include input and output matching,
high gain and a thermally-enhanced package with earless flange.
PXFC193808SV
Package H-37275G-6/2
Manufactured with Infineon's advanced LDMOS process, this device
provides excellent thermal performance and superior reliability.
Features
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 2850 mA, ƒ = 1880 MHz
•
•
Broadband internal input and output matching
3GPP WCDMA signal,
Typical pulsed CW performance, 1842.5 MHz, 28 V,
10 dB PAR, 3.84 MHz bandwidth
- Output power at P
= 380 W
1dB
- Efficiency = 54.9%
- Gain = 21 dB
24
20
16
12
8
60
40
20
0
•
•
Integrated ESD protection
Gain
ESD: Human Body Model, Class 2 (per ANSI/
ESDA/JEDEC JS-001)
Efficiency
•
Capable of handling 10:1 VSWR @28 V, 200 W
(1-C WCDMA) output power
•
•
Low thermal resistance
-20
-40
-60
Pb-free and RoHS compliant
PAR @ 0.01% CCDF
4
c193808sv-gr1c
0
25
30
35
40
45
50
55
Average Output Power (dBm)
RF Characteristics
Single-carrier WCDMA Specifications (tested in Infineon Doherty test fixture)
= 28 V, I = 2880 mA, P = 80 W avg, ƒ = 1880 MHz.
V
DD
DQ
OUT
3GPP signal, 3.84 MHz channel bandwidth, 10 dB peak/average @ 0.01% probability on CCDF.
Characteristic
Gain
Symbol
Min
19.5
28.5
—
Typ
21
Max
—
Unit
dB
G
ps
Drain Efficiency
Adjacent Channel Power Ratio
ηD
30.3
–33.5
—
%
ACPR
–32
dBc
All published data at T
= 25°C unless otherwise indicated
CASE
ESD: Electrostatic discharge sensitive device—observe handling precautions!
Data Sheet 1 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
DC Characteristics (each side)
Characteristic
Conditions
Symbol
Min
65
—
Typ
—
Max
—
Unit
V
Drain-Source Breakdown Voltage
Drain Leakage Current
V
GS
= 0 V, I = 10 mA
V(
BR)DSS
DS
V
= 28 V, V = 0 V
I
I
—
1
µA
µA
µA
Ω
DS
DS
GS
DSS
DSS
V
= 63 V, V = 0 V
—
—
10
1
GS
Gate Leakage Current
On-State Resistance
Operating Gate Voltage
V
GS
= 10 V, V = 0 V
DS
I
—
—
GSS
V
GS
= 10 V, V = 0.1 V
DS
R
DS(on)
—
0.19
2.6
—
V
= 28 V, I
= 2.88 A
V
GS
2.3
2.9
V
DS
DQ
Maximum Ratings
Parameter
Symbol
Value
65
Unit
V
Drain-Source Voltage
Gate-Source Voltage
Operating Voltage
V
DSS
V
–6 to +10
0 to +32
225
V
GS
DD
V
V
Junction Temperature
Storage Temperature Range
T
J
°C
T
STG
–65 to +150
0.18
°C
Thermal Resistance (T
= 70°C, 280 W CW)
R
θJC
°C/W
CASE
Ordering Information
Type and Version
Order Code
Package and Description
Shipping
PXFC193808SV V1 R250 PXFC193808SVV1R250XTMA1
H-37275G-6/2, ceramic open-cavity, push-pull, earless Tape & Reel, 250 pcs
Data Sheet
2 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Typical Performance (data taken in an Infineon production test fixture)
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 2850 mA, ƒ = 1842.5 MHz
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 2850 mA, ƒ = 1805 MHz
3GPP WCDMA signal,
10 dB PAR, 3.84 MHz bandwidth
3GPP WCDMA signal,
10 dB PAR, 3.84 MHz bandwidth
24
20
16
12
8
60
40
20
0
24
20
16
12
8
60
40
20
0
Gain
Gain
Efficiency
Efficiency
-20
-40
-60
-20
-40
-60
PAR @ 0.01% CCDF
4
4
PAR @ 0.01% CCDF
0
c193808sv-gr1b
0
c193808sv-gr1a
25
30
35
40
45
50
55
25
30
35
40
45
50
55
Average Output Power (dBm)
Average Output Power (dBm)
Single-carrier WCDMA Broadband
VDD = 28 V, IDQ = 2850 mA, POUT = 49 dBm,
3GPP WCDMA signal, 10 dB PAR
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 2850 mA,
ƒ = 1805.0, 1842.5, 1880.0 MHz,
3GPP WCDMA signal, 10 dB PAR, 3.84 MHz BW
25
20
15
10
5
50
40
30
20
10
-10
-20
-30
-40
-50
-60
-70
60
50
40
30
20
10
0
1805.0 MHz
1842.5 MHz
1880.0 MHz
Gain
ACP Up & Low
Efficiency
Efficiency
c193808sv-gr3a
c193808sv-gr2
1700
1800
1900
2000
27
32
37
42
47
52
57
Average Output Power (dBm)
Frequency (MHz)
Data Sheet
3 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Typical Performance (cont.)
Pulsed CW Performance
VDD = 28 V, IDQ = 2850 mA
Single-carrier WCDMA Broadband
VDD = 28 V, IDQ = 2850 mA, POUT = 49 dBm,
3GPP WCDMA signal, 10 dB PAR
24
22
20
18
16
14
12
10
70
60
50
40
30
20
10
0
-10
-15
-20
-25
-30
-35
-40
0
Gain
-5
-10
-15
-20
-25
-30
Return Loss
ACP Up
1805.0 MHz
1842.5 MHz
1880.0 MHz
ACP Low
Efficiency
c193808sv-gr3b
c193808sv-gr4
1700
1800
1900
2000
37
42
47
52
57
Frequency (MHz)
Output Power (dBm)
Pulsed CW Performance
at selected VDD
IDQ = 2850 mA, ƒ = 1805 MHz
Pulsed CW Performance
at selected VDD
IDQ = 2850 mA, ƒ = 1842.5 MHz
24
22
20
18
16
14
12
10
70
60
50
40
30
20
10
0
24
22
20
18
16
14
12
10
70
60
50
40
30
20
10
0
Gain
Gain
VDD = 24 V
VDD = 28 V
VDD = 24 V
VDD = 28 V
V
DD = 32 V
V
DD = 32 V
Efficiency
Efficiency
c193808sv-gr5a
c193808sv-gr5b
33
37
41
45
49
53
57
61
33
37
41
45
49
53
57
61
Output Power (dBm)
Output Power (dBm)
Data Sheet
4 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Typical Performance (cont.)
Pulsed CW Performance
CW Performance Small Signal
at selected VDD
Gain & Input Return Loss
IDQ = 2850 mA, ƒ = 1880 MHz
VDD = 28 V, IDQ = 3500 mA
24
22
20
18
16
14
12
10
70
60
50
40
30
20
10
0
24
22
20
18
16
14
12
10
0
-5
Gain
-10
-15
-20
-25
-30
-35
VDD = 24 V
VDD = 28 V
Gain
V
DD = 32 V
Efficiency
Return Loss
c193808sv-gr5c
c193808sv-gr6
33
37
41
45
49
53
57
61
1650 1700 1750 1800 1850 1900 1950 2000
Frequency (MHz)
Output Power (dBm)
See next page for circuit impedance and device load pull performance
Data Sheet
5 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Broadband Circuit Impedance
Z Source
Z Load
D1
S
G1
G2
D2
Frequency
Z Source
Z Load
[MHz]
1805.0
1842.5
1880.0
[Ω]
[Ω]
0.59 –j5.21
0.55 –j5.14
0.55 –j5.07
1.87 –j2.27
1.92 –j2.38
1.94 –j2.54
Load Pull Performance
D
Z Source
Z Load
G
S
Single side pulsed CW signal: 10 µsec, 10% duty cycle; 28 V, 1440 mA
P
3dB
Class AB
Max Output Power
Max Efficiency
Freq
[MHz]
Zin
[Ω]
Zo
[Ω]
Gain
[dB]
P
[dBm]
P
[W]
PAE
[%]
Zo
[Ω]
Gain
[dB]
P
[dBm]
P
OUT
[W]
Efficiency
[%]
OUT
OUT
OUT
1805.0
1842.5
1880.0
0.90 – j6.31
1.26 – j7.08
1.86 – j8.27
5.32 – j5.58
5.67 – j5.06
6.17 – j4.71
17.6
17.5
18.0
54.64
54.57
54.52
291
286
283
55.8
55.8
54.8
3.61 – j3.45
3.60 – j3.43
3.52 – j3.70
19.3
19.2
19.6
53.81
53.77
53.73
240
238
236
64.0
63.7
63.2
Single side pulsed CW signal: 10 µsec, 10% duty cycle; 28 V, 1440 mA
P
1dB
Class AB
Max Output Power
Max Efficiency
Freq
[MHz]
Zin
[Ω]
Zo
[Ω]
Gain
[dB]
P
P
PAE
[%]
Zo
[Ω]
Gain
[dB]
P
P
Efficiency
[%]
OUT
OUT
OUT
OUT
[W]
[dBm]
53.90
53.86
53.83
[W]
245
243
241
[dBm]
52.44
52.36
52.67
1805.0
1842.5
1880.0
0.90 – j6.31
1.26 – j7.08
1.86 – j8.27
4.22 – j5.43
4.30 – j5.28
5.04 – j5.46
19.8
19.7
20.0
54.4
55.0
53.0
2.89 – j2.95
2.80 – j3.08
2.79 – j3.85
21.9
21.8
21.8
175
172
185
63.1
62.8
62.1
Data Sheet
6 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Reference Circuit, 1805 MHz to 1880 MHz
DUT
PXFC193808SV V1
Reference Circuit Part No. LTN/PXFC193808SV V1
PCB
Rogers 4350, 0.508 mm [.020"] thick, 2 oz. copper, εr = 3.66
Find Gerber files for this reference circuit on the Infineon Web site at www.infineon.com/rfpower
(60)
RO4350, .020
(62)
RO4350, .020
C804
R802
C802
R804
C801
R803
C215 C213
VDD
S2
S3
C210
S1
R801
C803
C101
C216 C214
L101
R101
C203
C104
C106
C105
C202
C209
C211
C212
RF_IN
RF_OUT
C217
C107
C208
R102
C103
C201 C206
VDD
L102
C102
C207
C205 C204
PXFC193808FV_IN_01
PXFC193808FV_OUT_01A
p
x f c 1 9 3 8 0 8 f v _ C D _ 1 - 1 3 - 1 5
Reference circuit assembly diagram (not to scale)
Data Sheet
7 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Reference Circuit (cont.)
Reference circuit bill of Materials
Component
Input
Description
Manufacturer
Part Number
C101, C102
C104, C103
C106, C105
C107
Capacitor, 0.7 pF
ATC
ATC100A0R7JT250XT
Capacitor, 10 µF
Murata Electronics North America LLL31BC70G106MA01L
Capacitor, 18 pF
ATC
ATC800A180GT250XT
ATC100A1R0CW150XB
UMK325C7106MM-T
ECJ-1VB1H102K
Capacitor, 1.0 pF
ATC
C801, C804
C802
Capacitor, 10 µF
Taiyo Yuden
Panasonic
Capacitor, 0.001 µF
Capacitor, 1 µF
C803
Murata Electronics North America GRM21BR71H105KA12L
L101, L102
R101, R102
R801
RF chip inductor, 22 nH
Chip resistor, 10 ohms
Chip resistor, 100 ohms
Chip resistor, 1.3K ohms
Chip resistor, 10 ohms
Chip resistor, 1.2K ohms
Potentiometer, 2K ohms
Transistor
ATC
0805WL220JT
ERJ-3GEYJ100V
ERJ-3GEYJ101V
ERJ-3GEYJ132V
ERJ-3GEYJ100V
ERJ-3GEYJ122V
3224W-1-202E
BCP56
Panasonic – ECG
Panasonic – ECG
Panasonic – ECG
Panasonic – ECG
Panasonic – ECG
Bourns Inc.
R802
R803
R804
S1
S2
Fairchild Semiconductor
Texas Instruments
S3
Voltage regulator
LM78L05ACM
Output
C201, C205, C215, C216
C202, C209
C203, C208
C204, C206, C213, C214
C207, C210
C211, C212
C217
Capacitor, 10 µF
Capacitor, 0.5 pF
Capacitor, 2.1 pF
Capacitor, 4.7 µF
Capacitor, 220 µF
Capacitor, 18 pF
Capacitor, 0.3 pF
Taiyo Yuden
ATC
UMK325C7106MM-T
ATC100A0R5CW150XB
ATC800A2R1BT250XT
ATC
Murata Electronics North America GRM32ER71H475KA88L
Panasonic – ECG
EEE-FP1V221AP
ATC
ATC
ATC600F0R8BT250XT
ATC100A0R3CW150XB
Pinout Diagram (top view)
S
D1
D2
V2
V1
Pin
D1
D2
G1
G2
S
Description
Drain Device 1 (Main)
Drain Device 2 (Peak)
Gate Device 1 (Main)
Gate Device 2 (Peak)
Source (flange)
G2
G1
Lead connections for PXFC193808SV
Data Sheet
8 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV
Package Outline Specifications
Package H-37275G-6/2
30.61
[1.205]
+0.13
-0.08
2X 0.13
(13.72
+.005
-.003
[.540])
.005
[
]
2X'45° x .64
6X 1.50±0.25
[.059±.010]
2X (1.27
[.050])
[.025]
(SPH V1, V2)
2X 30°
2X 2.22
[.087]
2X 2.29
[.090]
+0.25
6X 1.00
C
L
-0.10
+.010
.039
[
]
-.004
V1
D1
D2
V2
10.16
[.400]
(15.14±0.50
[.596±.020])
C
C
L
L
9.14
[.360]
G1
G2
+.38
-.13
4X R0.51
C
C
L
L
+.015
R.020
[
]
-.005
4X 12.45
[.490]
5°±3°
2X 26.16
[1.030]
4X 0.13±0.08
[.005±.003]
(SPH D1, D2, G1, G2)
+0.25
31.24±0.28
4.58
-0.13
[1.230±.011]
+.010
.180
[
]
C
-.005
L
(1.63
[0.064])
H-37275G-6/2_gw_po_03.1_07-24-2013
32.26
[1.270]
S
Diagram Notes—unless otherwise specified:
1. Interpret dimensions and tolerances per ASME Y14.5M-1994.
2. Primary dimensions are mm. Alternate dimensions are inches.
3. All tolerances ± 0.127 [.005].
4. Pins: D1, D2 – drain, G1, G2 – gate, V1, V2 – V , S (flange)–source.
DD
5. Lead thickness: 0.13 +0.051/–0.025 [.005 +.002/–.001].
6. Gold plating thickness: 1.14 ±0.38 micron [45 ±15 microinch].
Find the latest and most complete information tabout products and packaging at the Infineon Internet page
www.infineon.com/rfpower
Data Sheet
9 of 10
Rev. 02.1, 2015-01-13
PXFC193808SV V1
Revision History
Revision Date
Data Sheet Page
Subjects (major changes at each revision)
01
02
2014-07-24
2015-01-09
Advance
All
All
Data Sheet reflects advance specification for product development
Production
Data Sheet represents released product specifications, including reference circuit and updated
performance information.
02.1
2015-01-13
Production
8
BOM updated with correct part numbers and manufacturers.
We Listen toYour Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send your proposal (including a reference to this document) to:
(highpowerRF@infineon.com)
To request other information, contact us at:
+1 877 465 3667 (1-877-GO-LDMOS) USA
or +1 408 776 0600 International
Edition 2015-01-13
Published by
Infineon Technologies AG
85579 Neubiberg, Germany
© 2014 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics.
With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the
application of the device, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind,
including without limitation, warranties of non-infringement of intellectual property rights of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com/rfpower).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the types in question,
please contact the nearest Infineon Technologies Office.
Infineon Technologies components may be used in life-support devices or systems only with the express written approval of In-
fineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device
or system or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be
implanted in the human body or to support and/or maintain and sustain and/or protect human life. If they fail, it is
reasonable to assume that the health of the user or other persons may be endangered.
Data Sheet
10 of 10
Rev. 02.1, 2015-01-13
厂商 型号 描述 页数 下载

ETC

 		PXF-10.115.1 中继处理频率\n[ RELAY PROCESS FREQUENCY ] 2 页

ETC

 		PXF-10.230.1 中继处理频率\n[ RELAY PROCESS FREQUENCY ] 2 页

ETC

 		PXF-10.924.1 中继处理频率\n[ RELAY PROCESS FREQUENCY ] 2 页

INFINEON

 		PXF4222 互通控制器下一代[ Interworking Controller Next Generation ] 2 页

INFINEON

 		PXF4222E 互通控制器下一代[ Interworking Controller Next Generation ] 2 页

INFINEON

 		PXF4225 [ Support Circuit, 1-Func, PBGA388, PLASTIC, BGA-388 ] 203 页

INFINEON

 		PXF4225E ATM互通控制器[ ATM Interworking Controller ] 2 页

INFINEON

 		PXF4333 反导3G ATM BUF FER经理[ ABM 3G ATM Buf fer Manager ] 361 页

INFINEON

 		PXF4333V11 反导3G ATM BUF FER经理[ ABM 3G ATM Buf fer Manager ] 361 页

INFINEON

 		PXF4336 反导高级ATM BUF FER经理[ ABM Premium ATM Buf fer Manager ] 425 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.202853s
