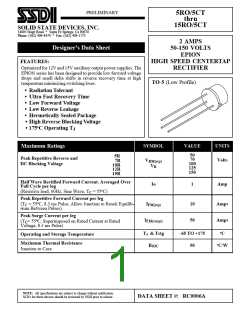

PRELIMINARY
5RO/5CT
thru
15RO/5CT
SOLID STATE DEVICES, INC.
14005 Stage Road * Santa Fe Springs, Ca 90670
Phone: (562) 404-4474 * Fax: (562) 404-1773
2 AMPS
50-150 VOLTS
Designer's Data Sheet
EPION
HIGH SPEED CENTERTAP
RECTIFIER
FEATURES:
Optimized for 12V and 15V auxiliary output power supplies. The
EPION series has been designed to provide low forward voltage
drops and small delta shifts in reverse recovery time at high
temperature minimizing switching loses.
TO-5 (Low Profile)
• Radiation Tolerant
• Ultra Fast Recovery Time
• Low Forward Voltage
• Low Reverse Leakage
• Hermetically Sealed Package
• High Reverse Blocking Voltage
• 175oC Operating TJ
SYMBOL
VALUE
UNITS
Volts
Maximum Ratings
50
70
100
125
150
5R
Peak Repetitive Reverse and
7R
V
RM(rep)
DC Blocking Voltage
10R
12R
15R
V
R
Half Wave Rectified Forward Current. Averaged Over
Full Cycle per leg
Io
1
Amp
(Resistive load, 60Hz, Sine Wave, T = 55oC)
C
Peak Repetitive Forward Current per leg
(T = 55oC, 8.3 ms Pulse, Allow Junction to Reach Equilib-
I
10
50
Amps
Amps
C
FM(rep)
rium Between Pulses)
Peak Surge Current per leg
(T = 55oC, Superimposed on Rated Current at Rated
I
FM(surge)
C
Voltage, 8.3 ms Pulse)
TJ & Tstg
-65 TO +175
50
oC
Operating and Storage Temperature
Maximum Thermal Resistance
Junction to Case
R
2JC
oC/W
NOTE: All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RC0006A
