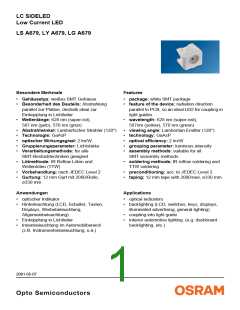

LC SIDELED
Low Current LED
LS A679, LY A679, LG A679
Besondere Merkmale
Features
• Gehäusetyp: weißes SMT Gehäuse
• Besonderheit des Bauteils: Abstrahlung
parallel zur Platine, deshalb ideal zur
Einkopplung in Lichtleiter
• package: white SMT package
• feature of the device: radiation direction
parallel to PCB, so an ideal LED for coupling in
light guides
• Wellenlänge: 628 nm (super-rot),
587 nm (gelb), 570 nm (grün)
• Abstrahlwinkel: Lambertscher Strahler (120°)
• Technologie: GaAsP
• wavelength: 628 nm (super-red),
587nm (yellow), 570 nm (green)
• viewing angle: Lambertian Emitter (120°)
• technology: GaAsP
• optischer Wirkungsgrad: 2 lm/W
• Gruppierungsparameter: Lichtstärke
• Verarbeitungsmethode: für alle
SMT-Bestücktechniken geeignet
• Lötmethode: IR Reflow Löten und
Wellenlöten (TTW)
• optical efficiency: 2 lm/W
• grouping parameter: luminous intensity
• assembly methods: suitable for all
SMT assembly methods
• soldering methods: IR reflow soldering and
TTW soldering
• Vorbehandlung: nach JEDEC Level 2
• Gurtung: 12 mm Gurt mit 2000/Rolle,
ø330 mm
• preconditioning: acc. to JEDEC Level 2
• taping: 12 mm tape with 2000/reel, ø330 mm
Anwendungen
Applications
• optischer Indikator
• optical indicators
• Hinterleuchtung (LCD, Schalter, Tasten,
Displays, Werbebeleuchtung,
Allgemeinbeleuchtung)
• backlighting (LCD, switches, keys, displays,
illuminated advertising, general lighting)
• coupling into light guide
• Einkopplung in Lichtleiter
• Innenbeleuchtung im Automobilbereich
(z.B. Instrumentenbeleuchtung, u.ä.)
• interior automotive lighting. (e.g. dashboard
backlighting, etc.)
2001-05-07
1
LS A679, LY A679, LG A679
Typ
Emissions-
farbe
Farbe der
Lichtaustritts-
fläche
Lichtstärke
Lichtstrom Bestellnummer
Type
Color of
Emission
Color of the
LightEmitting Intensity
Luminous
Luminous
Flux
Ordering Code
Area
IF = 2 mA
IV (mcd)
IF = 2 mA
ΦV (mlm)
LS A679-D2E2-1 super-red
LS A679-E2F2-1
LS A679-F2G2-1
colorless clear 0.56 ... 1.12
0.90 ... 1.80
2.5 (typ.)
3.9 (typ.)
6.1 (typ.)
Q62703-Q5076
Q62703-Q5077
Q62703-Q5078
1.40 ... 2.80
LY A679-D2E2-1 yellow
LY A679-E2G1-1
colorless clear 0.56 ... 1.12
0.90 ... 2.24
2.5 (typ.)
4.4 (typ.)
Q62703-Q5113
Q62703-Q5114
LG A679-E1F1-1 green
LG A679-F1G2-1
colorless clear 0.71 ... 1.40
1.12 ... 2.80
3.1 (typ.)
5.5 (typ.)
Q62703-Q5002
Q62703-Q5003
Anm.: -1 gesamter Farbbereich
Die Standardlieferform von Serientypen beinhaltet eine untere bzw. eine obere Familiengruppe,
die aus nur 3 bzw. 4 Halbgruppen besteht. Einzelne Halbgruppen sind nicht erhältlich.
In einer Verpackungseinheit / Gurt ist immer nur eine Halbgruppe enthalten.
Note: -1 Total color tolerance range
The standard shipping format for serial types includes a lower or upper family group of 3 or 4
individual groups. Individual half groups are not available.
No packing unit / tape ever contains more than one luminous intensity group.
2001-05-07
2
LS A679, LY A679, LG A679
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
– 40 … + 100
– 40 … + 100
+ 100
°C
°C
°C
mA
A
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlassstrom
Forward current
IF
7.5
Stoßstrom
IFM
0.15
Surge current
t ≤ 10 µs, D = 0.005
Sperrspannung
Reverse voltage
VR
5
V
Leistungsaufnahme
Power consumption
TA ≤ 25 °C
Ptot
20
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
430
200
K/W
K/W
Junction/solder point
Montage auf PC-Board FR 4 (Padgröße ≥ 16 mm2)
mounted on PC board FR 4 (pad size ≥ 16 mm 2)
2001-05-07
3
LS A679, LY A679, LG A679
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LY
LG
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 2 mA
Dominantwellenlänge 1)
Dominant wavelength
IF = 2 mA
(typ.) λpeak
635
586
572
nm
nm
nm
(typ.) λdom
(typ.) ∆λ
628
± 6
587
+8/–7 ± 6
570
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 2 mA
45
45
25
Durchlassspannung 2)
Forward voltage
IF = 2 mA
(typ.) VF
(max.) VF
1.8
2.5
2.0
2.6
1.9
2.5
V
V
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
(typ.) 2ϕ
120
120
120
Grad
deg.
Sperrstrom
Reverse current
VR = 5 V
(typ.) IR
(max.) IR
0.01
10
0.01
10
0.01
10
µA
µA
Temperaturkoeffizient von λpeak
Temperature coefficient of λpeak
IF = 2 mA; –10°C ≤ T ≤ 100°C
(typ.) TCλpeak
(typ.) TCλdom
(typ.) TCV
0.11
0.07
– 2.0
2
0.10
0.07
– 1.6
2
0.11
0.07
– 1.9
2
nm/K
nm/K
mV/K
lm/W
Temperaturkoeffizient von λdom
Temperature coefficient of λdom
IF = 2 mA; –10°C ≤ T ≤ 100°C
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 2 mA; –10°C ≤ T ≤ 100°C
Optischer Wirkungsgrad
(typ.) ηopt
Optical efficiency
IF = 2 mA
1)
Wellenlängen werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±1 nm ermittelt.
Wavelengths are tested at a current pulse duration of 25 ms and an accuracy of ±1 nm.
2)
Spannungswerte werden mit einer Stromeinprägedauer von 1 ms und einer Genauigkeit von ±0,1 V ermittelt.
Voltages are tested at a current pulse duration of 1 ms and an accuracy of ±0.1 V.
2001-05-07
4
LS A679, LY A679, LG A679
Helligkeits-Gruppierungsschema
Luminous Intensity Groups
Lichtgruppe
Lichtstärke
Lichtstrom
Luminous Intensity Group
Luminous Intensity
Luminous Flux
IV (mcd)
ΦV (mlm)
D2
E1
E2
F1
F2
G1
G2
0.56 ... 0.71
0.71 ... 0.90
0.90 ... 1.12
1.12 ... 1.40
1.40 ... 1.80
1.80 ... 2.24
2.24 ... 2.80
2.0 (typ.)
2.5 (typ.)
3.0 (typ.)
3.8 (typ.)
4.8 (typ.)
6.0 (typ.)
7.6 (typ.)
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ± 11% ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ± 11%.
2001-05-07
5
LS A679, LY A679, LG A679
Relative spektrale Emission Irel = f (λ), TA = 25 °C, IF = 2 mA
Relative Spectral Emission
V(λ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL01210
100
%
Irel
80
Vλ
60
40
20
0
400
450
500
550
600
650
700
nm
λ
Abstrahlcharakteristik Irel = f (ϕ)
Radiation Characteristic
OHL01660
40˚
30˚
20˚
10˚
0˚
ϕ
1.0
0.8
0.6
0.4
0.2
0
50˚
60˚
70˚
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
20˚
40˚
60˚
80˚
100˚
120˚
2001-05-07
6
LS A679, LY A679, LG A679
Durchlassstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(2 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL01207
OHL01208
10 1
10 2
IV
IF
mA
IV(2 mA)
10 0
5
10 1
super-red
green
5
yellow
10 -1
green
yellow
super-red
5
10 0
5
10 -2
5
10 -3
10 -1
10 -1
5
10 0
5
10 1
10 2
1
1.4
1.8
2.2
2.6
3
3.4
V
mA
IF
VF
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 2 mA
OHL01675
OHL01082
2
8
IV
mA
TS
IF
IV(25 ˚C)
7
6
5
4
3
2
1
0
1.6
TA
1.2
yellow
green
0.8
super-red
0.4
TA temp. ambient
TS temp. solder point
0
0
20
40
60
80 ˚C 100
0
20
40
60
80 ˚C 100
TA
T
2001-05-07
7
LS A679, LY A679, LG A679
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 25 °C
OHL01278
10 3
tP
IF
mA
tP
IF
D
= T
T
D
=
0.005
0.01
0.02
0.05
0.1
10 2
5
0.2
0.5
10 1
5
DC
10 0
10-5
10-4 10-3 10-2 10-1
100 s 101
tp
2001-05-07
8
LS A679, LY A679, LG A679
Maßzeichnung
Package Outlines
(2.4 (0.094))
(2.85 (0.112))
1.1 (0.043)
0.9 (0.035)
Anode
2.54 (0.100)
spacing
Cathode
(1.4 (0.055))
Cathode marking
(R1)
4.2 (0.165)
3.8 (0.150)
GPLY6880
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Kathodenkennung:
Cathode mark:
abgeschrägte Ecke
bevelled edge
Gewicht / Approx. weight: 40 mg
2001-05-07
9
LS A679, LY A679, LG A679
Lötbedingungen
Vorbehandlung nach JEDEC Level 2
Soldering Conditions Preconditioning acc. to JEDEC Level 2
IR-Reflow Lötprofil
(nach IPC 9501)
IR Reflow Soldering Profile (acc. to IPC 9501)
OHLY0597
300
˚C
250
200
150
100
50
T
240-245 ˚C
10-40 s
183 ˚C
120 to 180 s
Ramp-down rate up to 6 K/s
Defined for Preconditioning: up to 6 K/s
Ramp-up rate up to 6 K/s
Defined for Preconditioning: 2-3 K/s
0
0
50
100
150
200
s
250
t
2001-05-07
10
LS A679, LY A679, LG A679
Wellenlöten (TTW) (nach CECC 00802)
TTW Soldering
(acc. to CECC 00802)
OHLY0598
300
C
10 s
Normalkurve
standard curve
250
200
150
100
50
T
235 C ... 260 C
Grenzkurven
limit curves
2. Welle
2. wave
1. Welle
1. wave
ca 200 K/s
2 K/s
5 K/s
100 C ... 130 C
Zwangskühlung
2 K/s
forced cooling
0
0
50
100
150
200
s
250
t
2001-05-07
11
LS A679, LY A679, LG A679
Empfohlenes Lötpaddesign IR Reflow Löten
Recommended Solder Pad
IR Reflow Soldering
4.2 (0.165)
1.7 (0.067)
Padgeometrie für
verbesserte Wärmeableitung
Paddesign for
improved heat dissipation
Pick up Area
Lötstopplack
Solder resist
Cu Fläche > 16 mm2 per pad
Cu-area
OHPY1302
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gurtung / Polarität und Lage
Verpackungseinheit 2000/Rolle, ø330 mm
Method of Taping / Polarity and Orientation Packing unit 2000/reel, ø330 mm
4 (0.157)
1.5 (0.059)
2 (0.079)
C
A
4.25 (0.167)
8 (0.315)
Cathode identification
OHAY2273
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2001-05-07 12
LS A679, LY A679, LG A679
Revision History: 2001-05-07
Previous Version: 2001-03-14
Page
Subjects (major changes since last revision)
Recommended Solder Pad
12
Published by OSRAM Opto Semiconductors GmbH & Co. OHG
Wernerwerkstrasse 2, D-93049 Regensburg
© All Rights Reserved.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics.
Terms of delivery and rights to change design reserved. Due to technical requirements components may contain
dangerous substances. For information on the types in question please contact our Sales Organization.
Packing
Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office.
By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing
material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs
incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose! Critical
components 1 may only be used in life-support devices or systems 2 with the express written approval of OSRAM OS.
1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected
to cause the failure of that life-support device or system, or to affect its safety or the effectiveness of that device or
system.
2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain
and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered.
2001-05-07
13
厂商 型号 描述 页数 下载

OSRAM

 		LYA670 铅（Pb ）免费产品 - 符合RoHS[ Lead (Pb) Free Product - RoHS Compliant ] 15 页

INFINEON

 		LYA670-HK SIDELED[ SIDELED ] 8 页

INFINEON

 		LYA670-J SIDELED[ SIDELED ] 8 页

INFINEON

 		LYA670-J1K1-1 [ Optoelectronic Device ] 13 页

INFINEON

 		LYA670-J1K1-26 [ Visible LED, Clear ] 13 页

INFINEON

 		LYA670-JM SIDELED[ SIDELED ] 8 页

INFINEON

 		LYA670-K SIDELED[ SIDELED ] 8 页

INFINEON

 		LYA670-K1L2-1 [ Optoelectronic Device ] 13 页

INFINEON

 		LYA670-K1L2-26 [ Visible LED, Clear ] 13 页

INFINEON

 		LYA670-L SIDELED[ SIDELED ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.172391s
