F
E
D
C
B
A
0,5
0,3
3,3 +-
6,35
NOTES:
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
`
0,3
( 5 : 1 )
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
D
D
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
SEALING
COMPOUND
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
5. METAL BRACKETS: ZINC DIE CAST;
300µin COPPER/ 40-120µin NICKEL/120-200µin TIN
6. THREADED INSERTS: COPPER ALLOY;
min. 200µin TIN over 80µin NICKEL
7. HEXLOCKING SCREWS: STAINLESS STEEL
8. FRAME: ZINC DIE CAST; NICKEL PLATED
9. O-RING: SILICON; BLUE
10. RUBBER GASKET: TPE
11. SEALING COMPOUND: PUR; BLUE
12. P.C.B. HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT
ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW 35N cm (3.1 in.LB)
/ max. 40N cm (3.5 in.LB)
14. CONNECTOR IS PART MARKED: 6STD15P
o
T99S20X CONEC ABC (see note 4)
0,22
0,03
8,26 +-
C
C
0,3
0
47,7 +-
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATOR
0,13
33,3 +- 0,12
POS. 1
POS. 9
0,2
25,17 +- 0,05
METAL BRACKET
B
B
6STD15P
o
T99S20X
SEE NOTE 8
O-RING
CONEC ABC
4-40 UNC
SEE NOTE 14
SW 4,8
4-40 UNC
2:1 (5:1)
scale:
tolerance
material:
see notes
AT ALL TIMES WATER RESISTANT
CONNECTORS NOT IN USE
SHOULD BE COVERED
WITH A CONEC WATER
RESISTANT CAP
dim. in mm
A
A
date
name

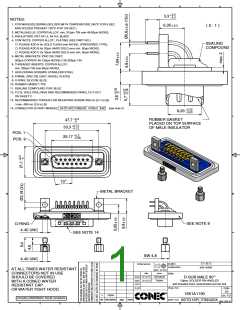

title:
drawn 12.10.12 Henneboel
D-SUB MALE 90°
15pos. SOLDER PIN ANGLED
appd.
norm
d-old
12.10.12
Fischer
with threaded insert, metal bracket and hex bolt
dwg no:
DIN-
A3
1/2
OR WATER TIGHT HOOD.
R
15K1A1190
6STD15P T99S20X (see note 4)
a
Original
sh:
Directive 2002/95/EC RoHS compliant
rev. description
name
part no:
date
o
F
E
D
C
B
A
