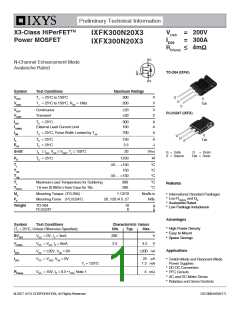

Preliminary Technical Information
X3-Class HiPerFETTM
Power MOSFET
VDSS = 200V
ID25 = 300A
RDS(on) 4m
IXFK300N20X3
IXFX300N20X3
N-Channel Enhancement Mode
Avalanche Rated
TO-264 (IXFK)
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25C to 150C
200
200
V
V
G
D
VDGR
TJ = 25C to 150C, RGS = 1M
Tab
S
VGSS
VGSM
Continuous
Transient
20
30
V
V
PLUS247 (IXFX)
ID25
IL(RMS)
TC = 25C
External Lead Current Limit
300
160
A
A
IDM
TC = 25C, Pulse Width Limited by TJM
700
A
G
D
IA
TC = 25C
TC = 25C
150
3.5
A
J
Tab
S
EAS
dv/dt
PD
IS IDM, VDD VDSS, TJ 150°C
TC = 25C
20
V/ns
W
G = Gate
S = Source
D
= Drain
Tab = Drain
1250
TJ
-55 ... +150
150
C
C
C
TJM
Tstg
-55 ... +150
TL
TSOLD
Maximum Lead Temperature for Soldering
1.6 mm (0.062in.) from Case for 10s
300
260
°C
°C
Features
Md
FC
Mounting Torque (TO-264)
Mounting Force (PLUS247)
1.13/10
Nm/lb.in
N/lb
International Standard Packages
Low RDS(ON) and QG
Avalanche Rated
20..120 /4.5..27
Weight
TO-264
PLUS247
10
6
g
g
Low Package Inductance
Advantages
Symbol
Test Conditions
Characteristic Values
High Power Density
Easy to Mount
Space Savings
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max.
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 3mA
VDS = VGS, ID = 8mA
VGS = 20V, VDS = 0V
VDS = VDSS, VGS = 0V
200
V
2.5
4.5
V
Applications
200 nA
IDSS
25 A
Switch-Mode and Resonant-Mode
Power Supplies
DC-DC Converters
PFC Circuits
AC and DC Motor Drives
TJ = 125C
1.5 mA
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
4 m
Robotics and Servo Controls
DS100844B(9/17)
© 2017 IXYS CORPORATION, All Rights Reserved
IXFK300N20X3
IXFX300N20X3
TO-264 Outline
Symbol
Test Conditions
Characteristic Values
A
E
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max
Q
S
gfs
VDS = 10V, ID = 60A, Note 1
Gate Input Resistance
80
135
S
R
D
Q1
RGi
1.8
R1
1
2
3
L1
Ciss
Coss
Crss
23.8
4.0
nF
nF
pF
VGS = 0V, VDS = 25V, f = 1MHz
L
3.2
c
b
A1
b1
b2
Effective Output Capacitance
e
x2
Co(er)
Co(tr)
1640
5640
pF
pF
Energy related
Time related
VGS = 0V
DS = 0.8 • VDSS
0P
4
V
Terminals:
1
= Gate
2,4 Drain
= Source
=
3
td(on)
tr
td(off)
tf
44
43
ns
ns
ns
ns
Resistive Switching Times
GS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
V
184
13
RG = 1(External)
Qg(on)
Qgs
375
117
94
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
RthJC
RthCS
0.10 C/W
C/W
0.15
Source-Drain Diode
PLUS 247TM Outline
A
E1
E
Q
A2
Symbol
Test Conditions
Characteristic Values
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max
D2
R
D
D1
IS
VGS = 0V
300
A
A
4
1
2
3
ISM
VSD
Repetitive, pulse Width Limited by TJM
IF = 100A, VGS = 0V, Note 1
1200
1.4
L1
V
L
trr
QRM
IRM
172
1.1
12.8
ns
IF = 150A, -di/dt = 100A/μs
b
A1
e
μC
3 PLCS
C
2 PLCS
b2 2 PLCS
VR = 100V
b4
A
Terminals: 1 - Gate
2,4 - Drain
3 - Source
Note 1. Pulse test, t 300s, duty cycle, d 2%.
PRELIMINARY TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are
derived from a subjective evaluation of the design, based upon prior knowledge and experi-
ence, and constitute a "considered reflection" of the anticipated result. IXYS reserves the right
to change limits, test conditions, and dimensions without notice.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,860,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123B1
6,306,728B1
6,404,065B1
6,534,343
6,583,505
6,683,344
6,710,405B2 6,759,692
6,710,463
6,727,585
7,005,734B2 7,157,338B2
7,063,975B2
6,771,478B2 7,071,537
IXFK300N20X3
IXFX300N20X3
Fig. 2. Extended Output Characteristics @ TJ = 25oC
Fig. 1. Output Characteristics @ TJ = 25oC
300
250
200
150
100
50
900
800
700
600
500
400
300
200
100
0
V
= 10V
GS
9V
V
= 10V
9V
GS
8V
7V
8V
7V
6V
6V
5V
5V
0
0
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0
2
4
6
8
10
12
14
16
18
20
22
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 150A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125oC
300
250
200
150
100
50
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
V
= 10V
GS
V
= 10V
GS
9V
8V
I
= 300A
D
I
= 150A
D
7V
6V
5V
0
-50
-25
0
25
50
75
100
125
150
0.4
0.8
1.2
1.6
2
2.4
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 150A Value vs.
Drain Current
Fig. 6. Normalized Breakdown & Threshold Voltages
vs. Junction Temperature
3.5
3.0
2.5
2.0
1.5
1.0
0.5
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
V
= 10V
GS
BV
DSS
o
T = 125 C
J
o
V
T = 25 C
J
GS(th)
-60
-40
-20
0
20
40
60
80
100
120
140
160
100
200
300
400
500
600
700
800
900
TJ - Degrees Centigrade
ID - Amperes
© 2017 IXYS CORPORATION, All Rights Reserved
IXFK300N20X3
IXFX300N20X3
Fig. 7. Maximum Drain Current vs. Case Temperature
Fig. 8. Input Admittance
400
350
300
250
200
150
100
50
180
160
140
120
100
80
External Lead Current Limit
o
T
J
= 125 C
60
o
25 C
o
40
- 40 C
20
0
0
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
-50
-25
0
25
50
75
100
125
350
350
150
400
400
TC - Degrees Centigrade
VGS - Volts
Fig. 10. Forward Voltage Drop of Intrinsic Diode
Fig. 9. Transconductance
400
350
300
250
200
150
100
50
800
700
600
500
400
300
200
100
0
o
T = - 40 C
J
o
25 C
o
125 C
o
T = 125 C
J
o
T = 25 C
J
0
0
50
100
150
200
250
300
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
VSD - Volts
ID - Amperes
Fig. 12. Capacitance
Fig. 11. Gate Charge
100,000
10,000
1,000
100
10
9
8
7
6
5
4
3
2
1
0
V
= 100V
DS
C
C
iss
I
I
= 150A
= 10mA
D
G
oss
C
rss
10
= 1 MHz
f
1
0
50
100
150
200
250
300
1
10
100
1,000
VDS - Volts
QG - NanoCoulombs
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXFK300N20X3
IXFX300N20X3
Fig. 13. Output Capacitance Stored Energy
Fig. 14. Forward-Bias Safe Operating Area
1000
100
10
30
25
20
15
10
5
R
Limit
)
DS(
on
25μs
100μs
External Lead
Current Limit
1ms
10ms
1
o
T = 150 C
J
100ms
DC
o
T
C
= 25 C
Single Pulse
0
0.1
0
50
100
150
200
1
10
100
1,000
VDS - Volts
VDS - Volts
Fig. 15. Maximum Transient Thermal Impedance
aaaaa
0.2
0.1
0.01
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
© 2017 IXYS CORPORATION, All Rights Reserved
IXYS REF: F_300N20X3 (29-S202) 6-22-17
