IWL-C5R35F-TNT

型号：

IWL-C5R35F-TNT

品牌：

DBLECTRO[ DB LECTRO INC ]

页数：

9 页

PDF大小：

415 K

下载PDF手册

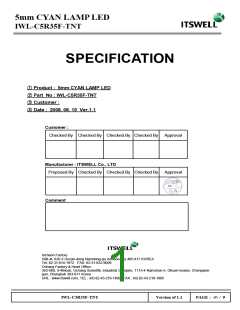

5mm CYAN LAMP LED
IWL-C5R35F-TNT
SPECIFICATION
① Product : 5mm CYAN LAMP LED
② Part No : IWL-C5R35F-TNT
③ Customer :
④ Date : 2008. 06. 10 Ver.1.1
Customer :
Checked By Checked By Checked By Checked By Approval
Manufacturer : ITSWELL Co., LTD
Proposed By Checked By Checked By Checked By Approval
Comment
Incheon Factory
58B-4L 626-3 Gozan-dong Namdong-gu Incheon-city 405-817 KOREA
Tel: 82-31-814-1972 FAX: 82-31-822-9009
Ochang Factory & Head Office :
363-880, 9-4Block, Ochang Scientific Industrial Complex, 1115-4 Namchon-ri, Oksan-myeon, Chengwon-
gun, Chungbuk 363-911 Korea
URL : www.itswell.com, TEL : int) 82-43-218-1800, FAX.: int) 82-43-218-1805
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Features
• Round Type type lamp
• 5mm resin mold type
• Colored Cyan ,Clear transparency lens type
• High luminous intensity
• Chip material based GaN
■ Absolute Maximum Ratings(Ta=25℃)
Parameter
Symbol
Value
105
Unit
mW
Power Dissipation
Pd
Continuous Forward Current
Peak Forward Current ※1
Reverse Voltage
IF
30
100
mA
mA
V
IFP
VR
5
Operating Temperature
Storage Temperature
Topr
Tstg
Tsol
-25 ~ 80
-40 ~100
260 (10sec)
℃
℃
Soldering Temperature
※1 Duty ratio = 1/10, Pulse width = 0.1ms
℃
■ Electro-optical Characteristics(Ta=25℃)
Parameter
Forward Voltage
Symbol
VF
Condition
IF= 10mA
VR= 5V
Min.
Typ.
-
Max.
3.5
10
Unit
V
3.0
Reverse Current
Luminous Intensity
Viewing angle
IR
-
2700
-
㎂
IV
IF= 10mA
IF= 10mA
4500
-
mcd
deg.
2Θ 1/2
35
495
507
nm
Spectrum radiation Bandwidth
IF= 10mA
△λ
※2 Luminous Intensity is tested by a tester calibrated by CAS 140B(CIE LED_B) and has an accuracy of 10%
※3 Viewing angle is the angle until 50% of brightness measured from the front part of LED.
※4 Dominant wavelength has an accuracy of ±1nm.
■ IV Rank
■ VF Rank
■ WD Rank
Rank
A
WD(nm)
495 - 497
Rank
P
IV(mcd)
Rank
VF(V)
2700 - 3500
3500 - 4500
a
b
c
d
e
3.0 - 3.1
3.1 - 3.2
3.2 - 3.3
3.3 - 3.4
3.4 - 3.5
B
497 - 499
499 - 501
501 - 503
503 - 505
505 - 507
Q
C
D
E
F
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Typical Curves
Forward Current vs.
Forward Voltage
Forward Current vs.
Ambient Temperature
100
10
40
30
20
10
0
℃
1
2.0 2.5 3.0 3.5 4.0 4.5
0
20
40
60
80
100
Forward Voltage(V)
Ambient Temperature( ℃)
Relative Luminous Intensity vs.
Ambient Temperature
Relative Luminous Intensity vs.
Forward Current
10
150
125
100
75
1
50
25
0.1
0
℃
20 40 60 80
-40 -20
0
0
10
20
30
Ambient Temperature( ℃)
DC Fordward Current(mA)
Relative Intensity vs. Wavelength
Radiation Diagram
RADIATION DIAGRAM
100
0
75
50
25
30
30
60
60
90
90
0
1.0
0.5
0.5
1.0
0
400 450 500 550 600 650
Wavelength(nm)
Relative Lumminous Intensity(%)
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Out Line Dimension
- With Stopper
- Without Stopper
1
2
2.5
2.5
1
2
1
2
■ Taping Dimension & Packing
- Bulk Packing
□ Inner Box
□ Bag packing
Label
75
105
230
□ Out Packing
▪ Maximum Inner Box 20 / 1 Box
30,000 pcs/ 1 Box
▪ Out box material : Carton
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
- Tapping Packing
Note :
1. Base Material : Fe Alloy
2. Lead Plating : Ag/Ni
3. Molding : Epoxy
4. Pb Free
Out Box
Label
Taping Box
Tapping Box (Carton)
1 Tapping box / Pack with Silica gel
Maximum 10 tapping box / Box
20,000 pcs/ Box
2,000 pcs/ 1 Tapping
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Precaution in use
① Soldering Conditions
. When soldering Dome LED , Heat may affect the electrical and optical characteristics of the
LEDs.
. In soldering, do not stress the lead frame and the resin part under the high temperature.
. The epoxy part should be protected from mechanical stress or vibration until the Dome
LEDs return to room temperature after soldering.
▪ Preliminary heating to be at 180℃ max. for 120 Seconds max.
▪ Soldering heat to be at 260℃ max. for 5sec. Max.
▪ For manual Soldering is Not more than 3sec @MAX350℃, under soldering iron
2~2.5 sec. Max.
6
20℃Max. 5sec
Pre-heating
℃
120~150
60sec. Max.
Above 200℃
℃
2~2.5 /sec.
120sec. Max.
Time (sec.)
② Storage
. Use with 7days after opening packing. Store in 10 to 30 ℃ Dome LED lead frames are
plated silver. The silver surface may be affected by environment which contain corrosive
gases and so on. Please avoid condition which may cause the
Dome LED to corroded, tarnish or discolor.
③ Static Electricity
. Static electricity or surge voltage damages the Dome LEDs. It is recommended that a
wrist band or an anti-electrostatic glove be used when handling the LEDs.
. A tip soldering iron is requested to be grounded. An ionizer should also be installed where risk
of static.
. All devices, equipment and machinery must be properly grounded (via 1MΩ). It is
recommended that measures be taken against surge voltage to the equipment that mounts the
Dome LEDs.
④ Cleaning
. Isopropyl Alcohol or Ethylene Alcohol is recommended in 5 minutes at room temperature.
Don’t use unspecified chemical may cause crack or haze on the surface of the epoxy resin.
. Before cleaning, a pre-test should be done to confirm whether any damage to the Dome
LED will occur.
. Freon solvents should not be used to clean the Dome LEDs because of worldwide regulations.
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Reliability
- Reliability Test Item
Standard Test
Number of
Damaged
Test Item
Method
Test Conditions
Tsld = 260℃, 5sec.
Note
JEITA ED-4701
300 301
Resistance to Soldering
Heat (Reflow Soldering)
2 times
0/50
0/50
(Pretreatment 30 ℃, 70%, 168hrs)
Solderabilty
JEITA ED-4701
200 303
1 time
Tsld = 235 ± 5℃, 5sec.
(Lead Solder)
(Reflow Soldering)
Over 95%
JEITA ED-4701
100 105
-40 ℃ ~ 100 ℃
Thermal Shock
100 Cycles
100 Cycles
1000hrs
0/50
0/50
0/50
0/50
15sec 15sec
JEITA ED-4701
100 105
-40 ℃ ~ 25℃~ 100℃ ~ 25 ℃,
Temperature Cycle
High Temp. Storage
Temp. Humidity Storage
Low Temp. Storage
30min 5min 30min 5min
JEITA ED-4701
200 201
Ta = 100℃
JEITA ED-4701
100 103
Ta = 60 ℃, RH = 90%
Ta = -40 ℃
1000hrs
JEITA ED-4701
200 202
1000hrs
0/50
0/50
Steady State Operating Life
Condition
-
-
-
-
Ta = 25 ℃, IF = 20mA
Ta = 85 ℃, IF = 5mA
60 ℃, RH = 90%, IF = 15mA
Ta = -30, IF = 20mA
1000hrs
1000hrs
500hrs
Steady State Operating Life
of High Temp.
0/50
0/50
0/50
Steady State Operating Life
of High Humidity Heat
Steady State Operating Life
of Low Temp.
1000hrs
- Criteria for Judging the Damage
Items
Test Conditions
Criteria for judgment
> 70% of S
Less than 120% of U
Luminous Intensity ( IV )
IF = 10mA
IF = 10mA
Forward Voltage
( VF )
* U means the upper limit of specified characteristics, S means initial value.
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Part Name Description
I W L – C 5 R 35 F - TNT
Option : T : Water clear, N : With No Stopper, T : Taping
F : With Flange
View Angle : 350
R : Round Type
Size : 5mm
Color : Cyan
L : Dome LED Lamp
IT : Company Name, ITSWELL Co., Ltd.
■ ATTENTION : Electric Static Discharge (ESD) Protection
The symbol shown on the page herein to introduce ‘Electro-Optical
Characteristics’. ESD protection for GaP and AlGaAs is based chips is still
Necessary even though they are safe in low static-electric discharge.
Material in AlInGaP, GaP, or/and InGaN based chips are static sensitive
devices. ESD protection has to considered and taken in the initial design stage.
If manual work/process is needed, please ensure the device is well protective
From ESD during all the process.
LED’s ESD Level is ‘Class 2’ and The range of Forward Voltage is 1999V ~ 3999V.
■ ATTENTION : Precaution in drive
I
Reverse Voltage 0.7V
V
LED+Zener Diode
▪ Do not apply reverse voltage more than 0.7V.
▪ Product with Zener Diode is needed to discriminate the characteristics of product by fixing current
and measuring voltage.
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
5mm CYAN LAMP LED
IWL-C5R35F-TNT
■ Spec. Review History
Review Ver.
Ver 1.1
Date
Correction List
Establish
Etc.
2008.06.10
IWL-C5R35F-TNT
Version of 1.1
PAGE : ‹#› / 9
